Accessory Drive Belt - With A/C
ACCESSORY DRIVE BELT - With A/CRemoval and Installation7.3L engine 1.
Drain the coolant system.
Service and Repair 2.
Disconnect the upper radiator hose.

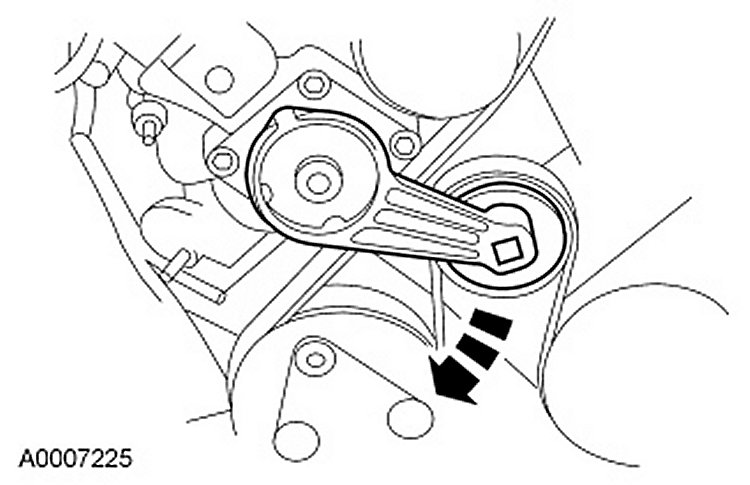

All vehicles 3. Rotate the drive belt tensioner clockwise and remove the
drive belt.
4.
NOTE: For correct belt routing, refer to
Description and Operation To Install, reverse the removal procedure.
