Power Distribution Diagrams

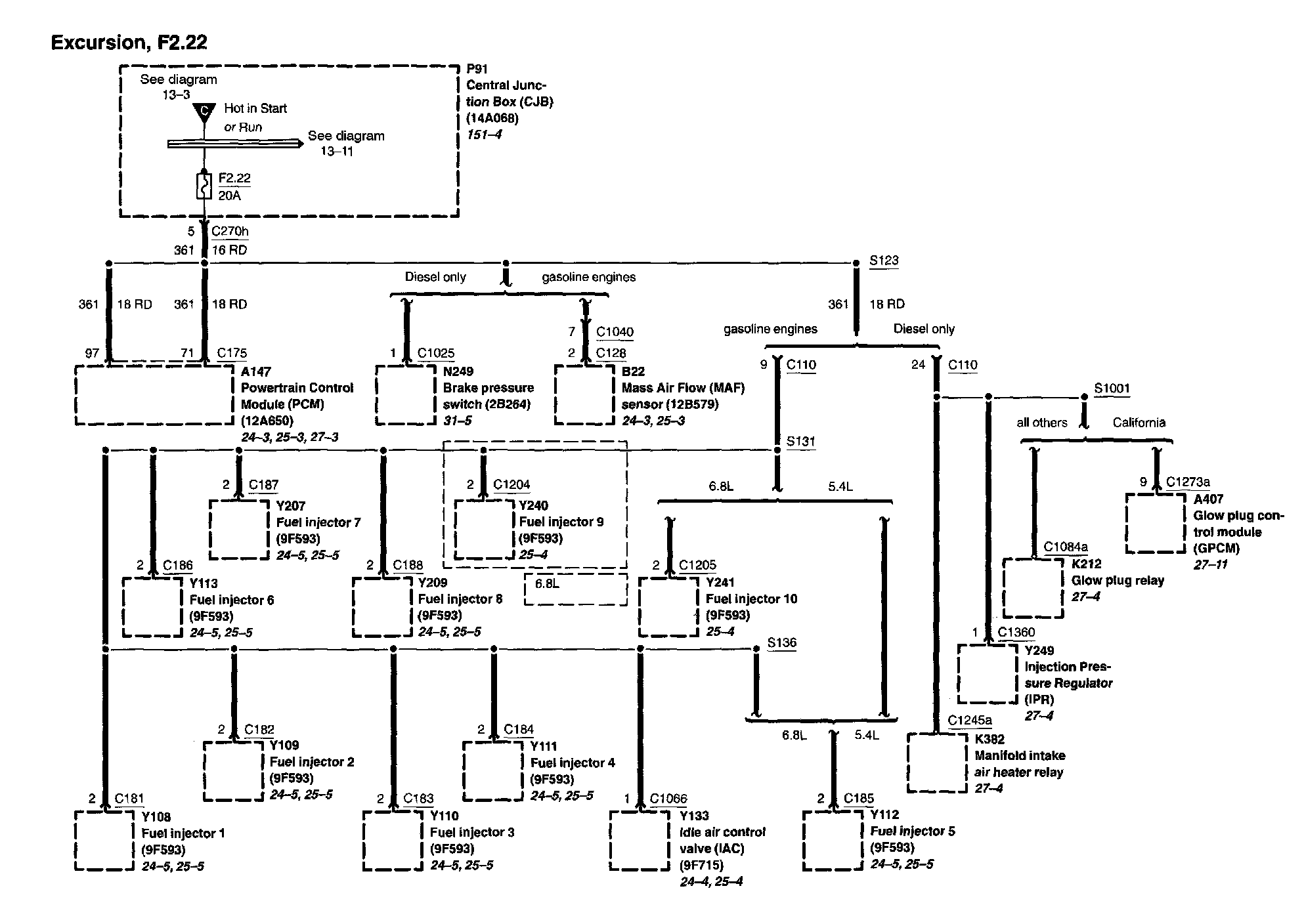

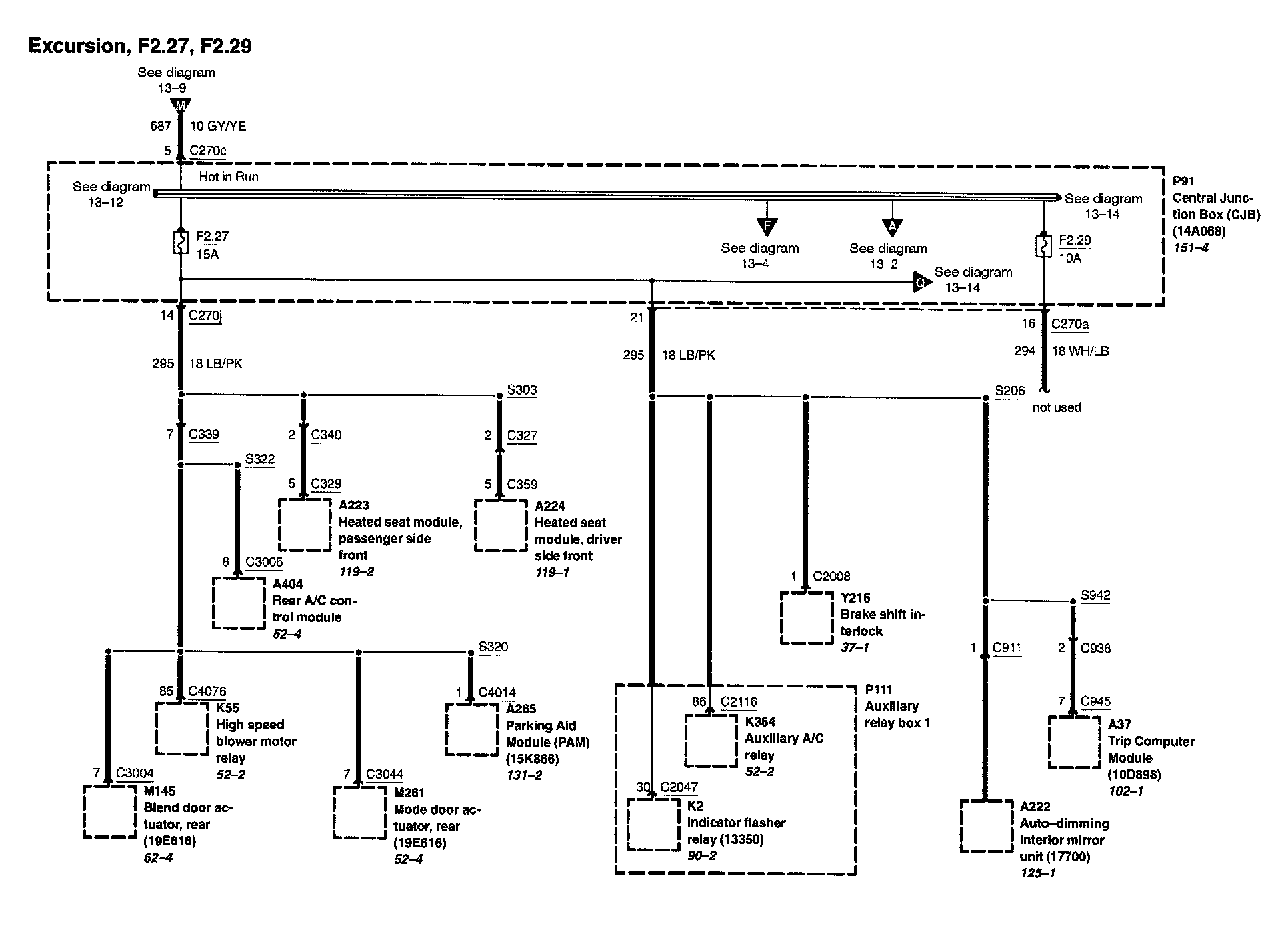

Diagram 13-1:

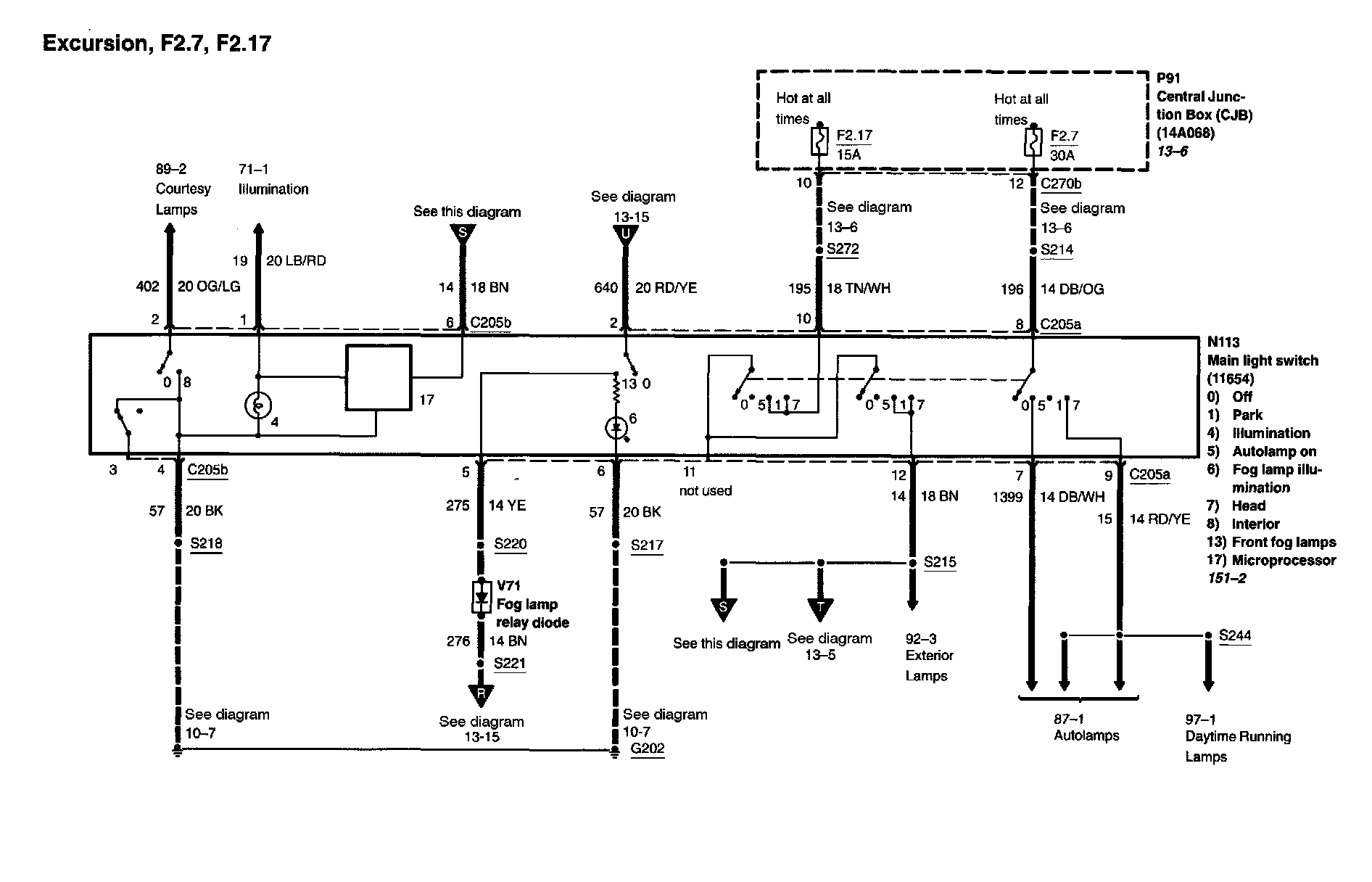

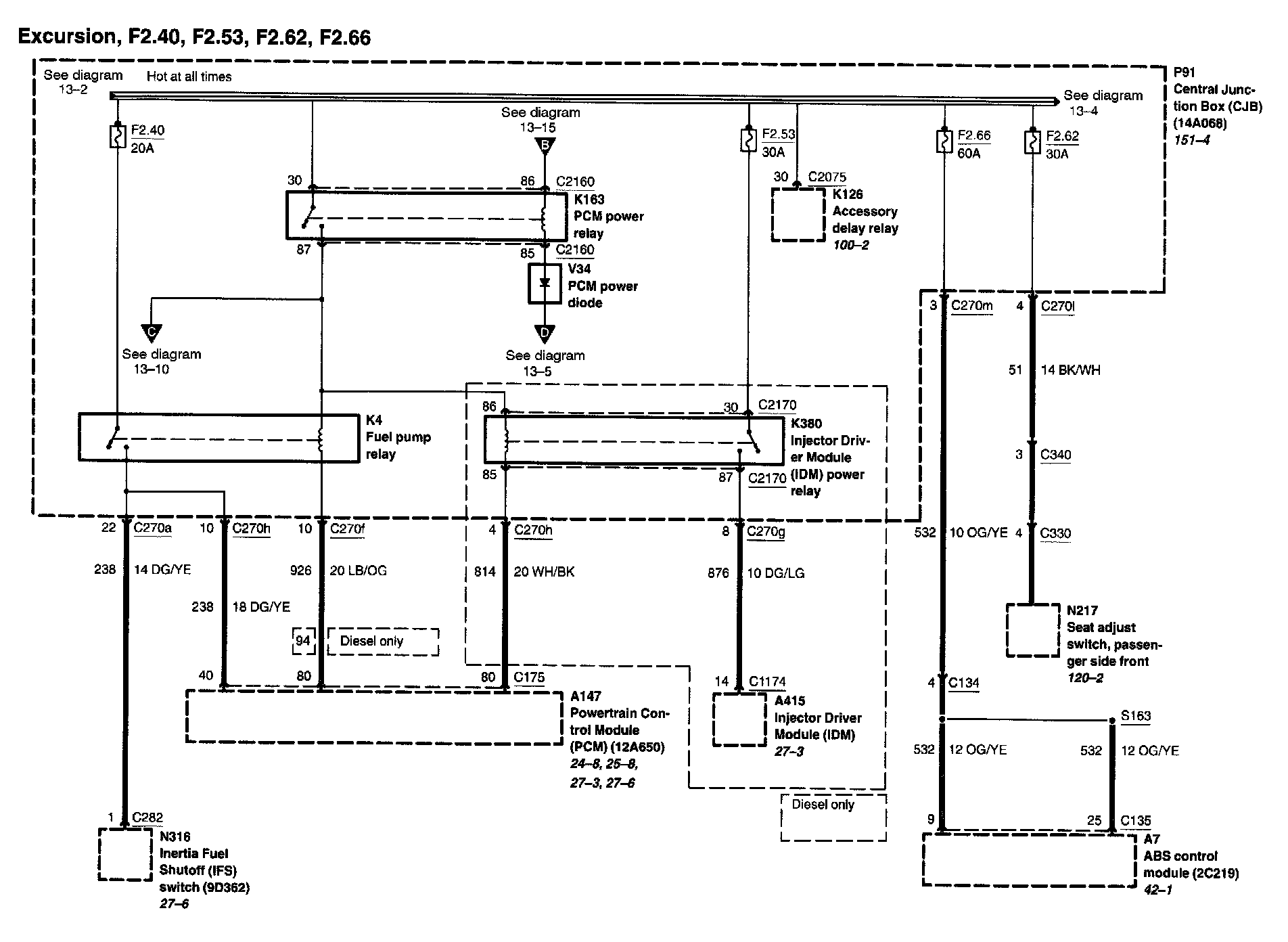

Diagram 13-2:

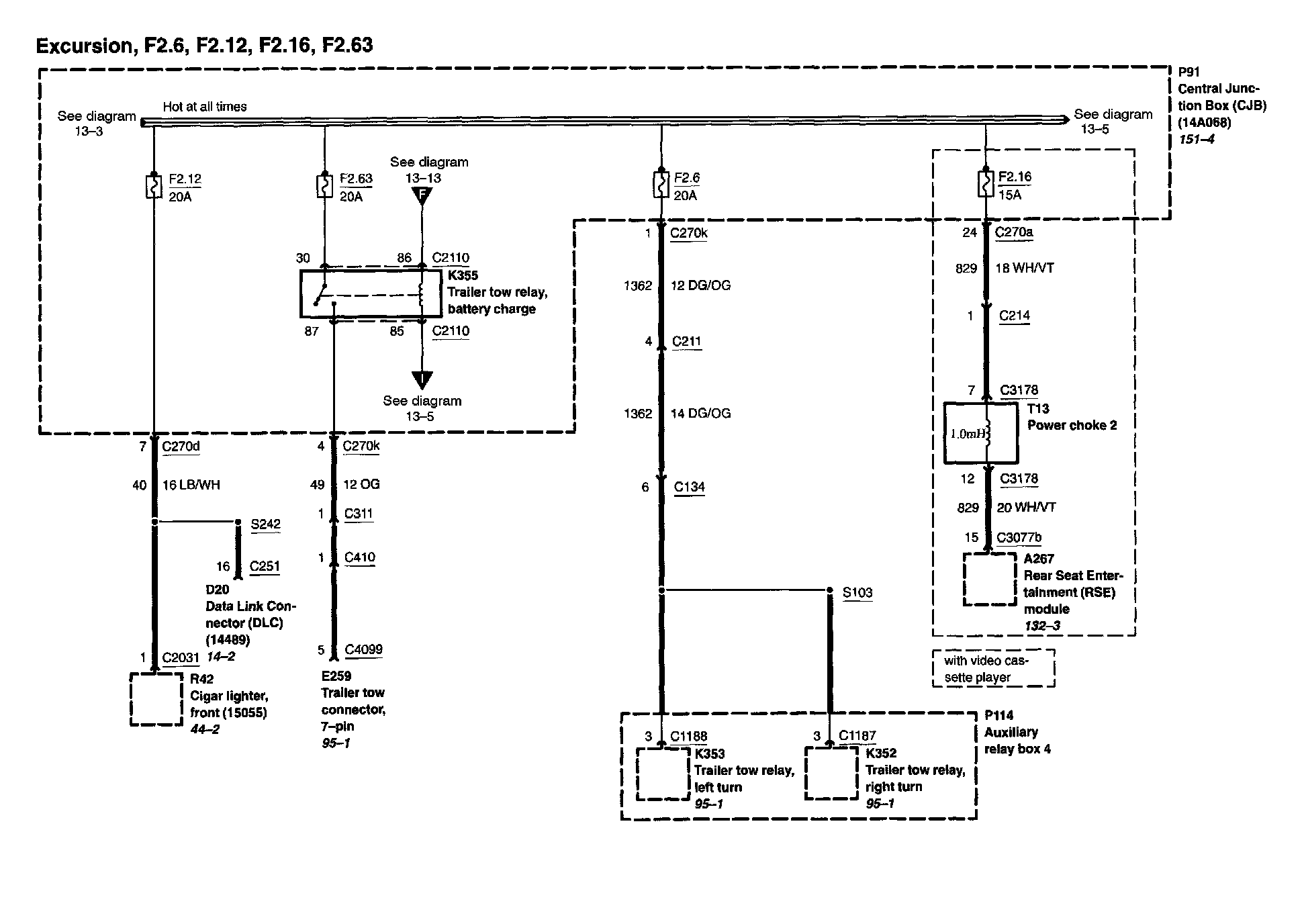

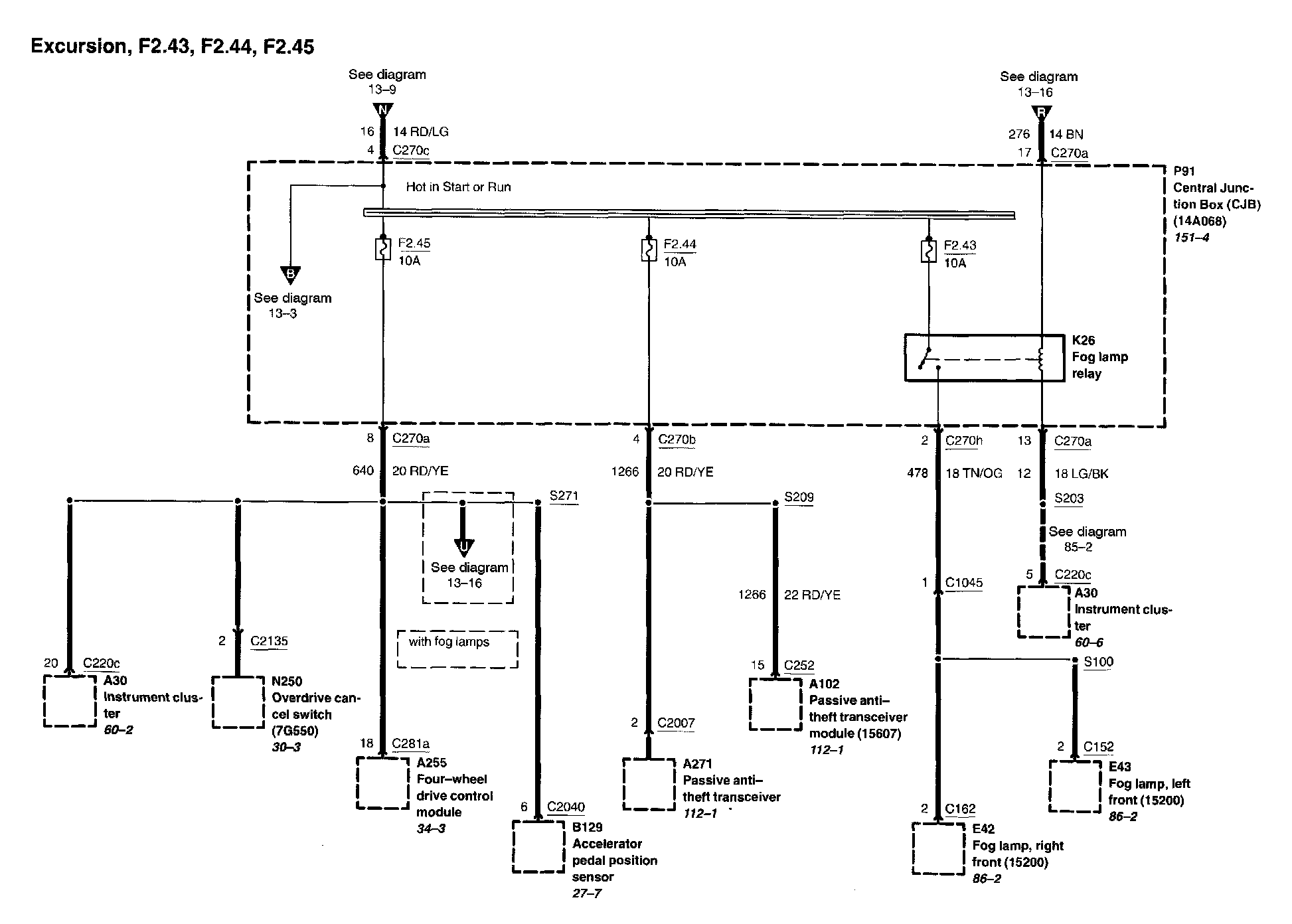

Diagram 13-3:

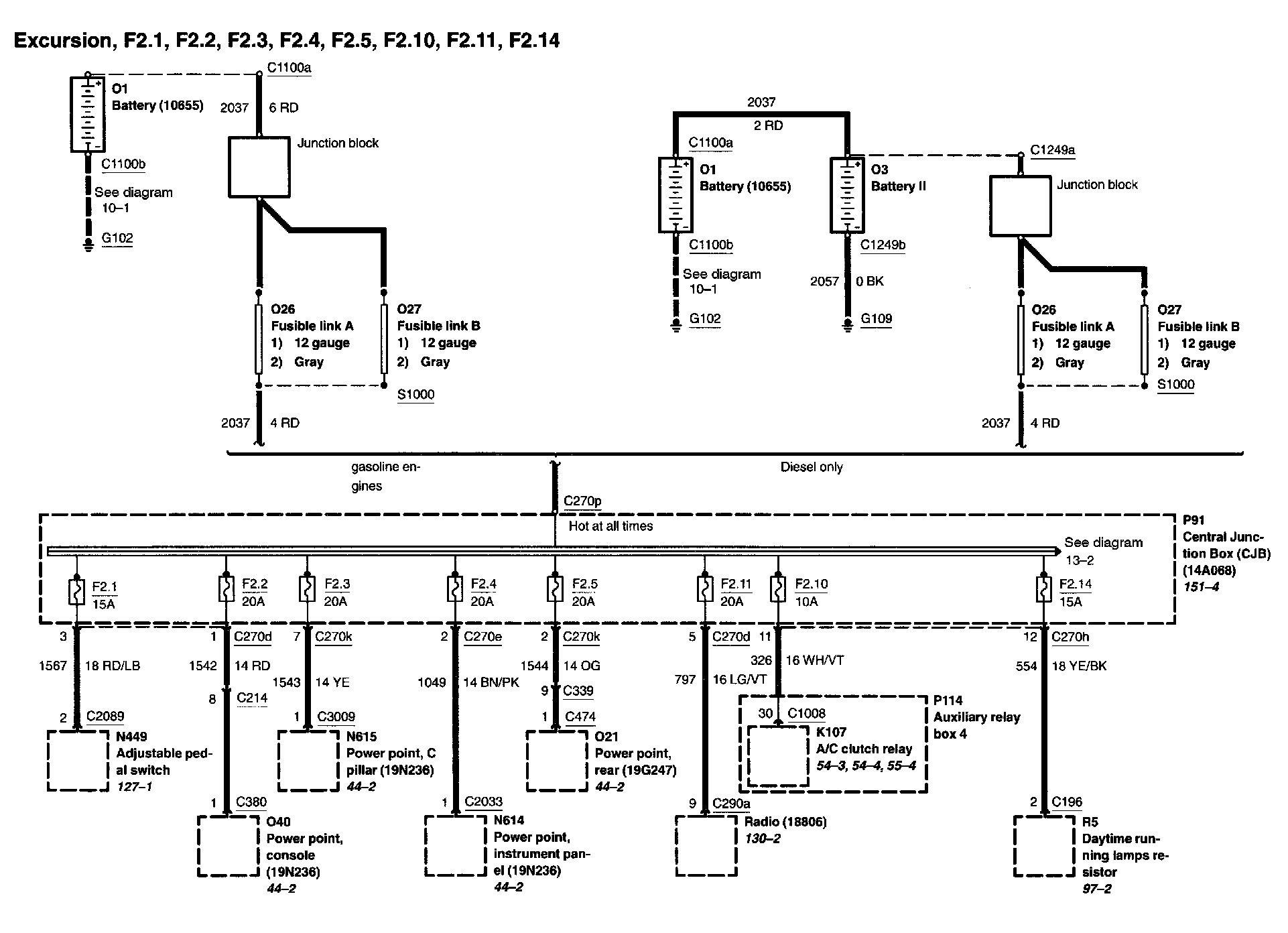

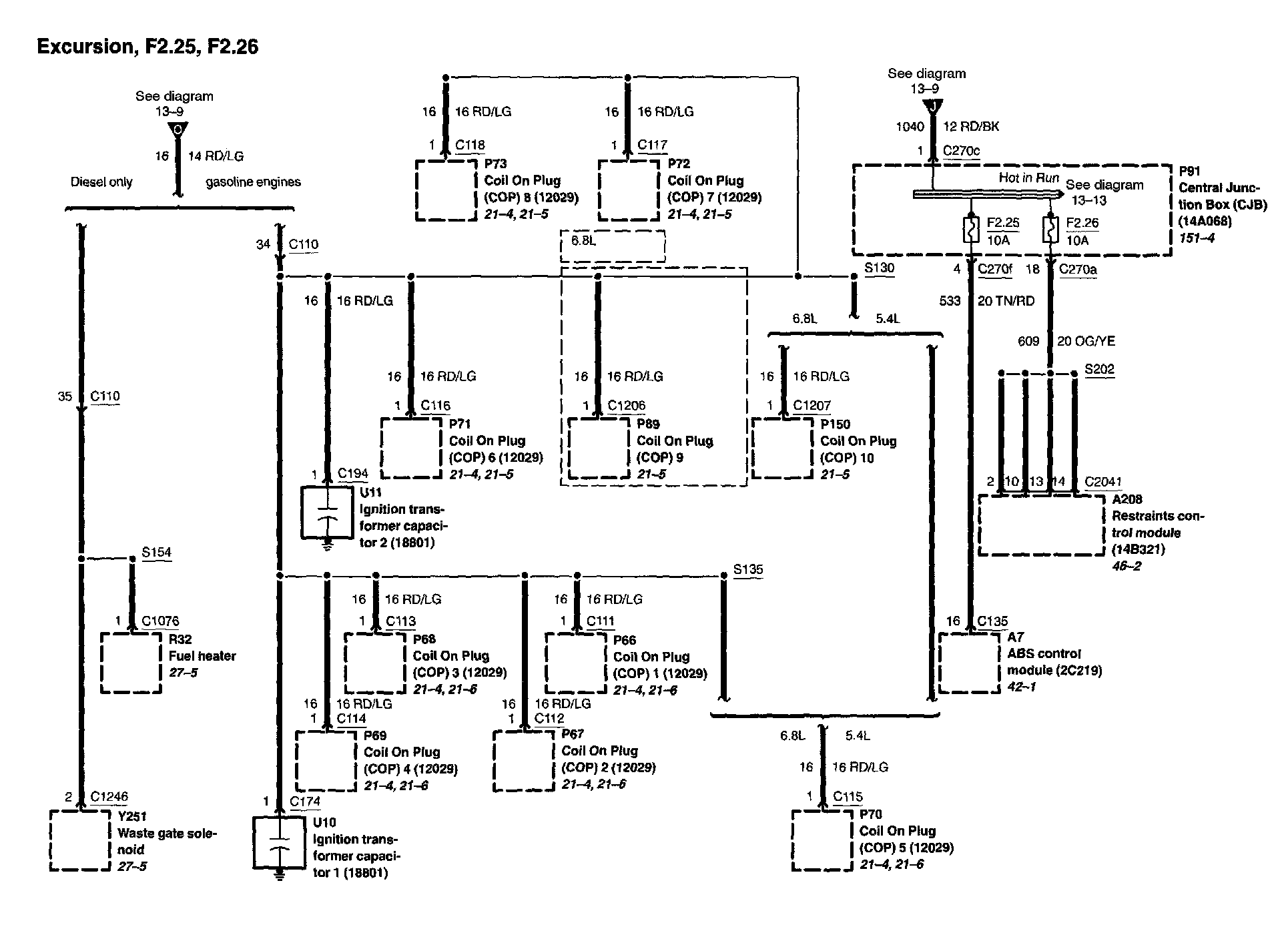

Diagram 13-4:

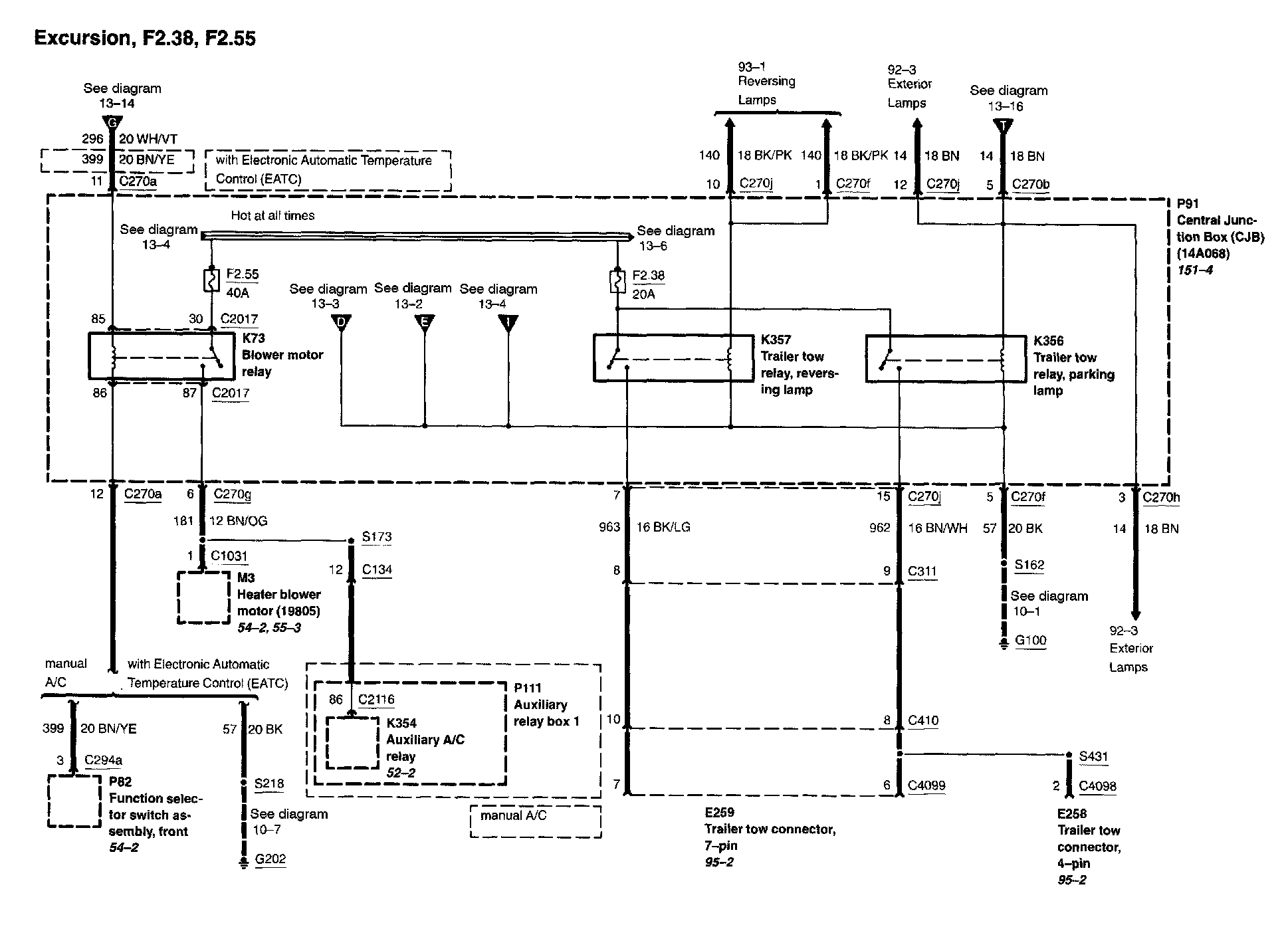

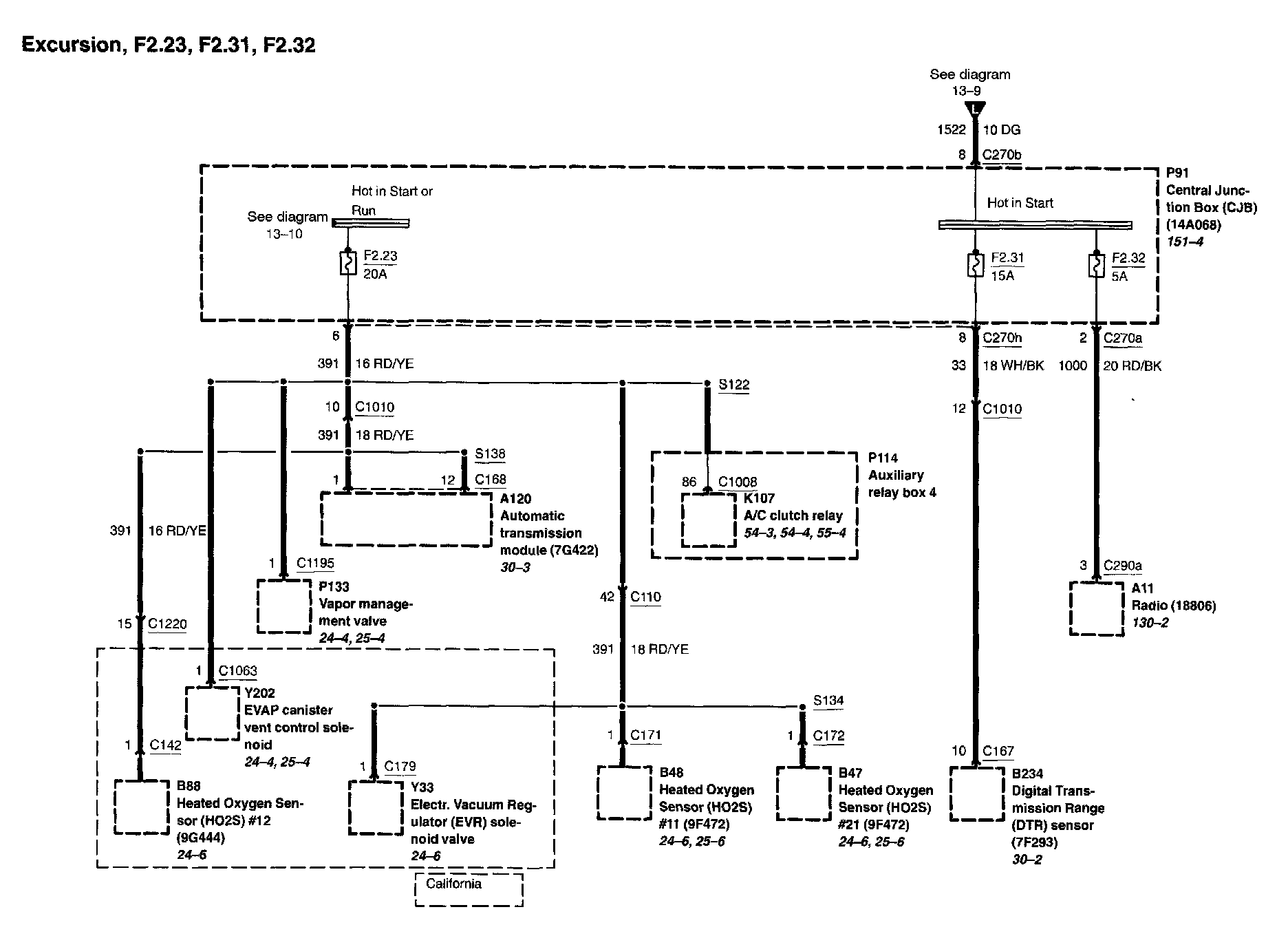

Diagram 13-5:

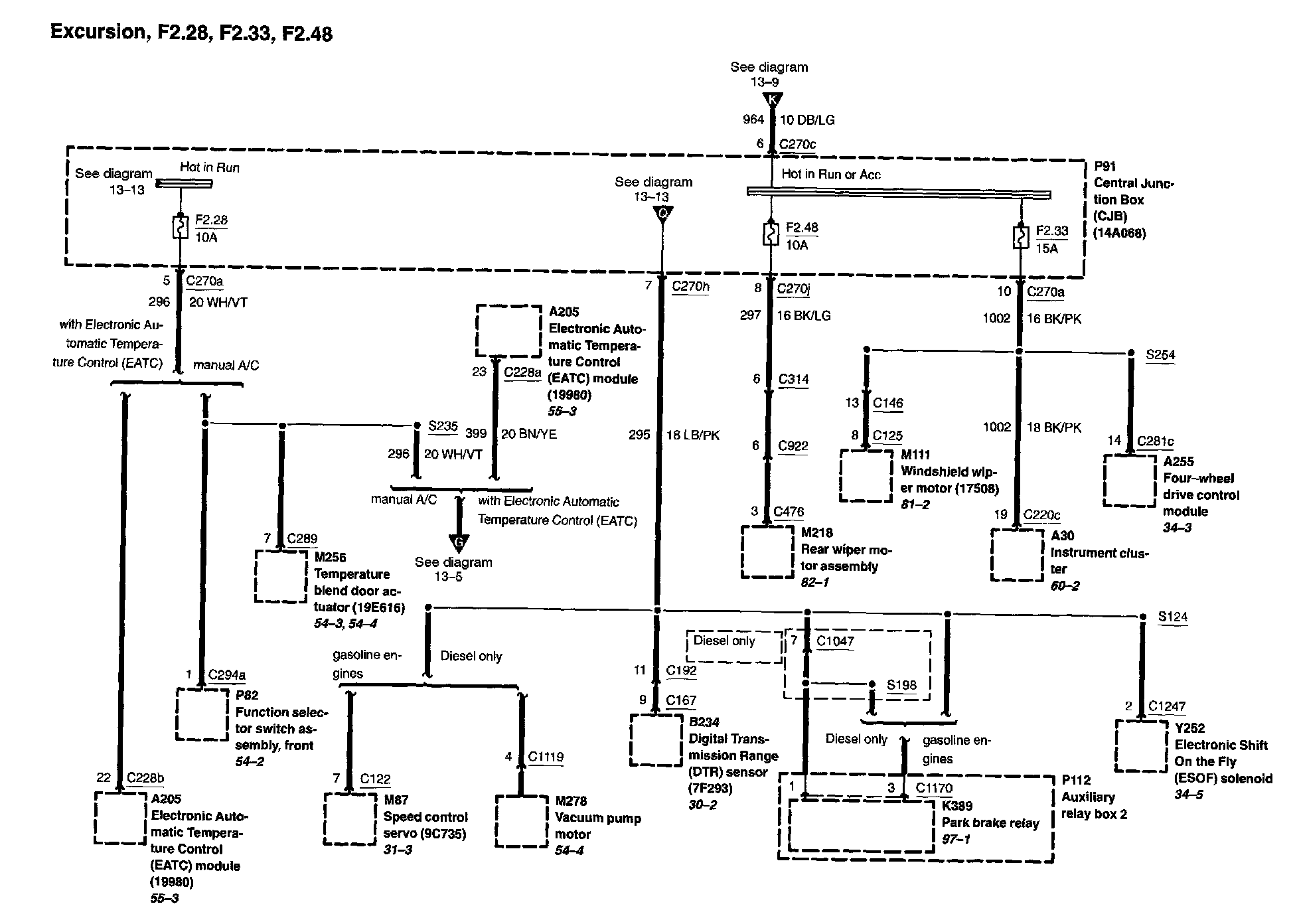

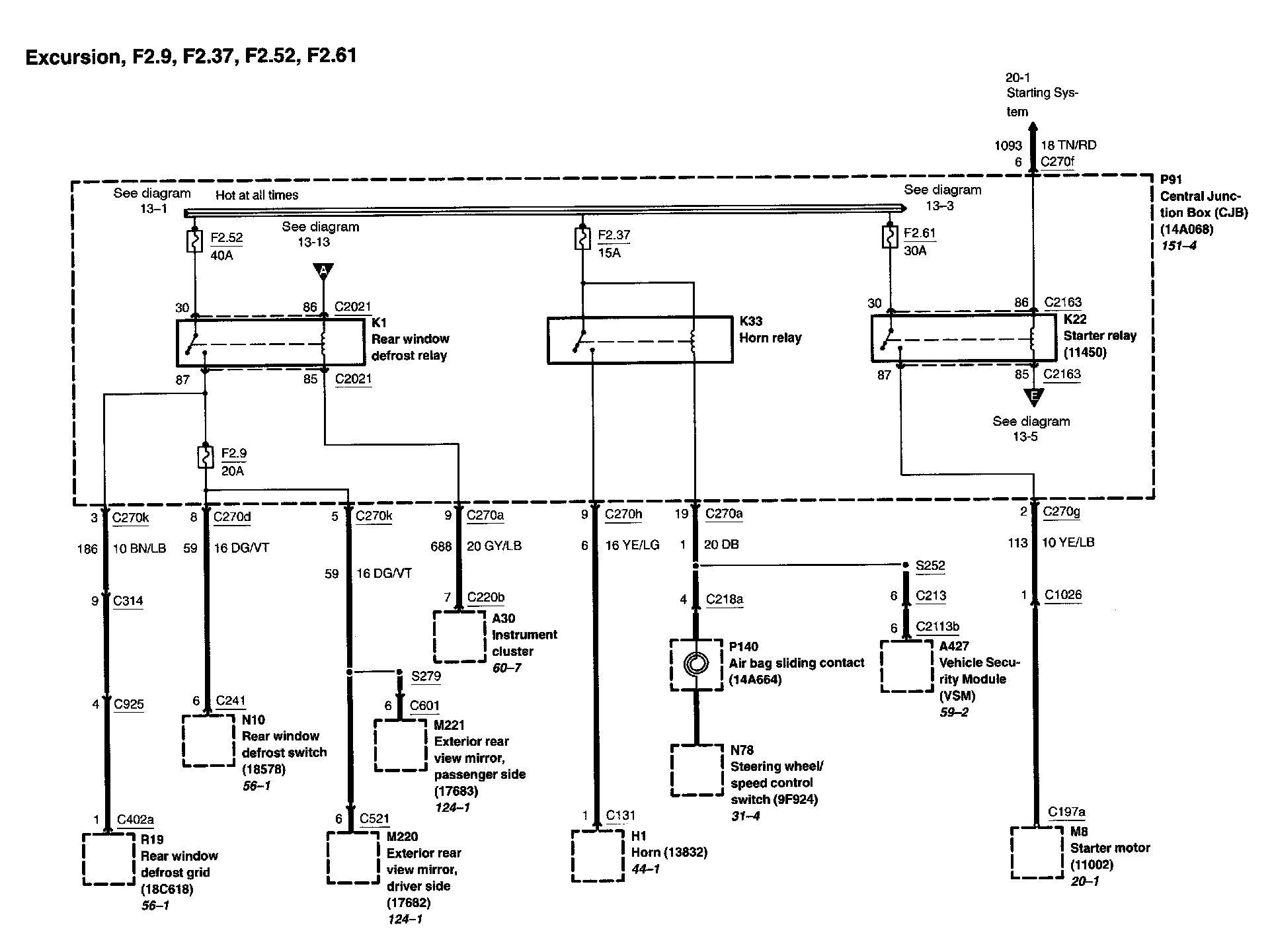

Diagram 13-6:

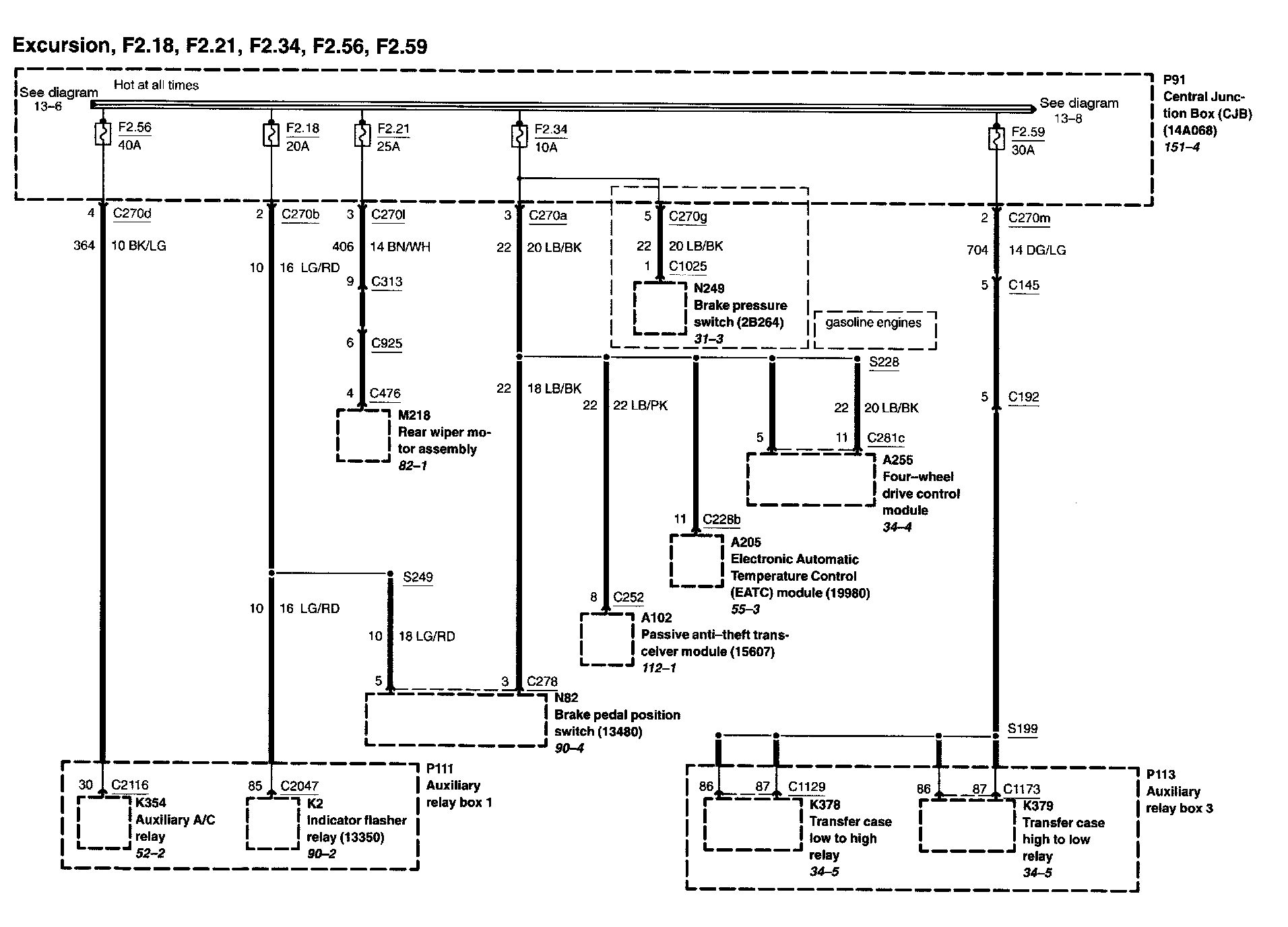

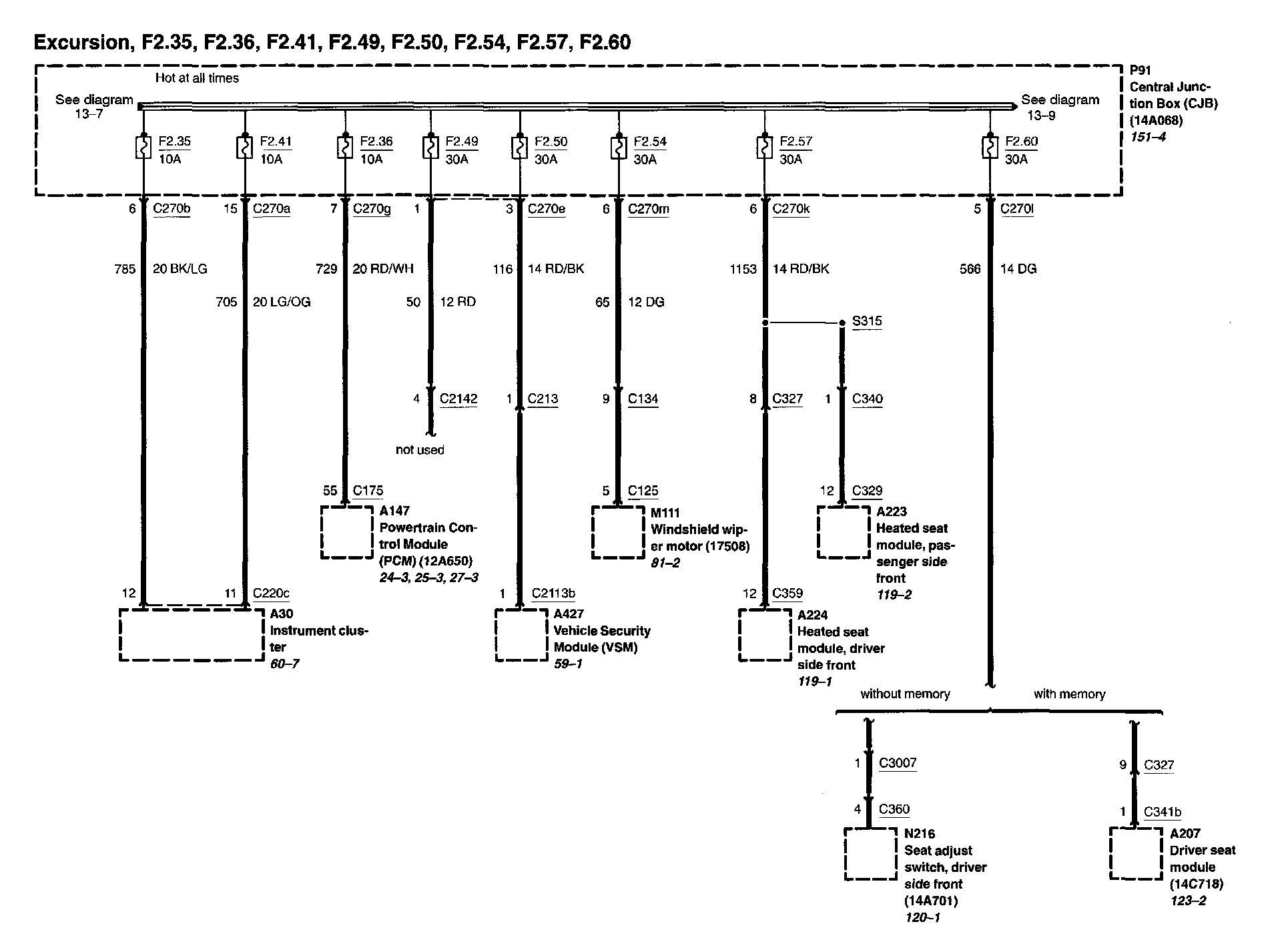

Diagram 13-7:

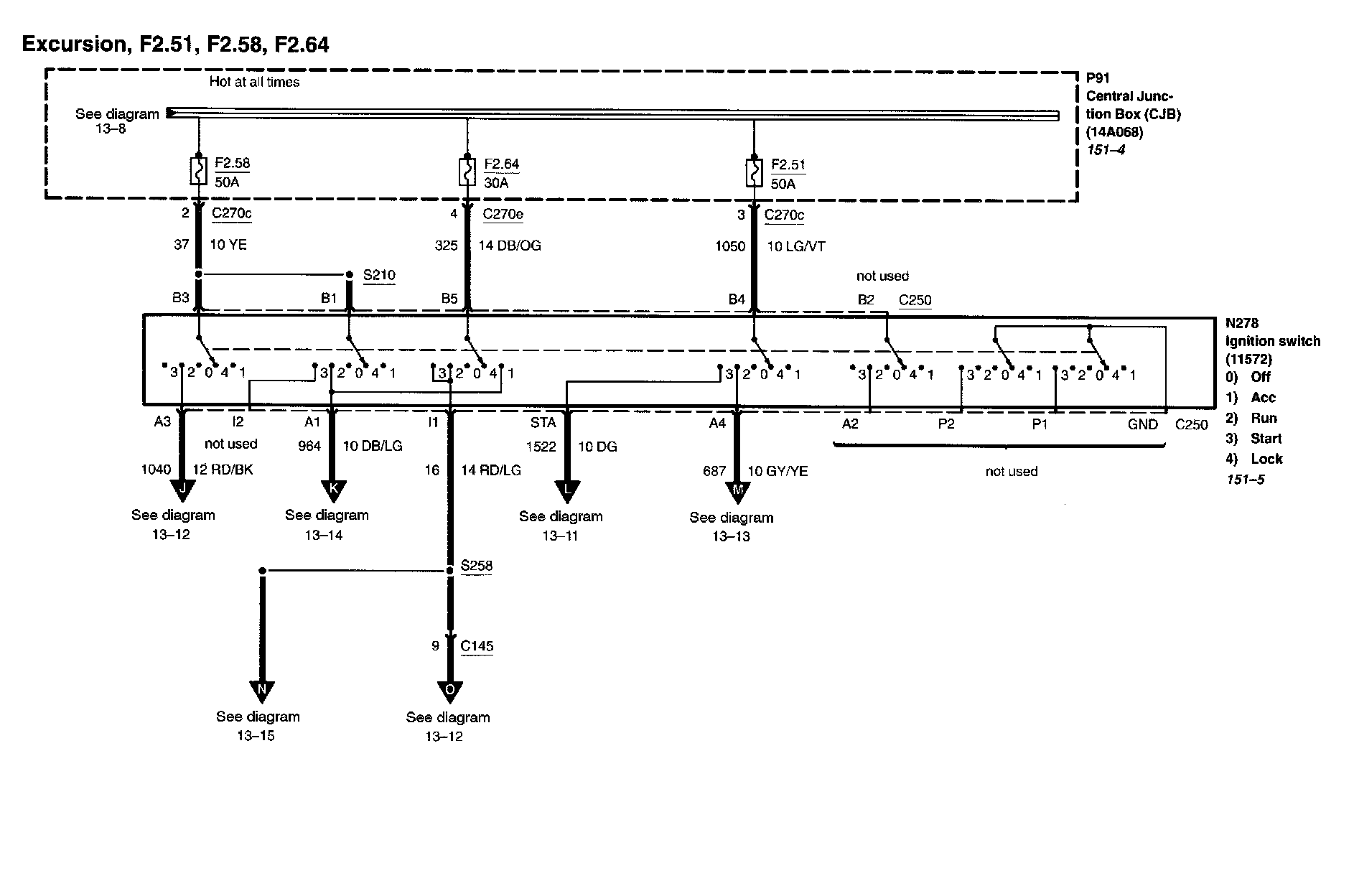

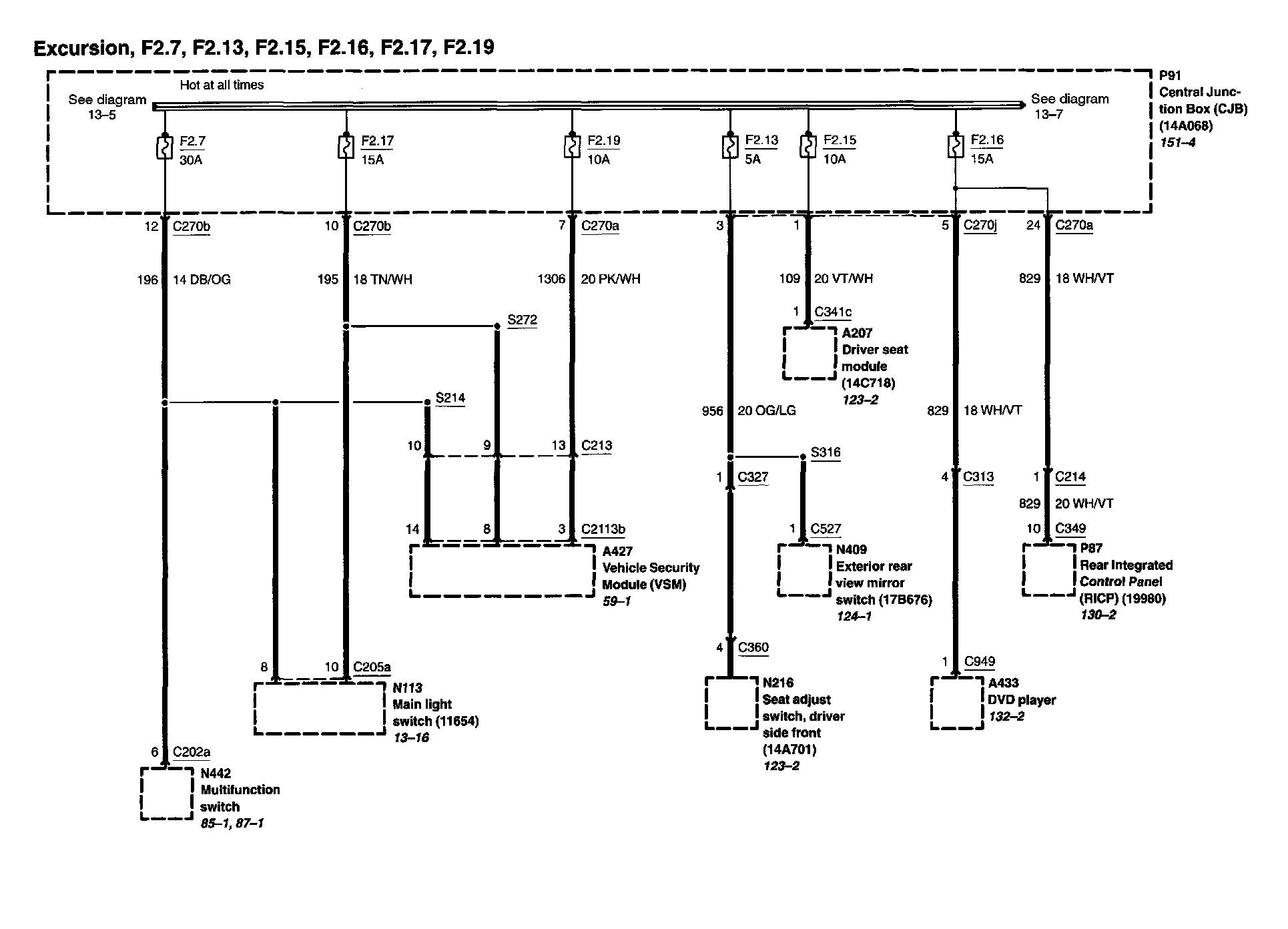

Diagram 13-8:






Diagram 13-9:






Diagram 13-10:






Diagram 13-11:






Diagram 13-12:






Diagram 13-13:






Diagram 13-14:






Diagram 13-15:






Diagram 13-16:
