Diagnostic Trouble Code Tests and Associated Procedures

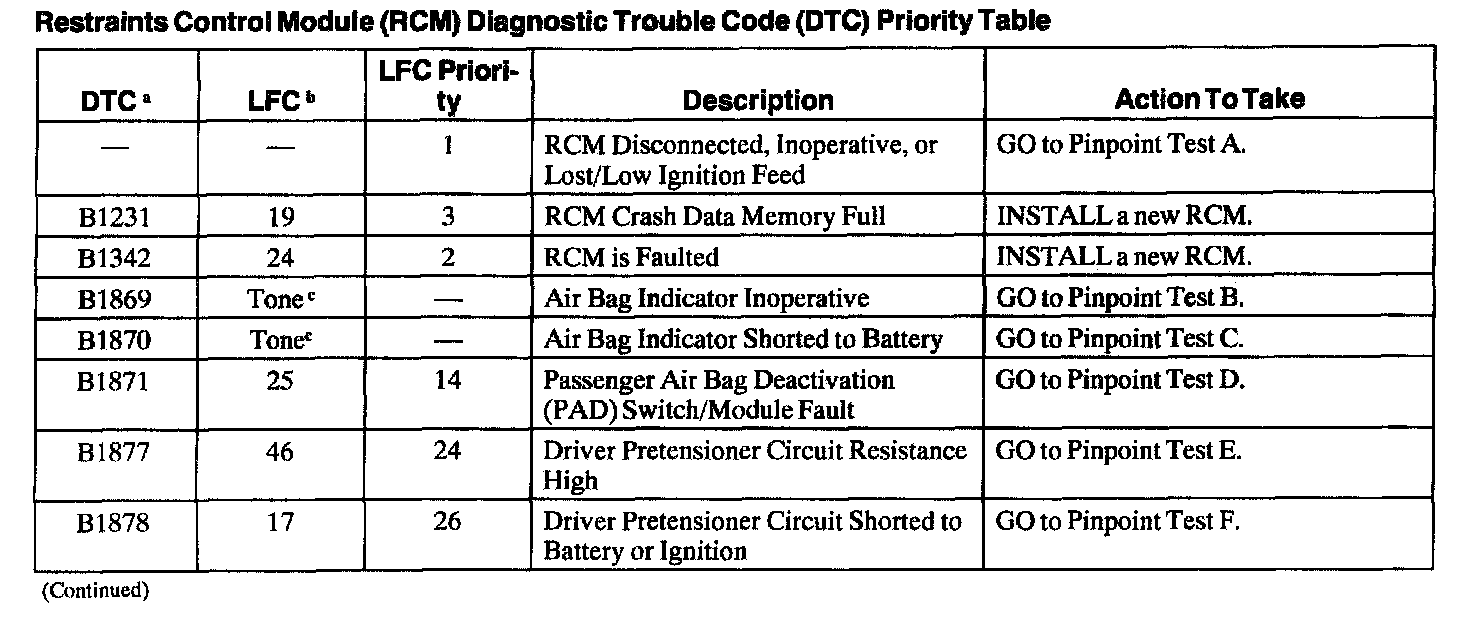

DTC Priority Table B1231 - B1878:

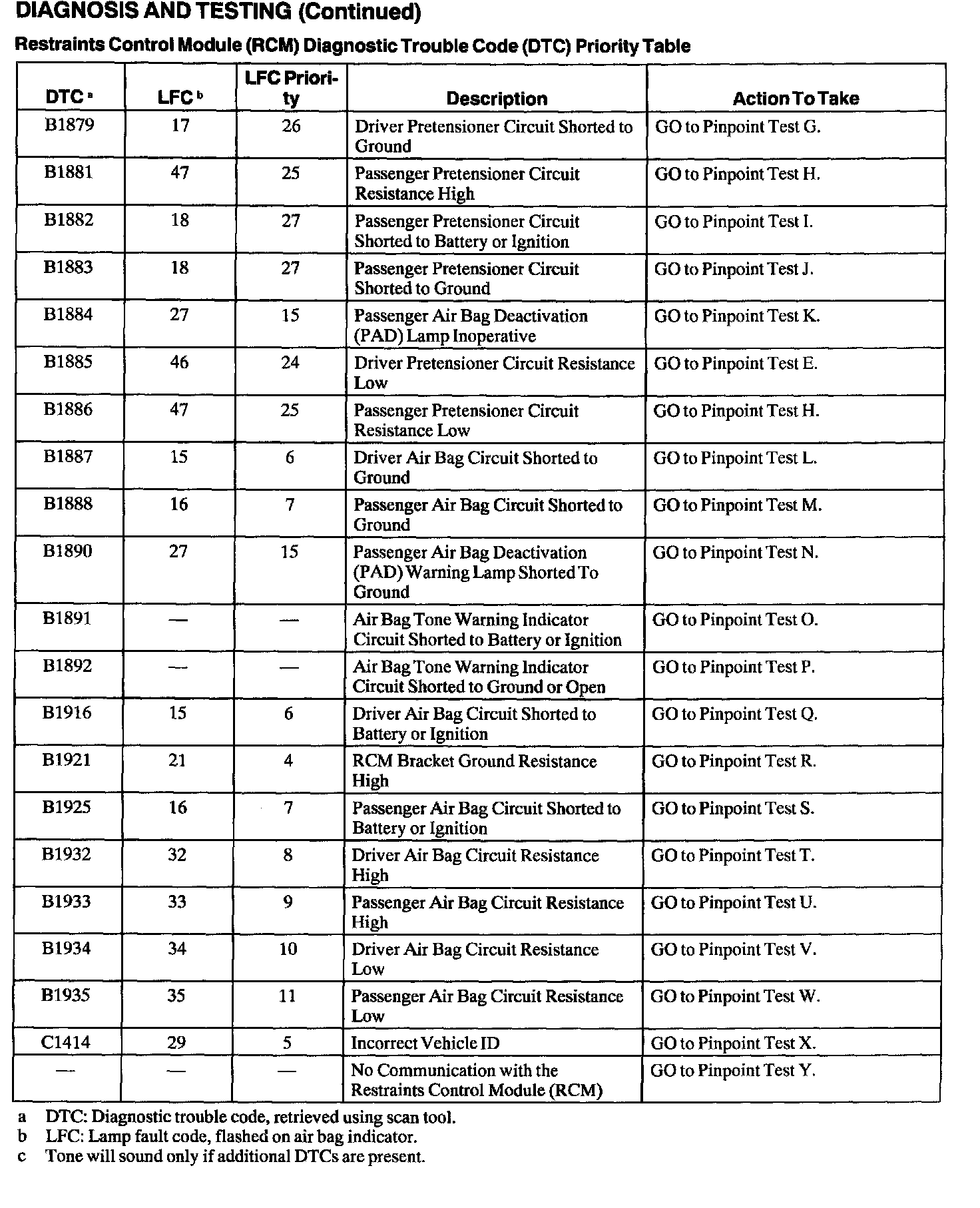

DTC Priority Table B1879 - C1414:
While the Lamp Fault Codes
(LFCs) are an indication of a general concern in the passive restraints system, the Diagnostic Test Codes
(DTCs) are more specific. The DTCs can be retrieved from the restraints control module (RCM) with a scan tool via the Data Link Connector
(DLC).
