Test D: Digital Transmission Range (TR) Sensor

PINPOINT TEST D: DIGITAL TRANSMISSION RANGE (TR) SENSOR

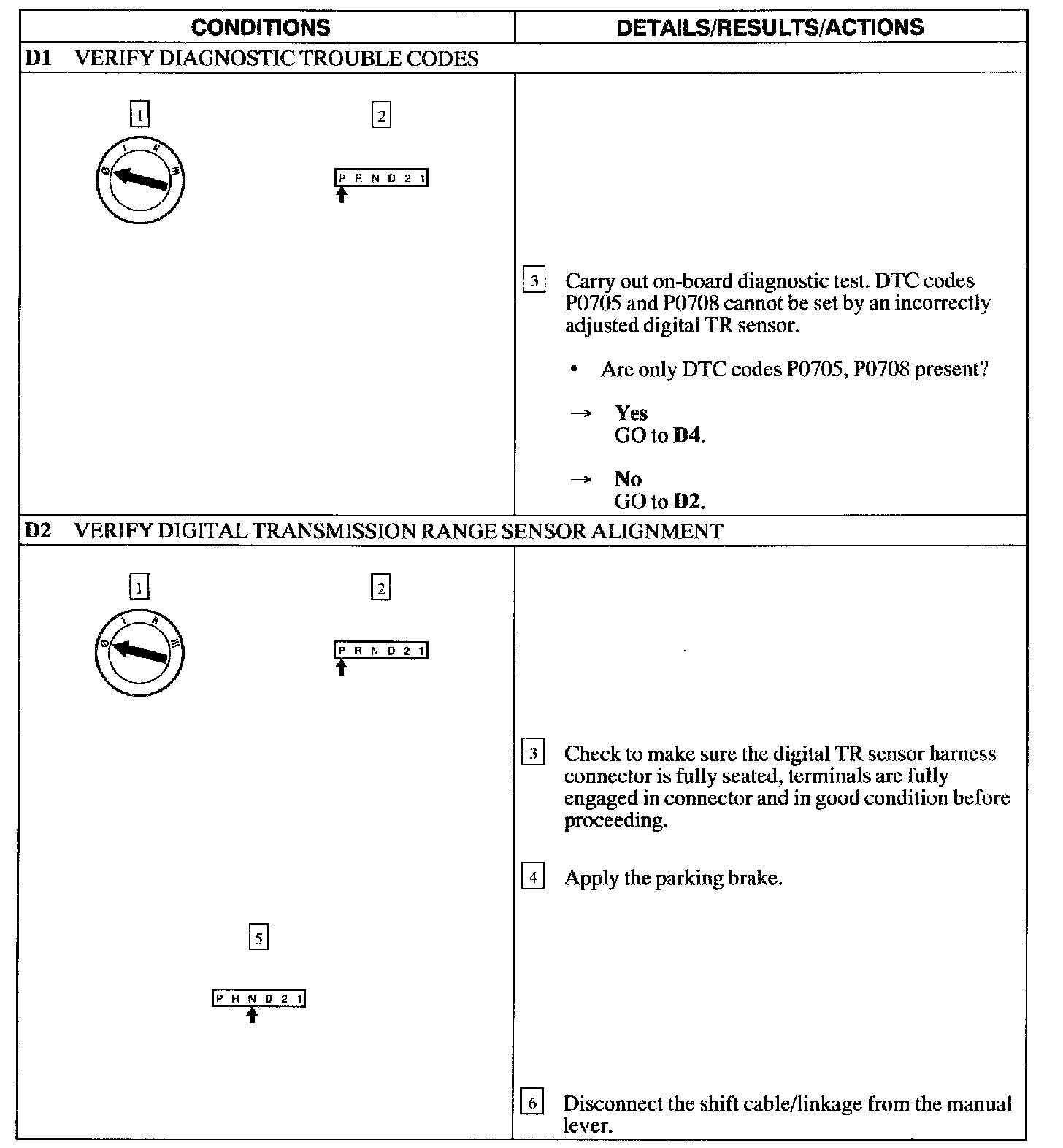

D1 - D2

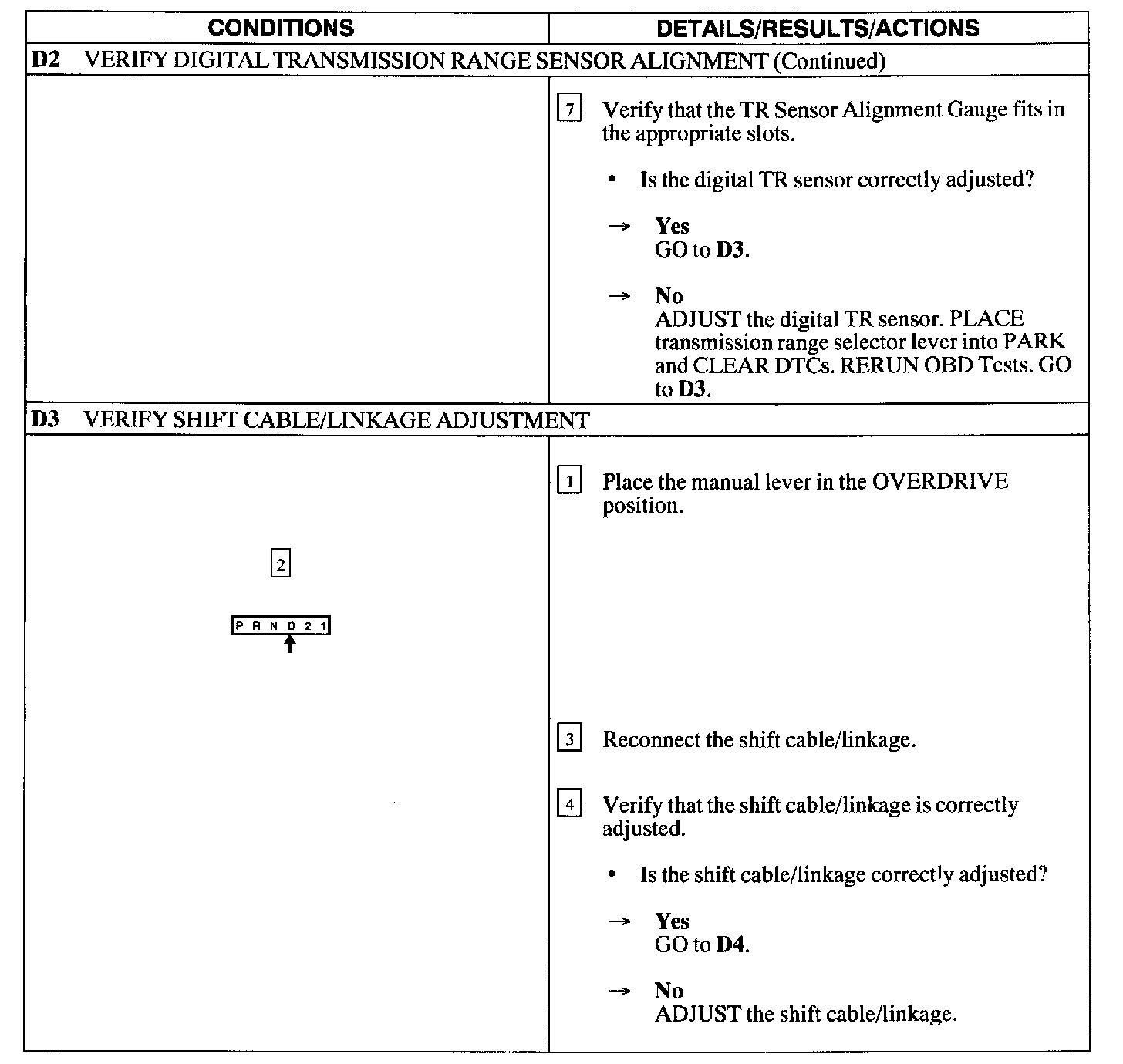

D2 - D3

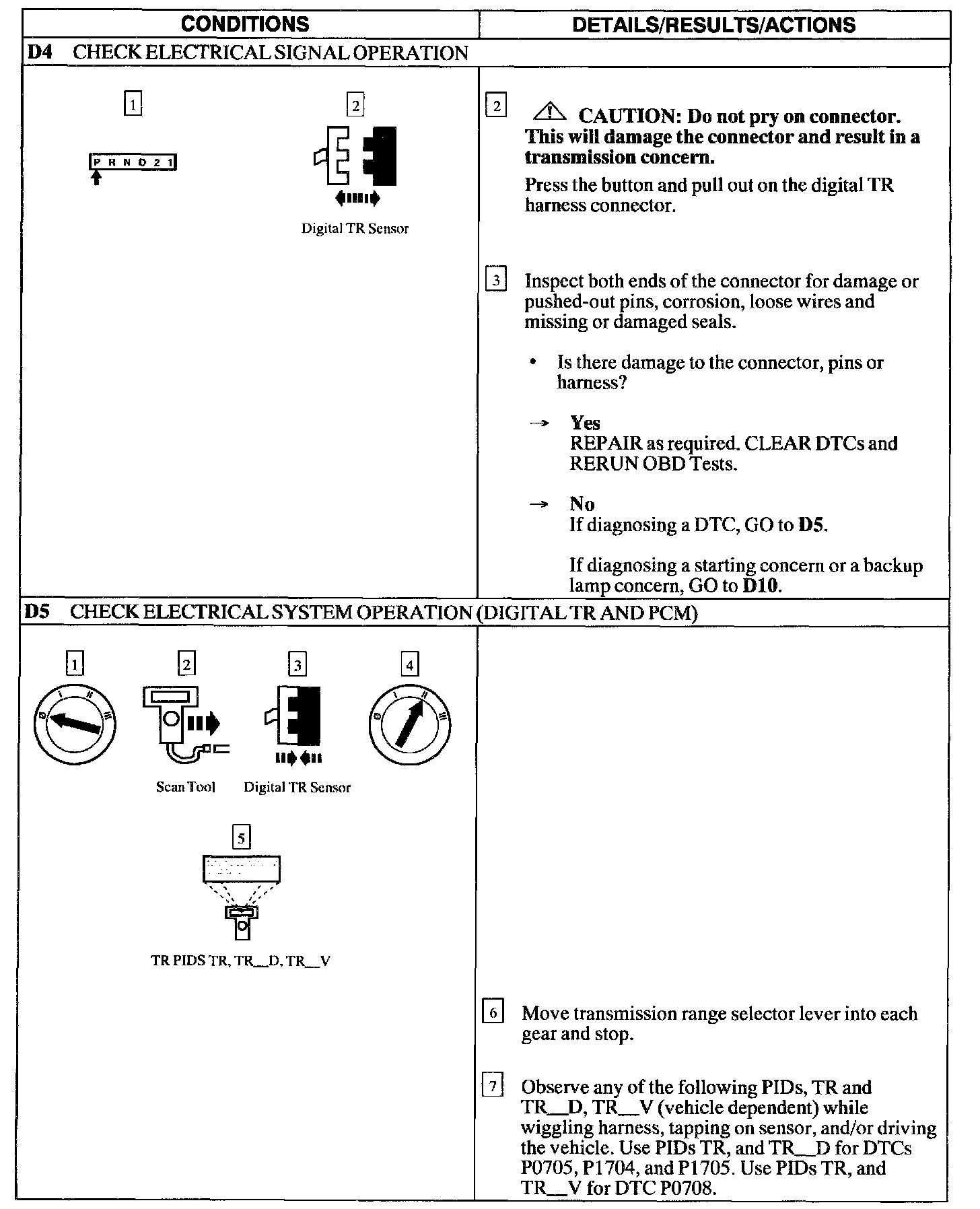

D4 - D5

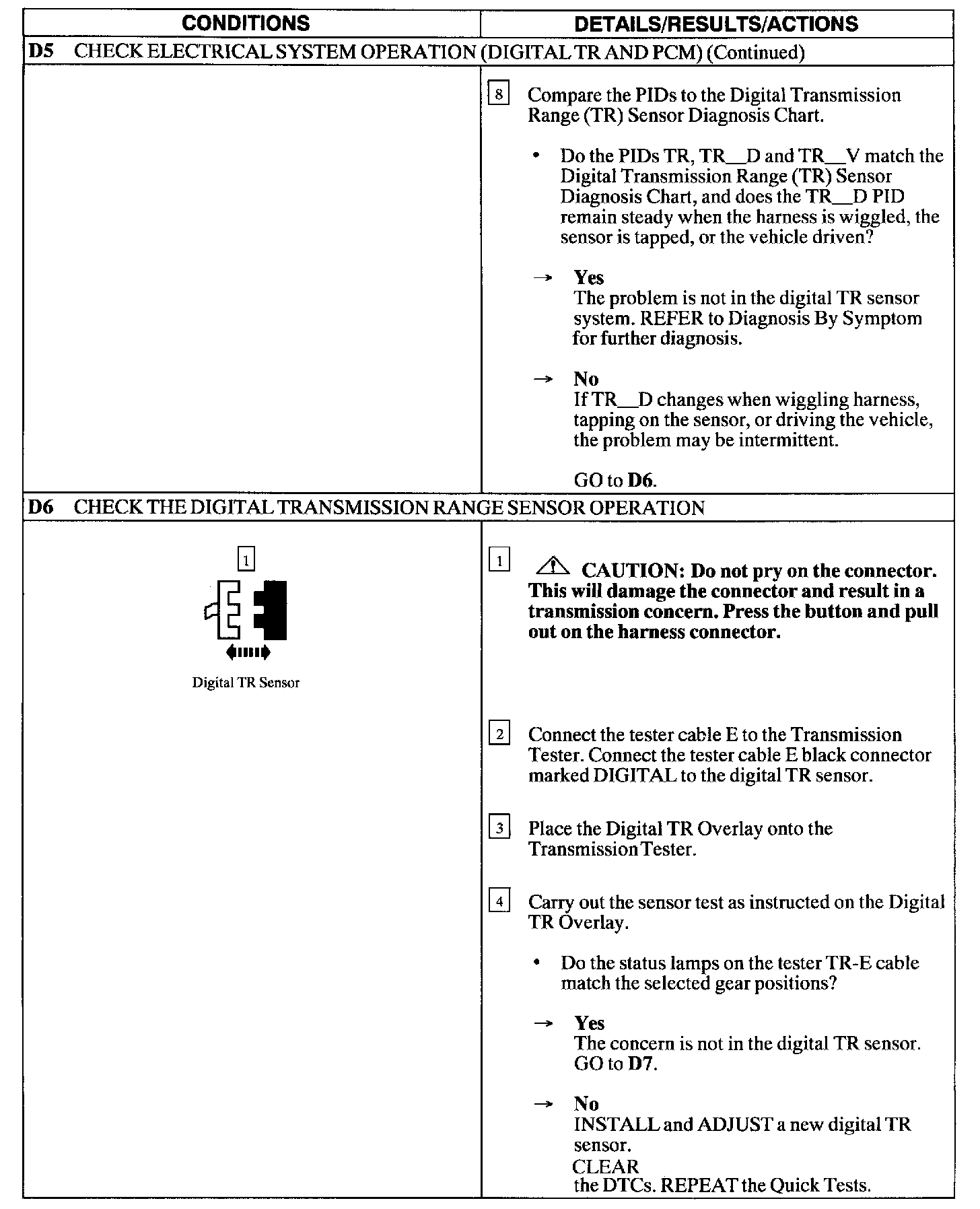

D5 - D6

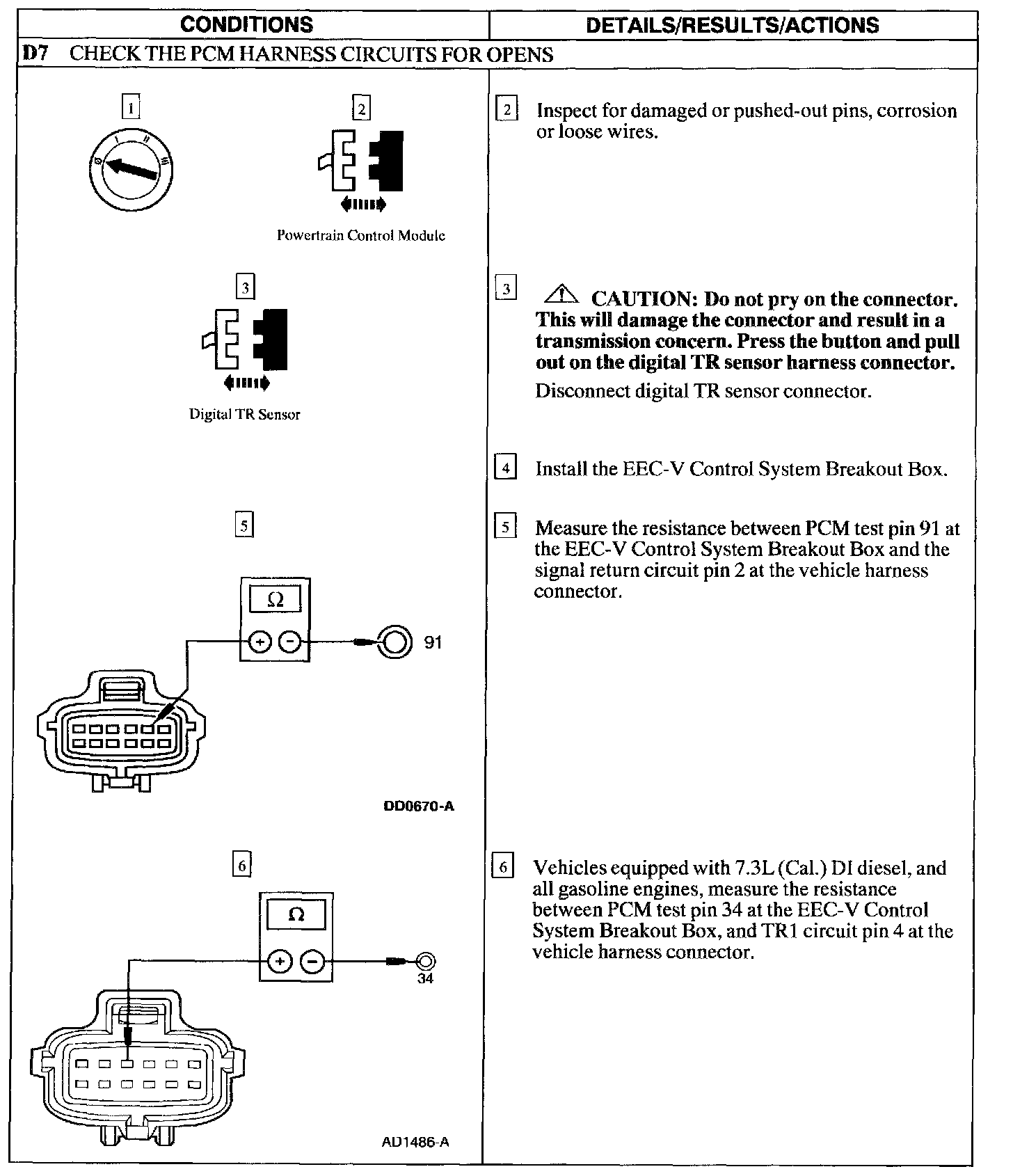

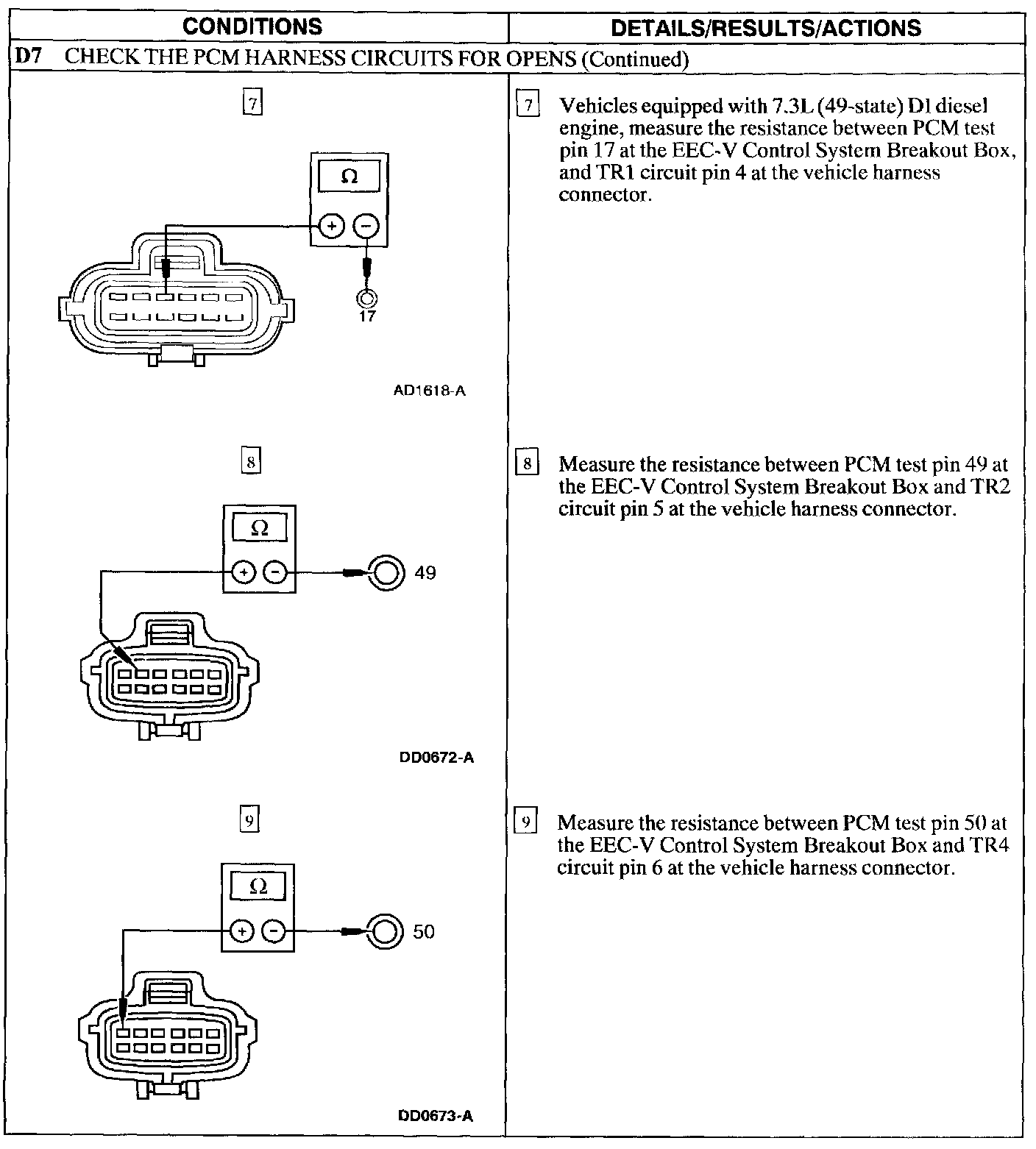

D7





D7

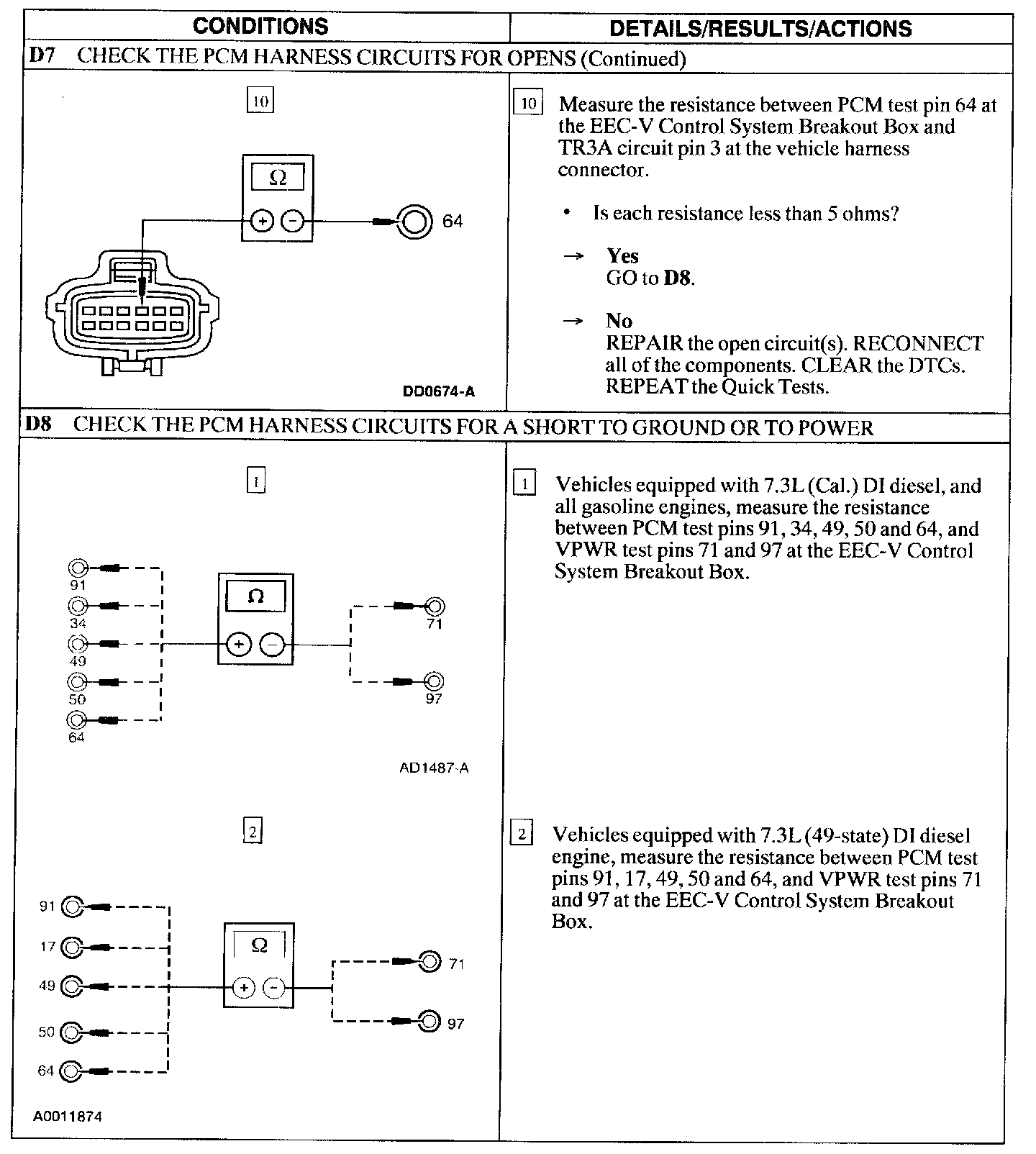

D7 - D8

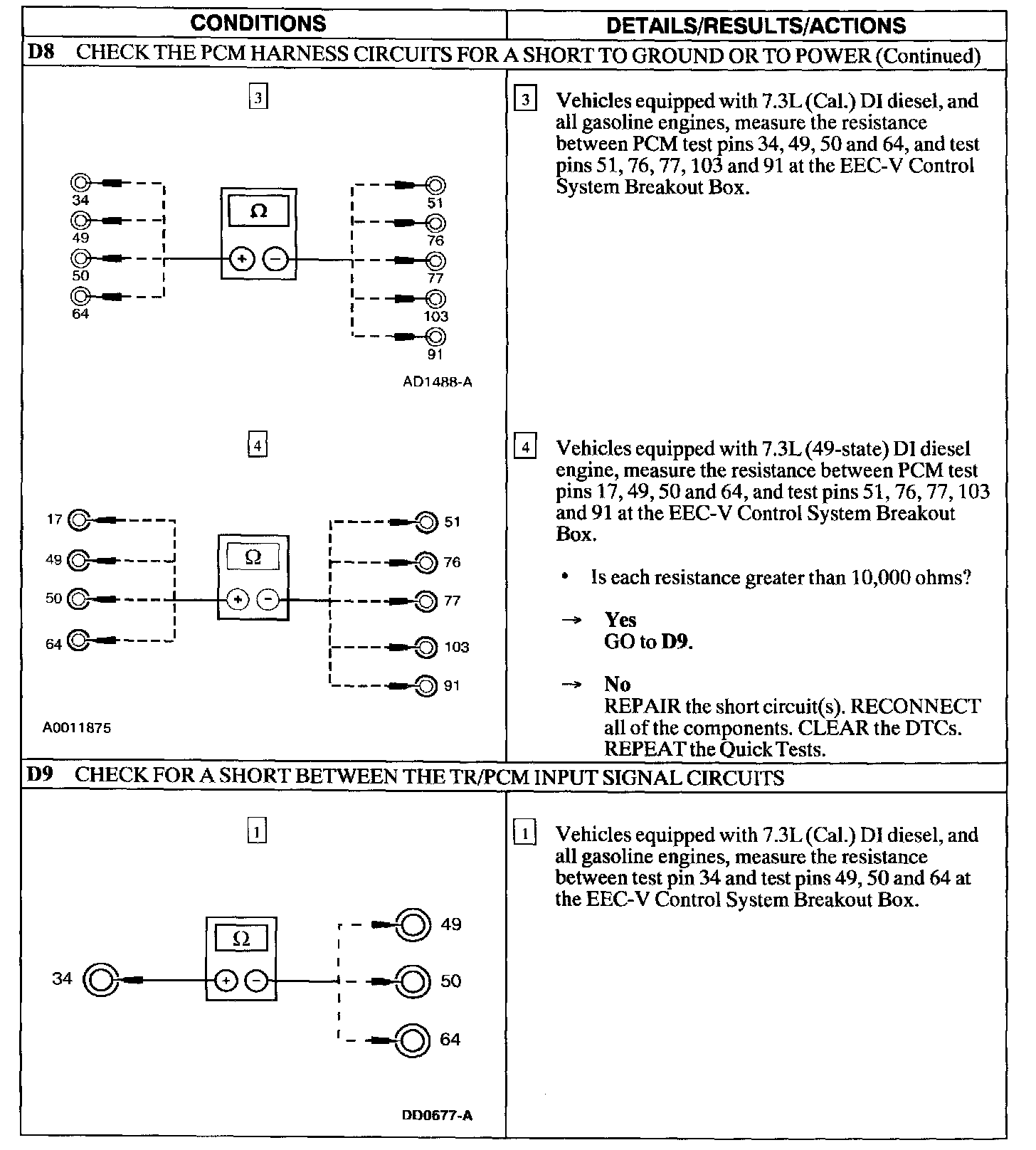

D8 - D9

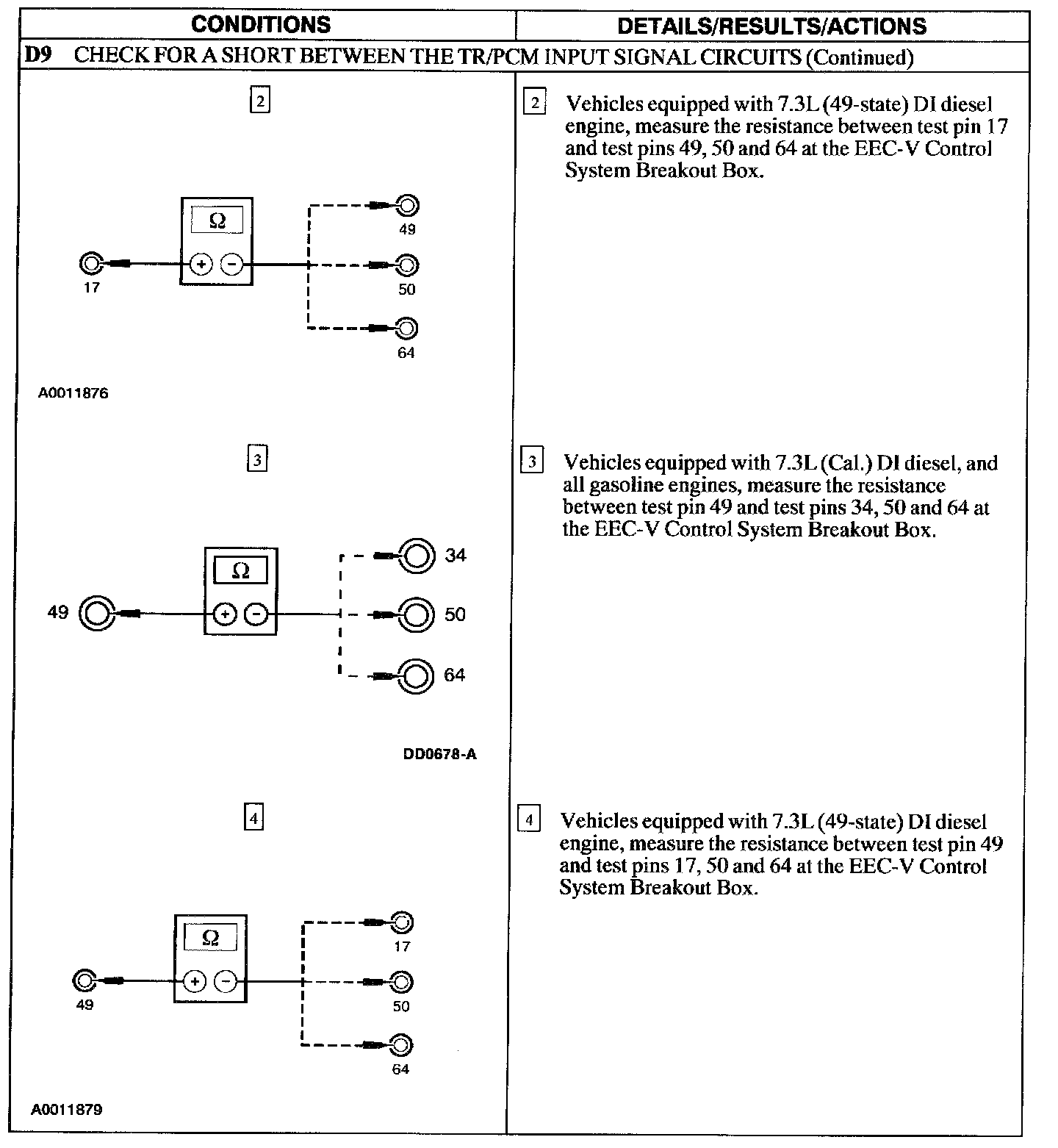

D9

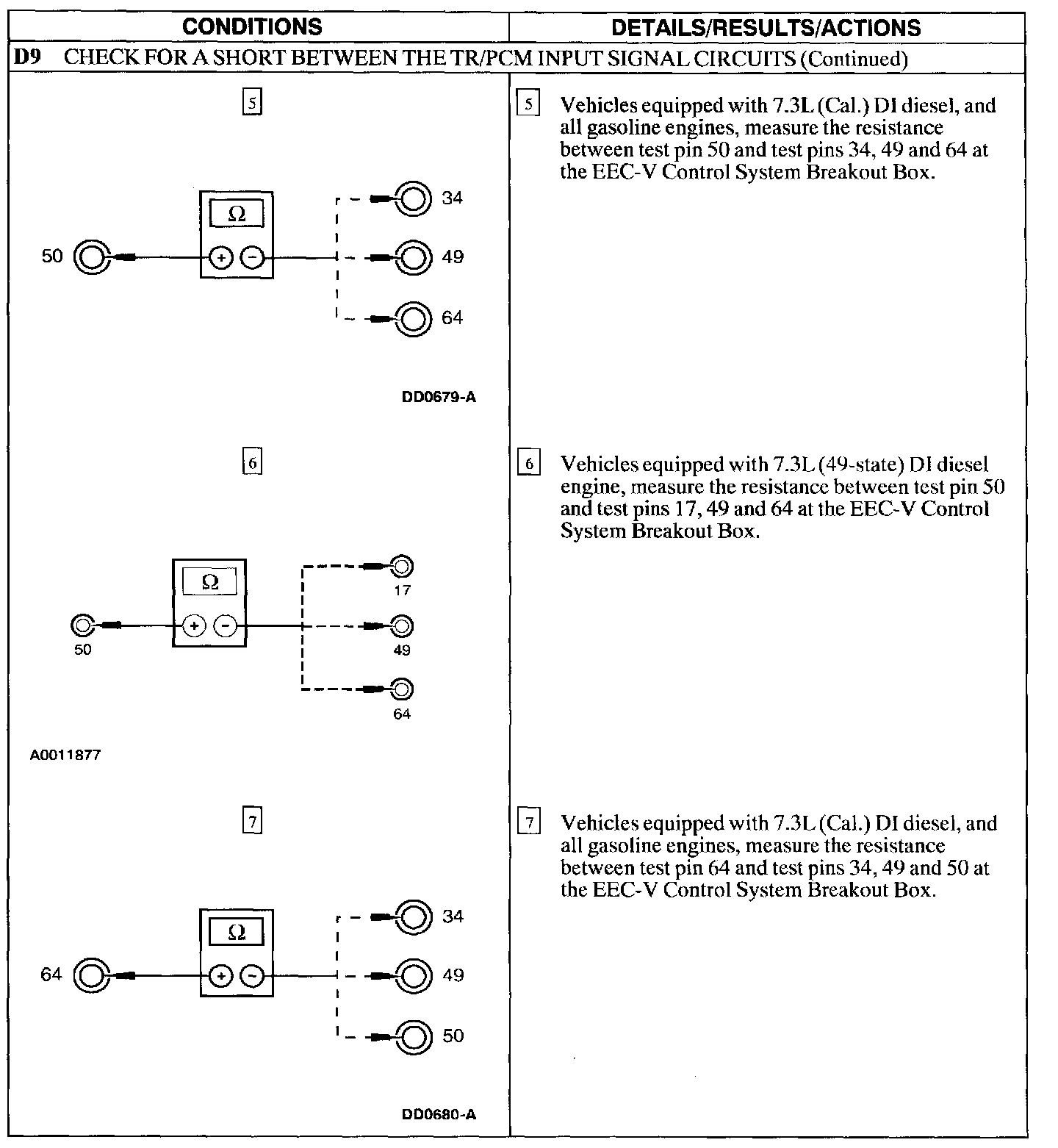

D9

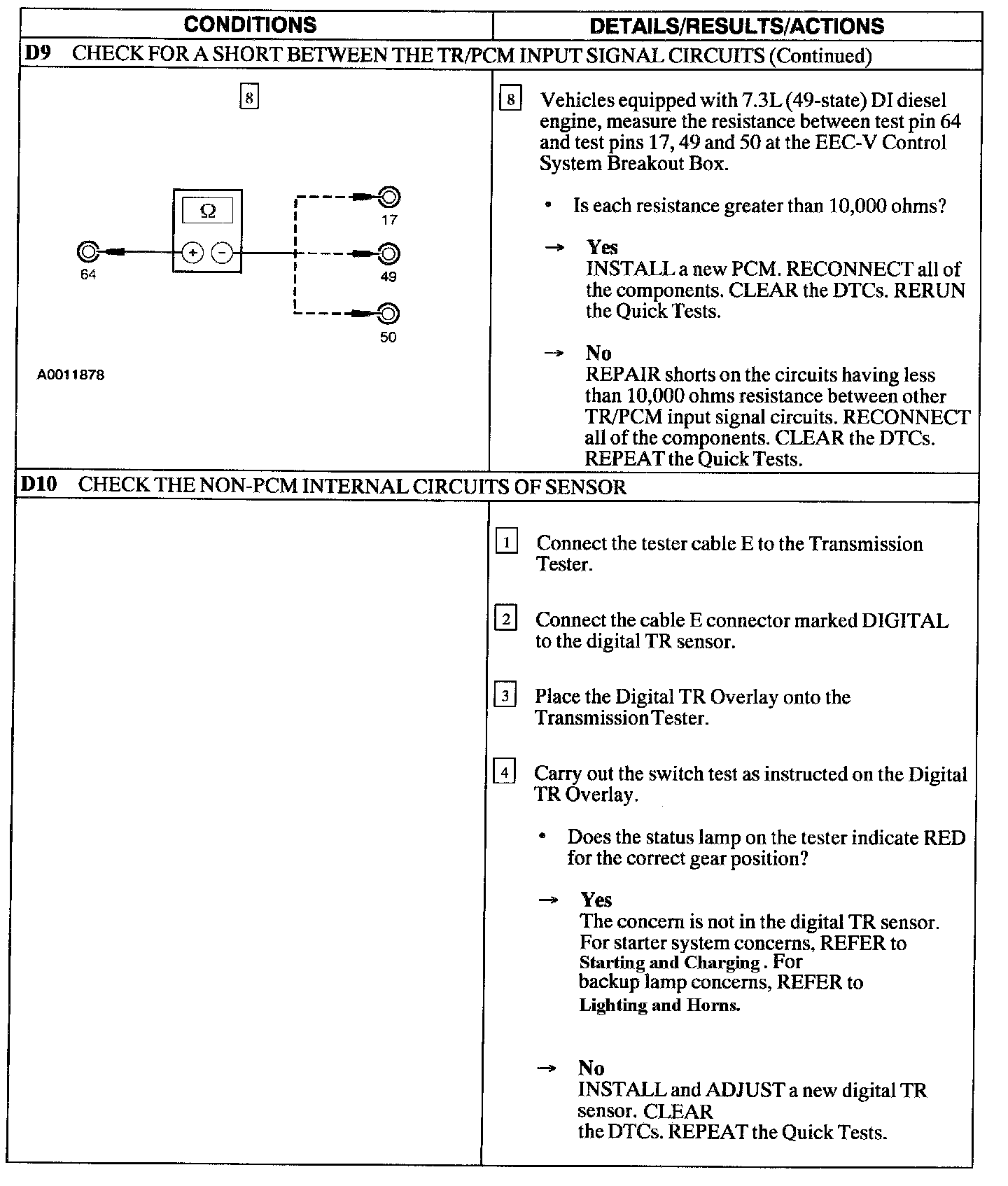

D9 - D10

NOTE: Refer to the Digital Transmission Range (TR) Sensor Connector illustration.

NOTE: Refer to the Digital Transmission Range (TR) Sensor Diagnosis Chart preceding these Pinpoint Test
