SuperCab

REMOVAL







1. Remove the screws and position the latch aside.







2. Remove the rear door window trim panel.







3. Remove the rear door window glass.

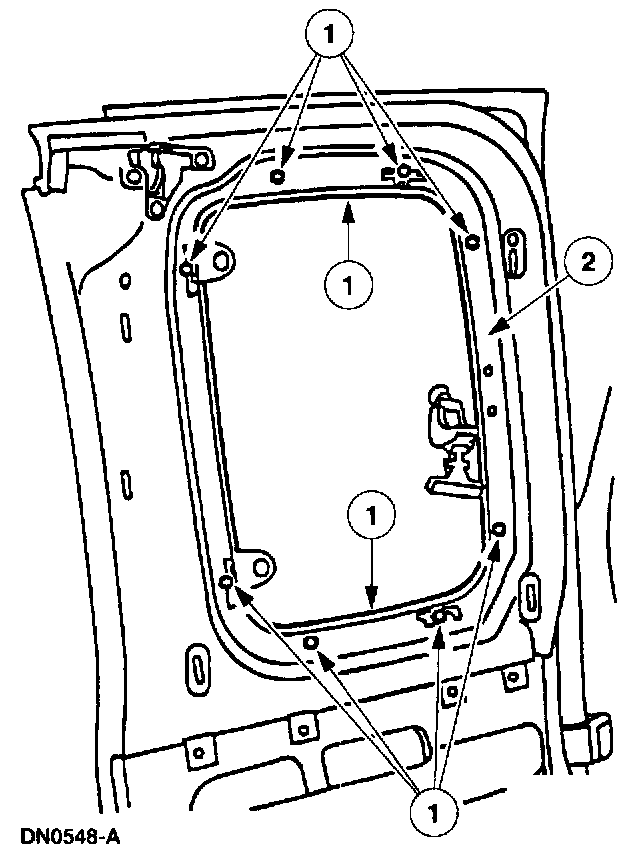

1 Remove the nuts and clips.
2 Remove the rear door window glass and frame.

4. Remove excess foam butyl from the window frame and window opening.

INSTALLATION







1. Remove the release liner from the butyl seal around the window before installing the window.
2. Install the window frame and glass.
^ Position the window frame and glass.
^ Tighten the nuts.

NOTE: Loosely install nuts and clips before tightening.

3. Install the rear door window trim panel.
4. Install the rear door window latch.
5. Clean excess butyl from window area.
