Tailgate Interior Trim Panel: Service and Repair
TRIM PANEL-TAILGATE, UPPERRemoval 1.

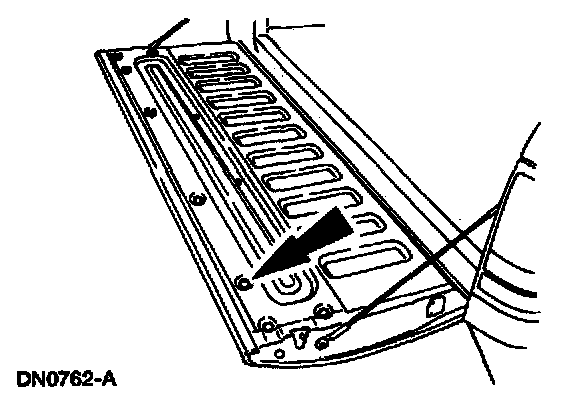

Remove the screws and remove the
tailgate access panel.
2.
NOTE: Use extreme care while removing the
tailgate trim panel. The component is easily damaged during removal.
Remove the
tailgate trim panel.

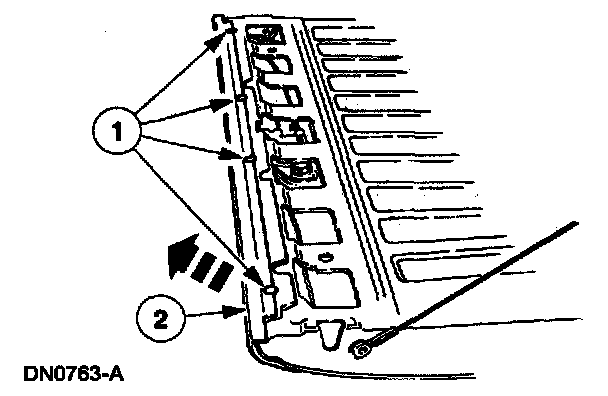

1
Remove the scrivets.
2
Pull the
tailgate trim panel away from the tailgate.
Installation 1.
Follow the removal procedure in reverse order.
