Sensor Ring, Front

Front Wheel Speed Sensor Ring





Special Tool(s)

Removal
1. Remove the front disc brake rotor.

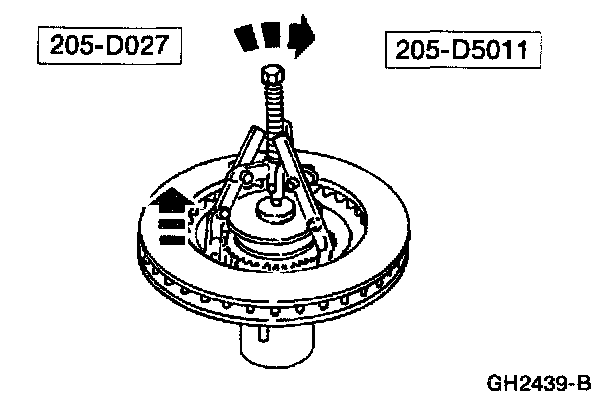

2. CAUTION: Discard the front brake anti-lock sensor indicator.

Use the special tools to remove the front brake anti-lock sensor indicator.

Installation

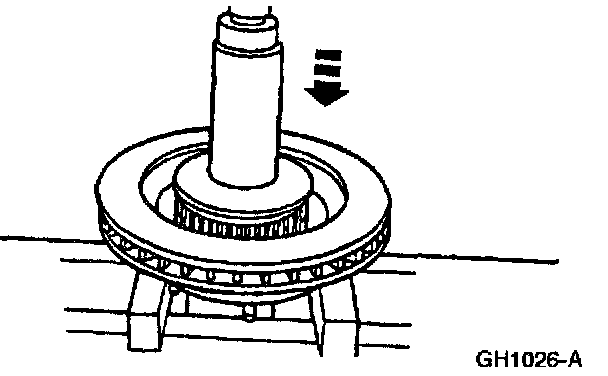

1. CAUTION: The front brake anti-lock sensor-indicator must be pressed on. straight.

Use an appropriate size cylinder and press to install the front brake anti-lock sensor indicator.
2. Install the front disc brake rotor.
