Tests FJ: IDM Electronic Feedback (EF)

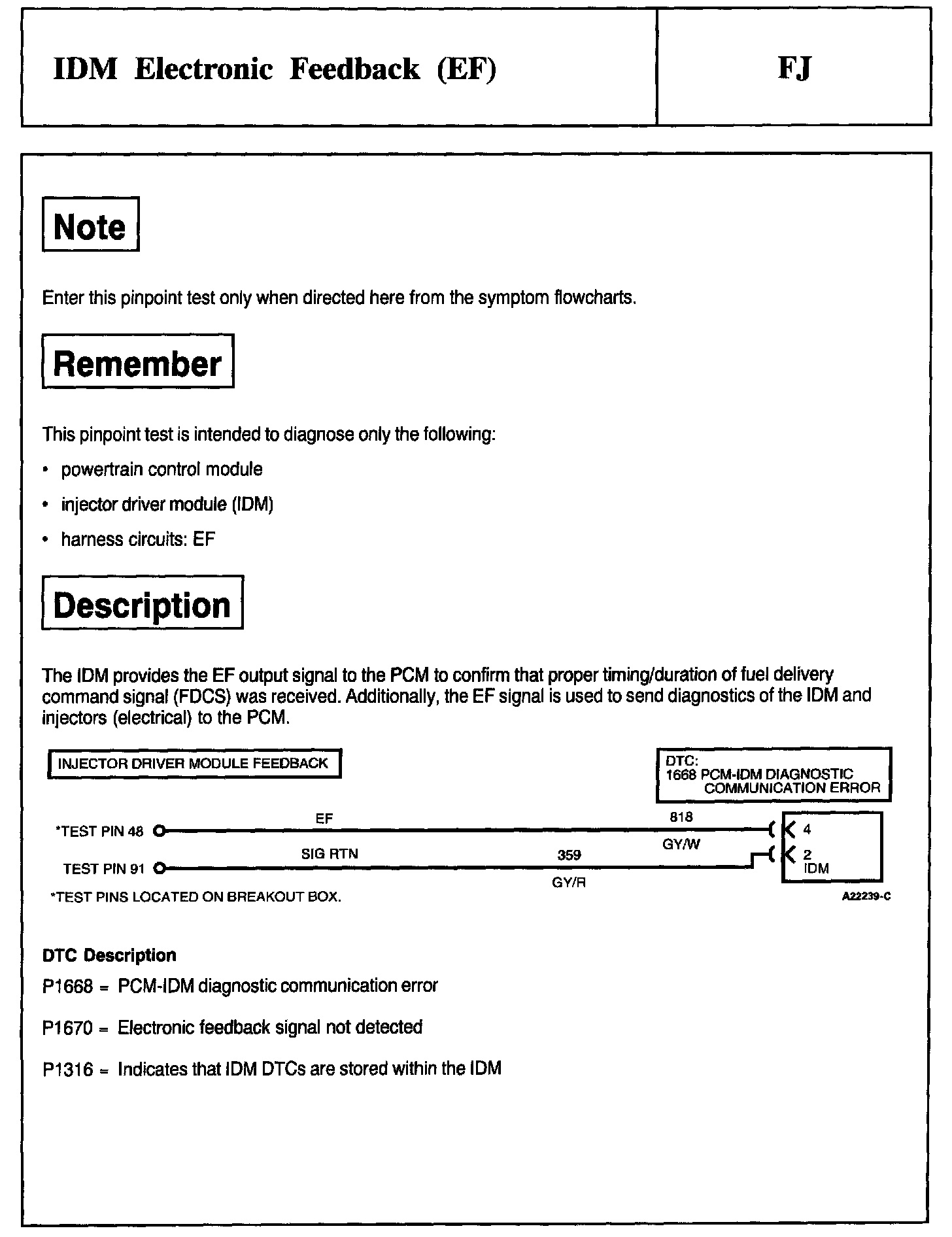

Note, Remember, Description and Schematic:

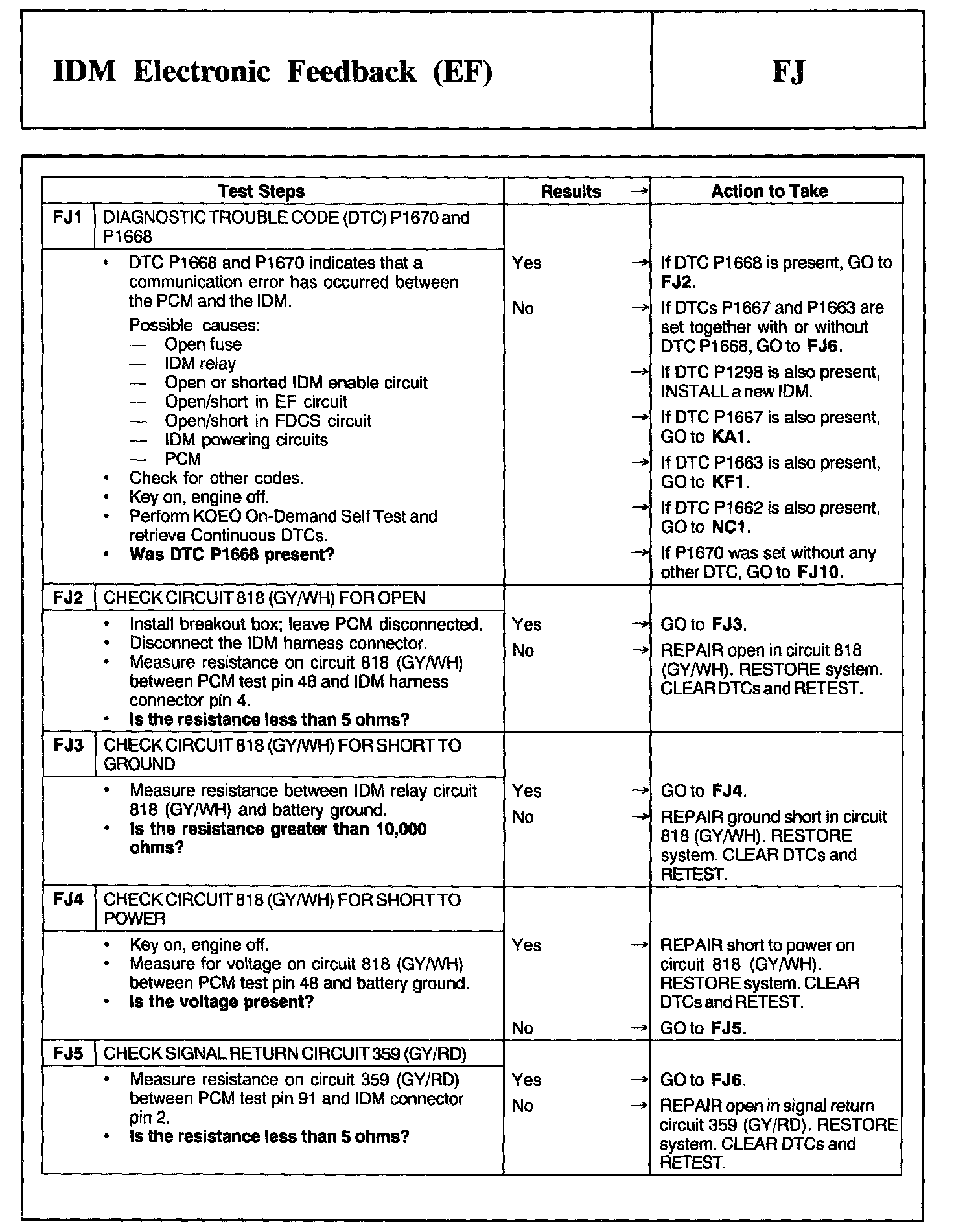

FJ1 - FJ5:

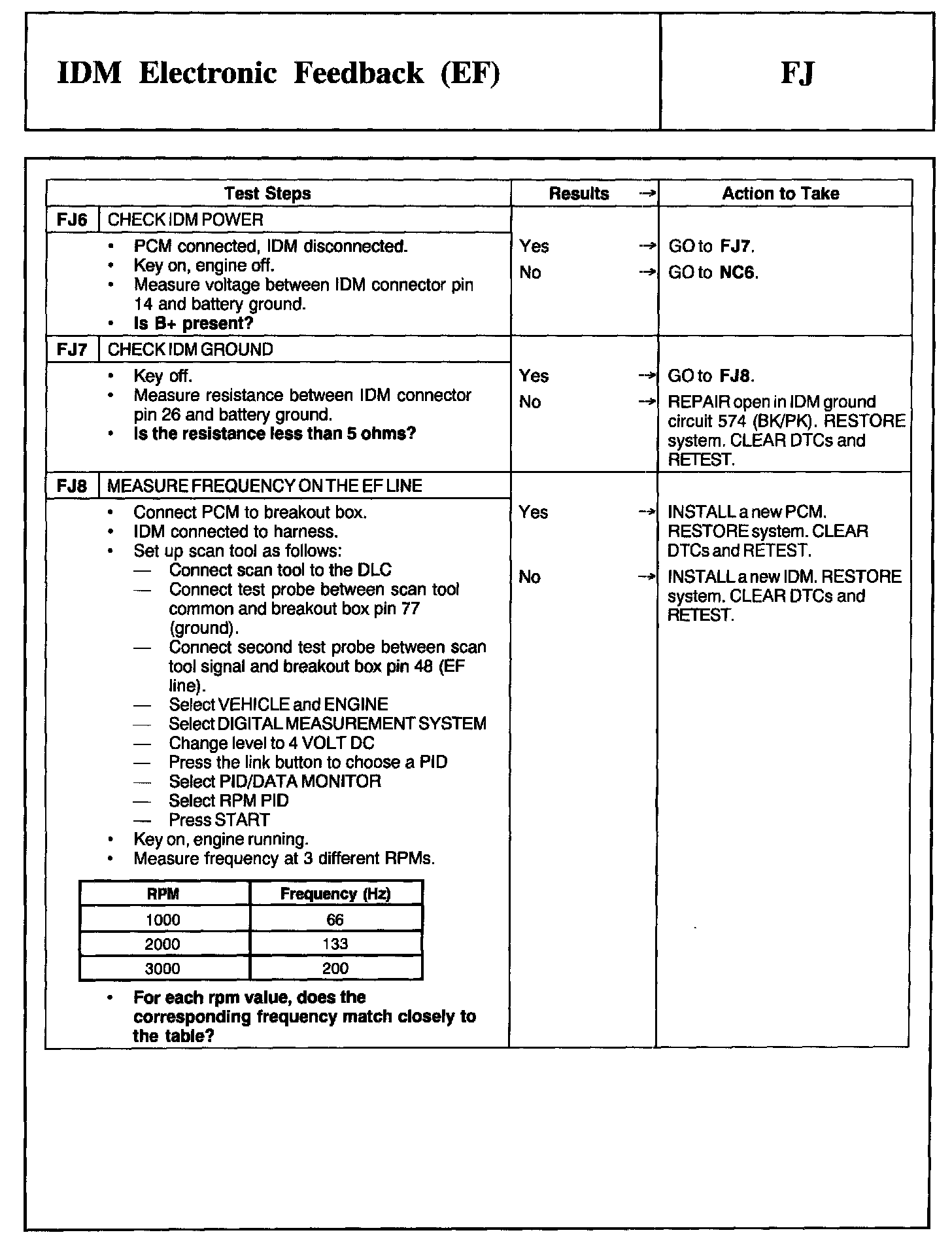

FJ6 - FJ8:

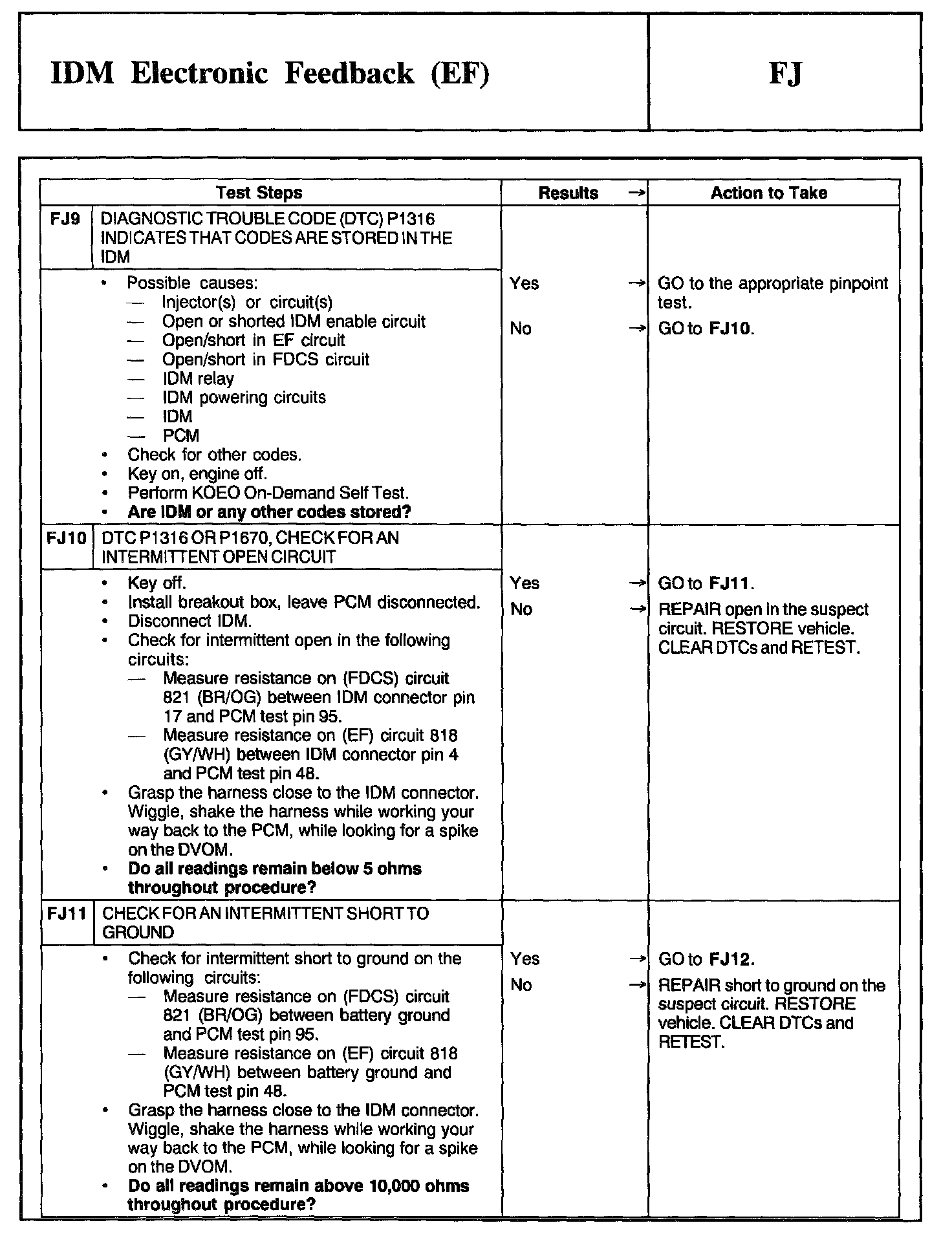

FJ9 - FJ11:

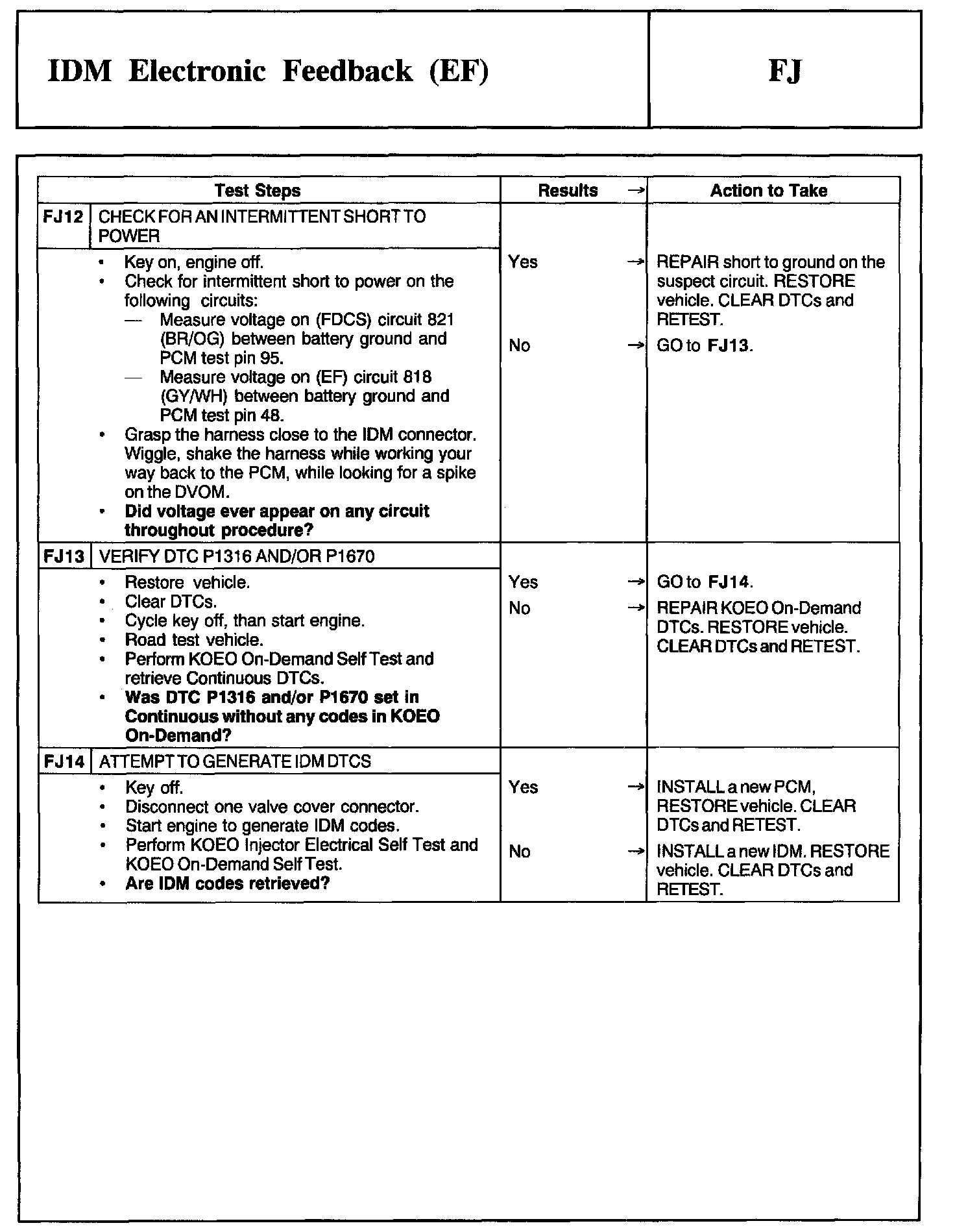

FJ12 - FJ14:
