Center Support

Center Support

Disassembly

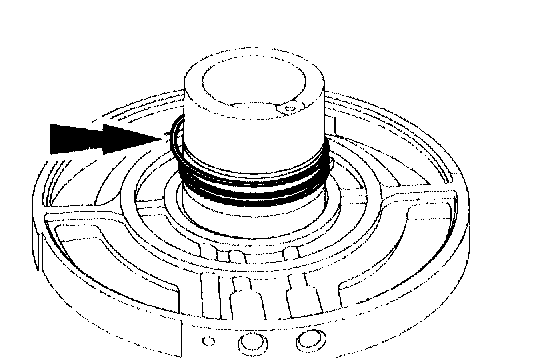

1. Remove and discard the direct clutch seal rings.





2. Inspect the following for contamination or damage. Clean or install as necessary.
1 Inspect the ball bearing.
2 Inspect the feed bolt threads.
3 Remove and inspect the No. 6 center support thrust washer.
4 Inspect the inner hub diameter.
5 Inspect the outer hub diameter.
6 Inspect the seal ring grooves.

Assembly
1. Follow the disassembly procedure in reverse order.
- Lightly lubricate the thrust washer with petroleum jelly to hold it in place during assembly.
- Install new seals.
