Sensor Ring, Front

Front Wheel Speed Sensor Ring

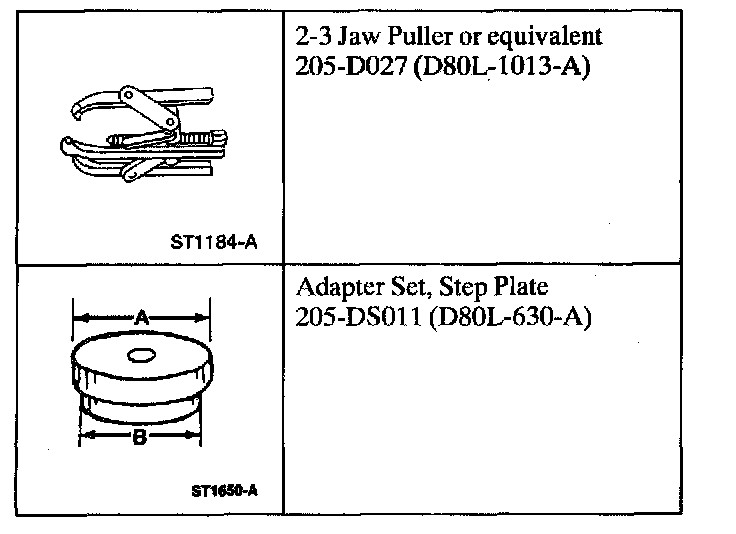

Special Tool(s)

Removal





1. Remove the front disc brake rotor.

2. CAUTION: Discard the front anti-lock brake sensor indicator.

Use 2-3 Jaw Puller to remove the front anti-lock brake sensor indicator.

Installation





1. CAUTION: The front anti-lock brake sensor indicator must be pressed on straight.

Install the new front anti-lock brake sensor indicator.
1 Position the front anti-lock brake sensor indicator.

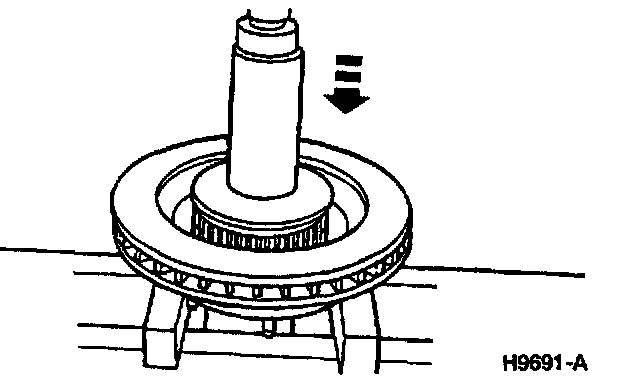

2 Use an appropriate size cylinder and press to install the front anti-lock brake sensor indicator.
2. Install the front disc brake rotor.
