Sensor, Front

Front Wheel Speed Sensor

Removal

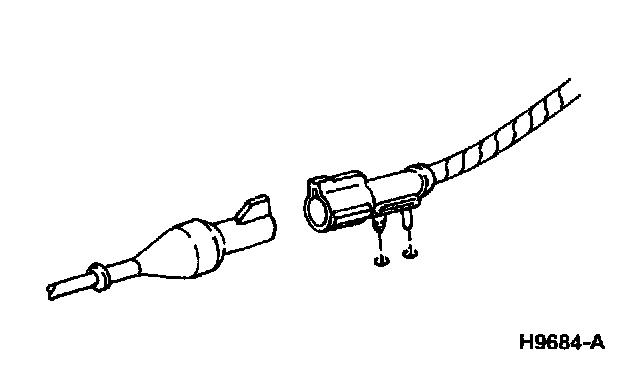

1. Disconnect the front brake anti-lock sensor electrical connector.
2. Remove the front disc brake rotor shield.

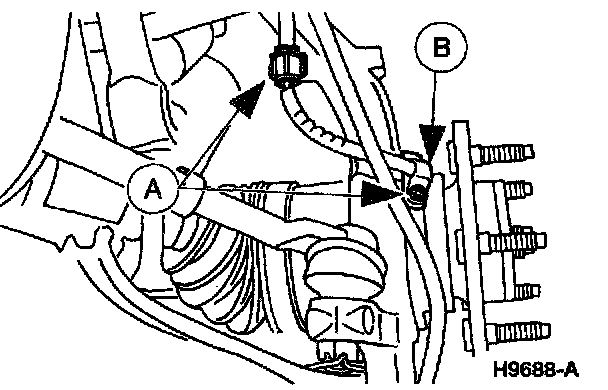

3. Remove the (A) front brake anti-lock sensor bolts and the (B) front brake anti-lock sensor.

Installation

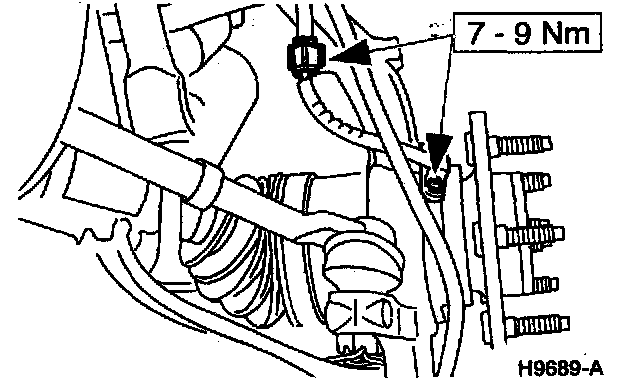

1. To install, reverse the removal procedure.
