Diagnostic Trouble Code Tests and Associated Procedures

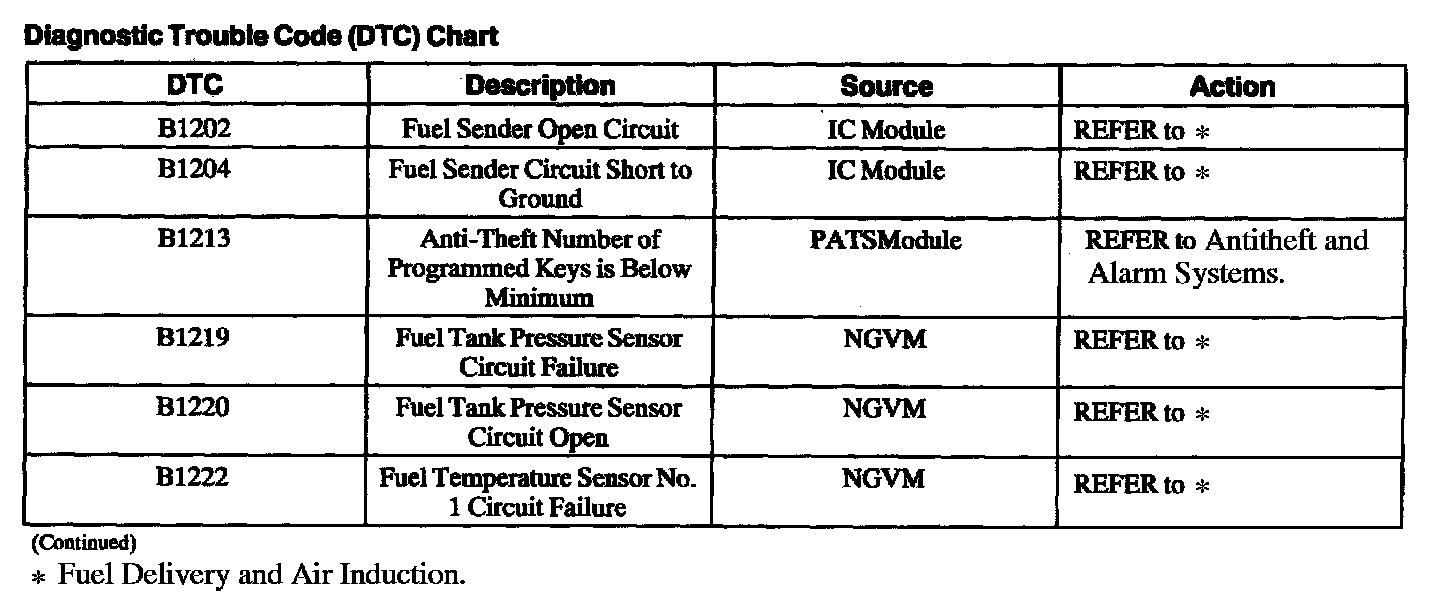

DTC Chart B1202 - B1222:

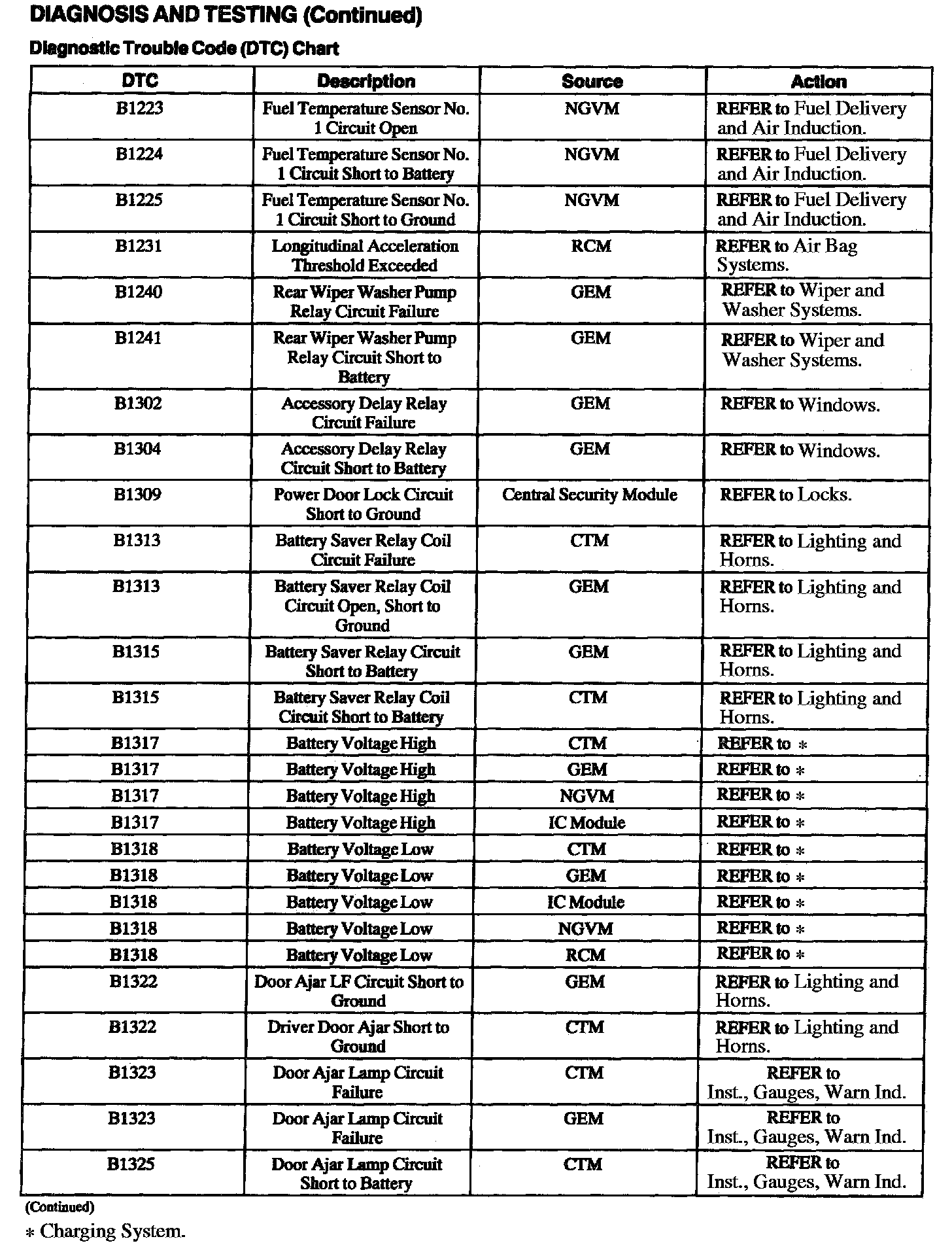

DTC Chart B1223 - B1325:

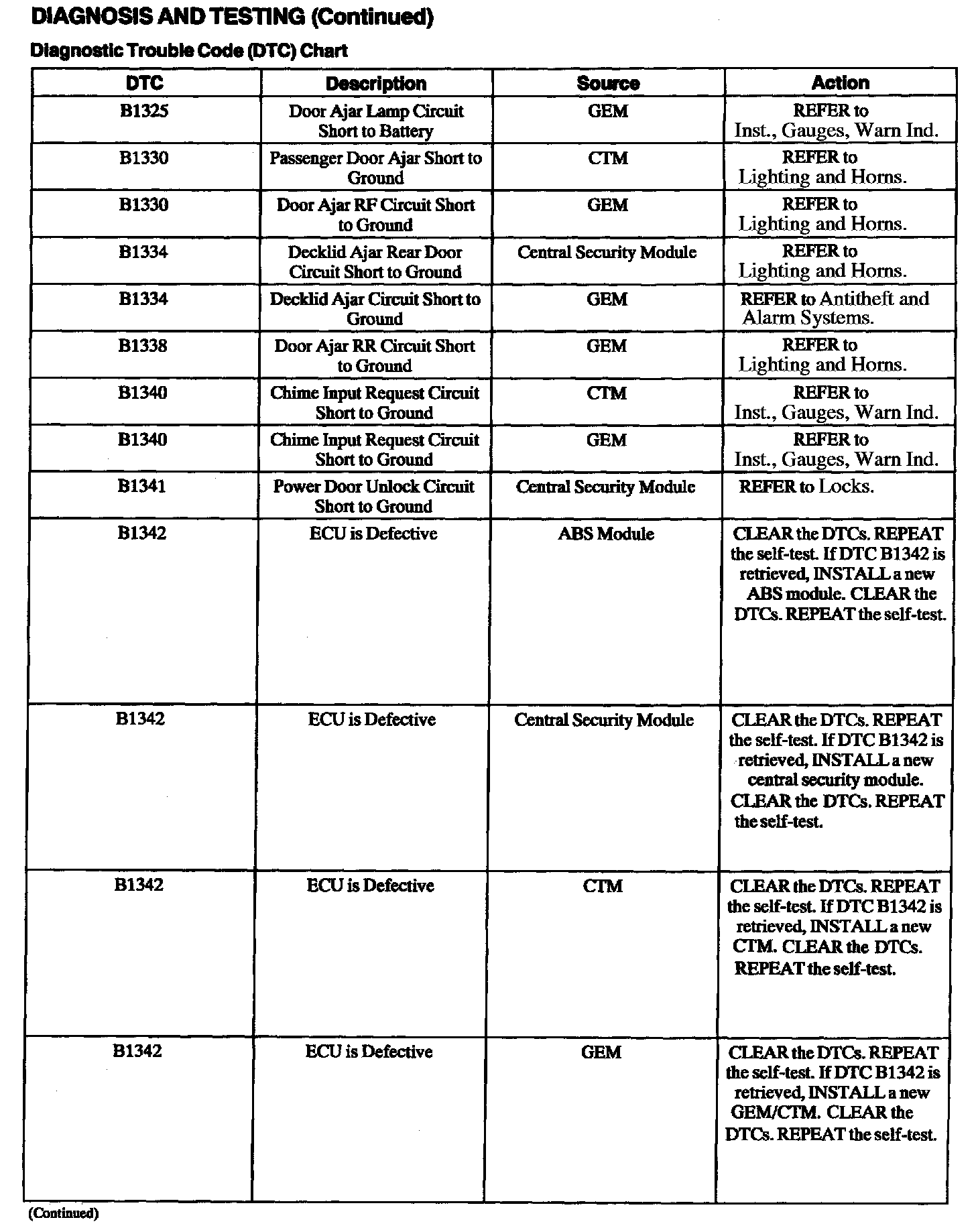

DTC Chart B1325 - B1342:

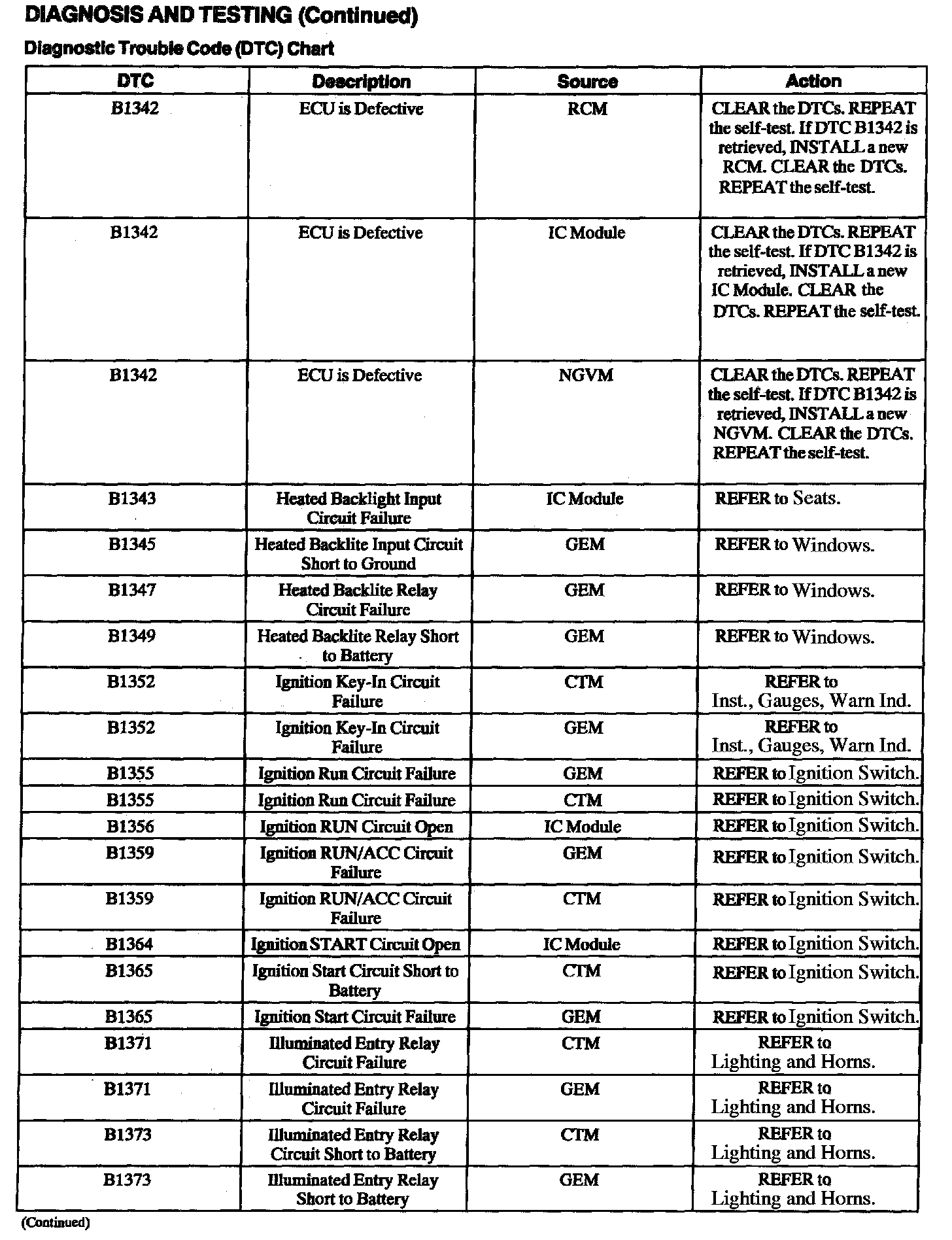

DTC Chart B1342 - B1373:

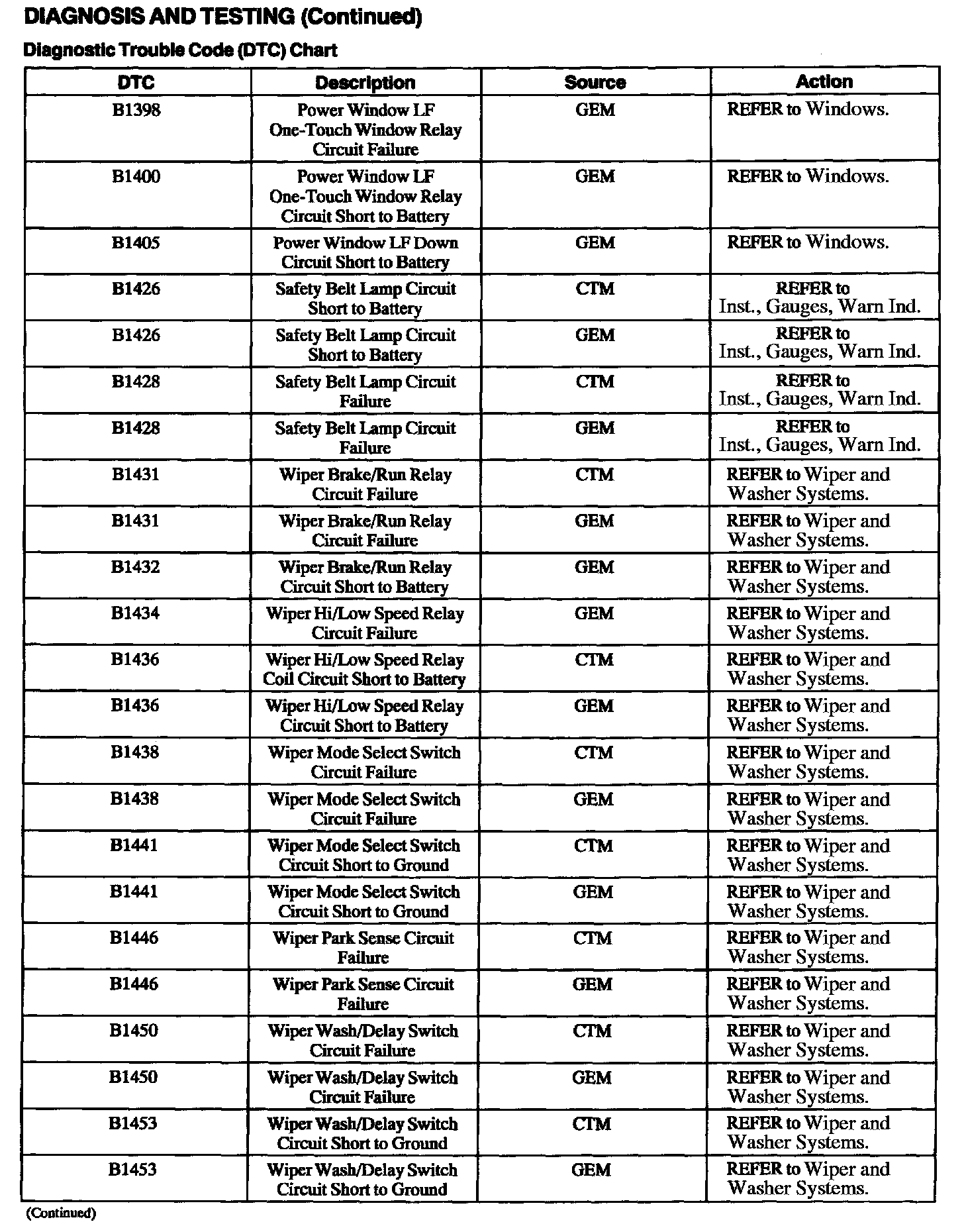

DTC Chart B1398 - B1453:

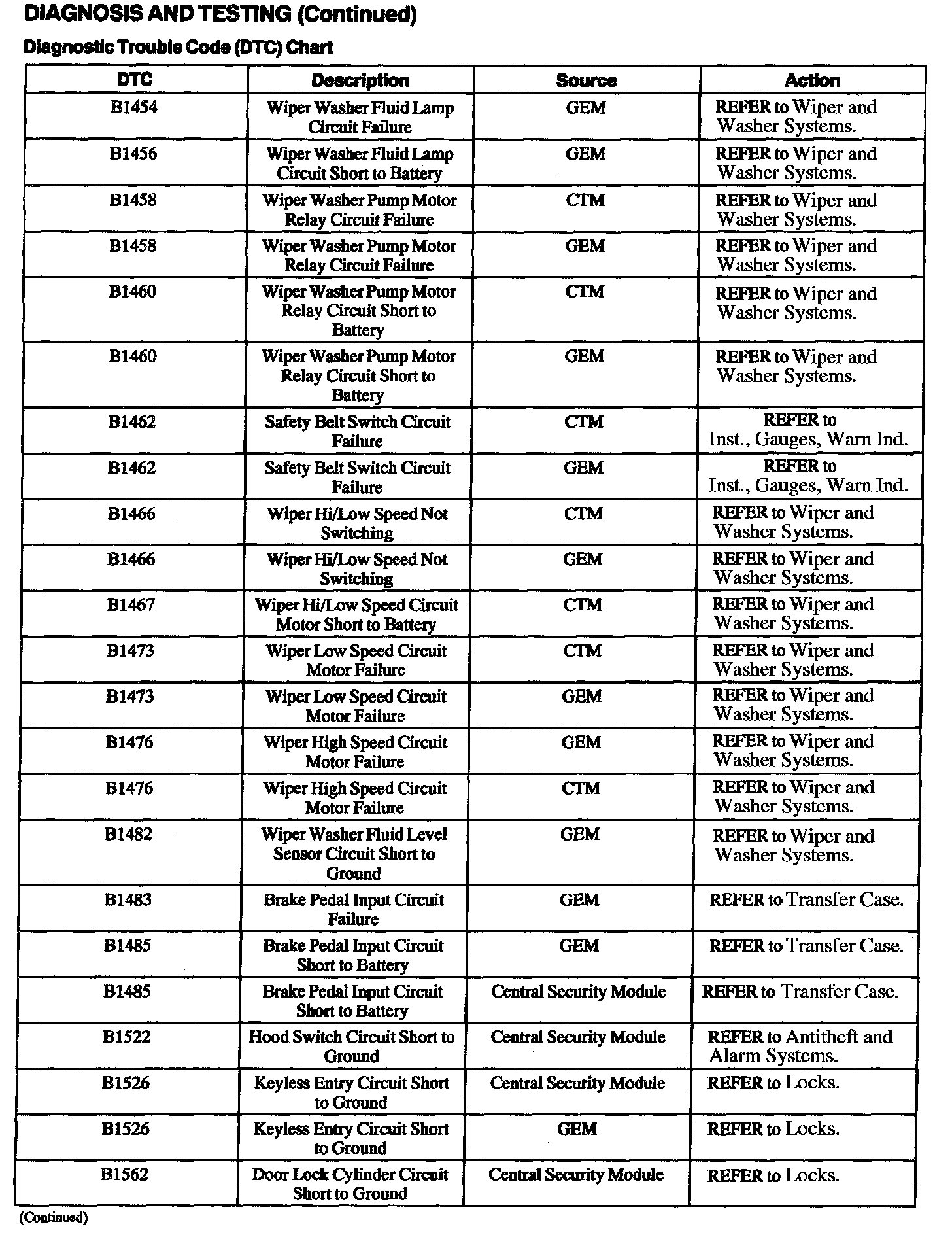

DTC Chart B1454 - B1562:

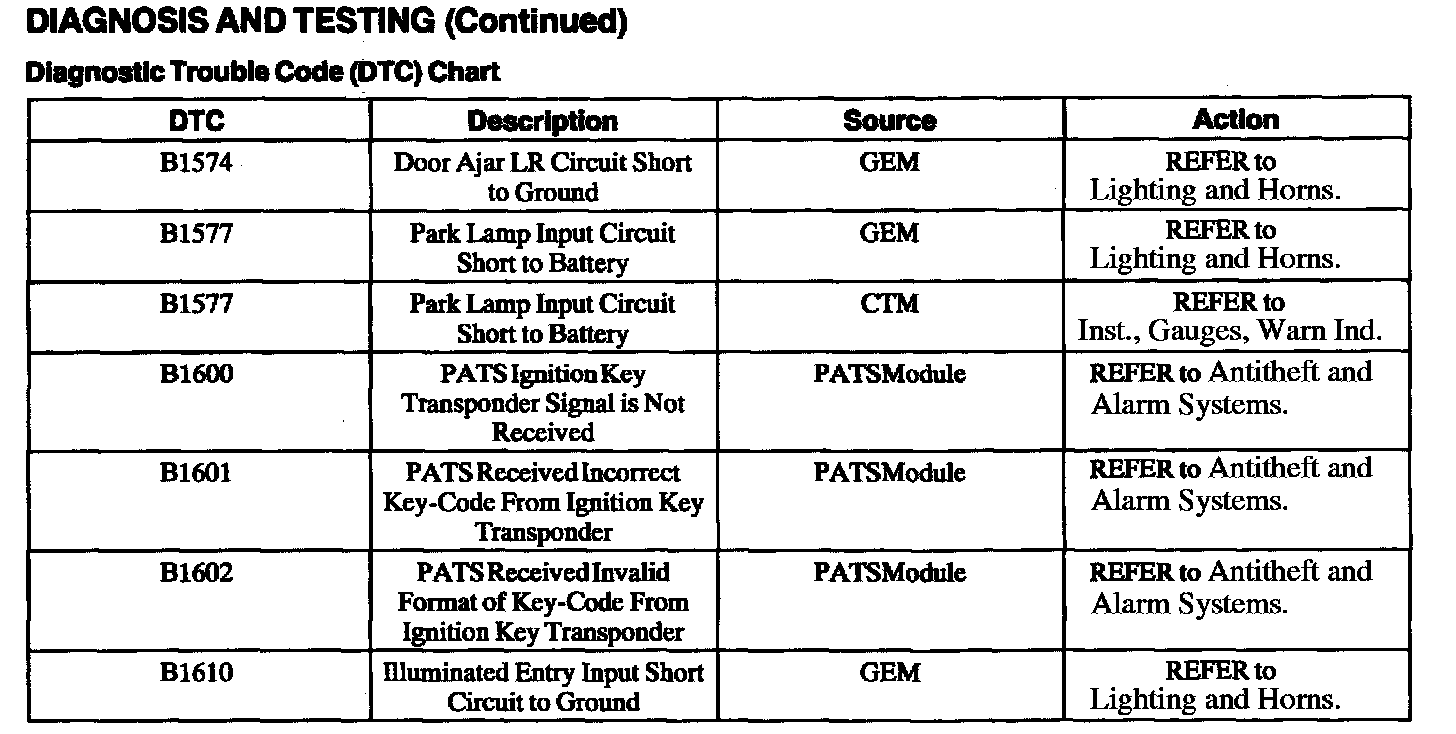

DTC Chart B1574 - B1610:

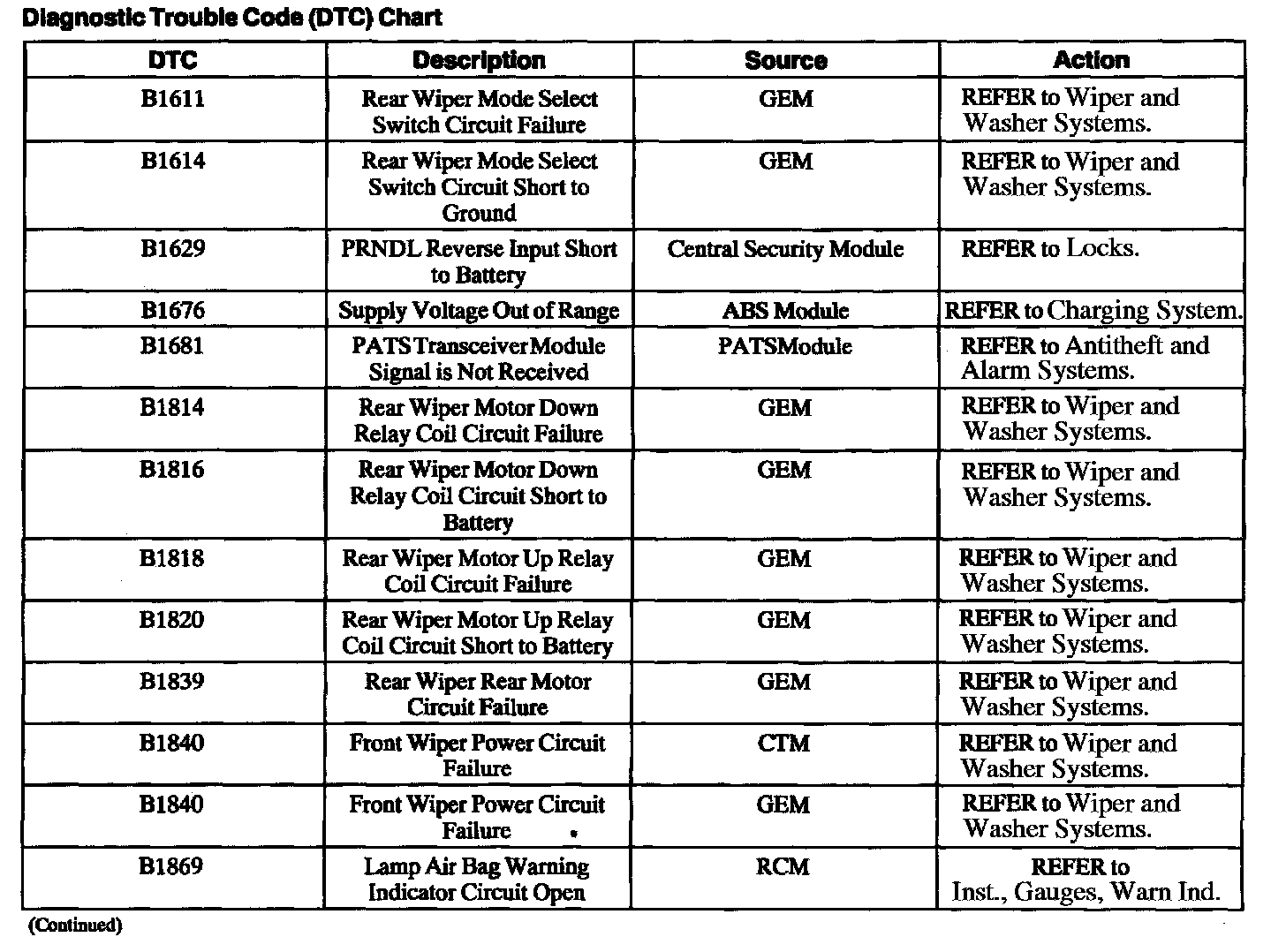

DTC Chart B1611 - B1869:

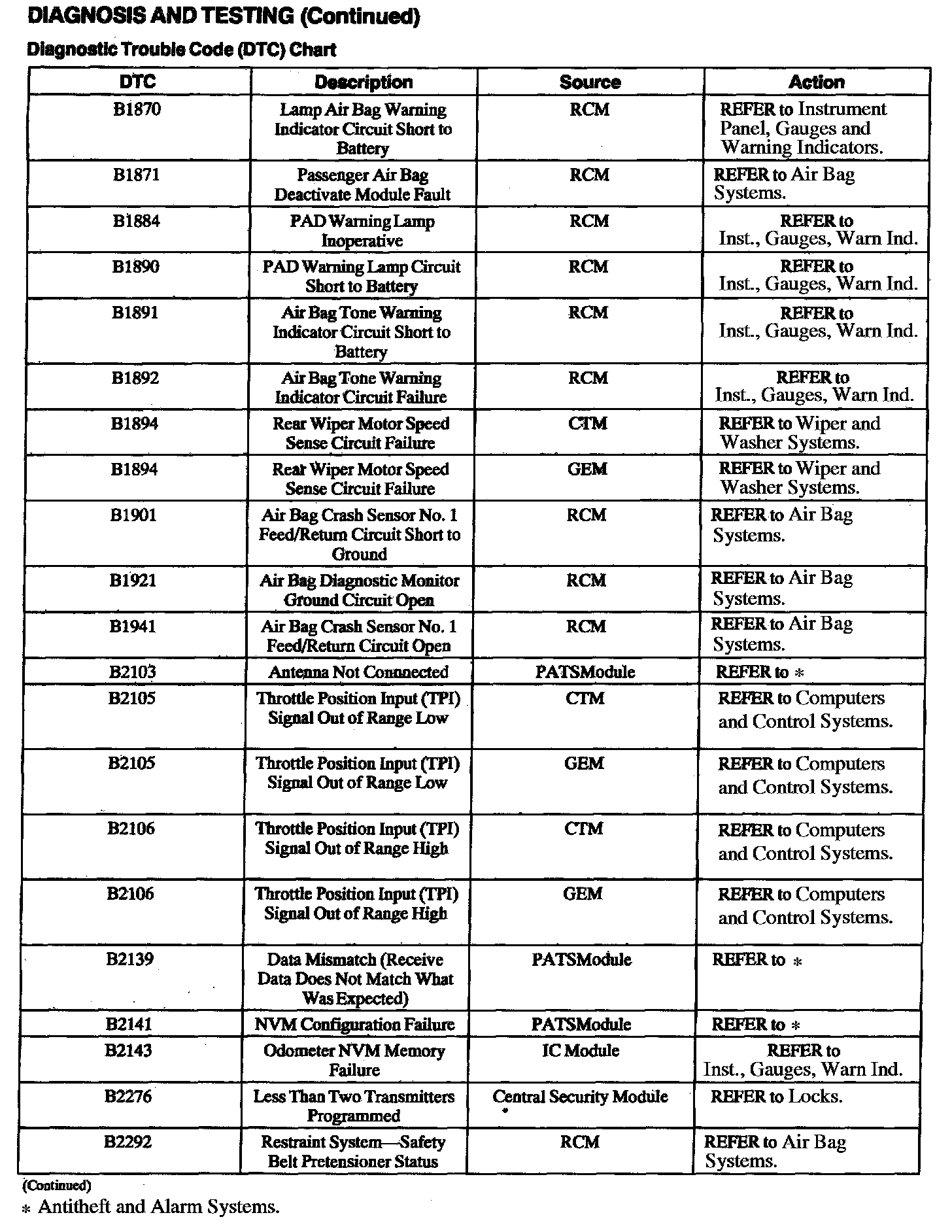

DTC Chart B1870 - B2292:

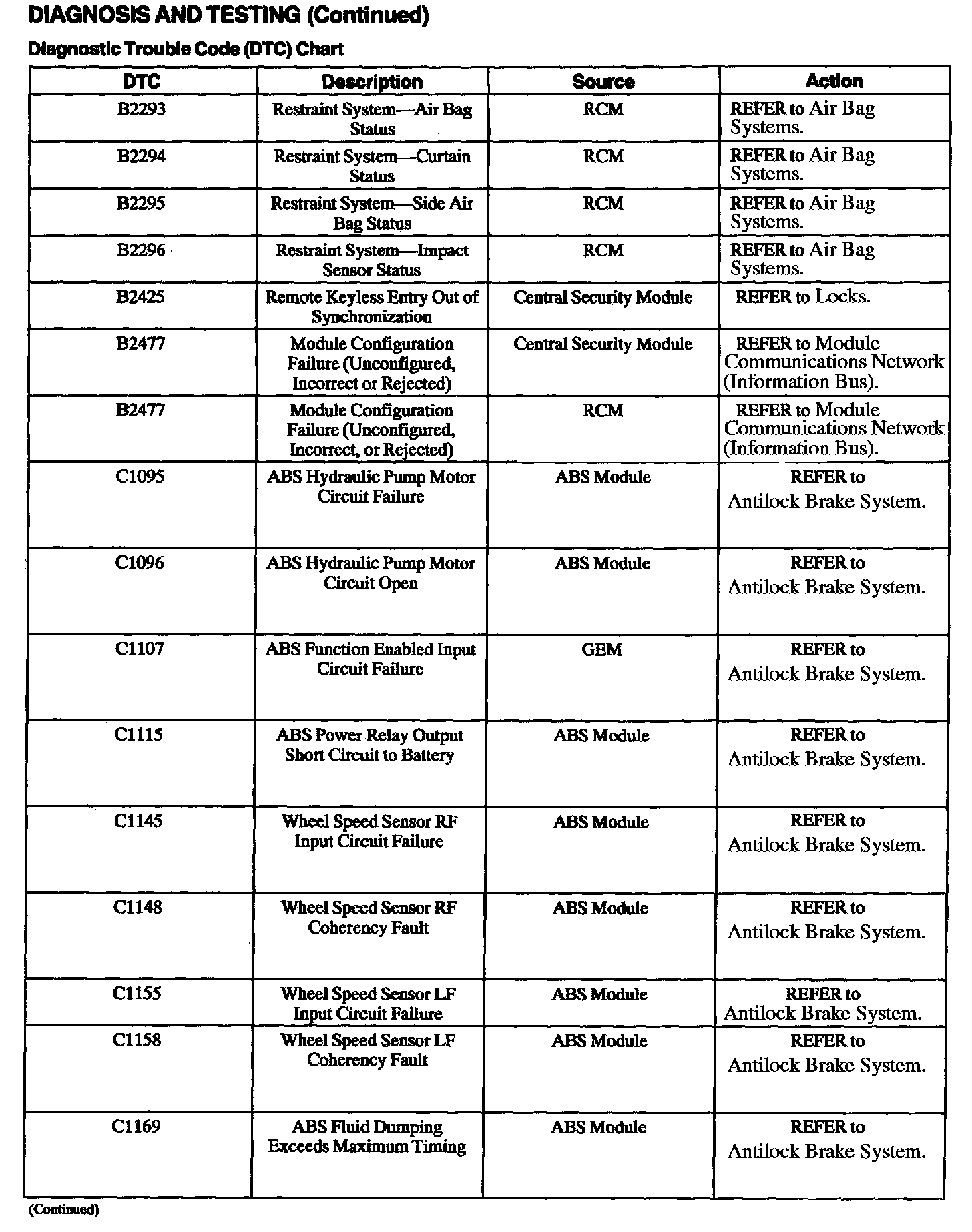

DTC Chart B2293 - C1169:

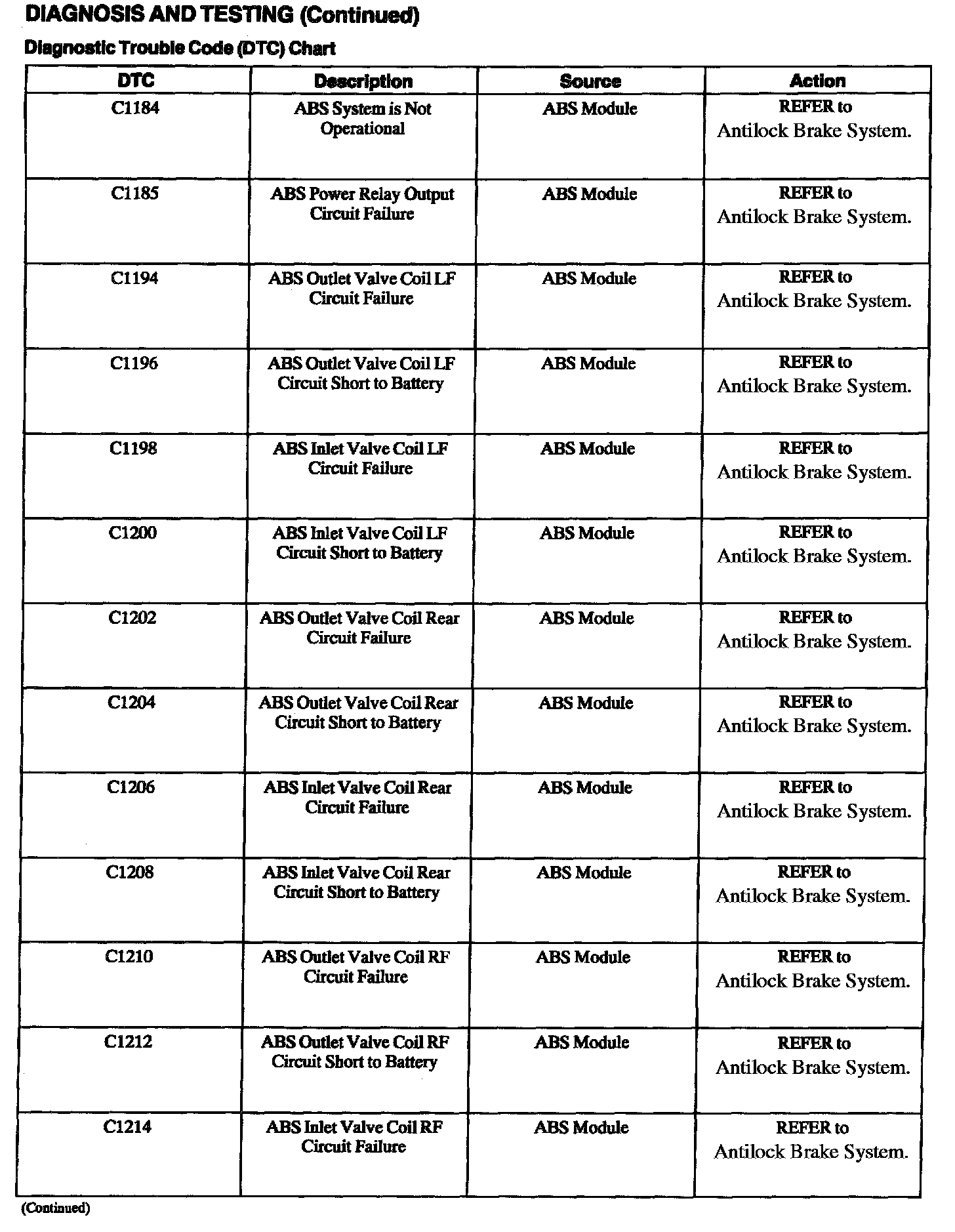

DTC Chart C1184 - C1214:

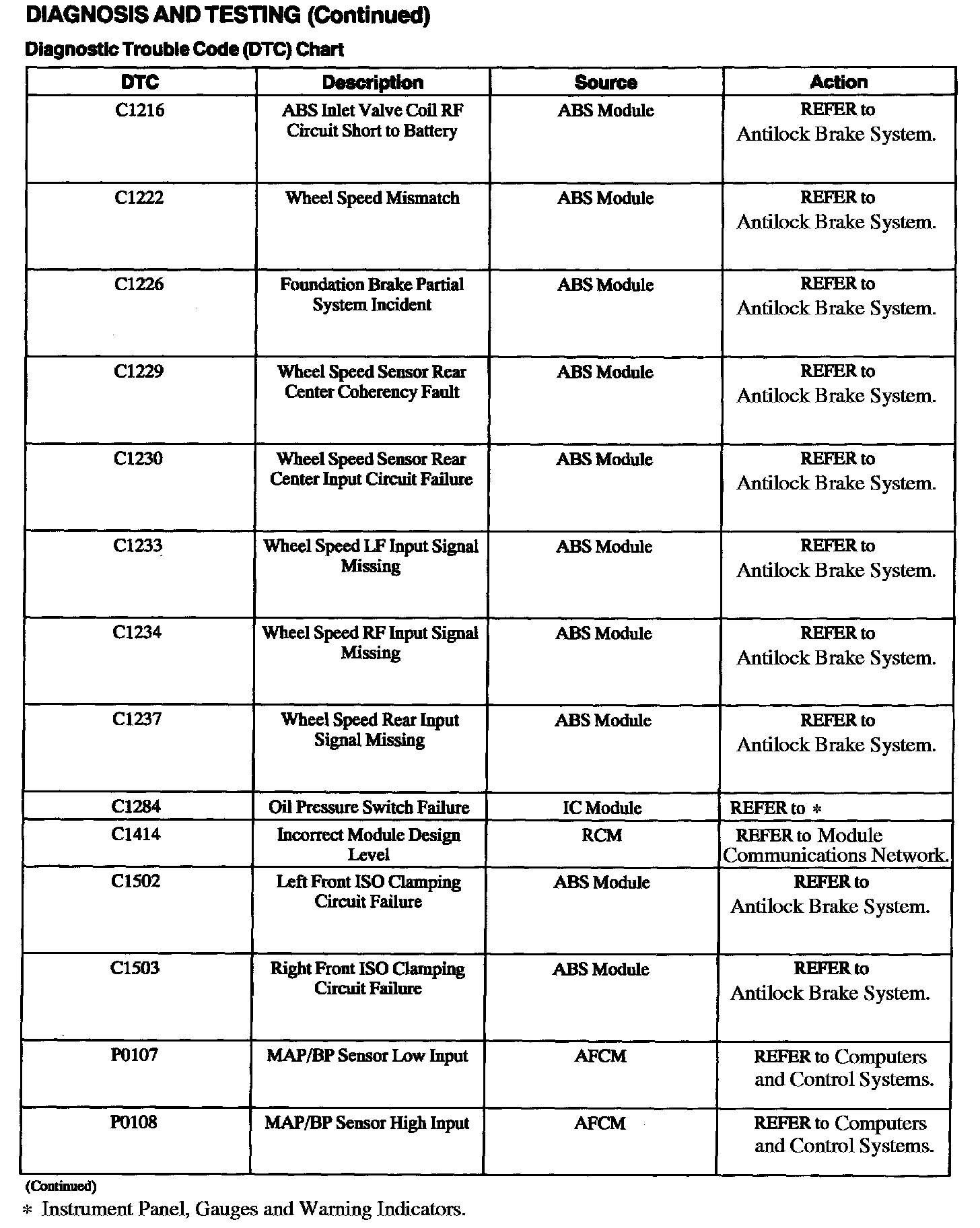

DTC Chart C1216 - P0108:

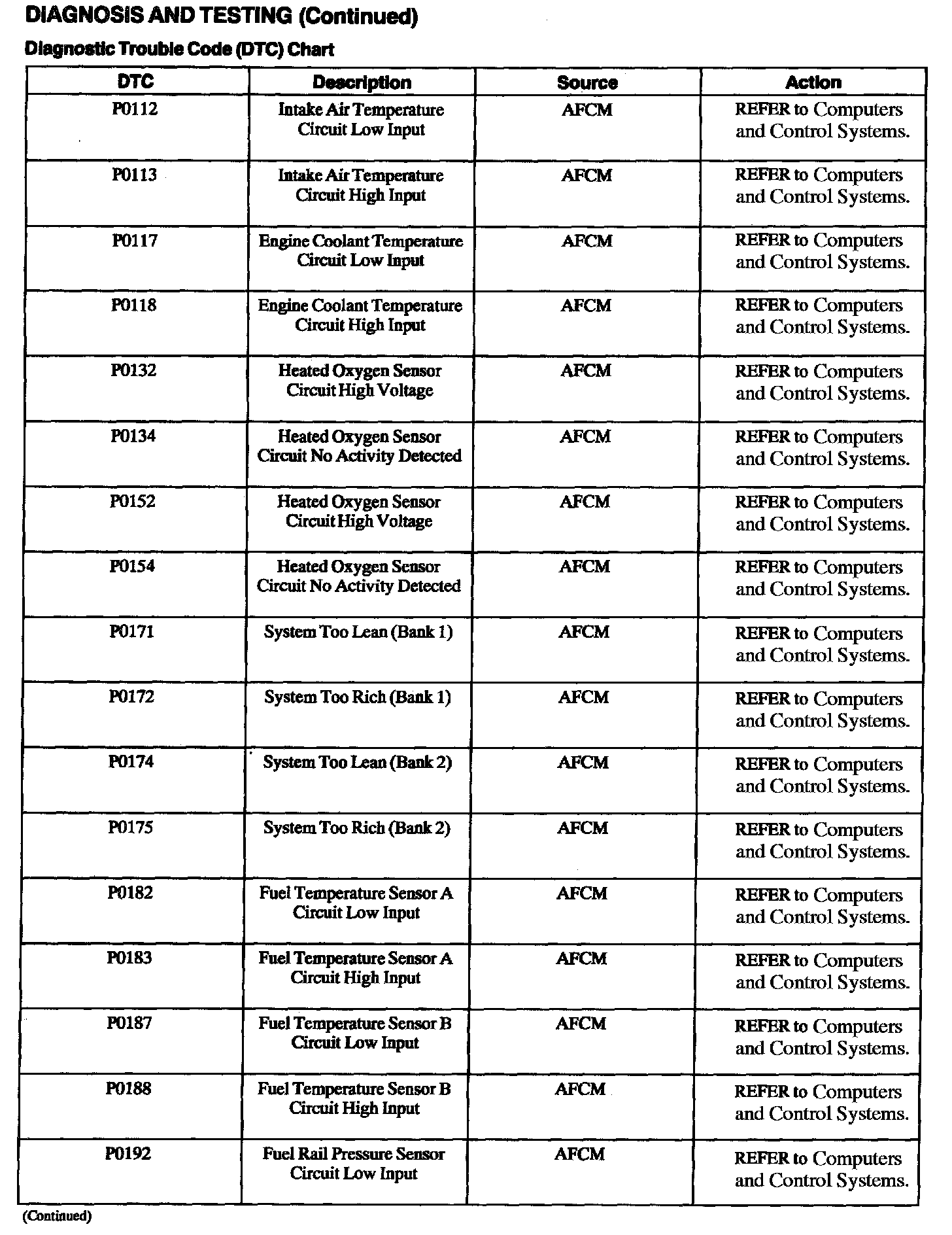

DTC Chart P0112 - P0192:

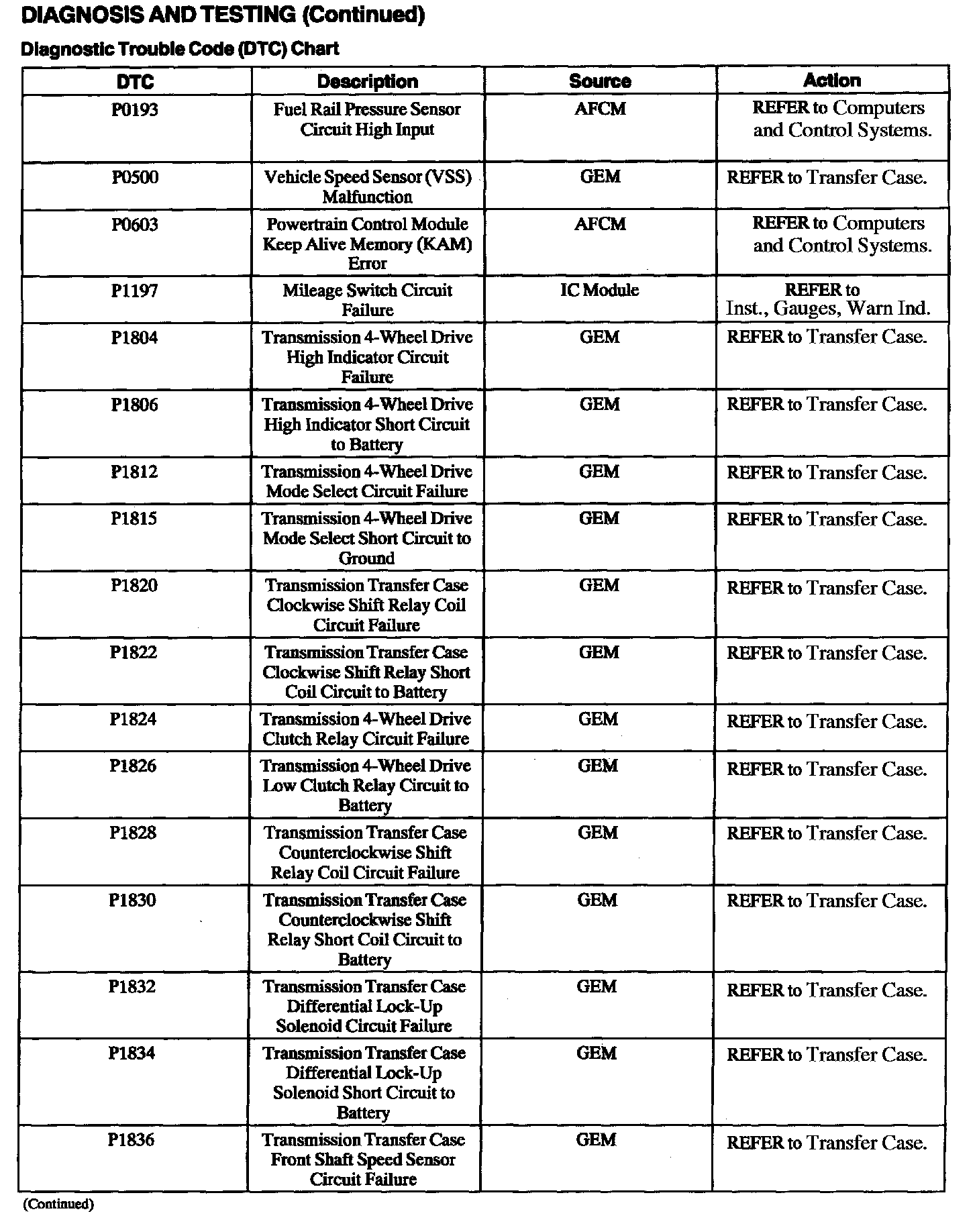

DTC Chart P0193 - P1836:

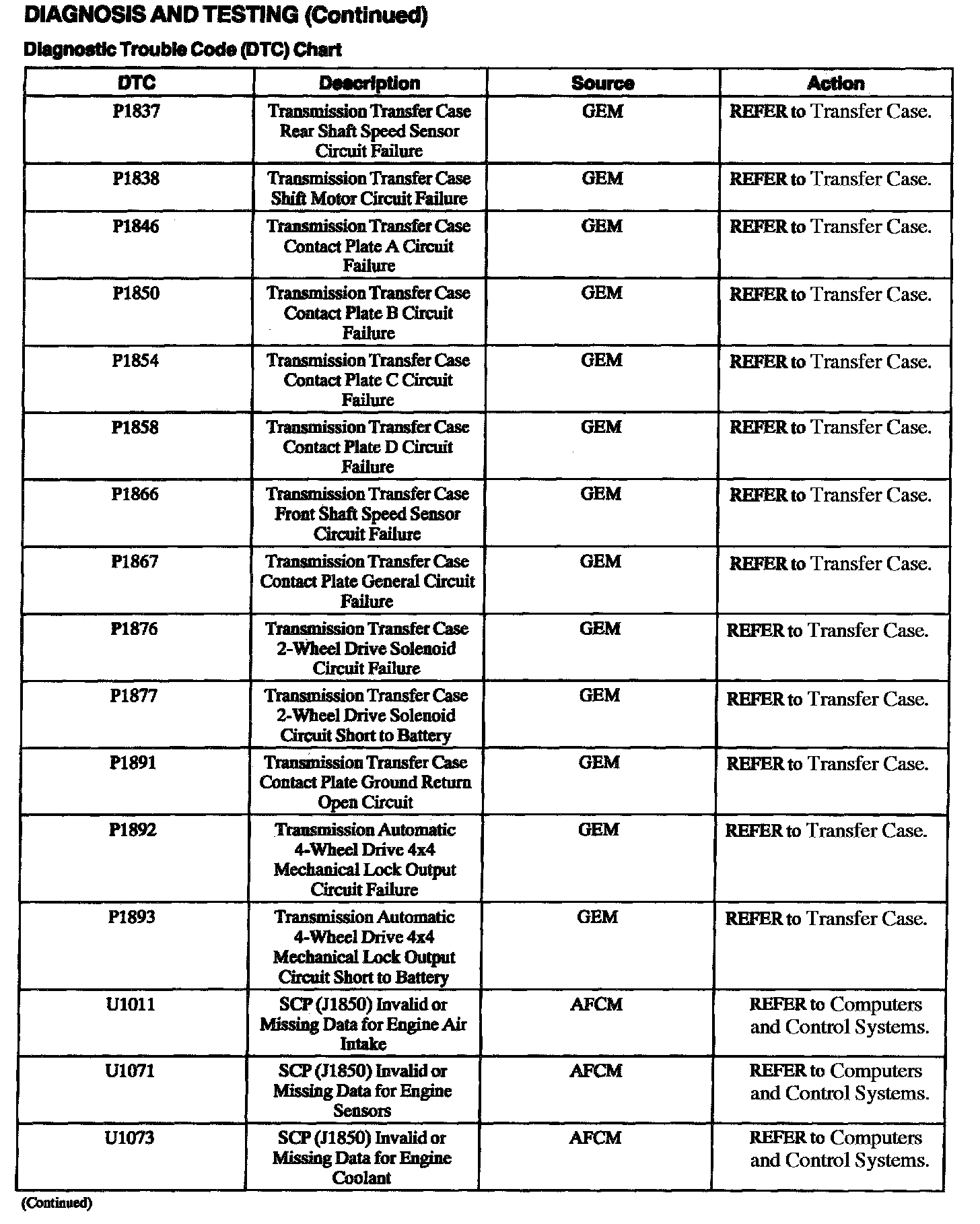

DTC Chart P1837 - U1073:

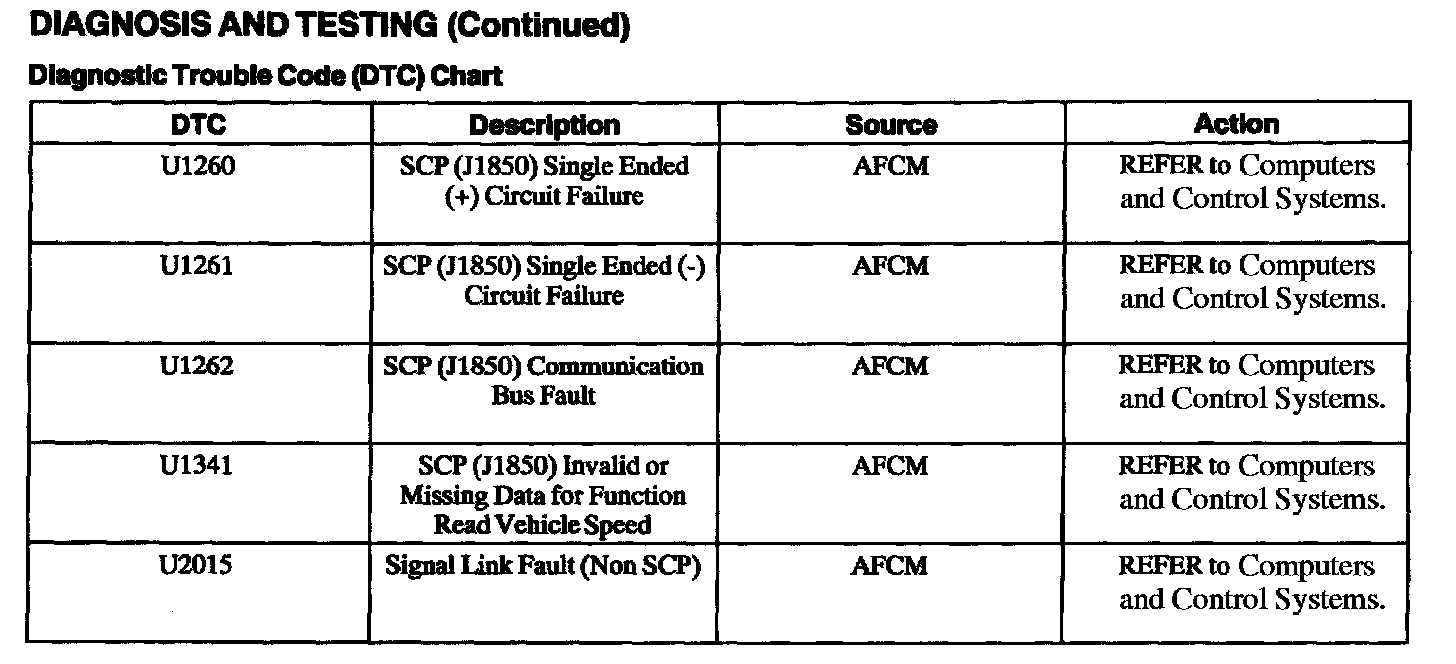

DTC Chart U1260 - U2015:





..
