Front Seat Backrest - Front Bench

DISASSEMBLY
1. Disassemble the seat.







2. Remove the seat recliner dump handle.

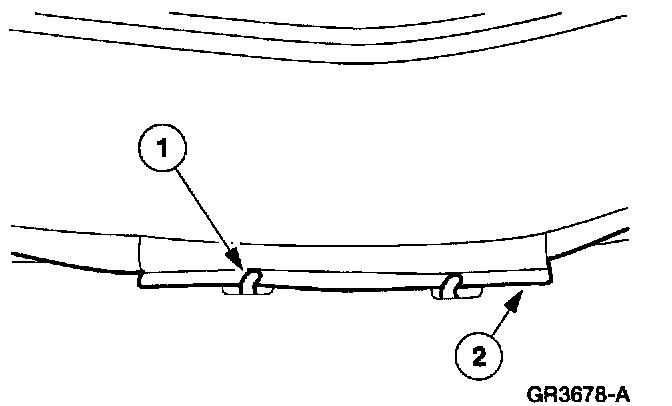

3. Unclip the J-clip retainer.







4. Invert the seat back trim cover to the first row of hog rings.







5. Remove the six hog rings.







6. Invert the seat back trim cover to the second row of hog rings.







7. Remove the seat back trim cover.
1 Remove the four hog rings.
2 Remove the seat back trim cover.







8. Remove the seat back frame from the seat back foam.







9. Remove the seat back hinge.
1 Remove the bolts.
2 Remove the seat back hinge.
^ Remove the hinge from the hinge link tube.







10. Remove the hinge link tube and positioning clips.
^ Remove the clips from the hinge link tube.

ASSEMBLY







1. To assemble, reverse the disassembly procedure.
