Test B: Engine Does Not Crank And The Relay Does Not Click

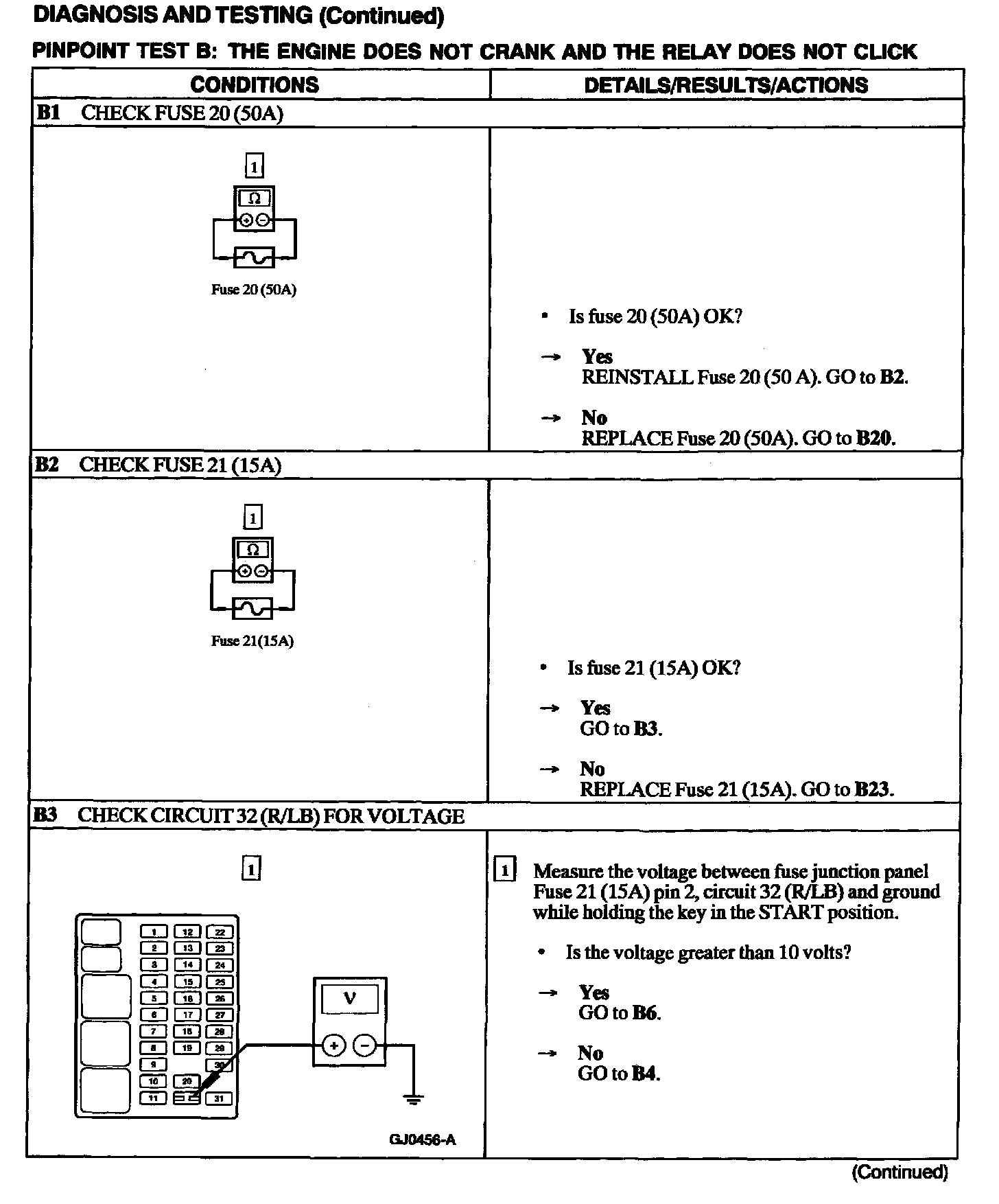

B1 - B3:

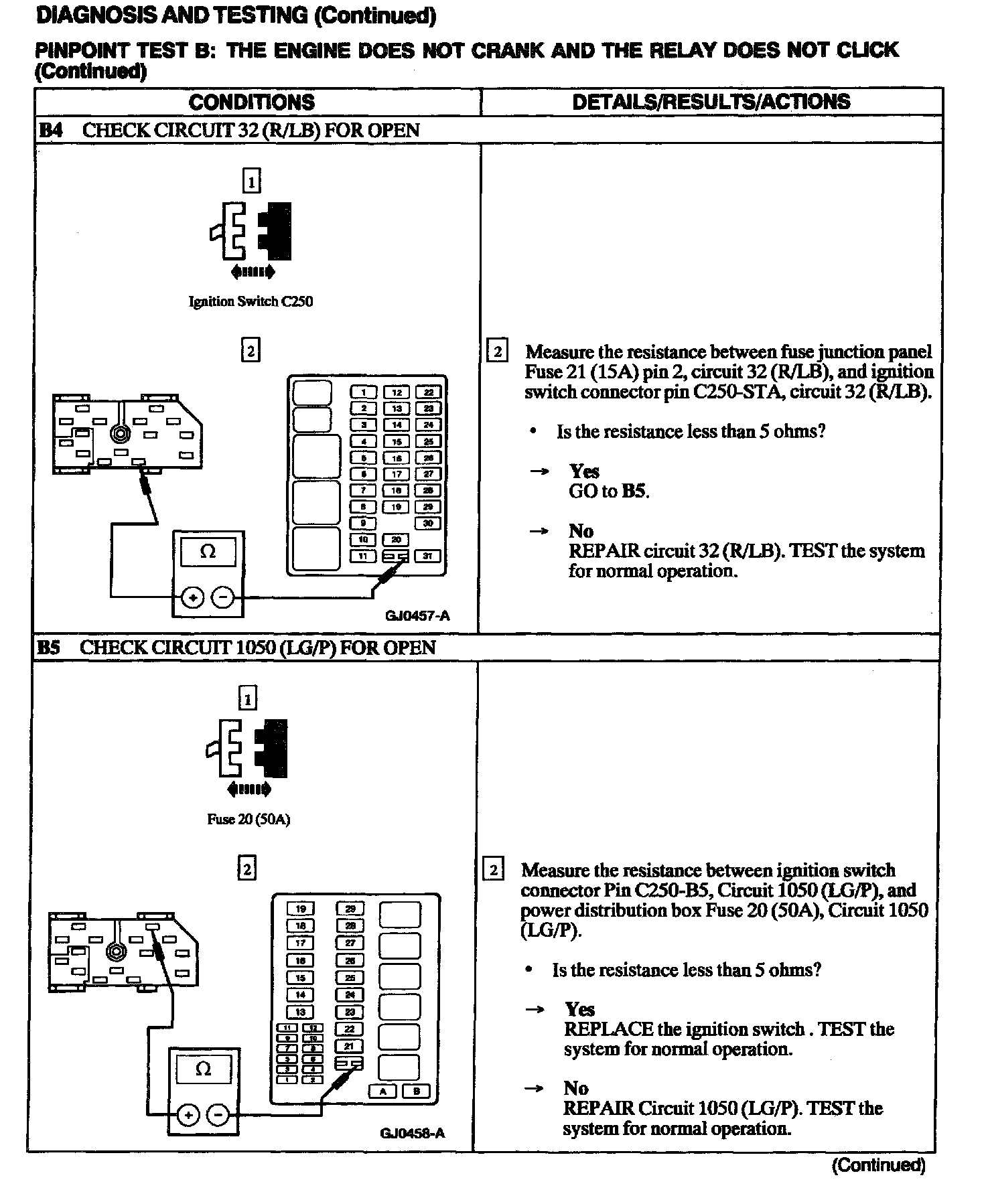

B4 - B5:

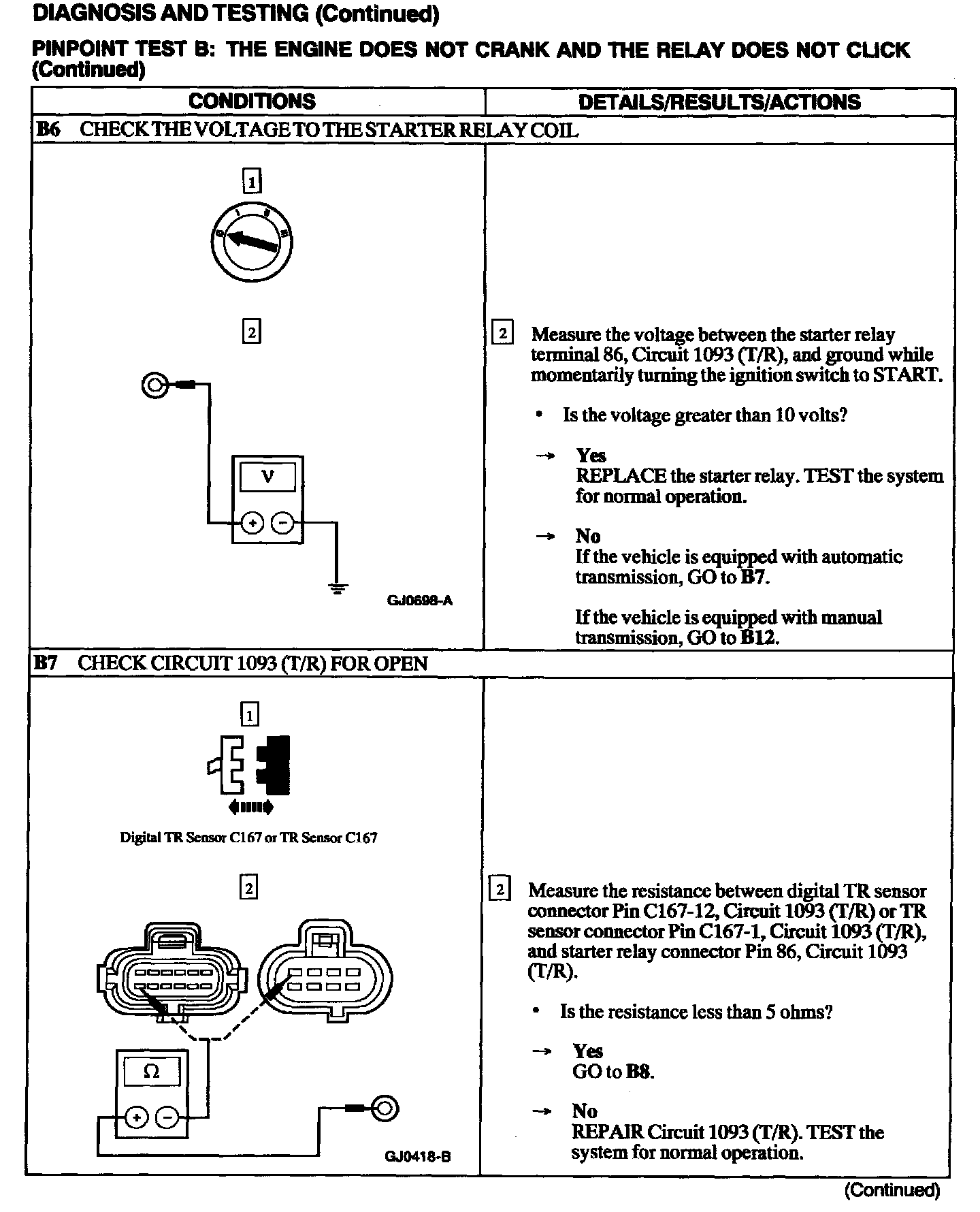

B6 - B7:

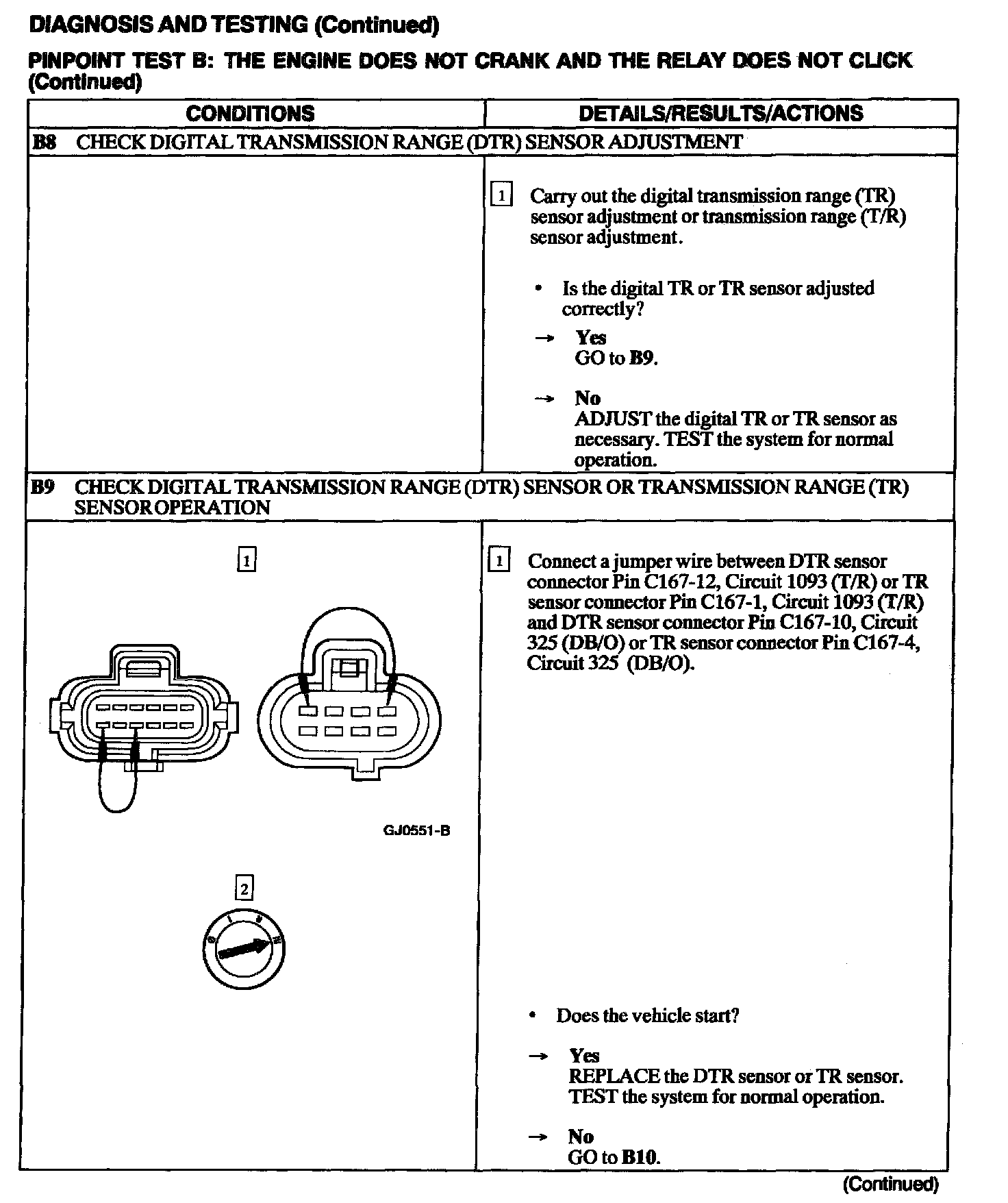

B8 - B9:

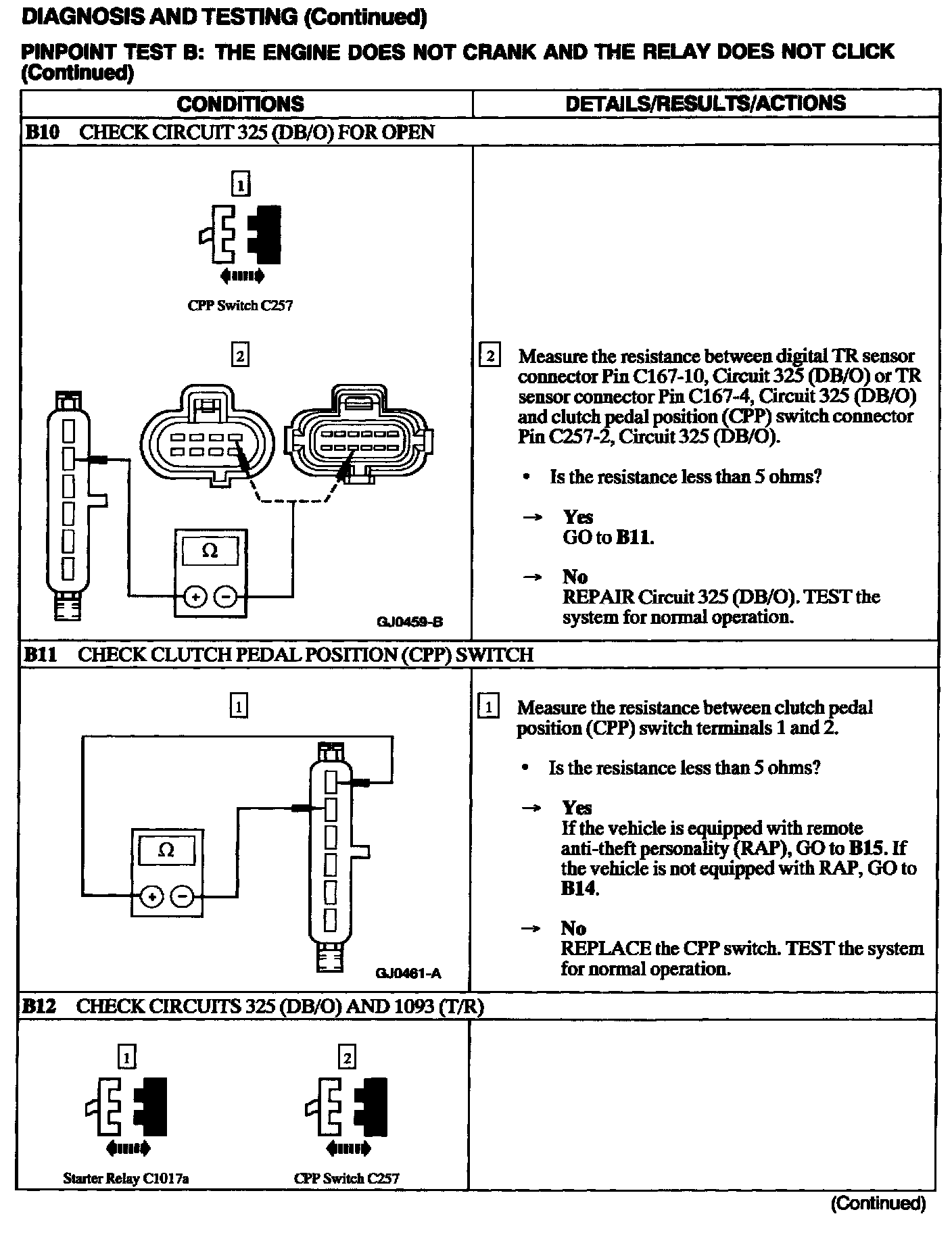

B10 - B12:

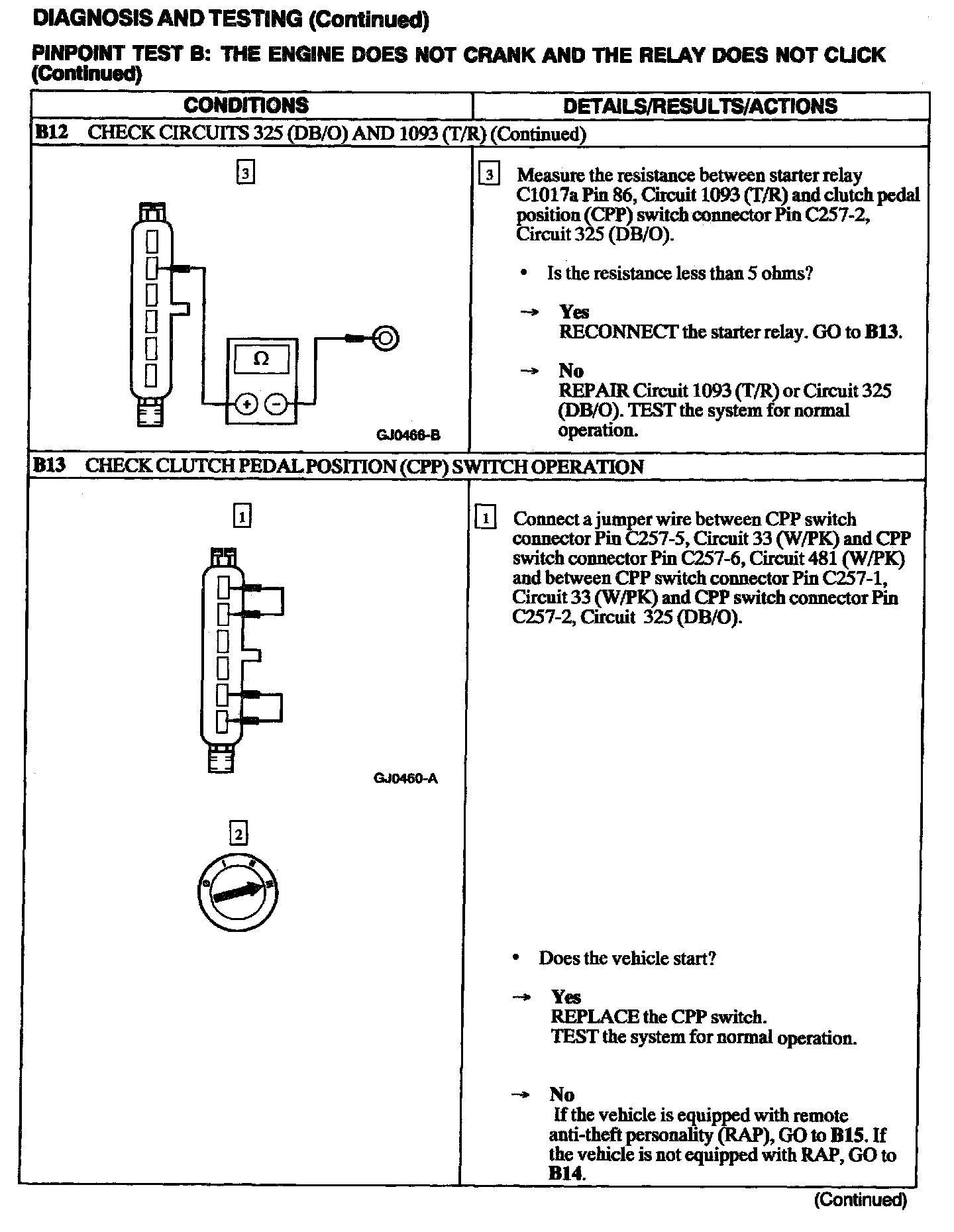

B12 - B13:

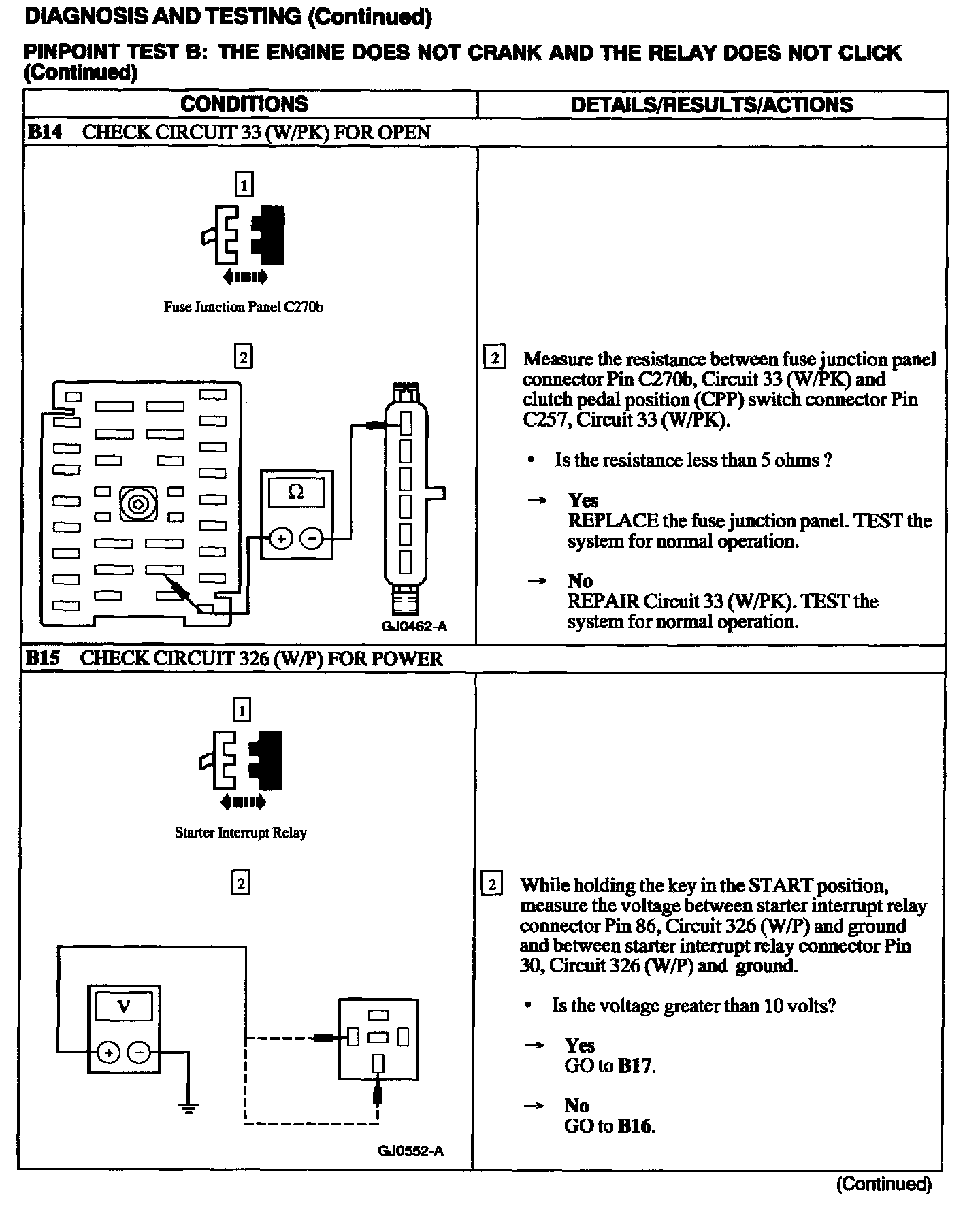

B14 - B15:

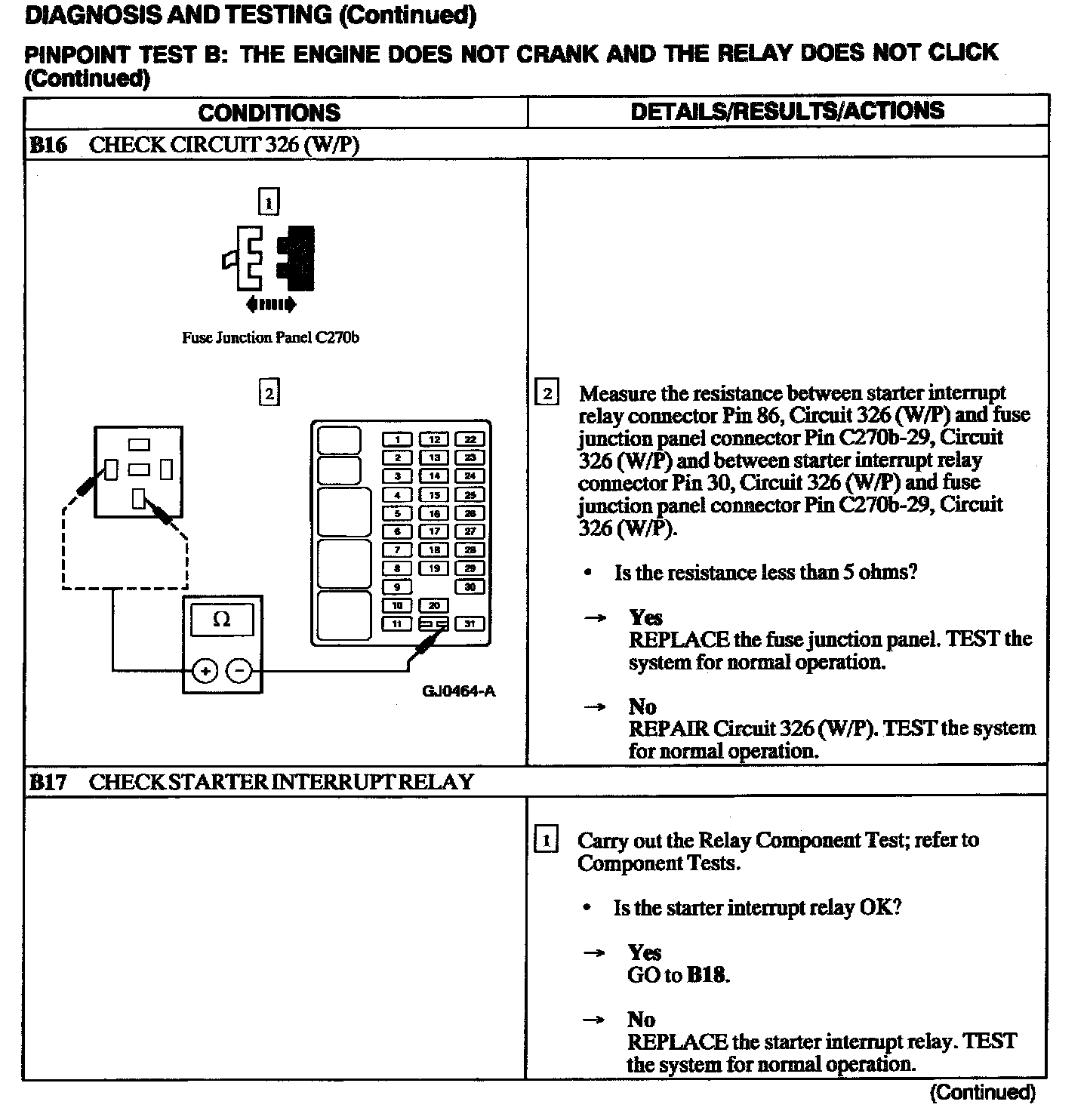

B16 - B17:

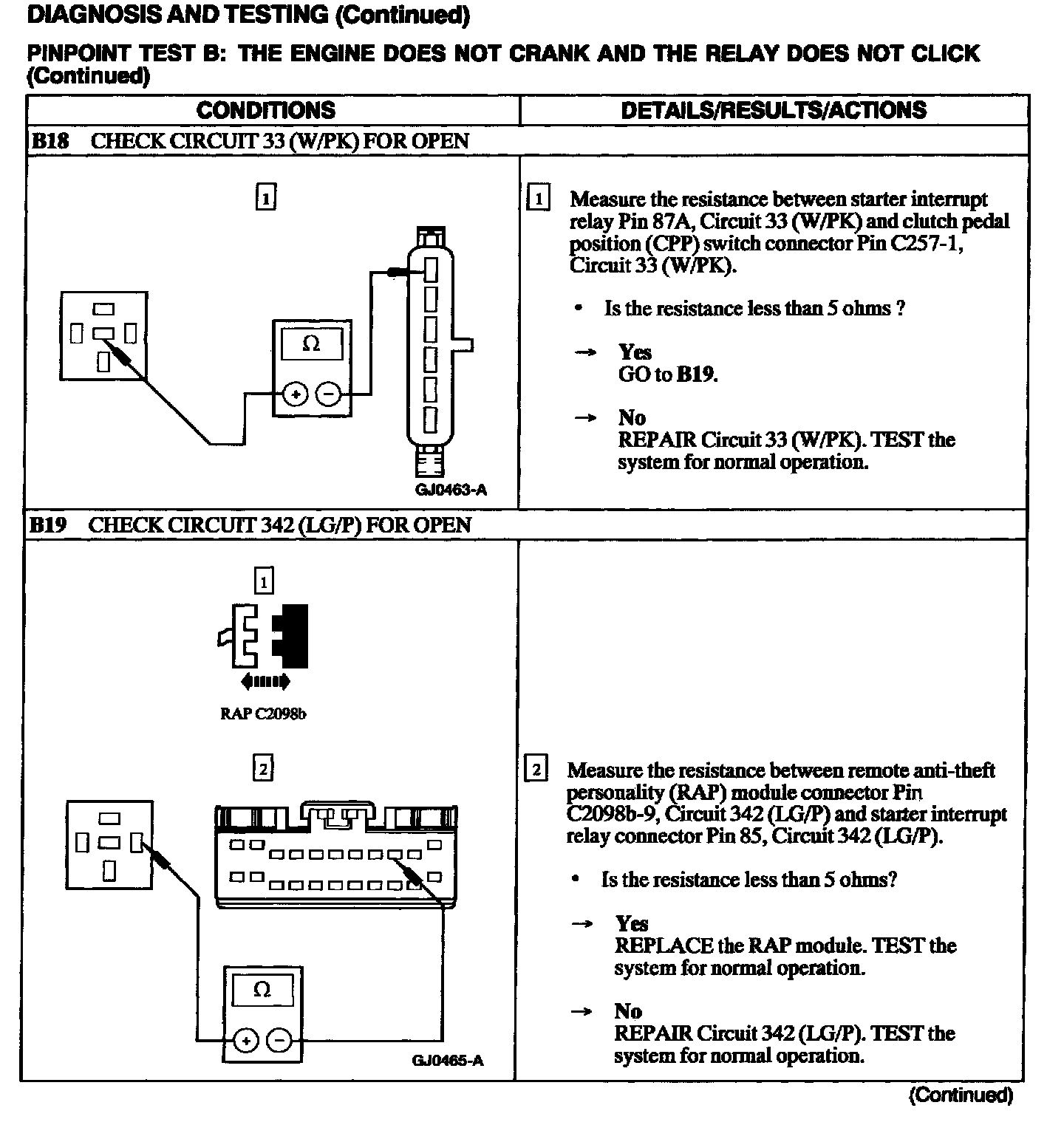

B18 - B19:

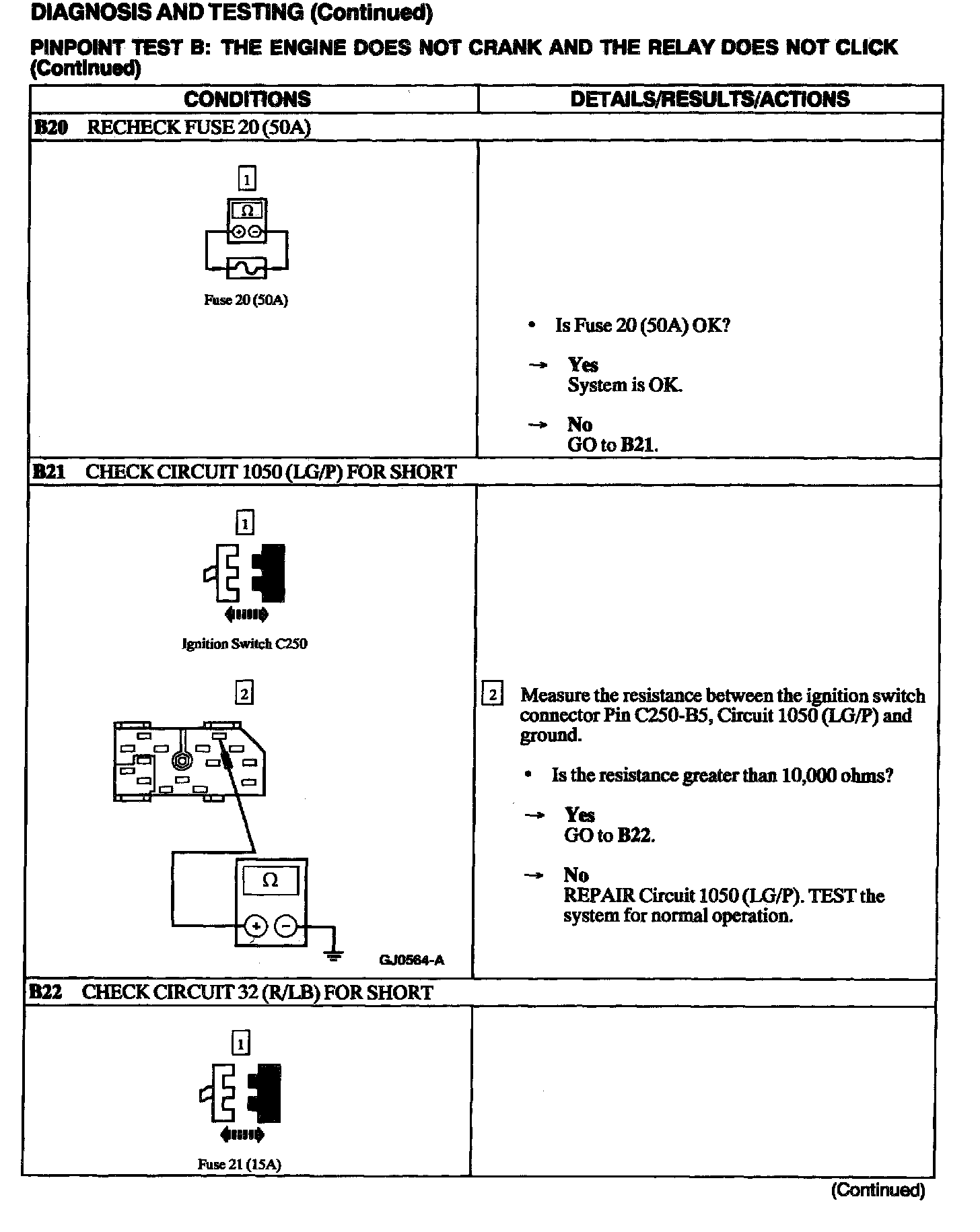

B20 - B22:

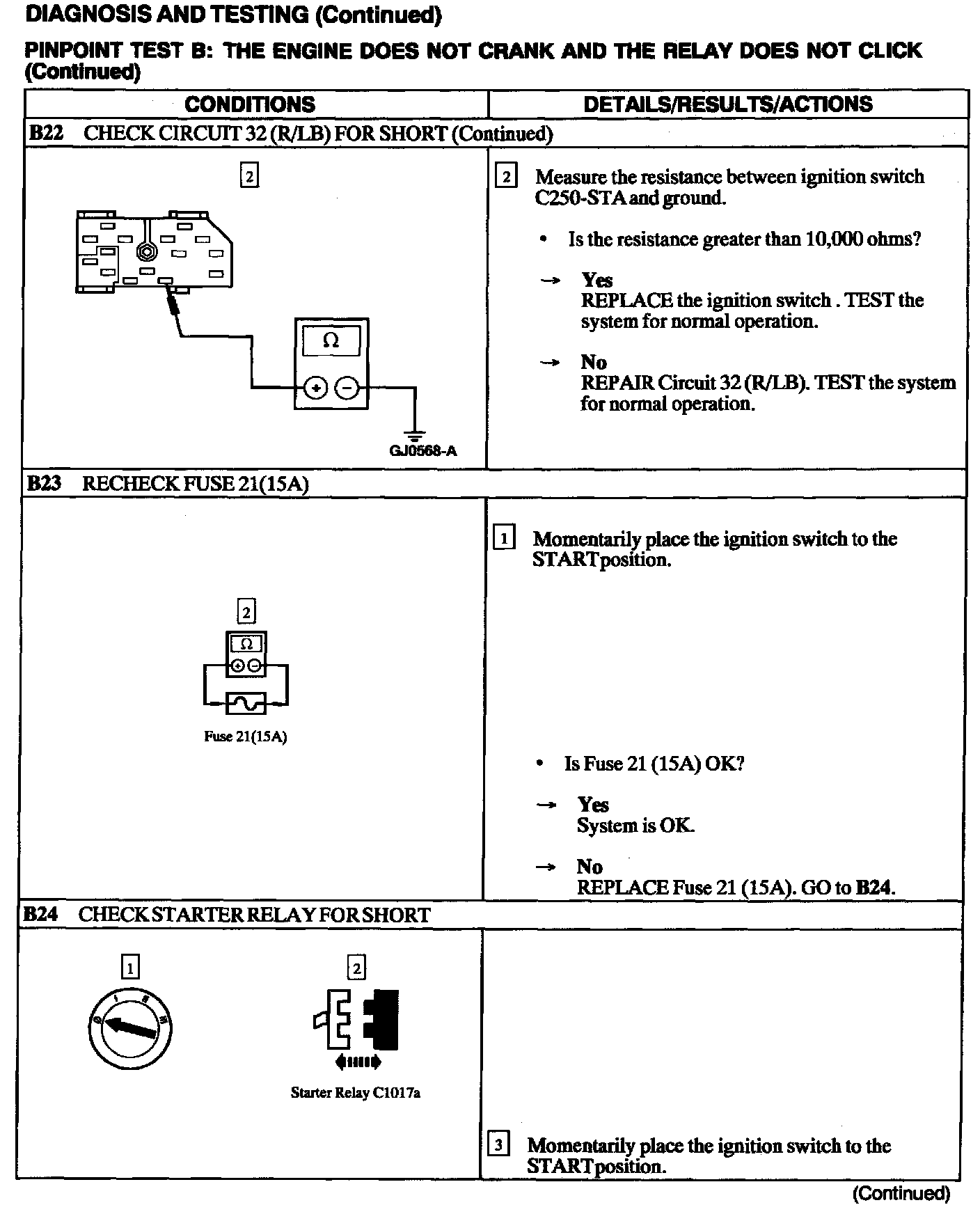

B22 - B24:

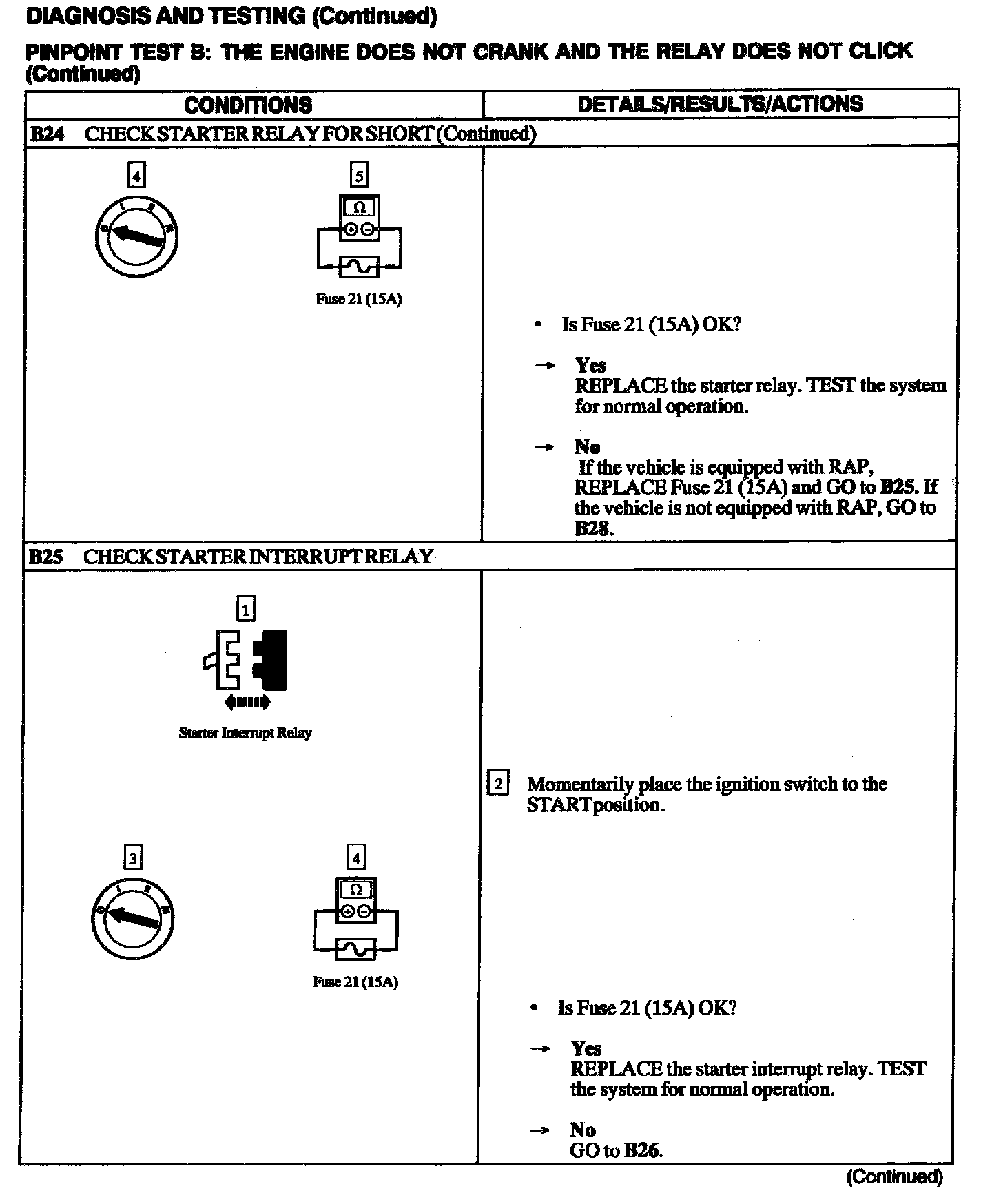

B24 - B25:

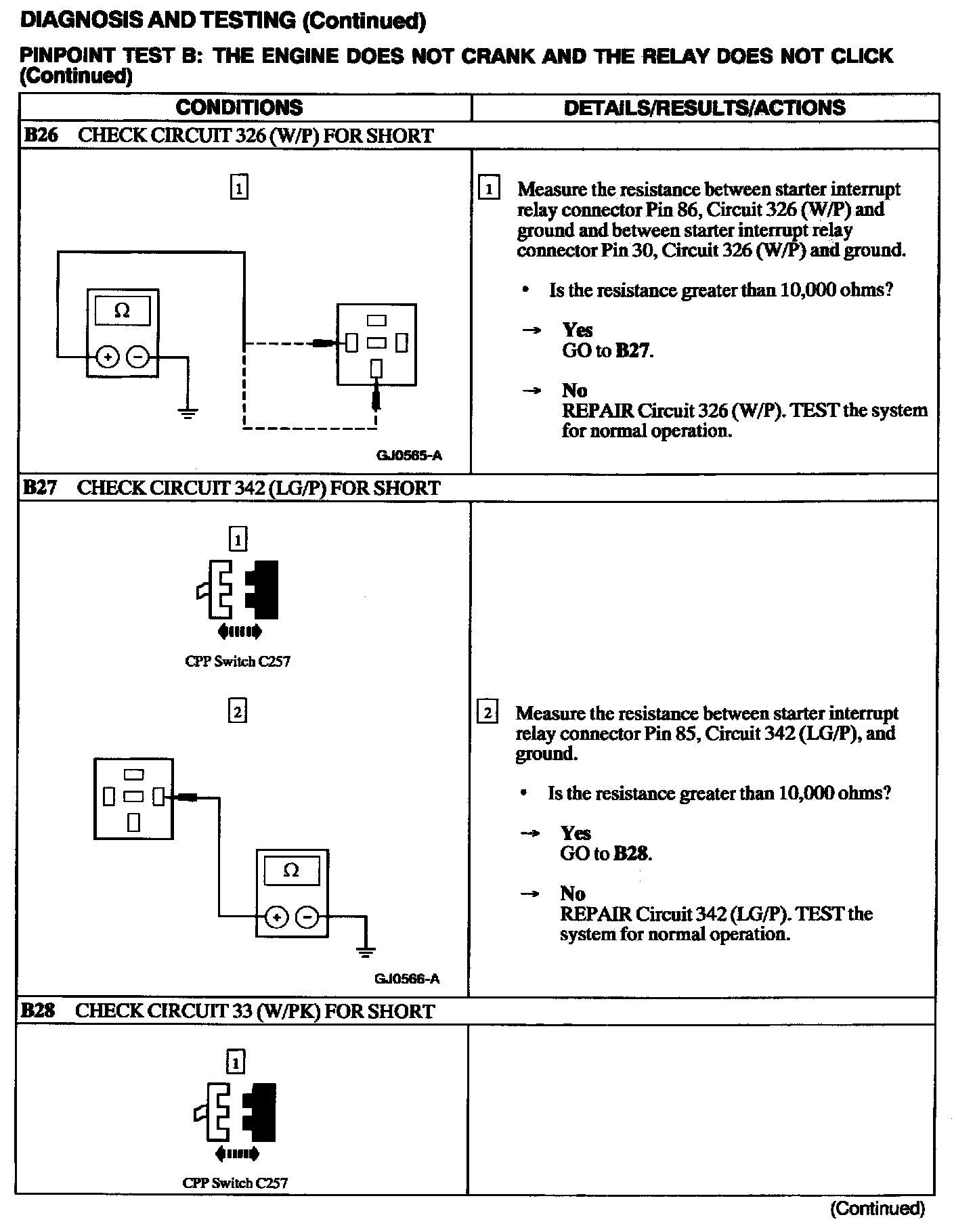

B26 - B28:

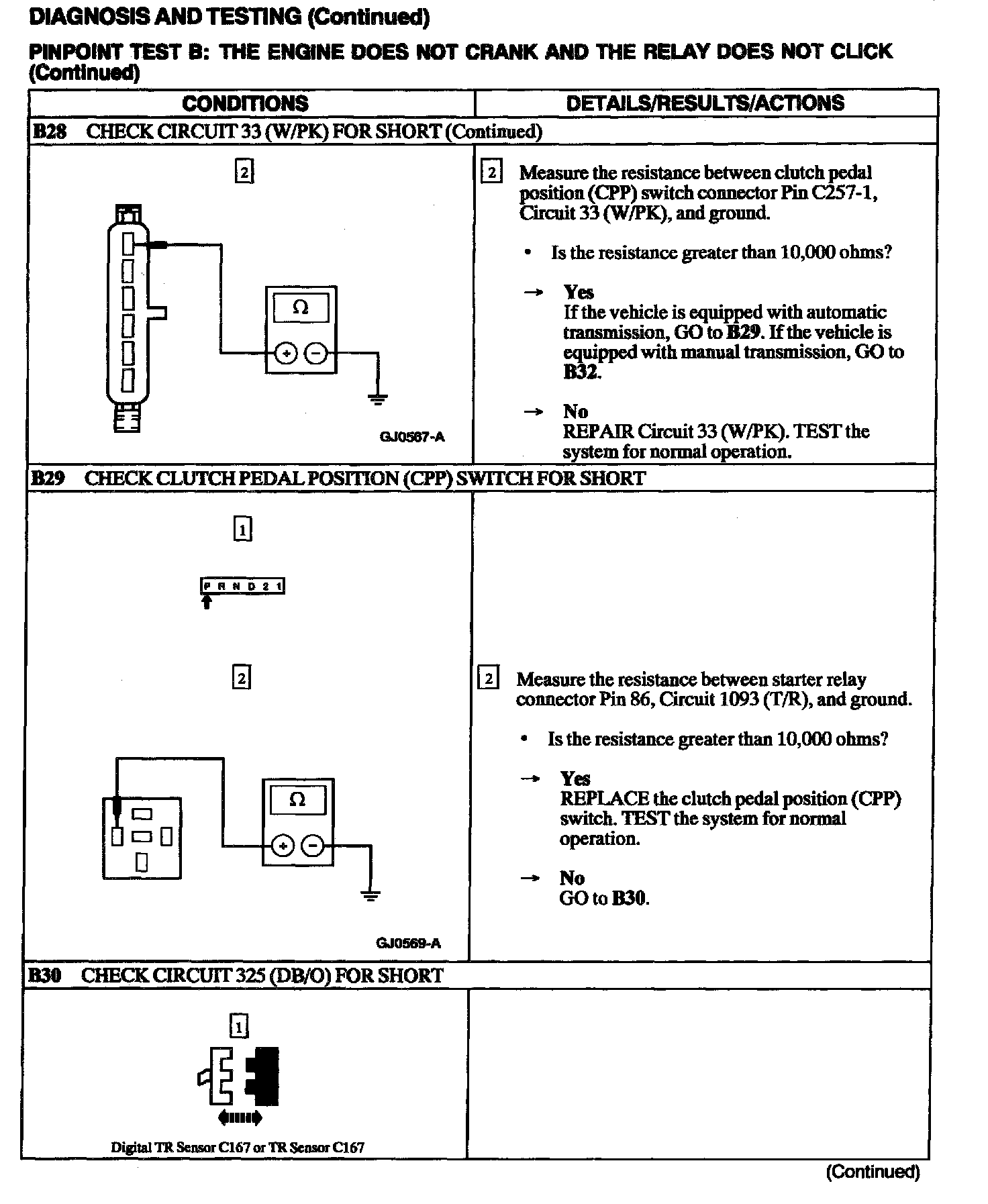

B28 - B30:

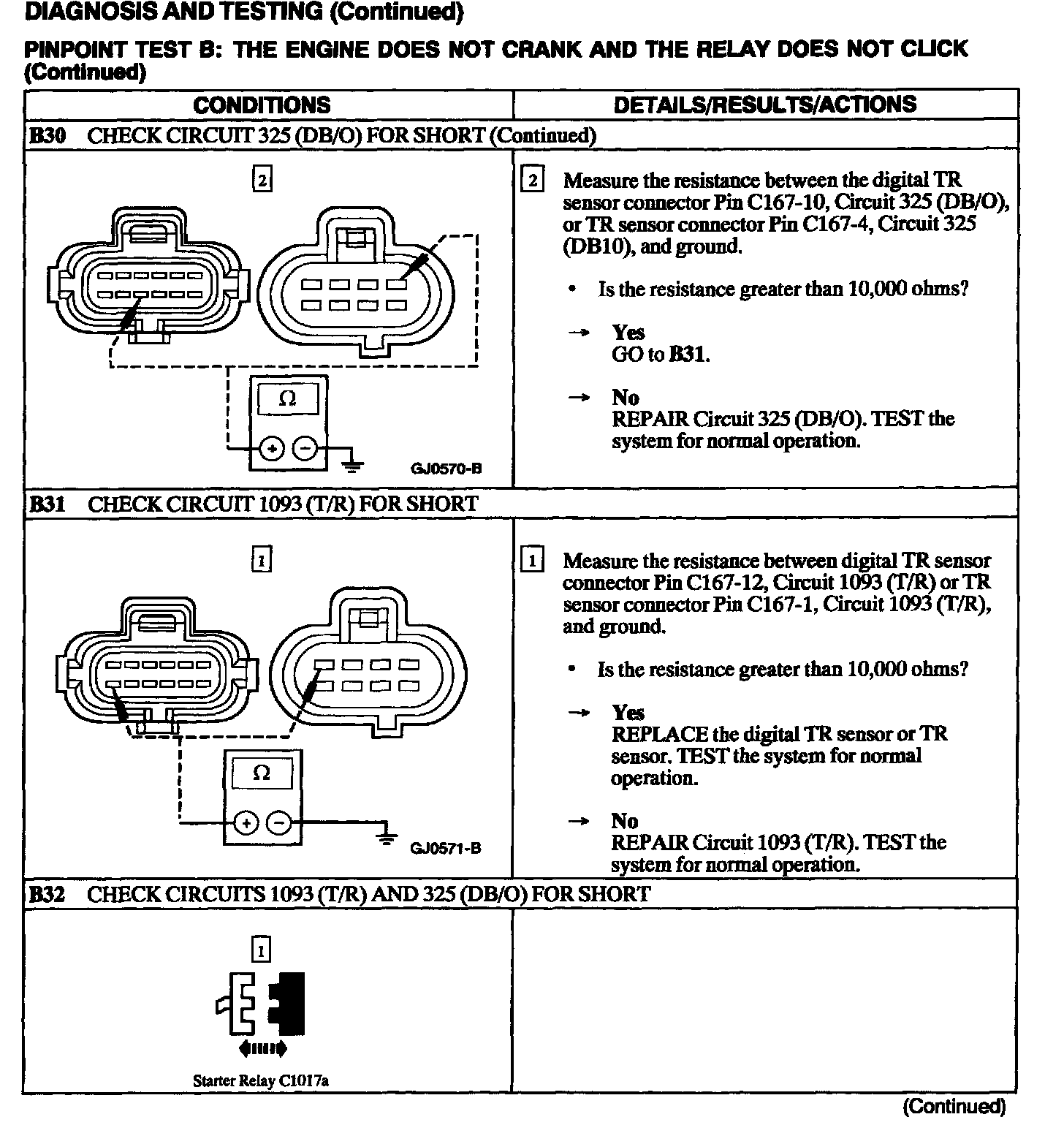

B30 - B32:

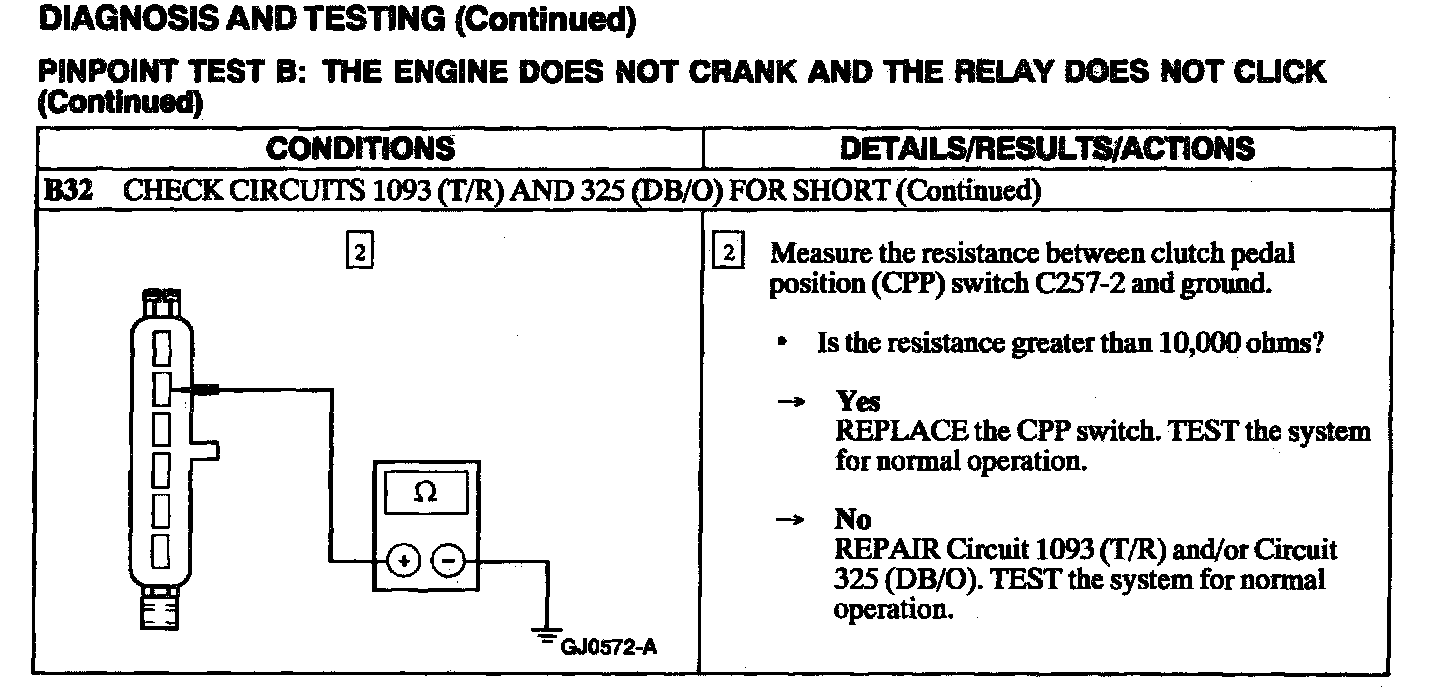

B32:
