System Specifications

Automatic Transmission - 4R100

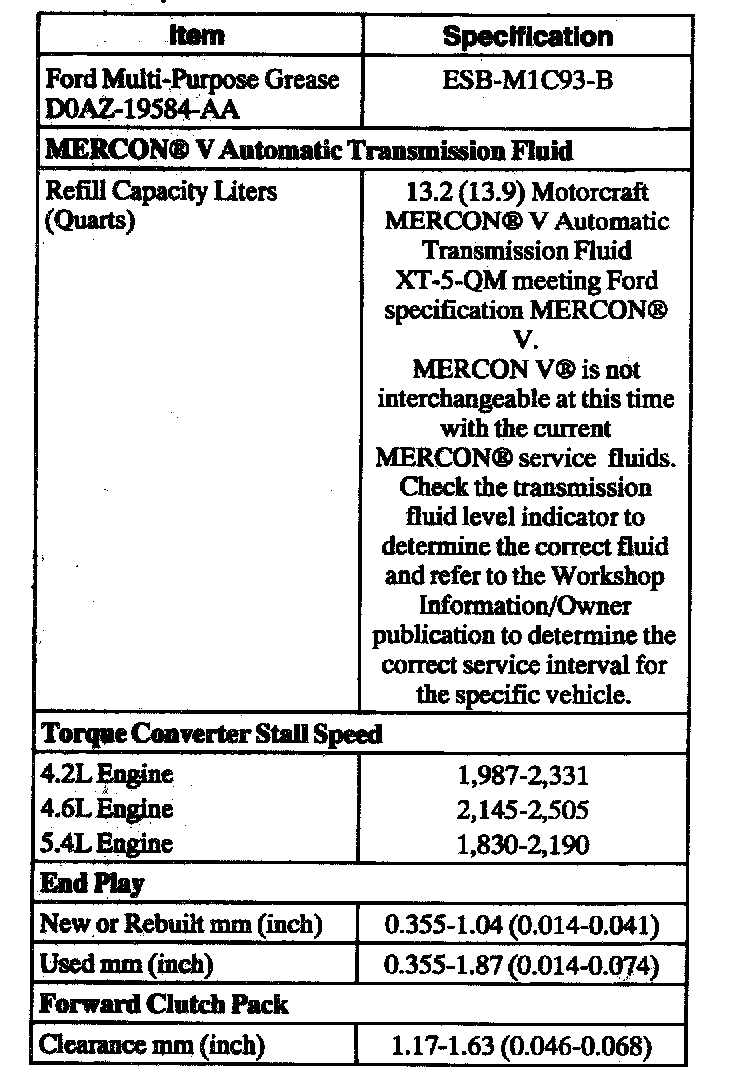

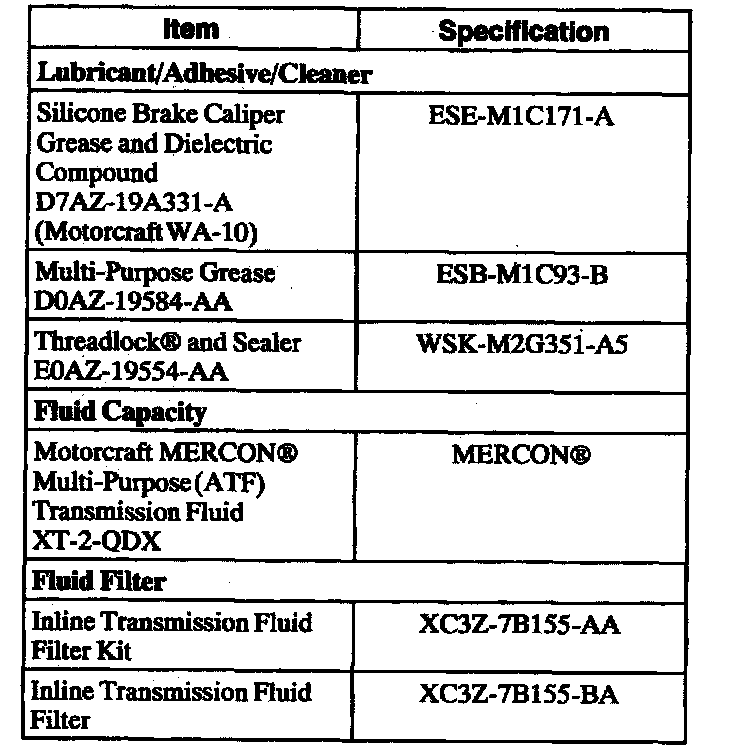

General Specifications

Fluid Capacity

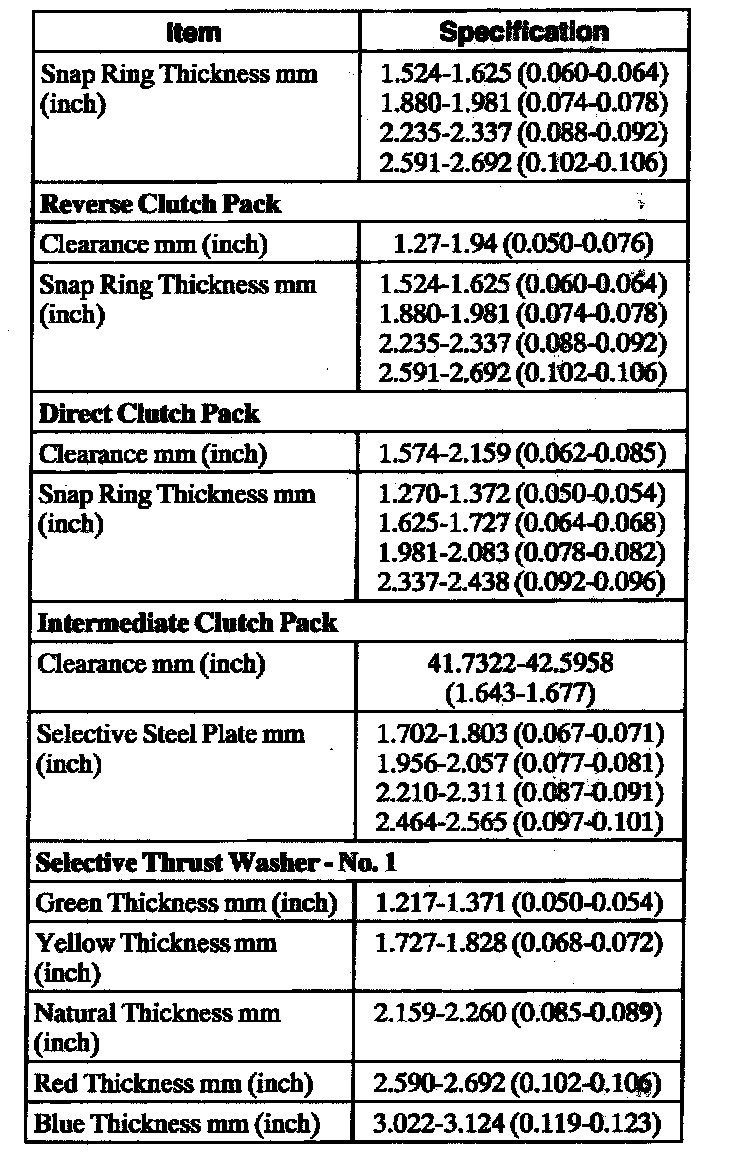

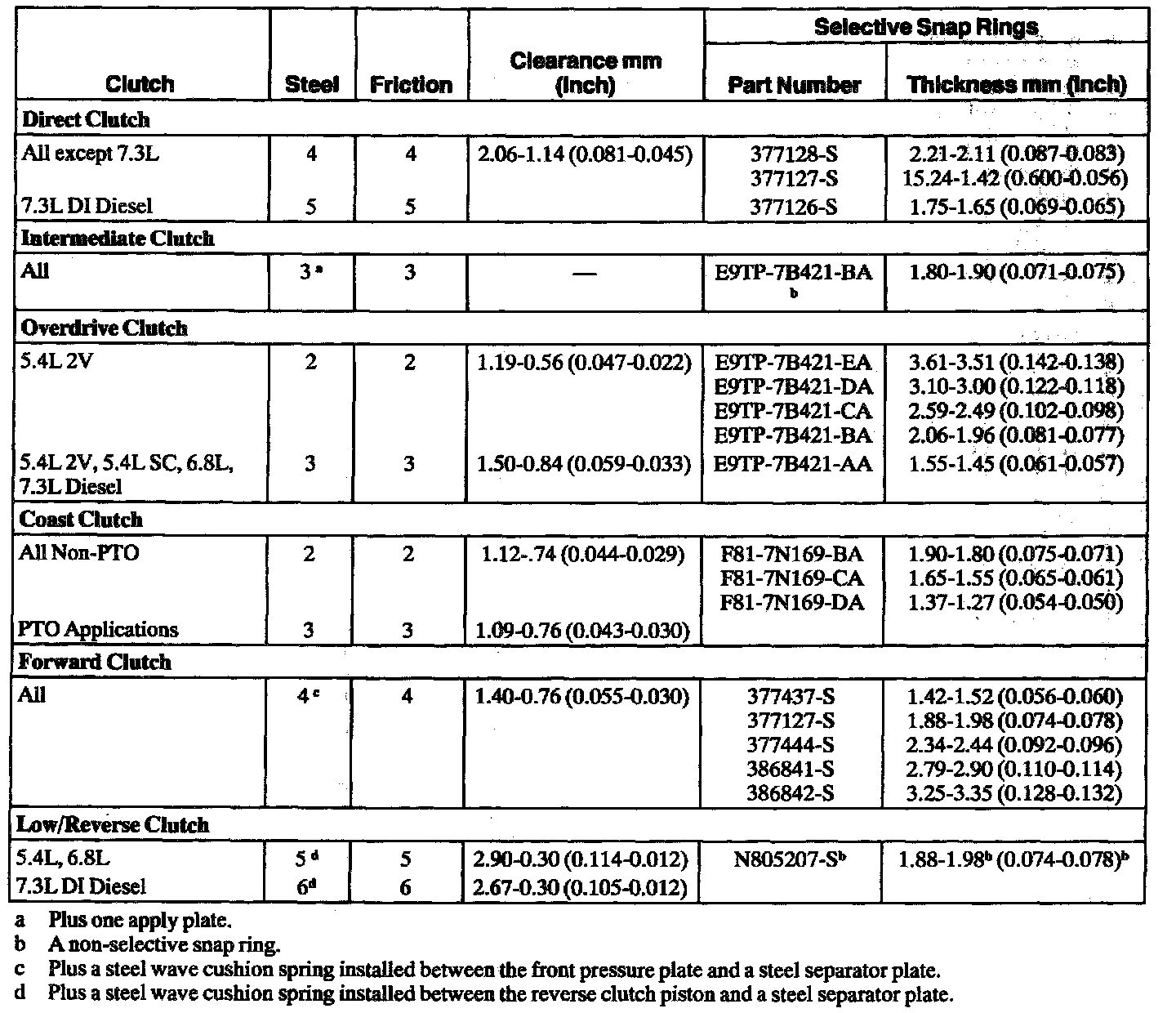

Clutch Plate Usage and Clearance Specifications

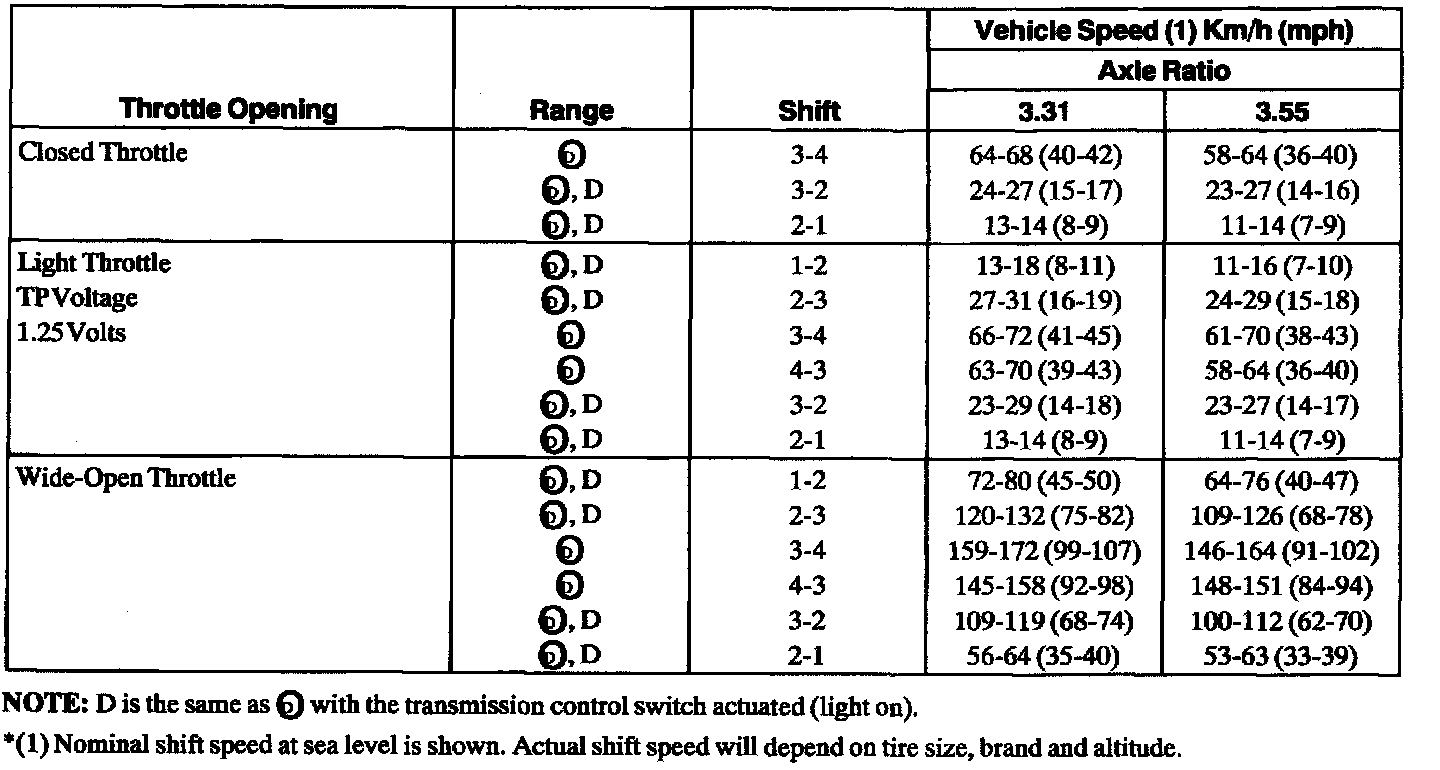

Applications Shift Speeds - Approximate* mph

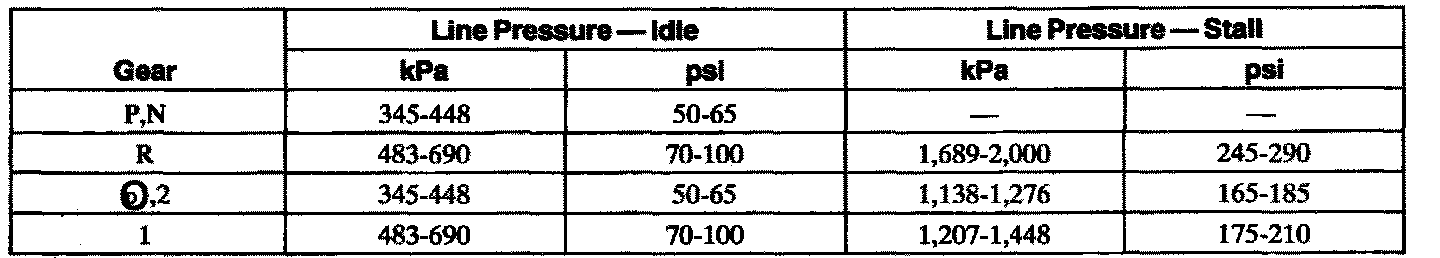

Line Pressure Chart

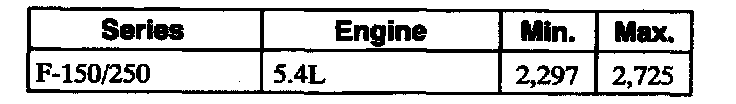

Stall Speed Chart

Romeo engine (4.6L)

Windsor engine (5.4L)

4.2L V6

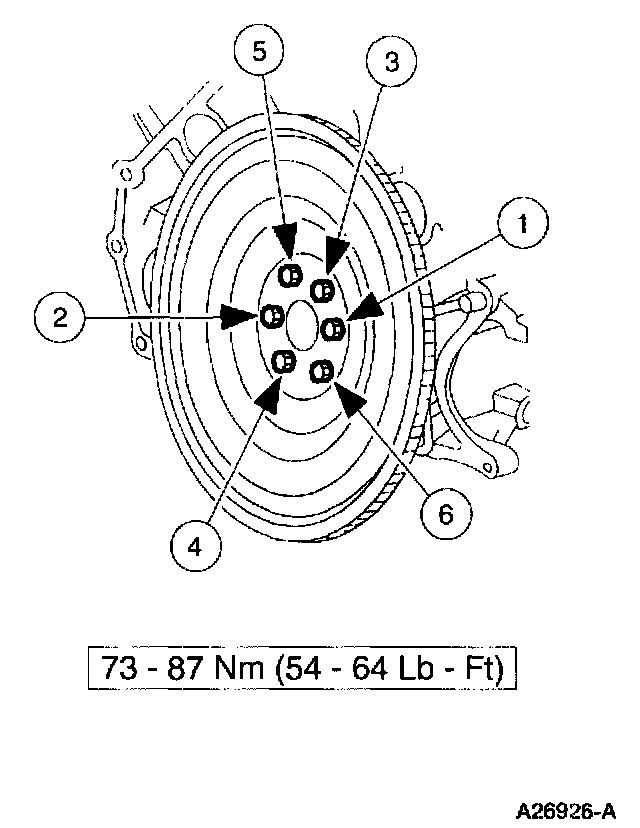

Flex Plate Torque and Sequence

Transmission Fluid Pan Bolts
Torque:
4R100 15 Nm (11 ft. lbs.)
4R70W 12-15 Nm (9-11 ft. lbs.)

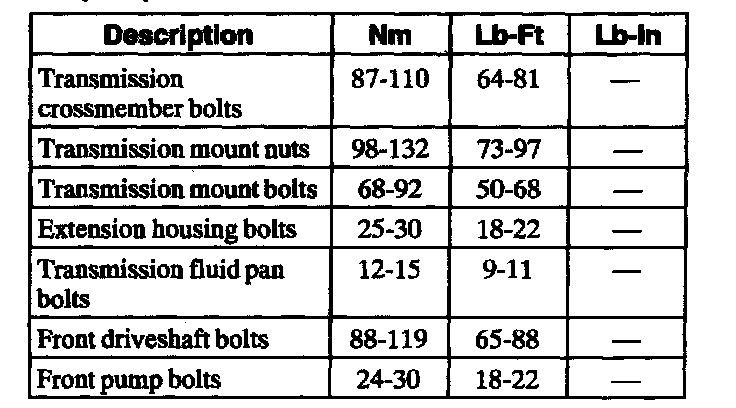

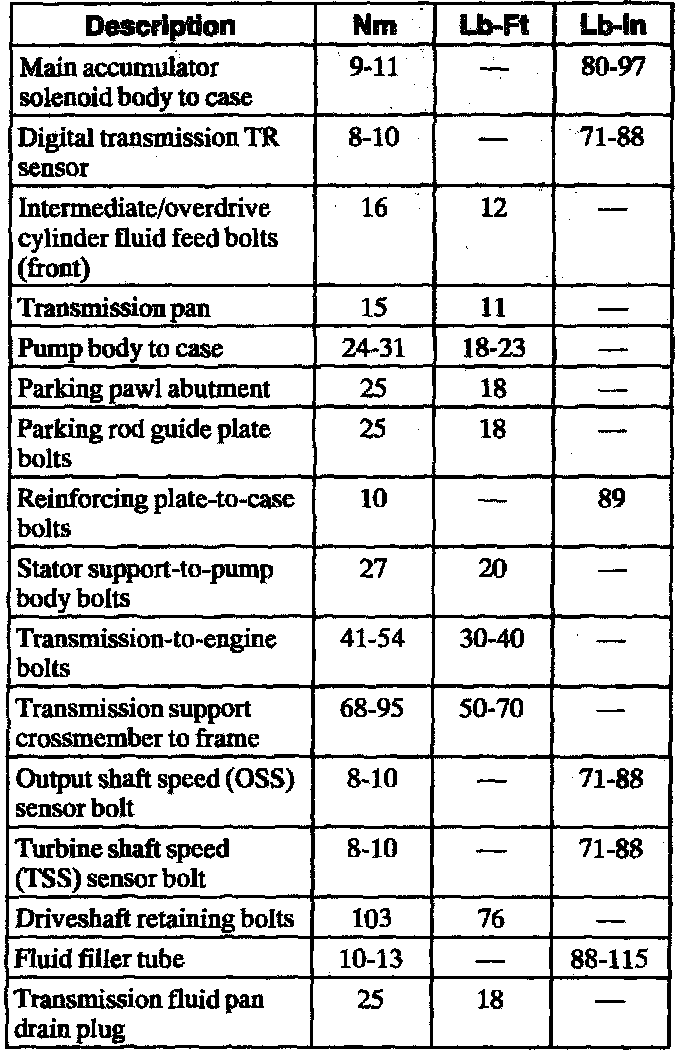

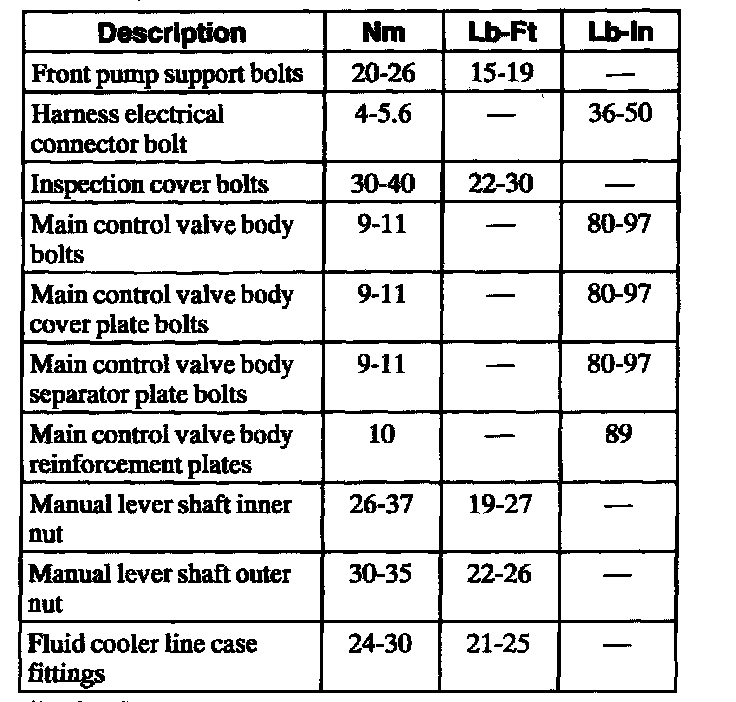

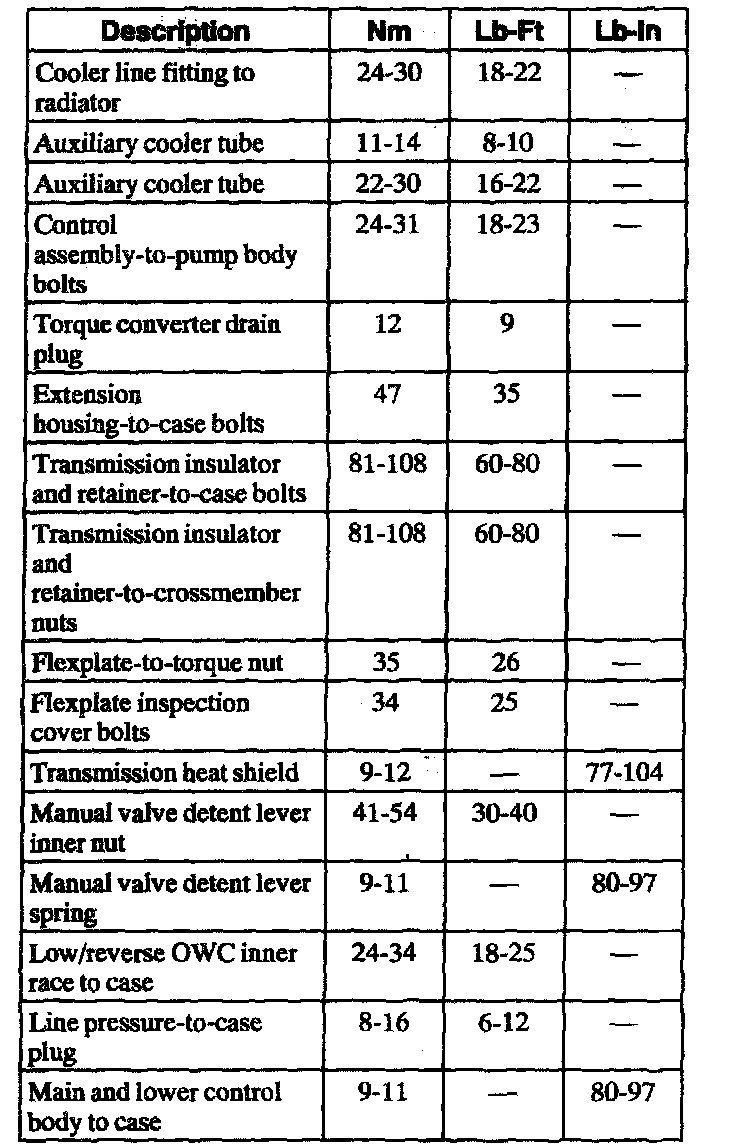

Torque Specifications

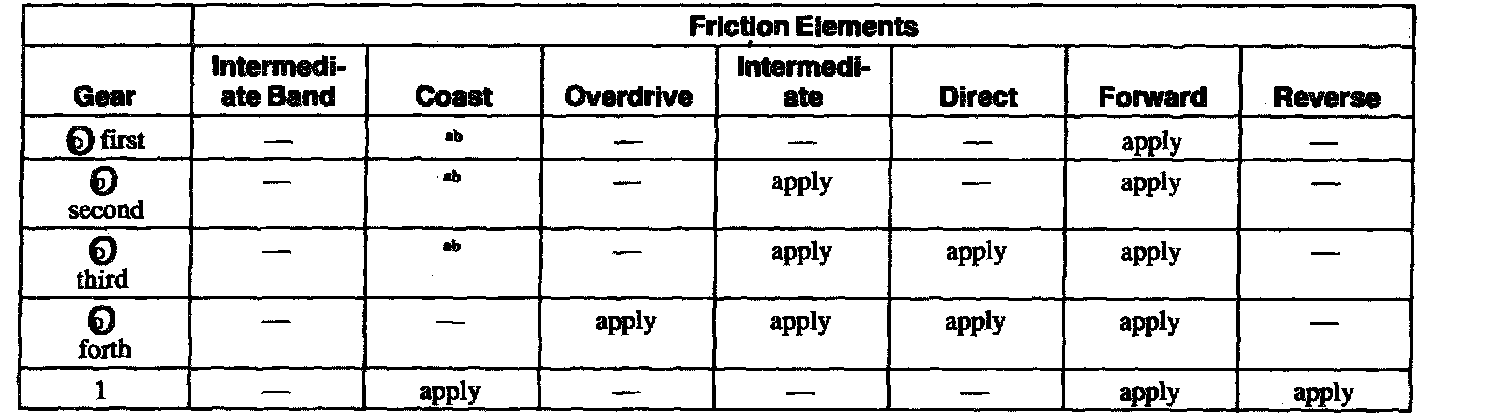

Band and Clutch Application Chart A

a In range (D) the transmission control switch pressed, the coast clutch is applied and the overdrive one-way clutch is bypassed.
b on certain applications in (D) range, the coast solenoid and clutch is controlled by the PCM.

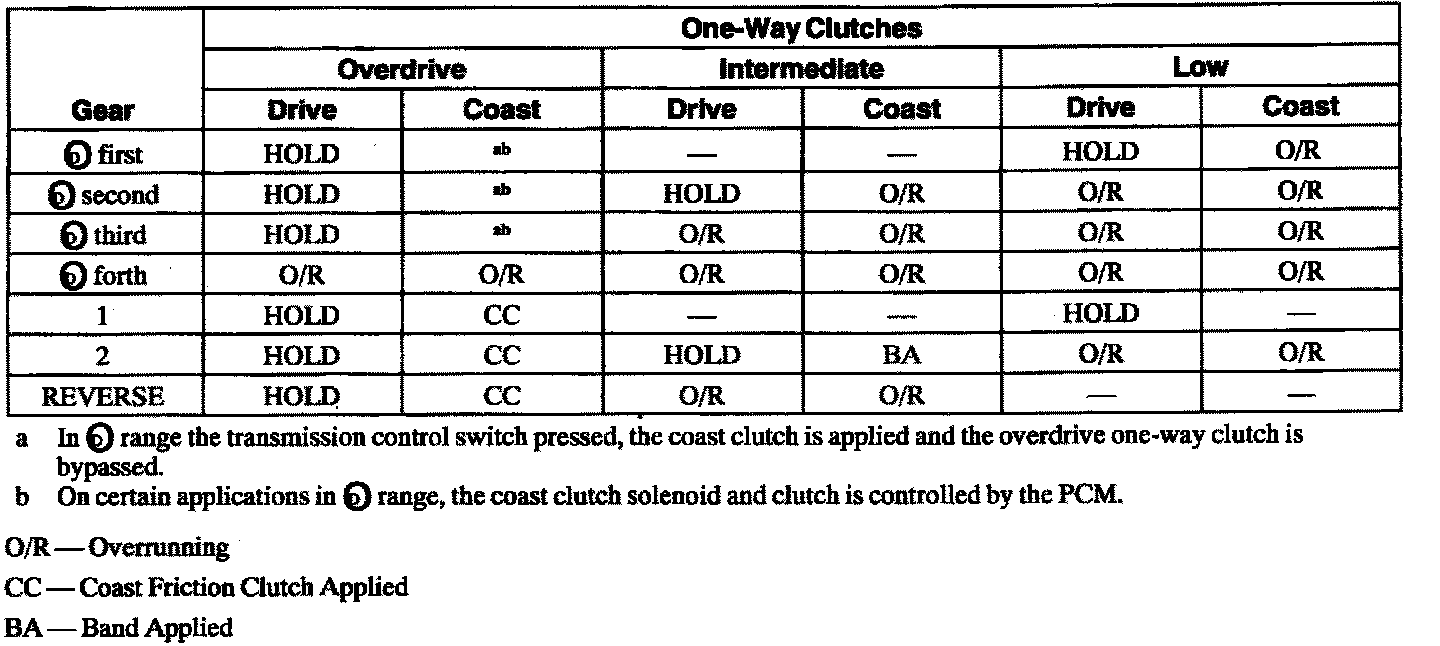

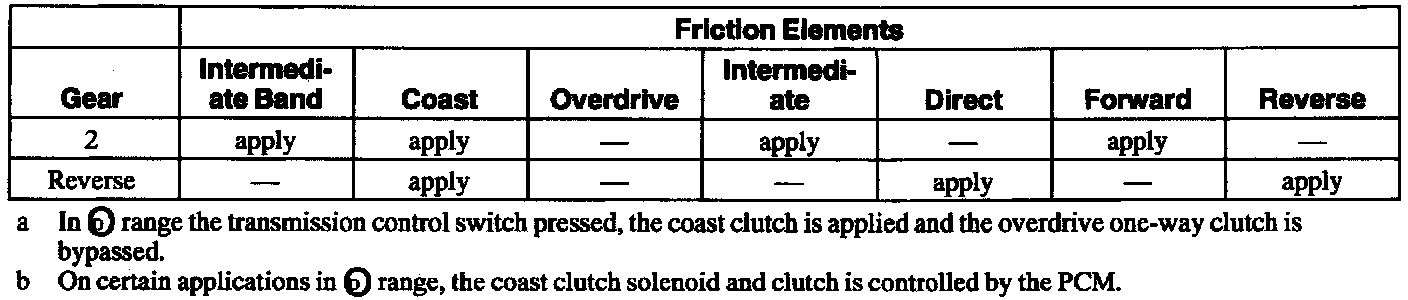

Band and Clutch Application Chart B

Automatic Transmission - 4R70W

General Specifications

a= Applied

a HD=Hydraulically Disabled
b NE=No Effect
c H=Hold
d EC=Electronically Controlled
e OR=Overrunning

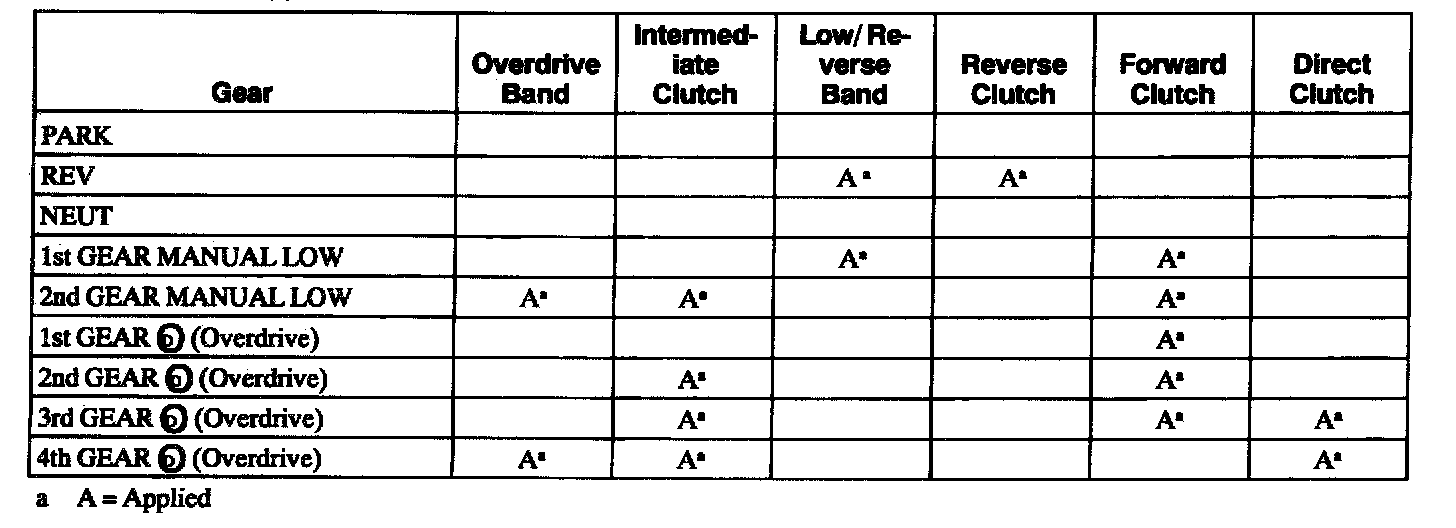

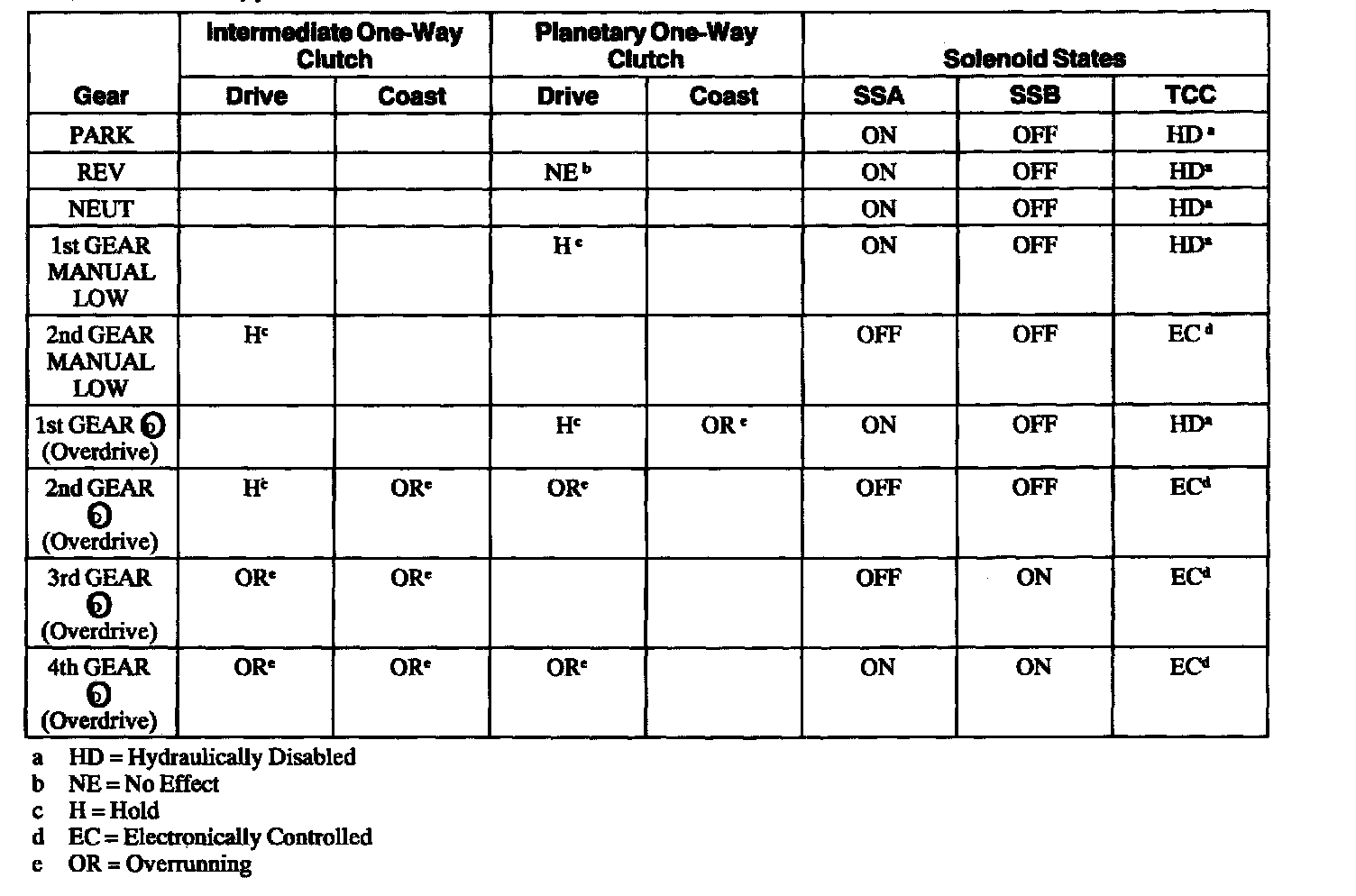

Band and Clutch Application Chart

Resistance Readings

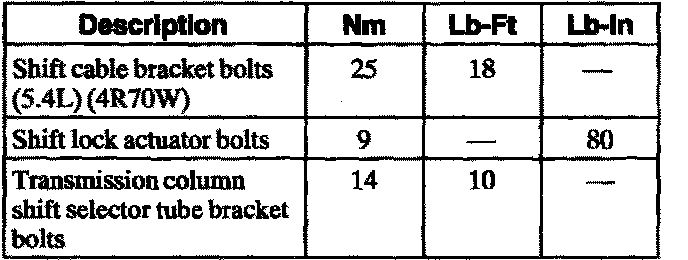

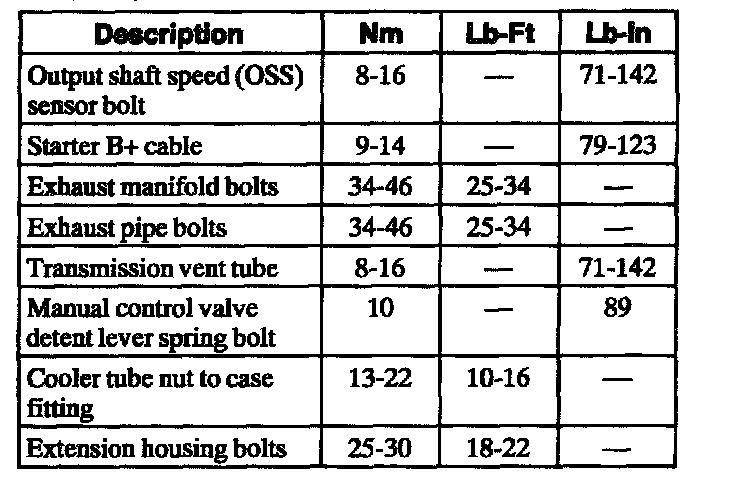

Torque Specifications

Transaxle/Transmission Cooling

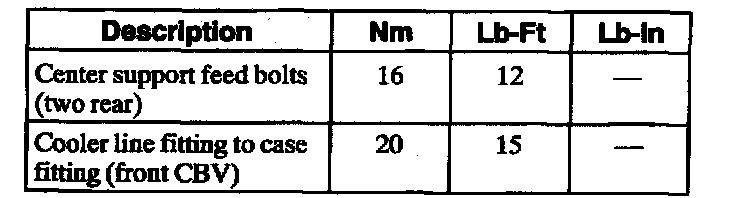

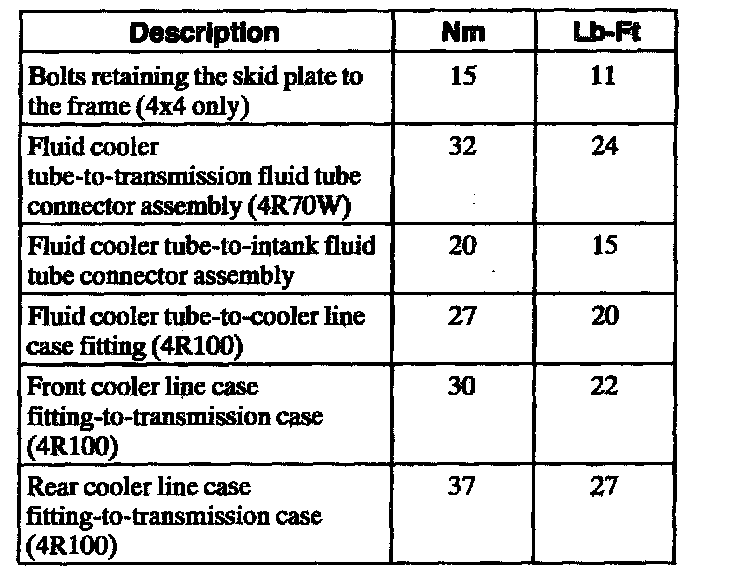

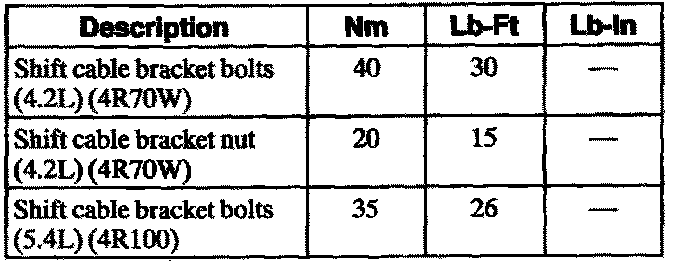

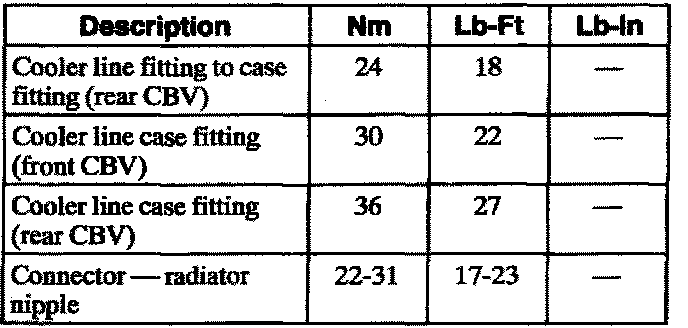

Torque Specifications

Automatic Transaxle/Transmission

Torque Specifications
