Differential Assembly: Service and Repair

Differential Bench Torque Test

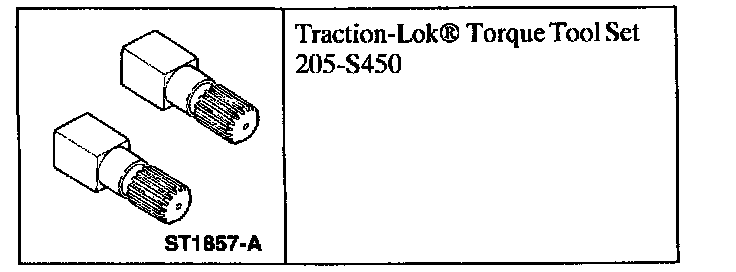

Special Tools:

Special Tool(s)

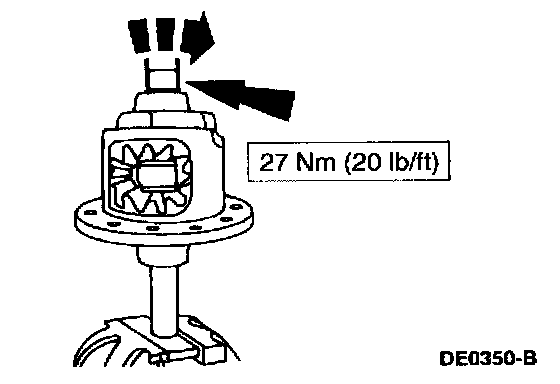

1. Check the torque required to rotate one differential side gear.
- Mount the differential case and the Traction-Lok@ Torque Tool Set in a vise.
- The initial break-away torque, if original clutch plates are used, must be within specification. The rotating torque required to keep the differential side gear turning with new clutch plates can vary.
