High Pressure Cutoff Switch

REMOVAL
1. Raise and support the vehicle.

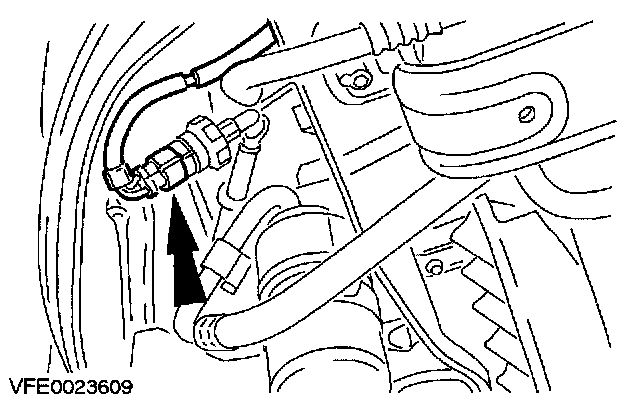

2. Disconnect the high-pressure cutoff switch electrical connector.







3. Remove the high-pressure cutoff switch.
- Discard the O-ring seals.

NOTE: Make sure that the high-pressure cutoff switch valve closes completely after removal of the high-pressure cutoff switch to prevent loss of refrigerant.

INSTALLATION

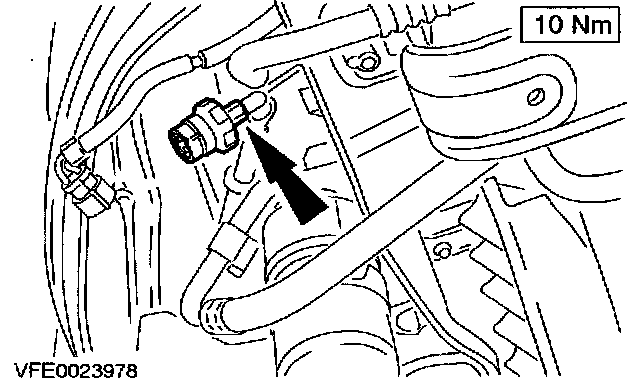

1. To install, reverse the removal procedure.

NOTE:
- Install new high-pressure cutoff switch O-ring seals.
- Coat the high-pressure cutoff switch O-ring seals in clean refrigerant oil prior to installation.
