Climate Control Assembly
REMOVAL 1.
Remove the audio unit.
2.

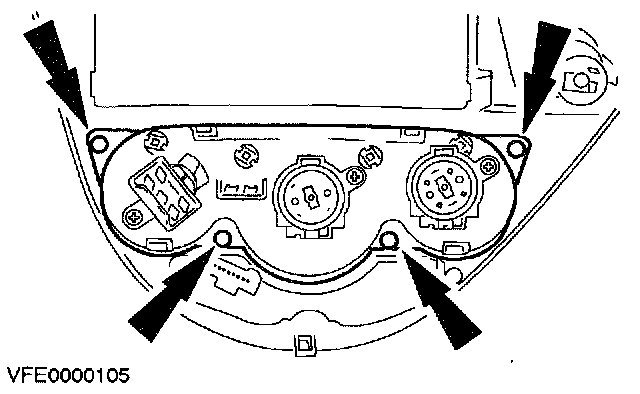

Remove the instrument panel console bezel retaining screws.
3.
Pull the instrument panel console bezel forwards and disconnect the electrical connectors.
4.
Detach the temperature and air distribution blend door bowden cables from the climate control assembly.
5.
Remove the climate control assembly.
INSTALLATION 1.
To install, reverse the removal procedure.
