Sensor, Front

Sensor - Front

Removal and Installation
1. Raise and support the vehicle.





2. Disconnect the front anti-lock brake sensor wire from the vehicle frame.

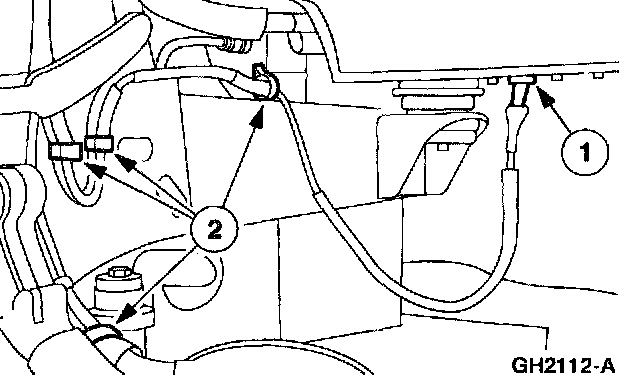

1. Disconnect the electrical connector.
2. Unclip the front anti-lock brake sensor wire from the vehicle frame.





3. Remove the front anti-lock brake sensor.

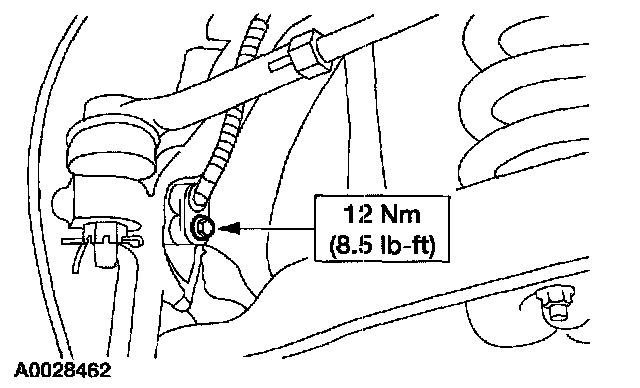

1. Remove the bolt.
2. Remove the front anti-lock brake sensor.





4. NOTE: Plug the sensor mount opening and thoroughly clean the mounting surface. Apply High-Temperature 4x4 Front Axle and Wheel Bearing Grease E8TZ-19590-A meeting Ford Specification ESA-MlC198-A.

To install, reverse the removal procedure.
