Movable Quarter
Heavy Duty Riverter:
SPECIAL TOOL(S)REMOVAL 1.
Remove the quarter trim panel.
2.
Support the
quarter window glass.
3.

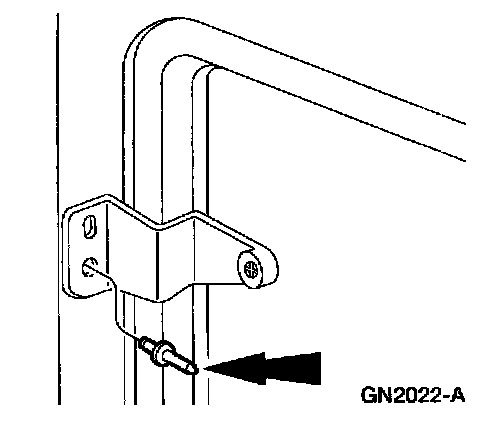

Drill out the four rivets that attach the quarter window hinges to the body panel.
4.
Remove the
quarter window glass.
INSTALLATION 1.
To install, reverse the removal procedure.
^
Use Heavy Duty Riveter to install the rivets.
