Roof Opening Panel Alignment
1.
Cycle the roof sliding outer glass panel through the fully open to the fully closed position.
2.

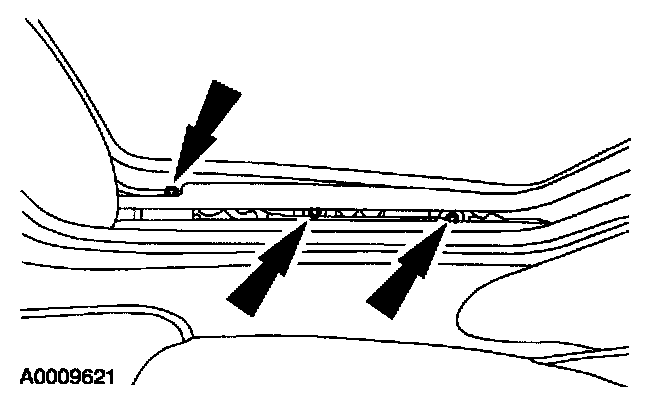

Loosen the roof opening panel glass screws.
^
Loosen the front and center screws to adjust the front.
^
Loosen the rear and center screws to adjust the rear.
3.

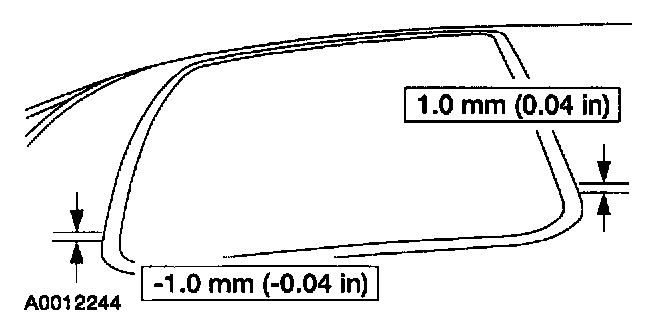

Adjust the roof opening panel glass to specification.
4.
Tighten the roof opening panel glass screws.
