Fuel Injector: Service and Repair
REMOVAL 1.
Remove the fuel injection supply manifold.
2.
Remove the six fuel injectors.
3.

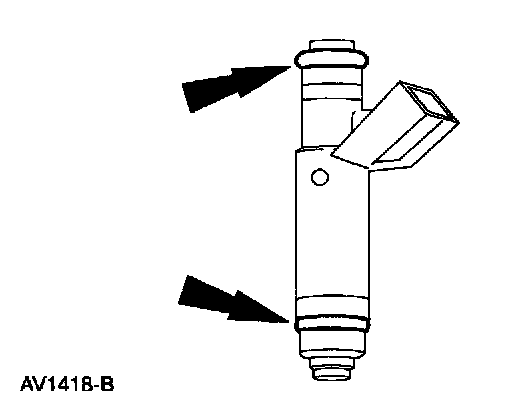

Inspect the two O-ring seals from each
fuel injector. Install new O-ring seals as needed.
INSTALLATION 1.
To install, reverse the removal procedure.
NOTE: Lubricate the O-ring seals with clean engine oil to aid installation.
