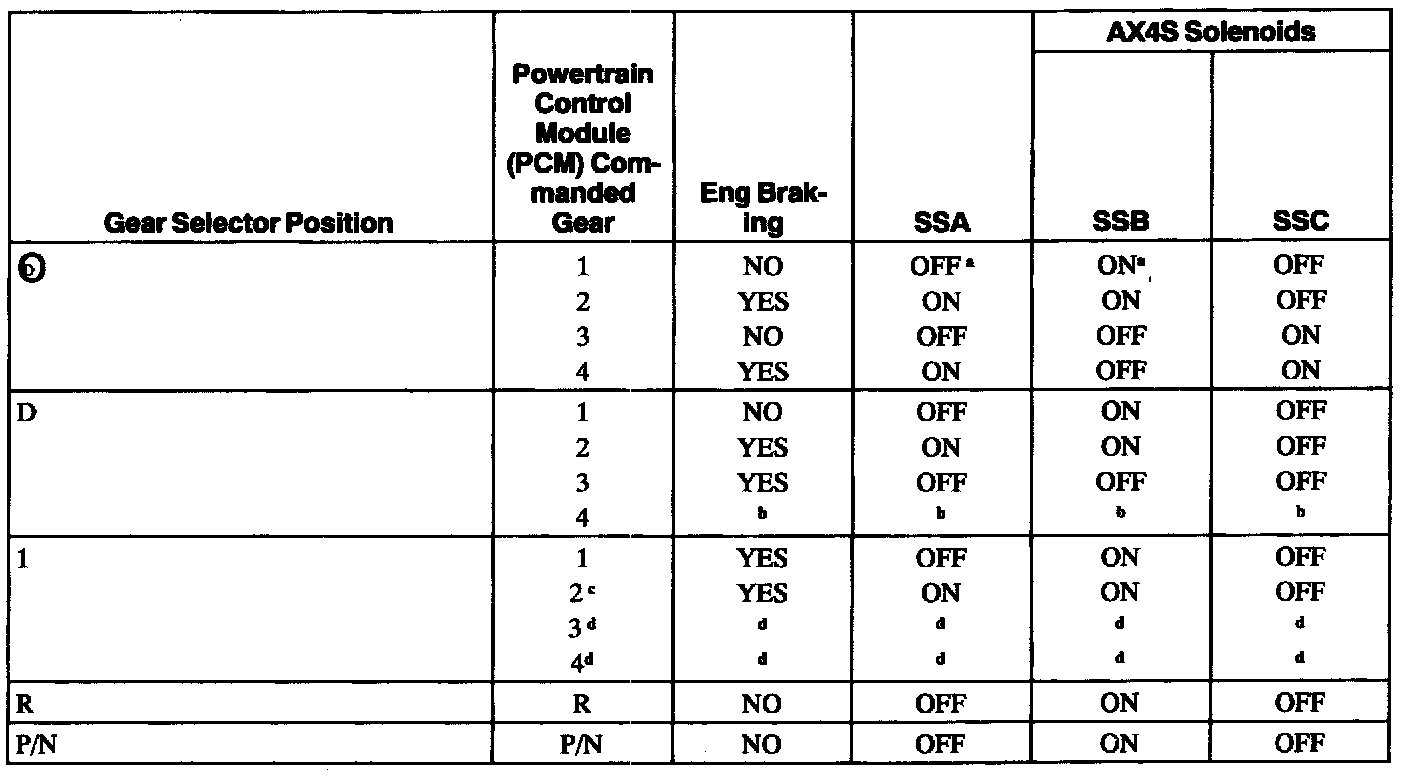

Solenoid Operation Chart
Solenoid Operation Chart a Not contributing to powerflow.
bNot allowed by strategy.
c When a manual pull-in occurs above a calibrated speed, the transaxle will downshift from the higher gear until the vehicle speed drops below the calibrated speed.
d Not allowed by hydraulics.
