Power Door Lock Switch: Service and Repair

REMOVAL

NOTE: Driver door shown; passenger door similar.

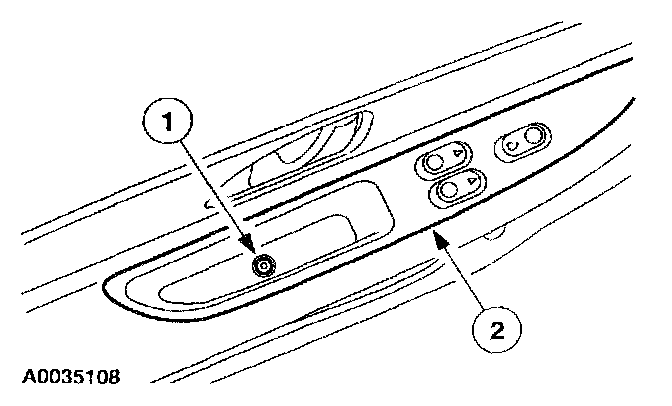

1. Position the door lock window control switch panel aside.
1 Remove the door handle cup cover and the screw.
2 Release the locking tabs at the front of door window control switch panel.

CAUTION: Carefully lift out the door switch panel from the front of the door panel to avoid breaking the tab at the rear of the panel.

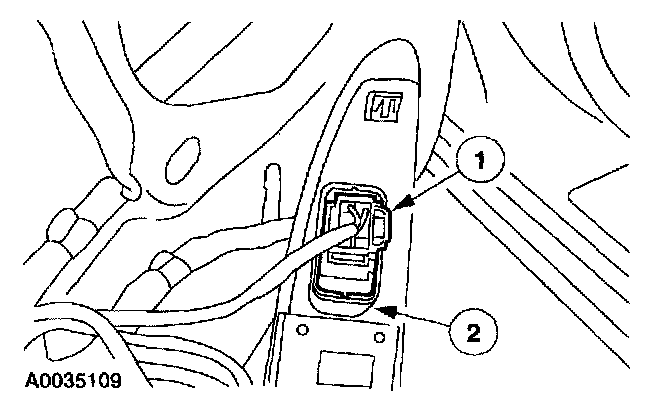

2. Remove the door lock control switch.
1 Disconnect the electrical connector.
2 Release the locking tabs.

INSTALLATION
1. To install, reverse the removal procedure.
