Diagnostic Trouble Code Tests and Associated Procedures

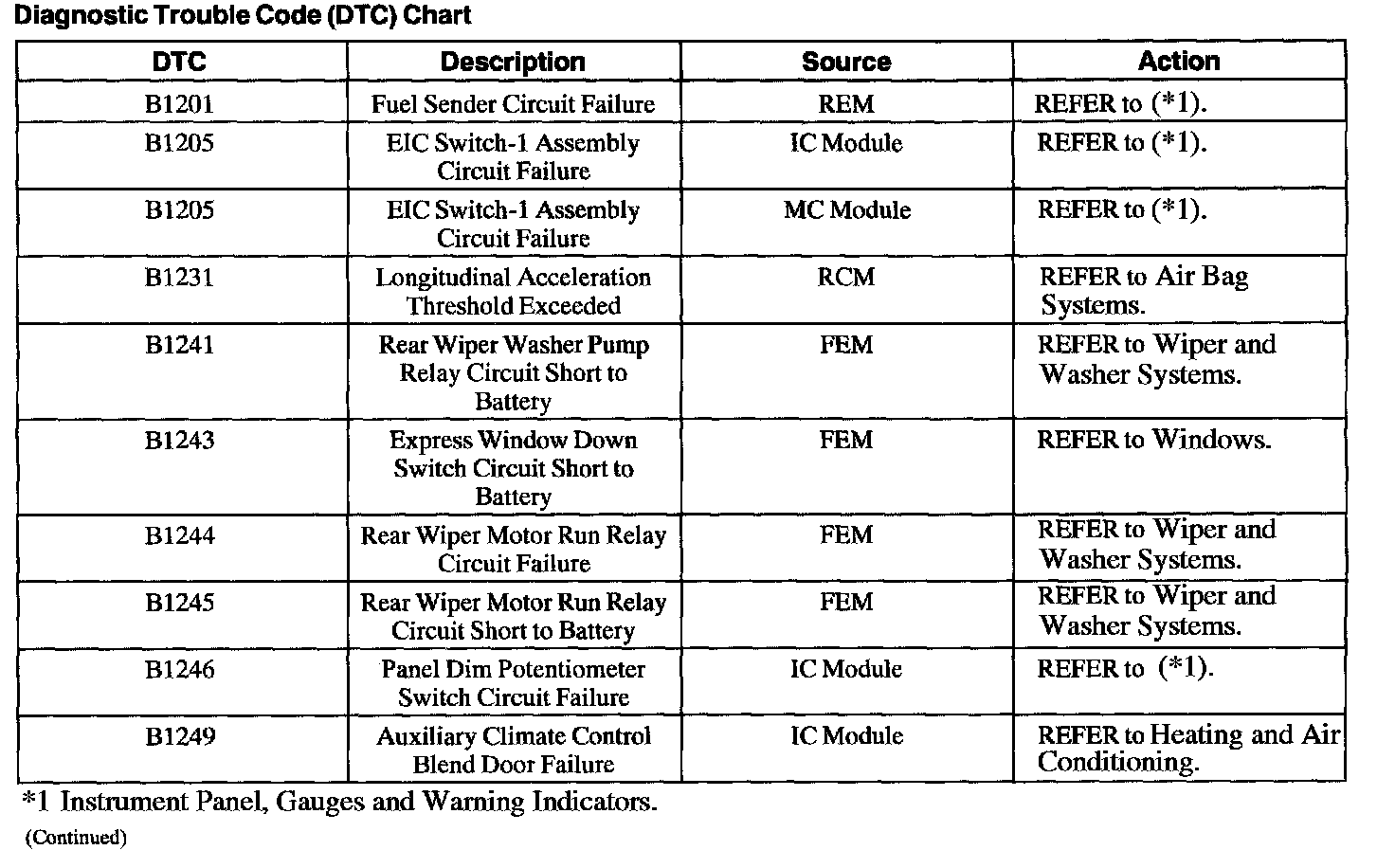

DTC Chart B1201 - B1249:






DTC Chart B1254 - B1342:

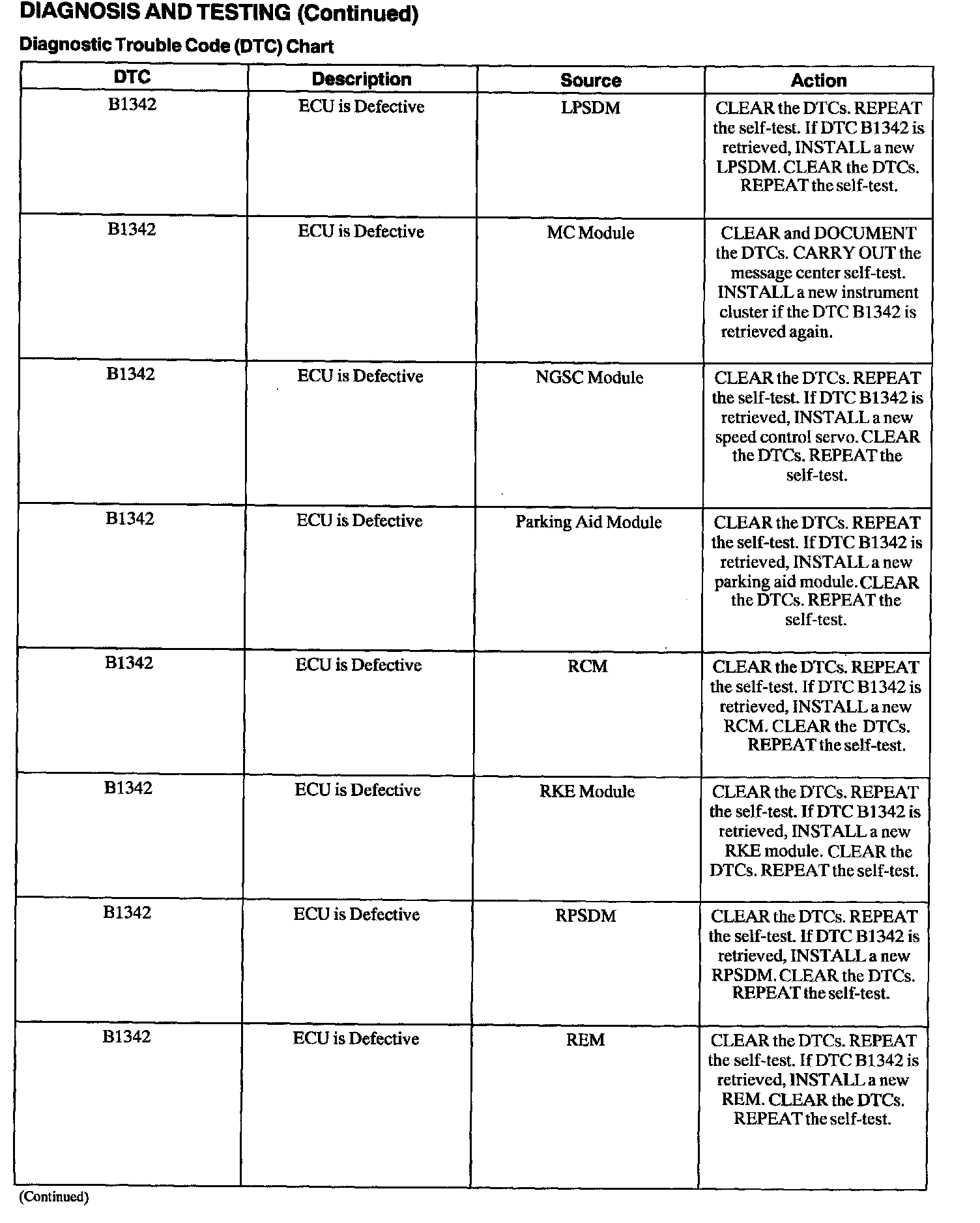

DTC Chart B1342:

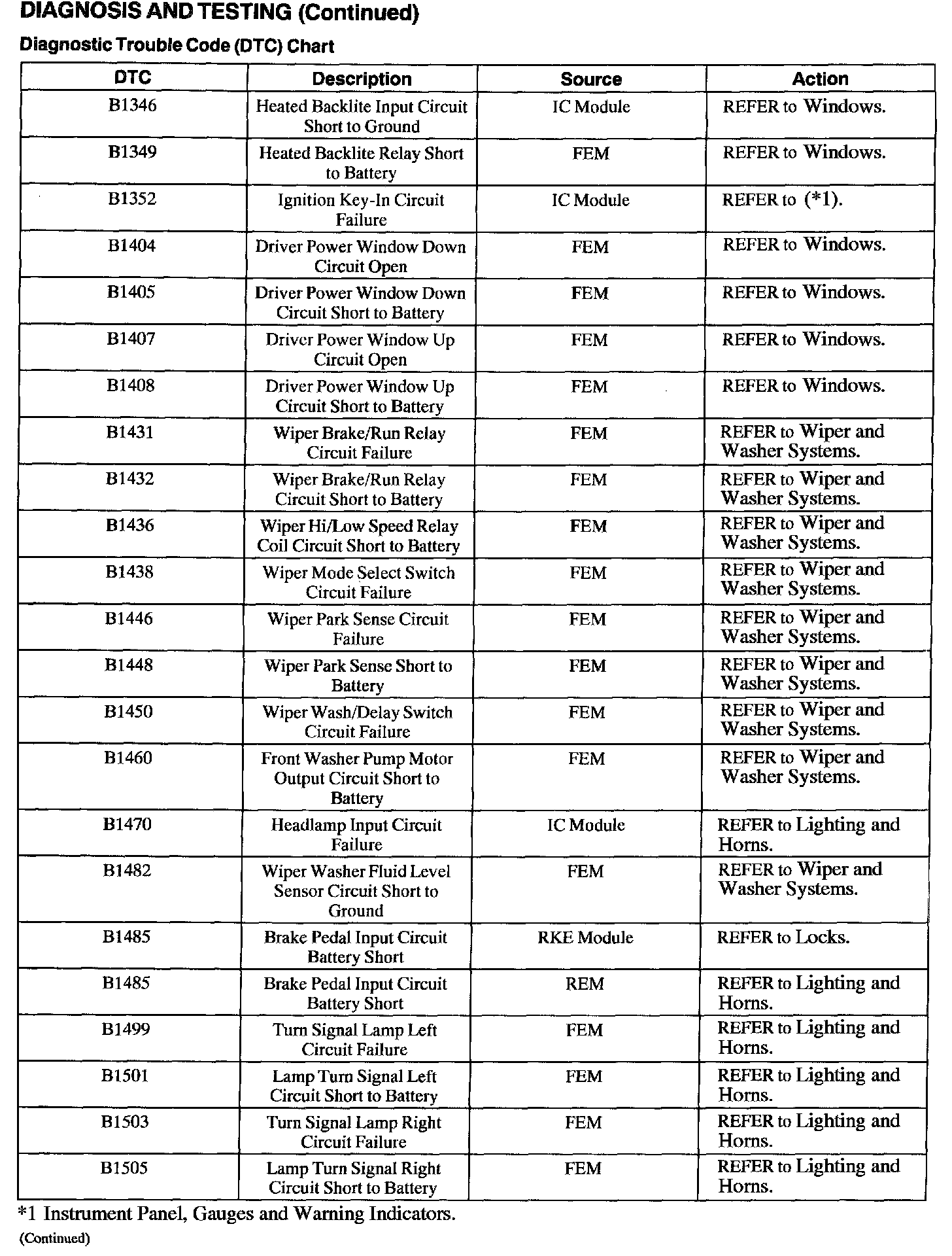

DTC Chart B1346 - B1505:






DTC Chart B1520 - B2270:

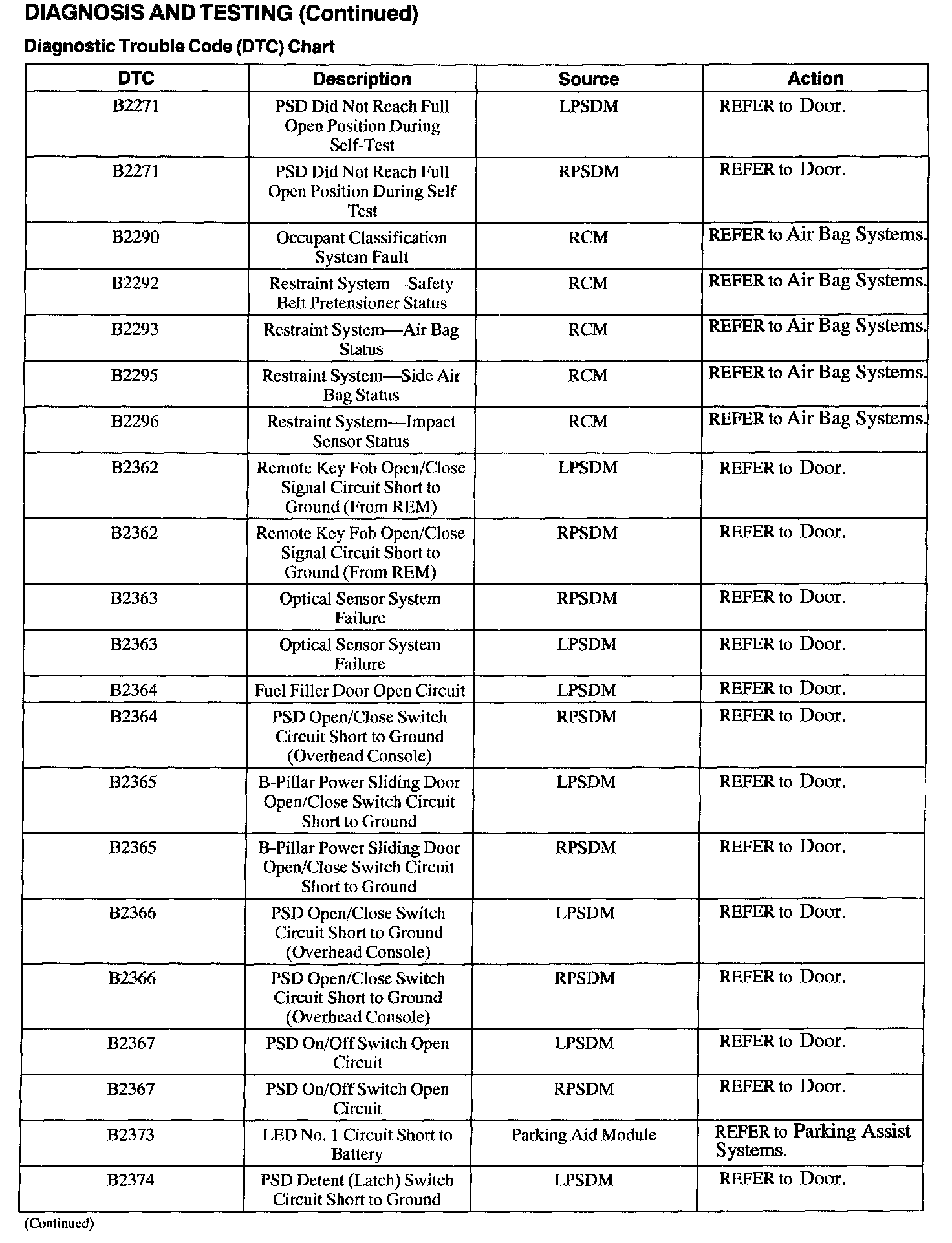

DTC Chart B2271 - B2374:

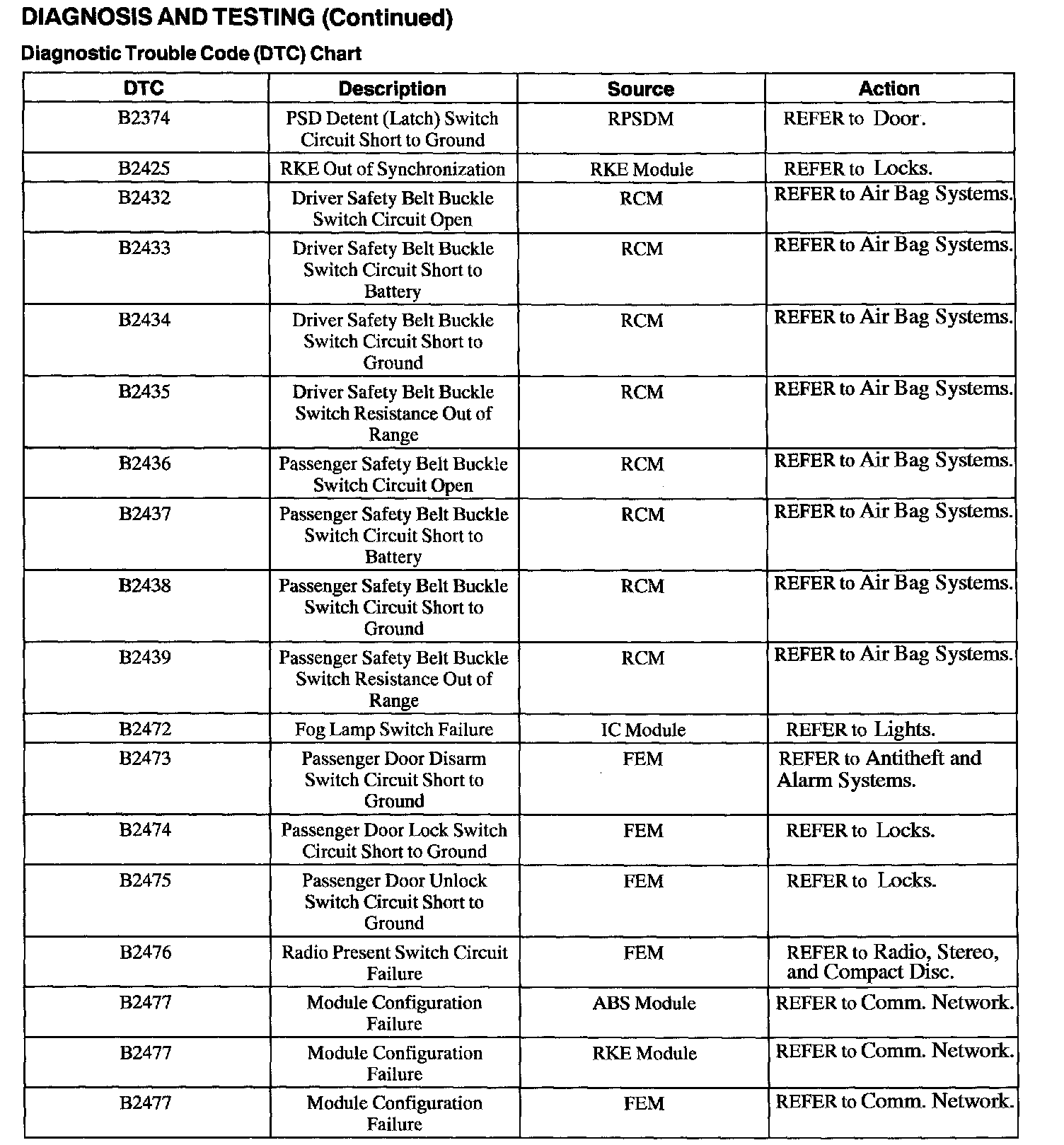

DTC Chart B2374 - B2477:

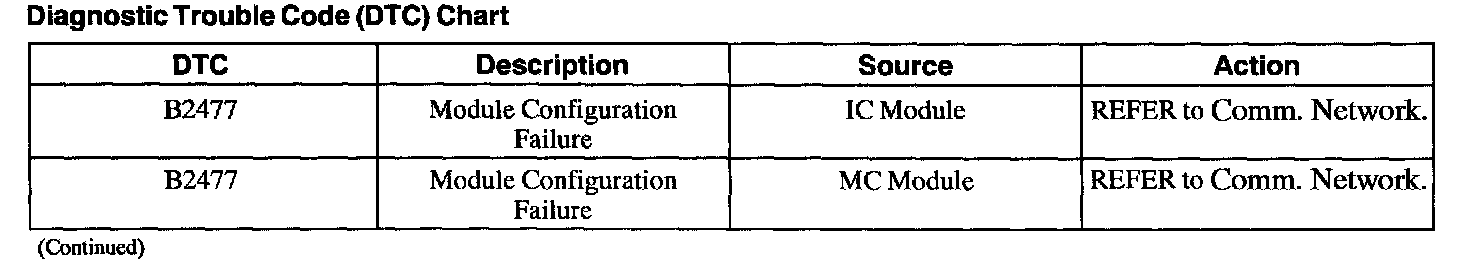

DTC Chart B2477:

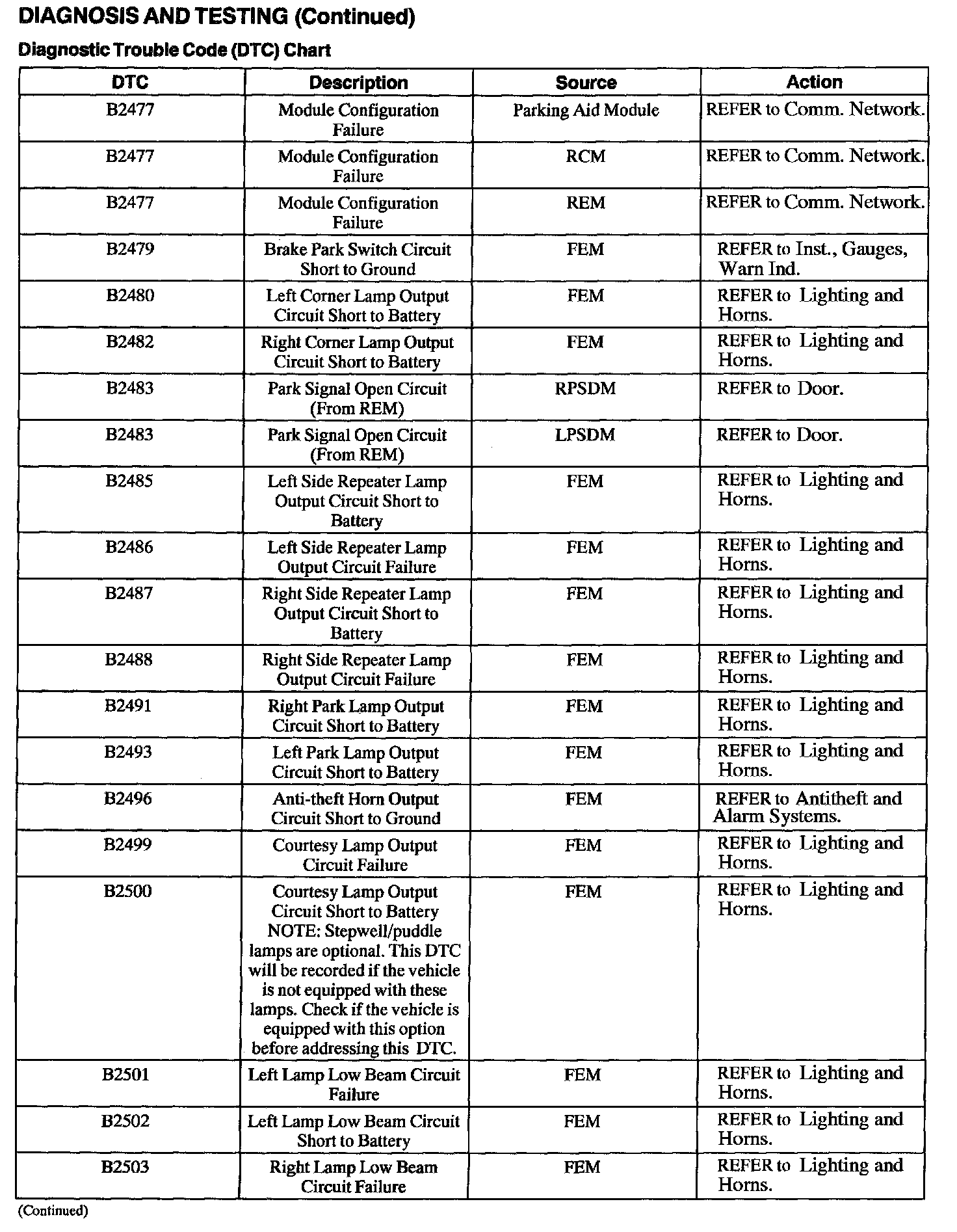

DTC Chart B2477 - B2503:

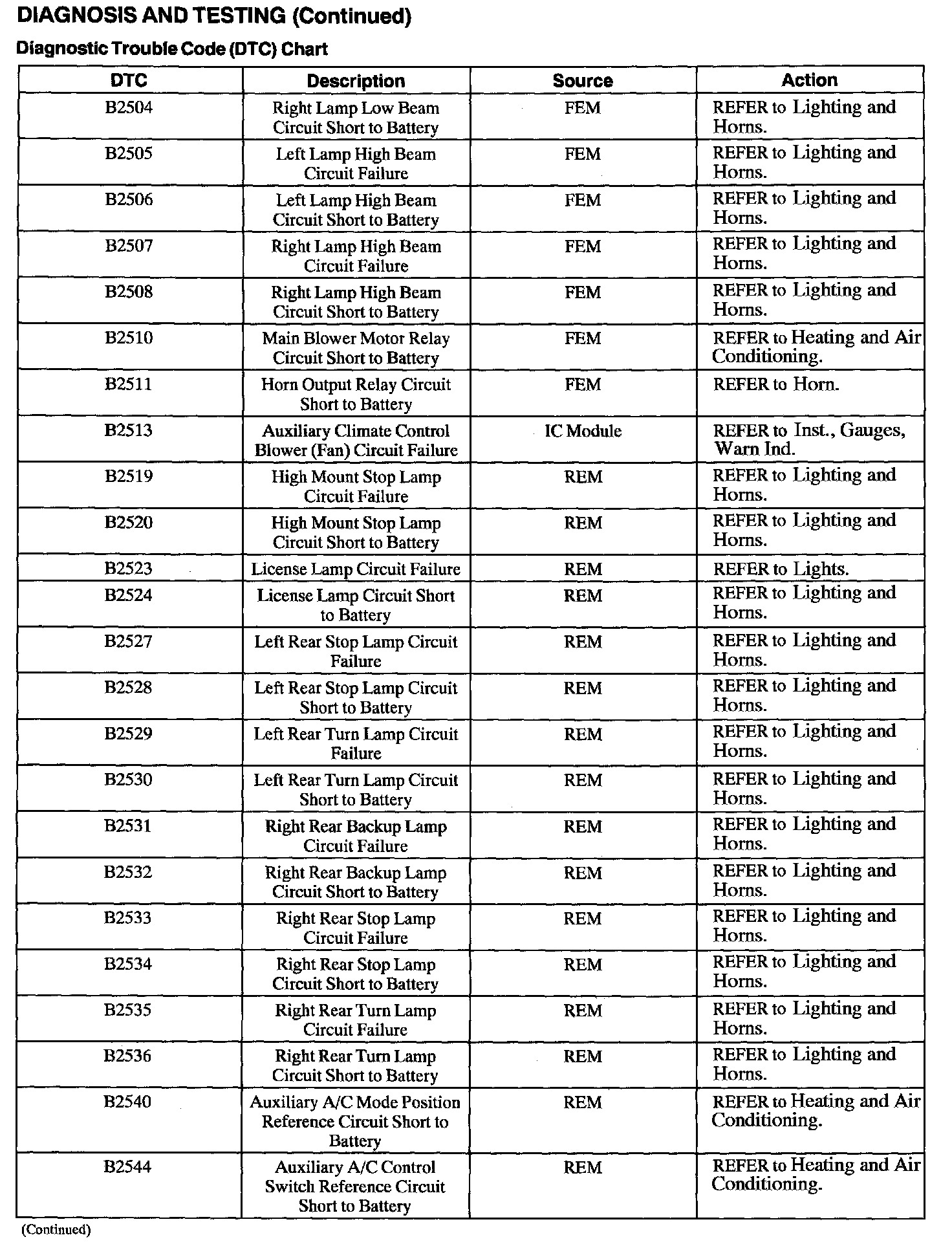

DTC Chart B2504 - B2544:






DTC Chart B2545 - B2591:

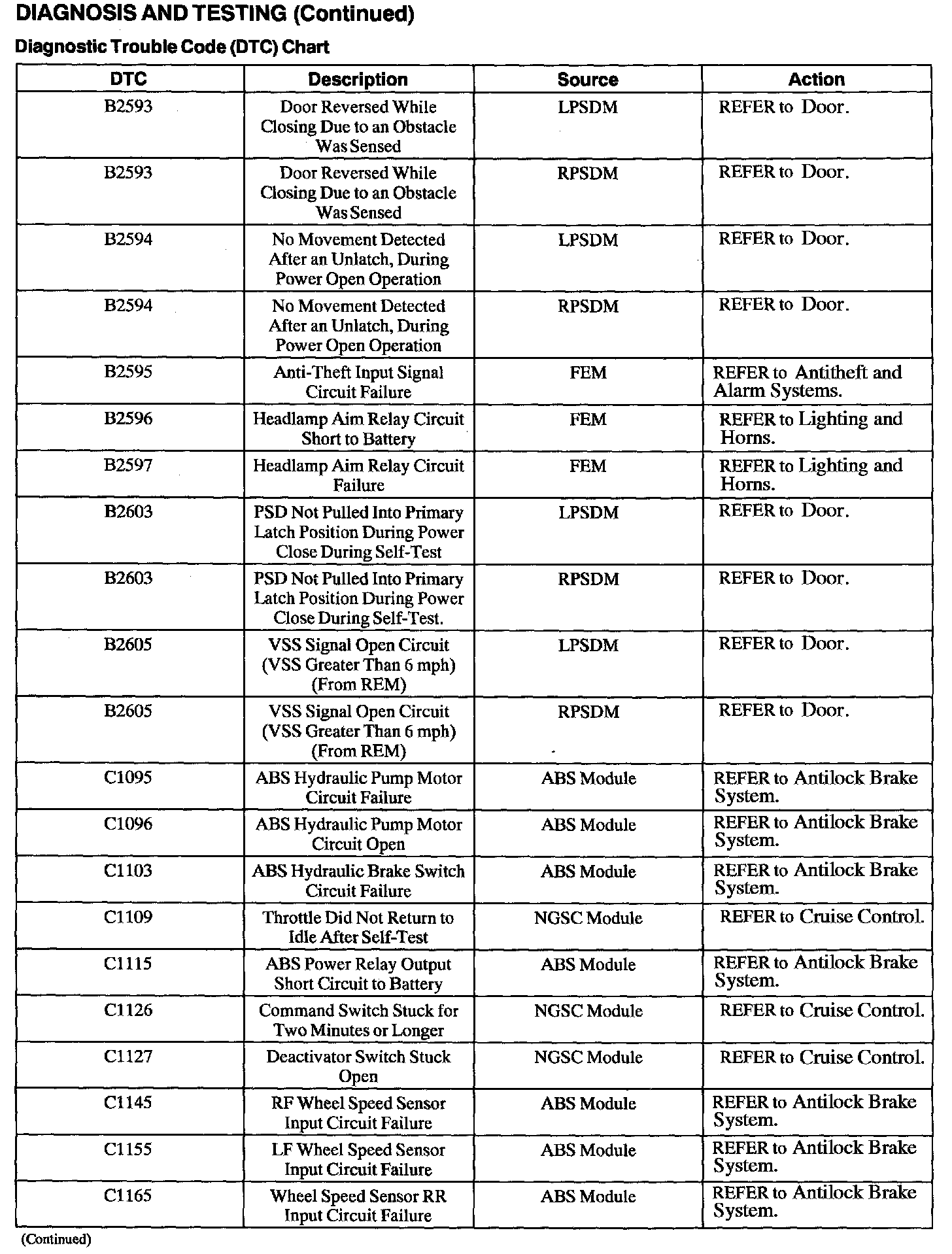

DTC Chart B2593 - C1165:

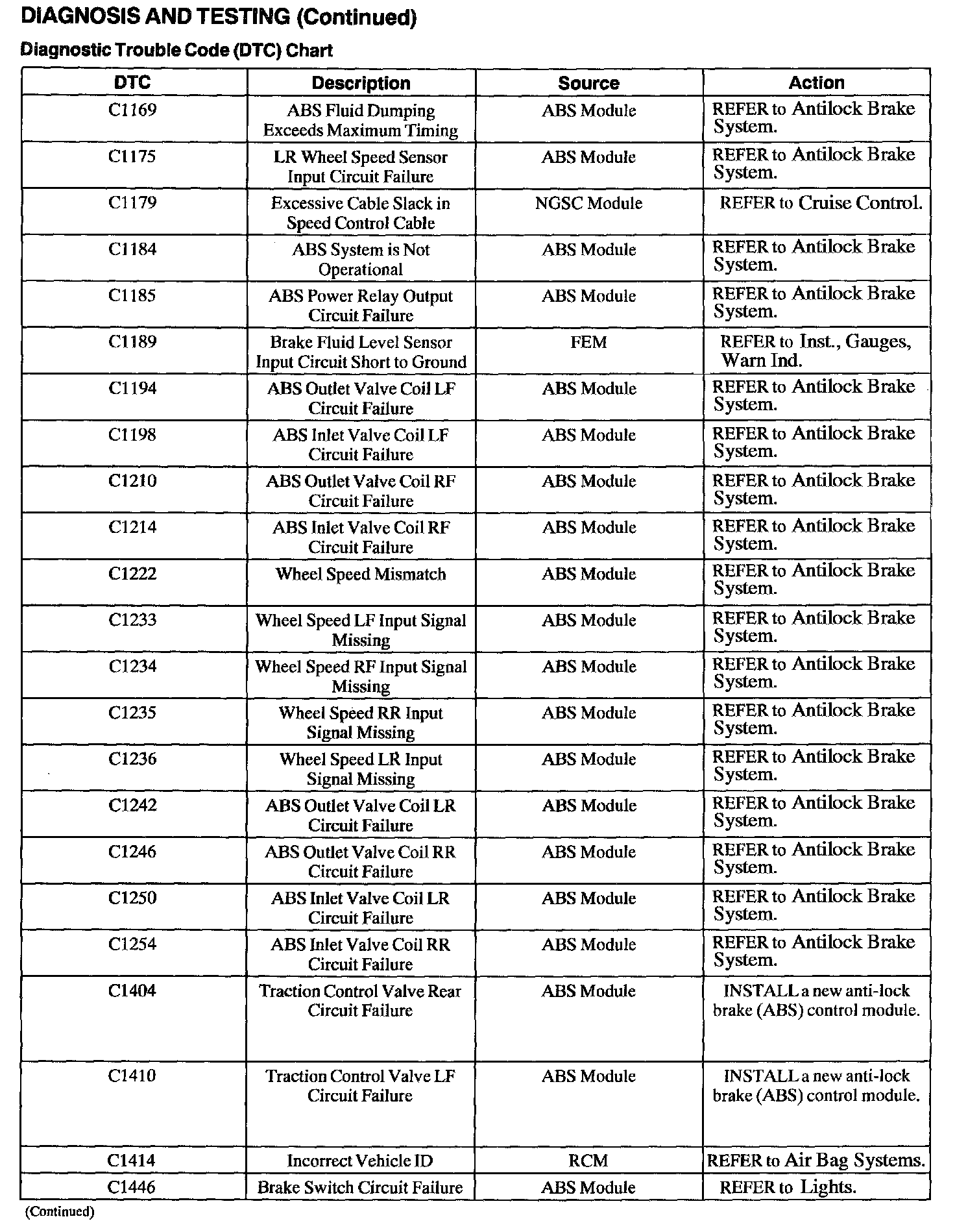

DTC Chart C1169 - C1446:






DTC Chart C1699 - U1041:

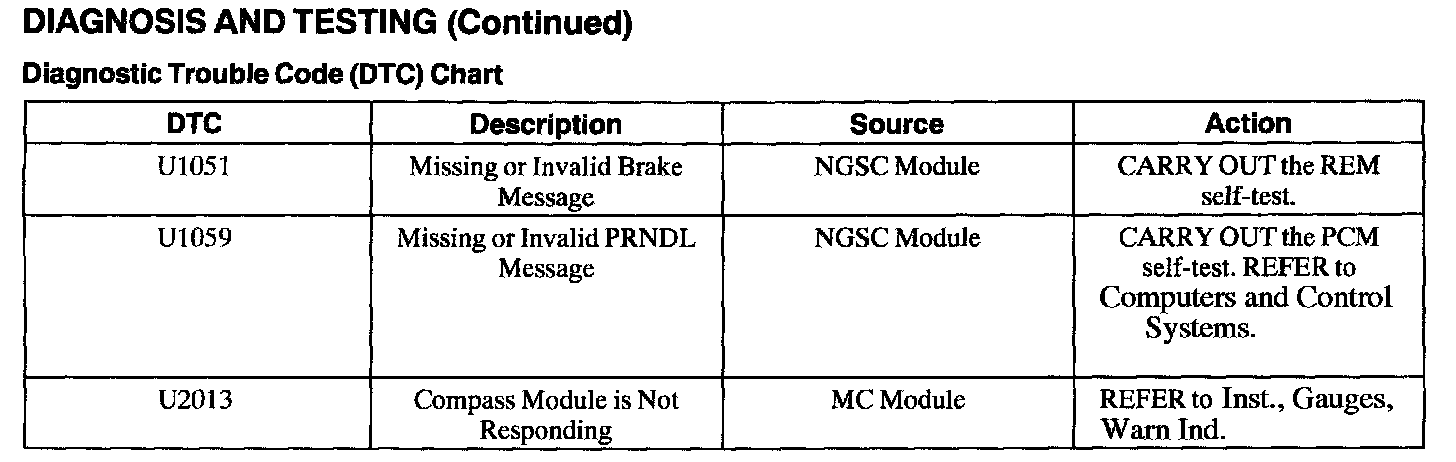

DTC Chart U1051 - U2013:






..
