Power Mirror Motor: Service and Repair

REMOVAL
1. Push in the upper edge of the mirror glass to its maximum travel and pull outward until the mirror glass is released.
^ If equipped, disconnect the electrical connectors.

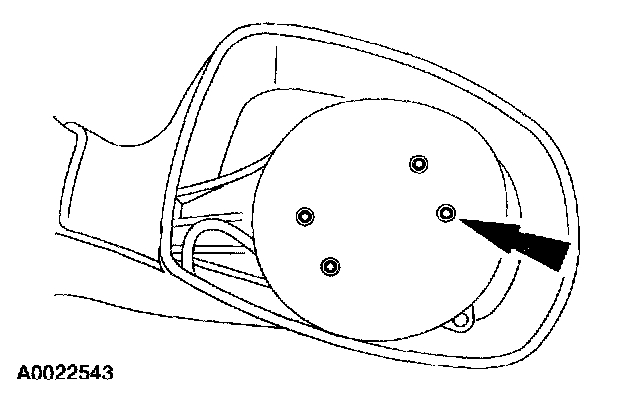

2. Remove the screws and the exterior rear view mirror motor.
^ Disconnect the electrical connector.

INSTALLATION
1. To install, reverse the removal procedure.

NOTE:
^ Apply Electrical Grease F8AZ-19G208-AA meeting Ford specification WSB-M1C239-A to motor connector housing.
^ Position the glass assembly in the mirror and push on the center of the mirror glass until it is fully seated.
