Auxiliary Climate Control
REMOVAL 1.
Remove the air conditioning and heater assembly.
2.

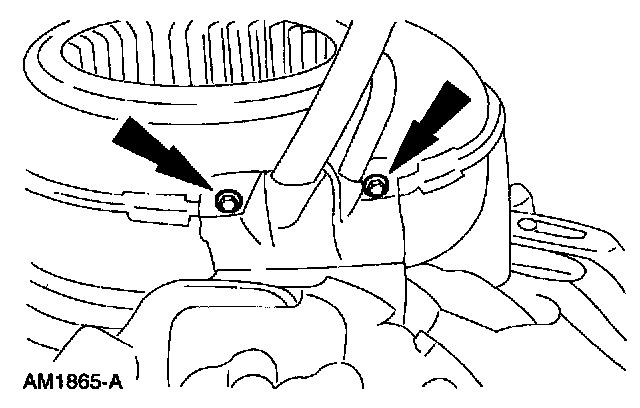

Remove the screws.
3.

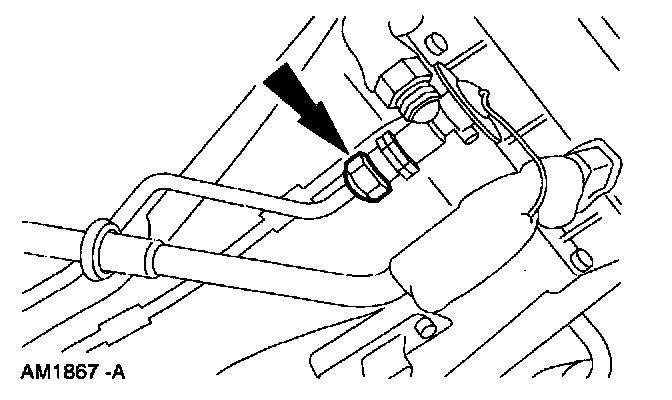

Remove the nut from the rear
expansion valve.
4.

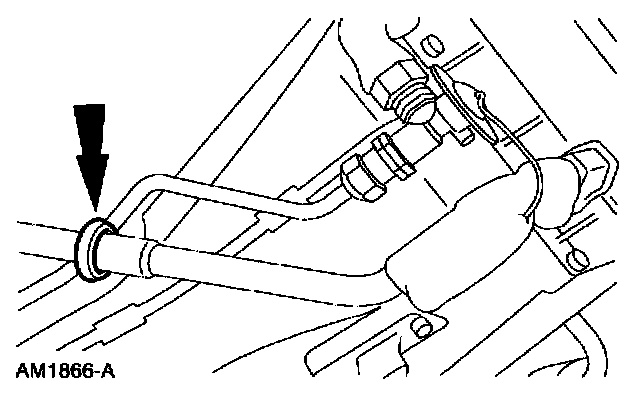

Disconnect the rear spring lock.
5.
Remove the screws and the cover.
6.

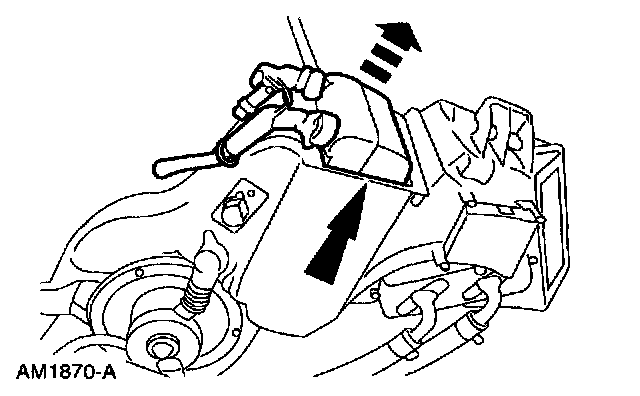

Remove the
evaporator core from the housing.
7.

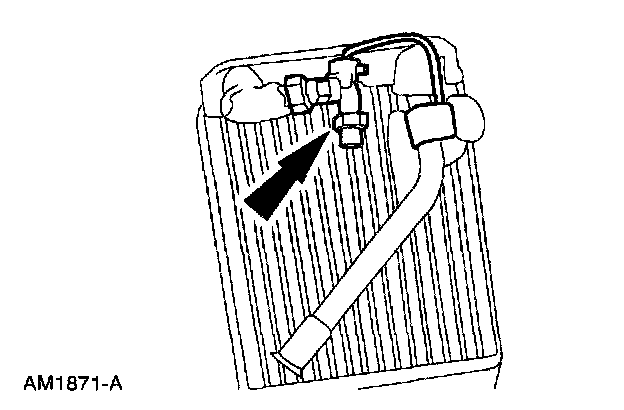

Remove the
expansion valve from the core.
INSTALLATION 1.
To install, reverse the removal procedure.
