System Specifications

Automatic Transaxle/Transmission

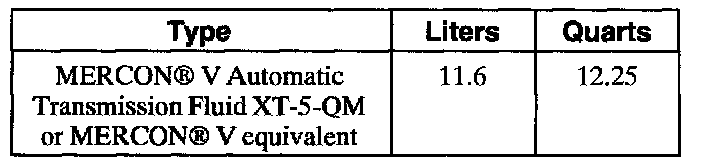

Capacity

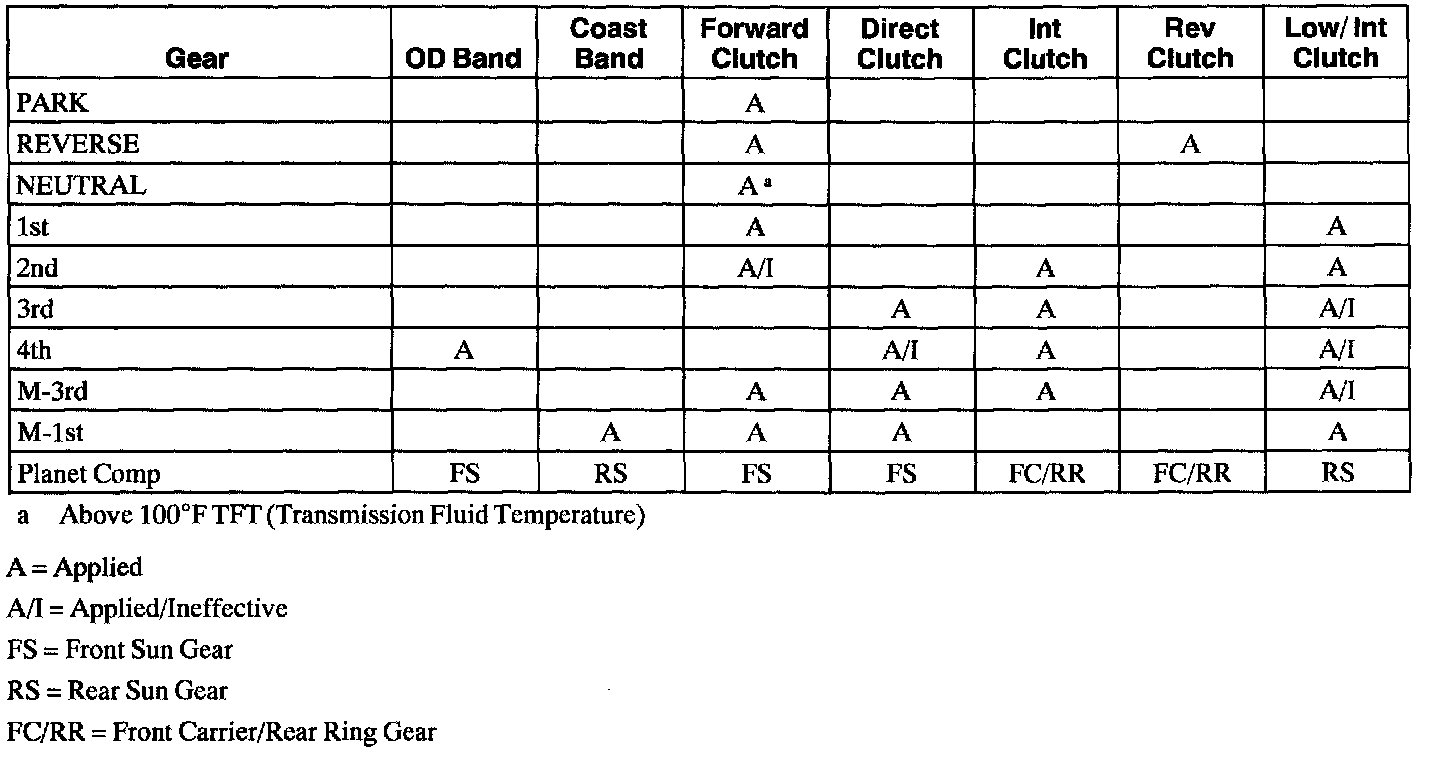

Band and Clutch Application Chart 1








H=Holding
OR=Overrunning
FS=Front Sun Gear
RS=Rear Sun Gear

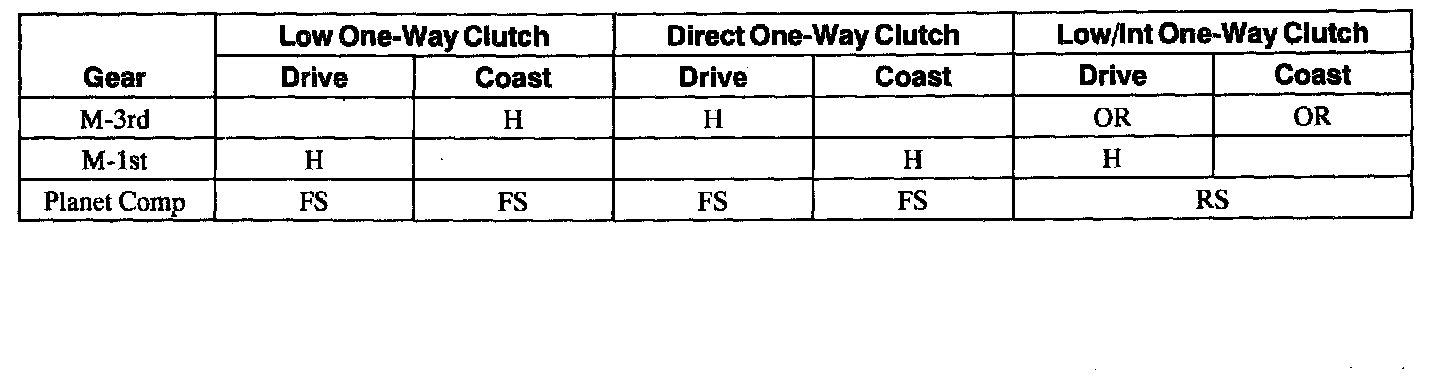

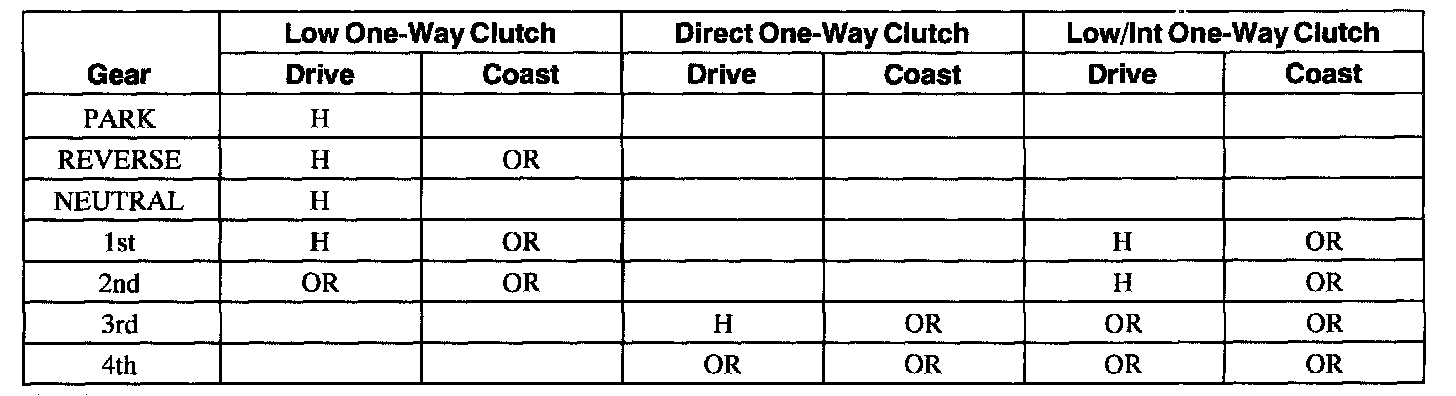

Band and Clutch Application Chart 2





Line Pressure Chart

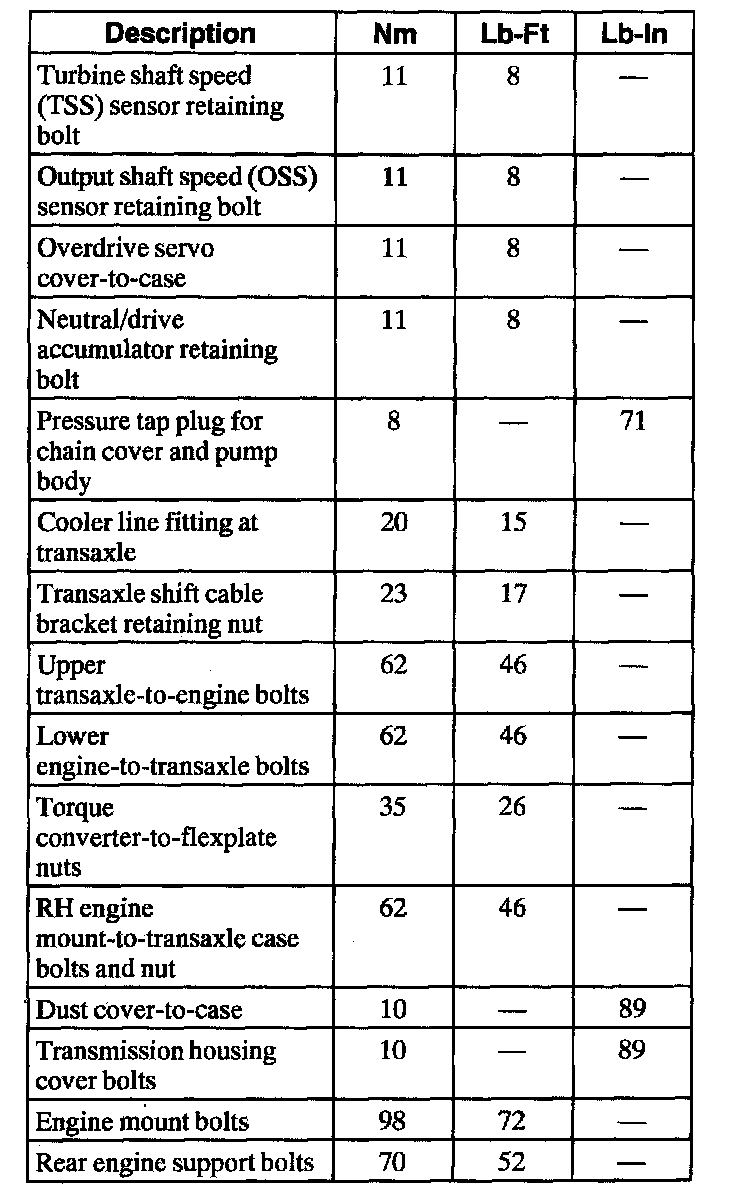

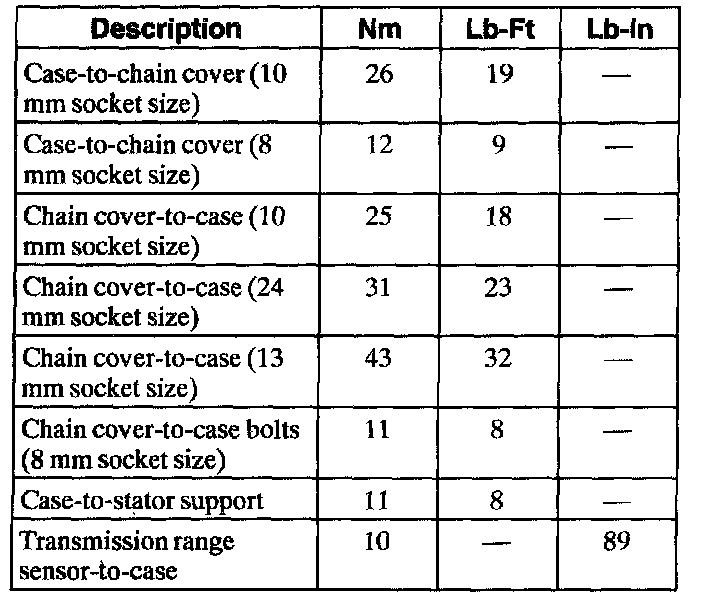

Torque Specifications

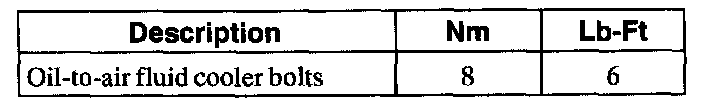

Transaxle/Transmission Cooling

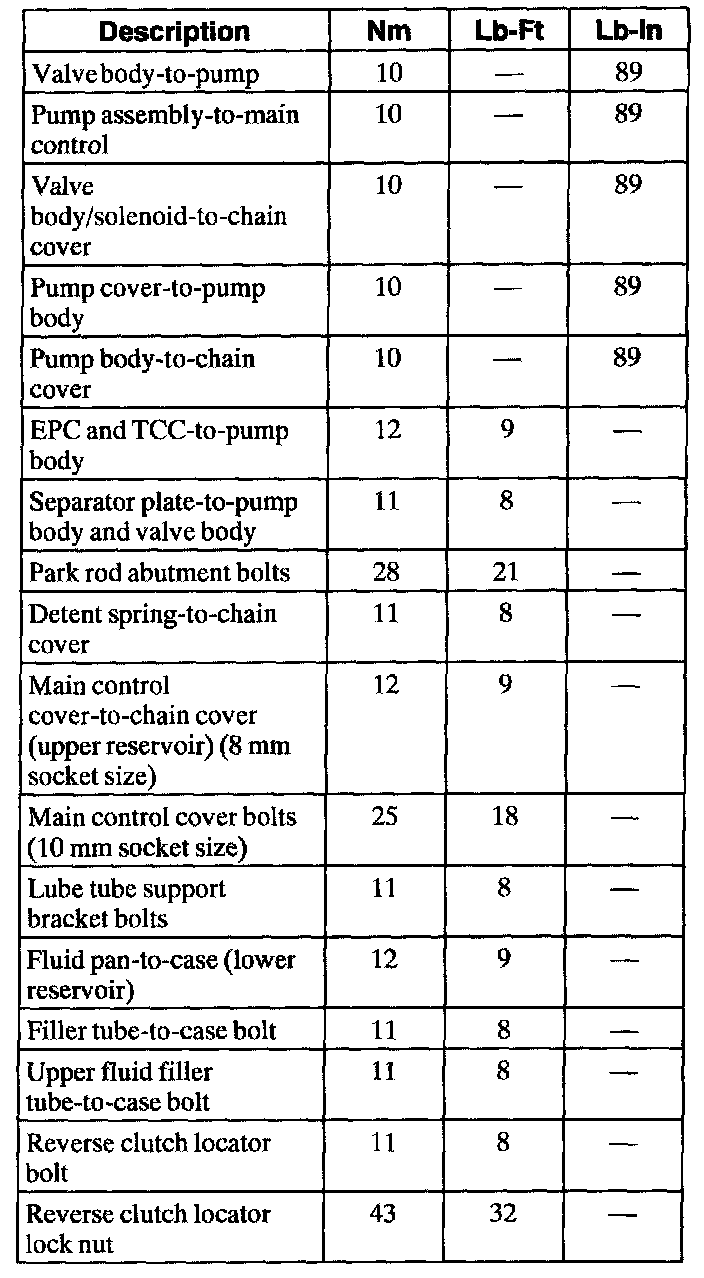

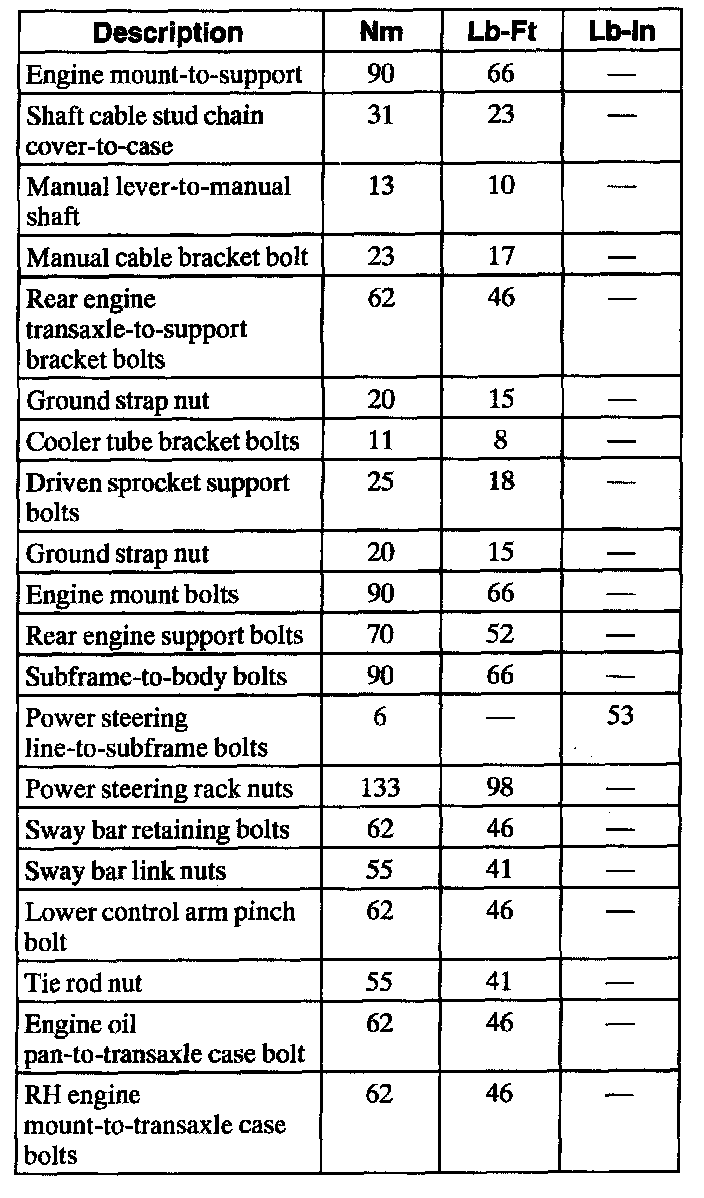

Torque Specifications

Automatic Transaxle/Transmission External Controls

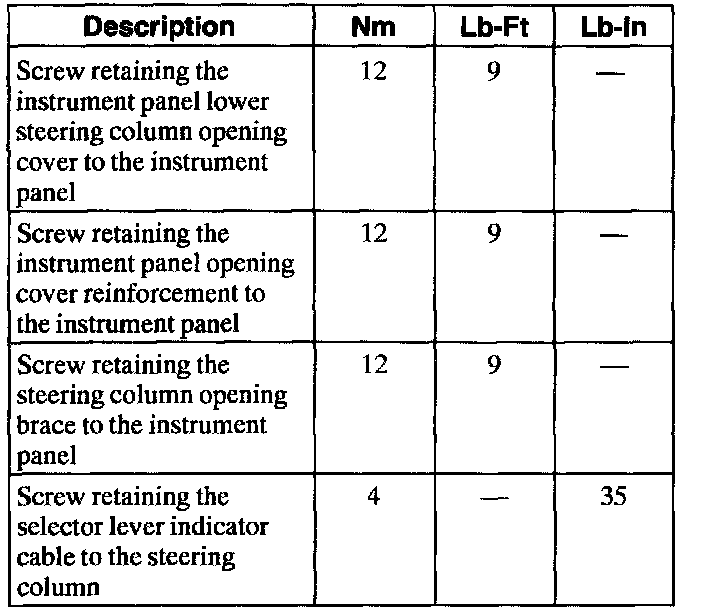

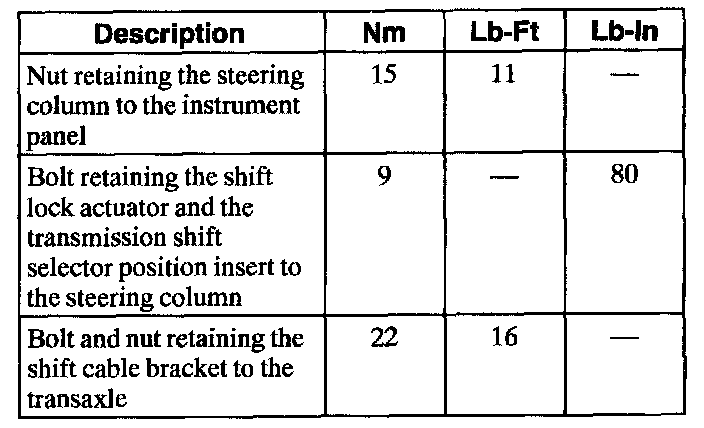

Torque Specifications
