Cruise Control Servo: Service and Repair
REMOVAL 1.
Remove the speed control actuator cable.
2.

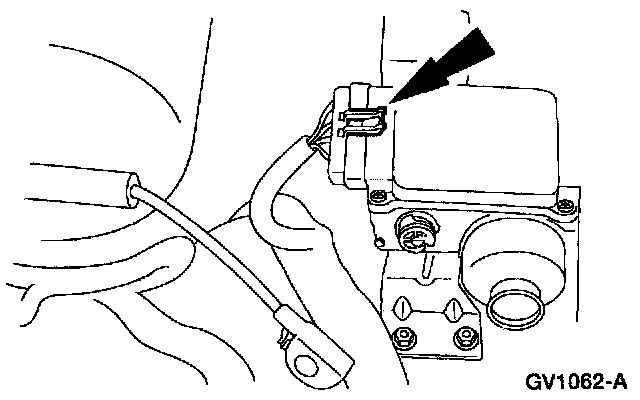

Disconnect the speed control actuator electrical connector.
3.

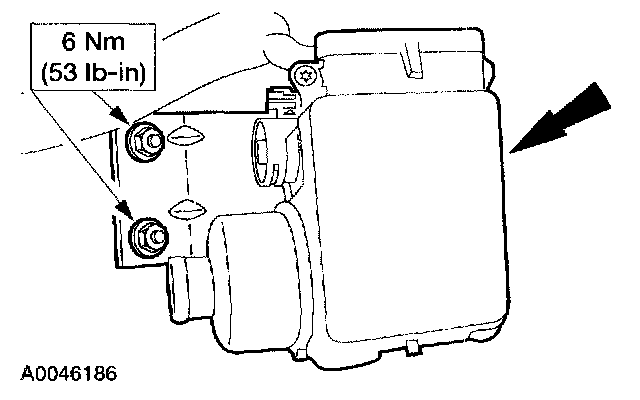

Remove the nuts and the speed control actuator.
4.

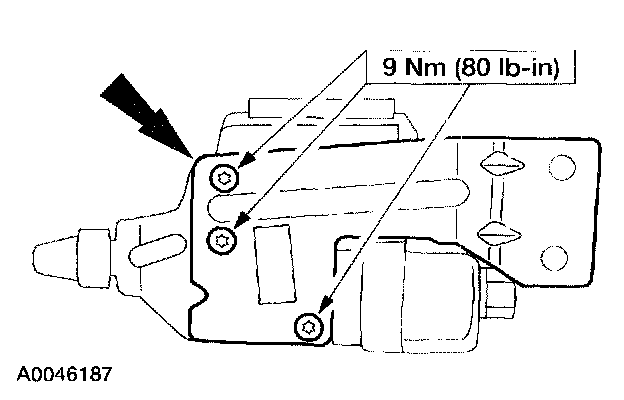

Remove the screws and the speed control actuator bracket.
INSTALLATION 1.
To install, reverse the removal procedure.
