Component Location Index
PLEASE NOTE: If a link on the Component Location Index to a view is not provided, that means that the Component and/or View in question does NOT apply to the vehicle model selected.

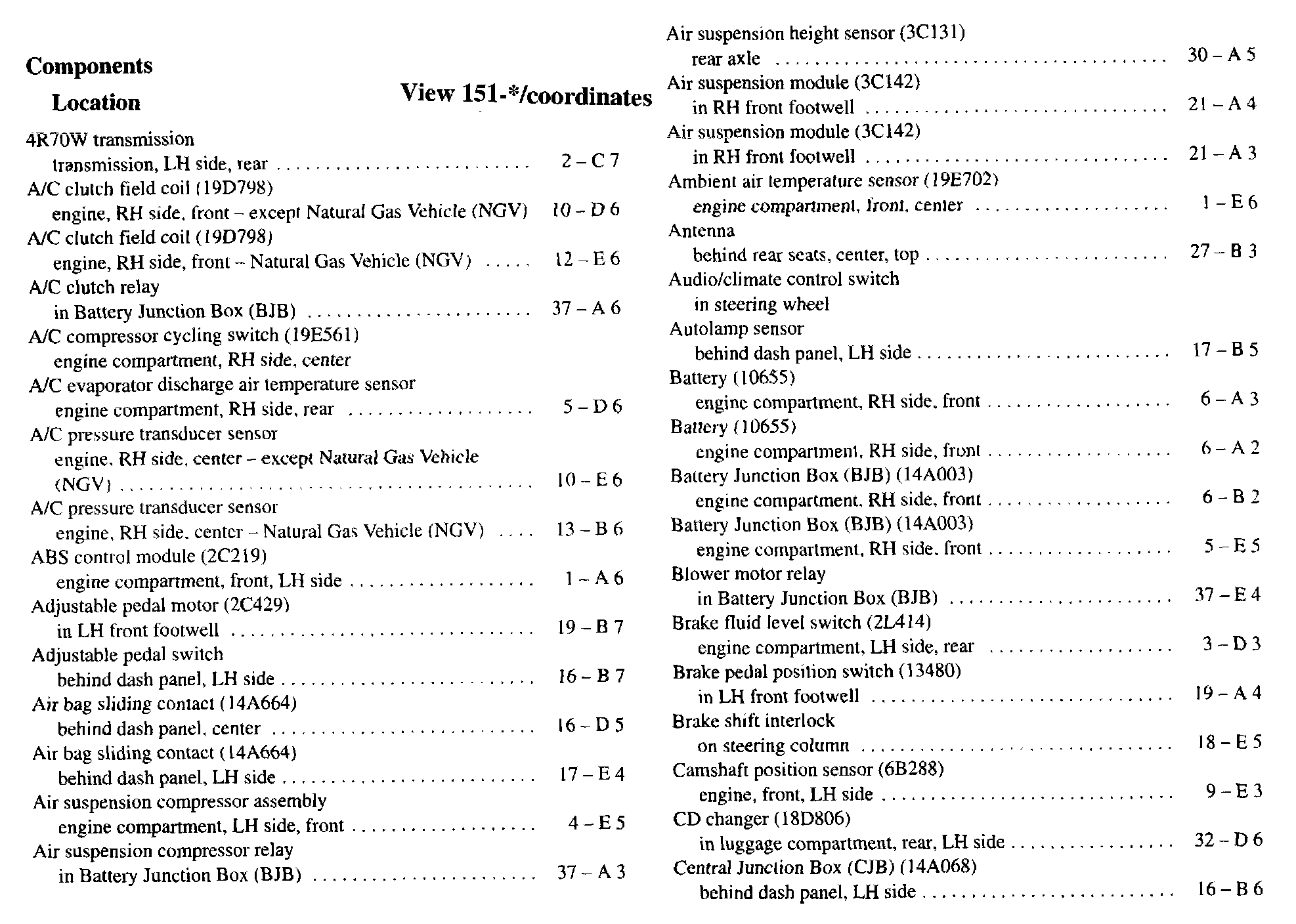

4R - Ce:

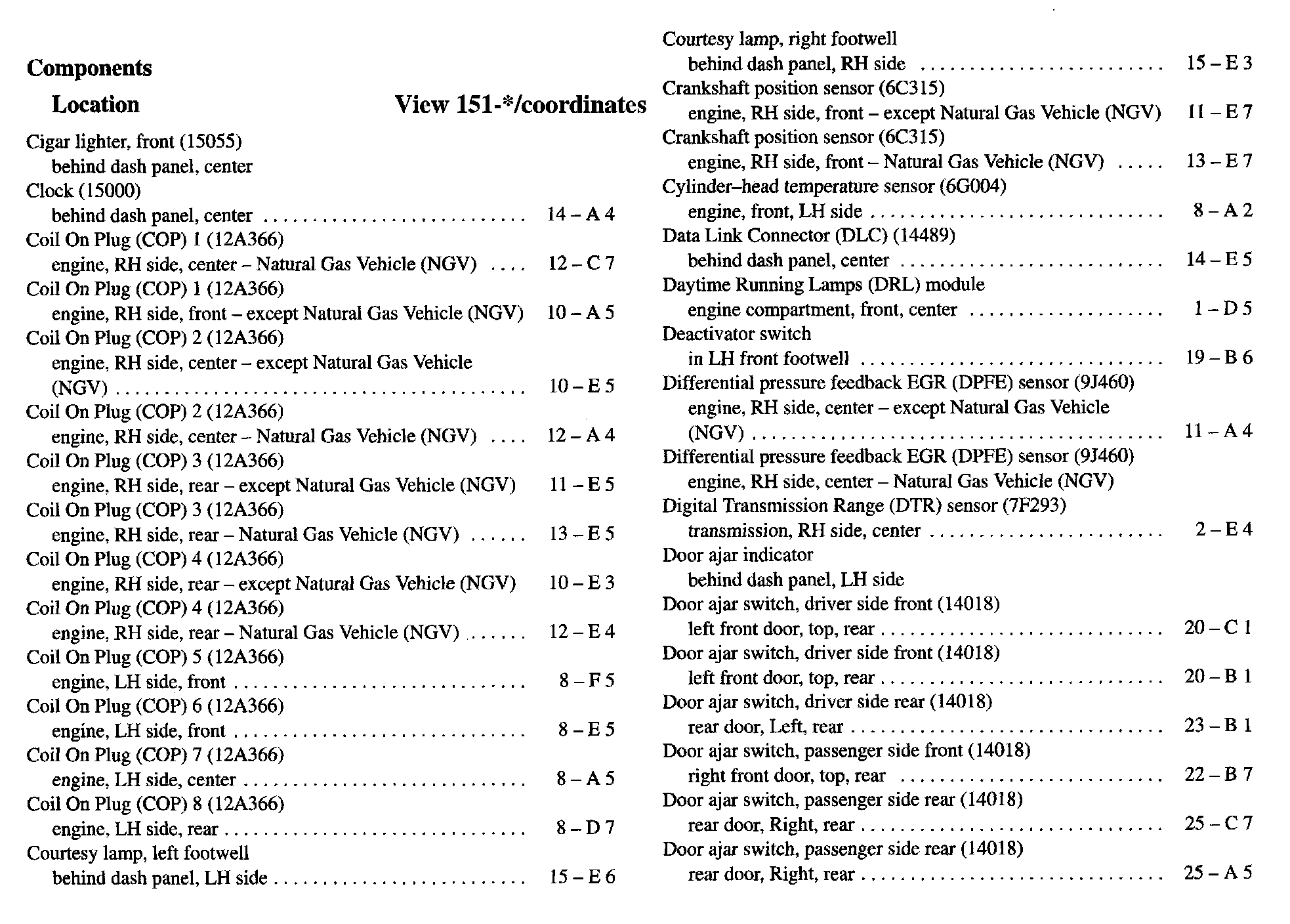

Ci - Do:

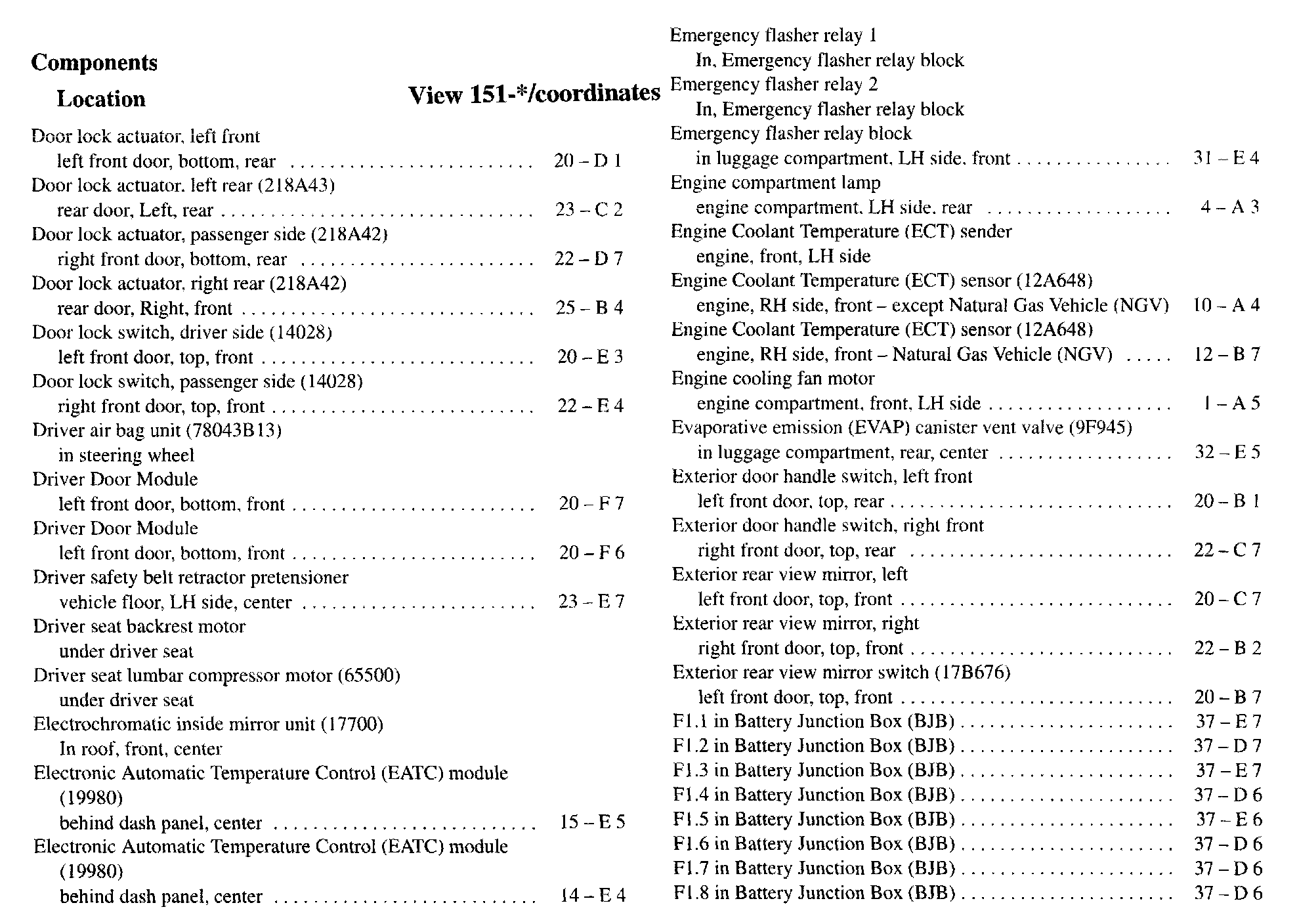

Do - F1.8:

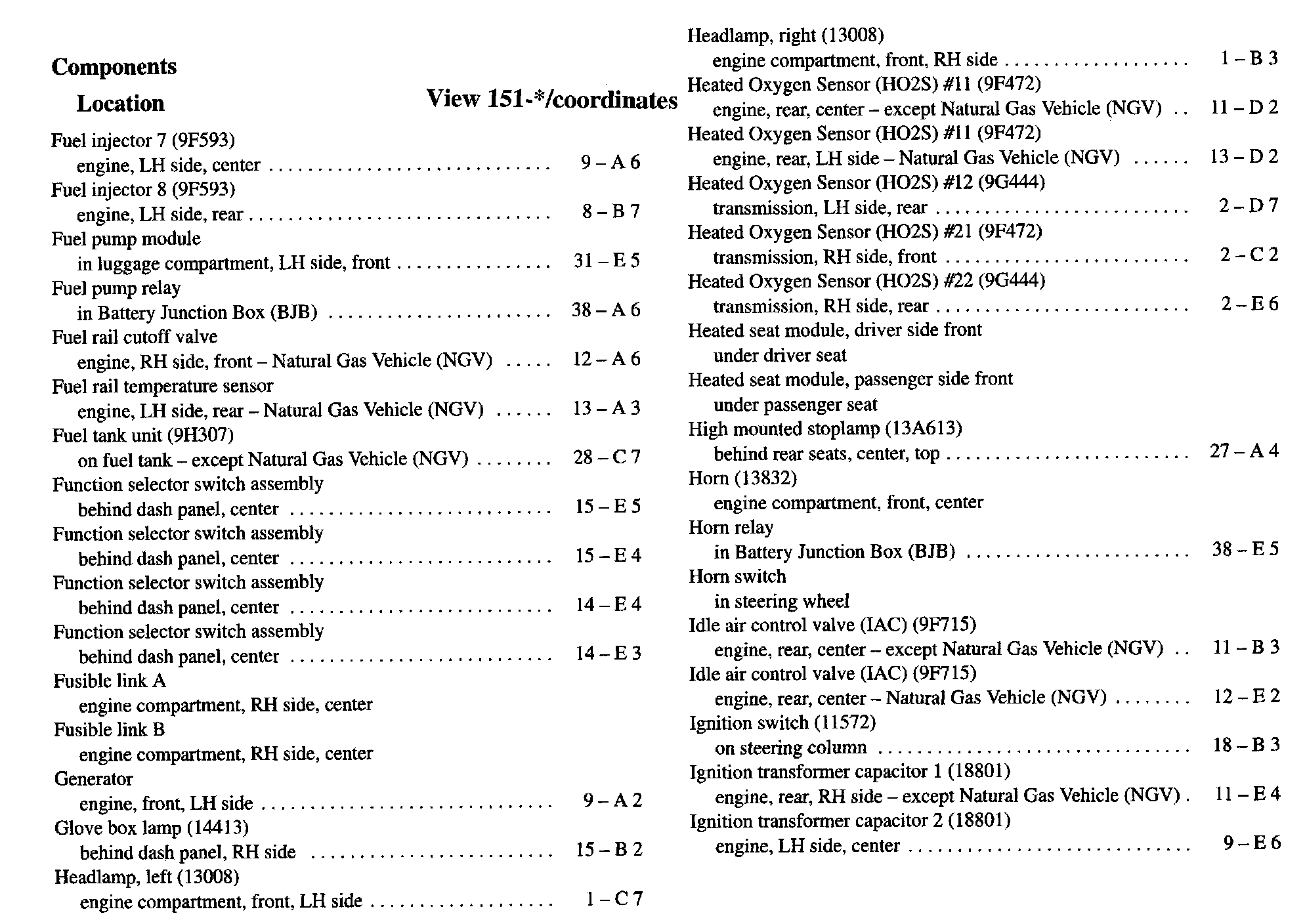

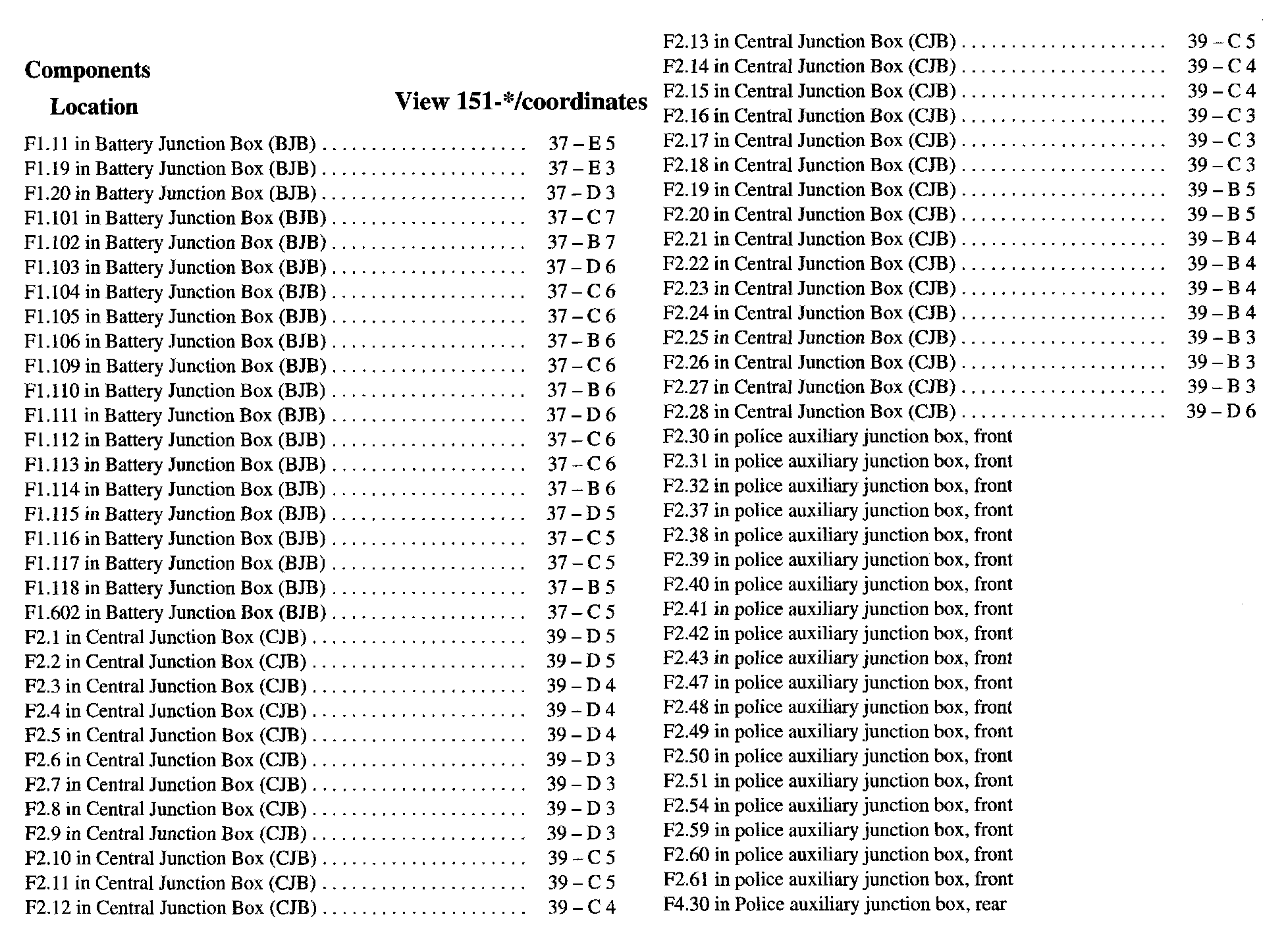

F1.11 - F4.30:

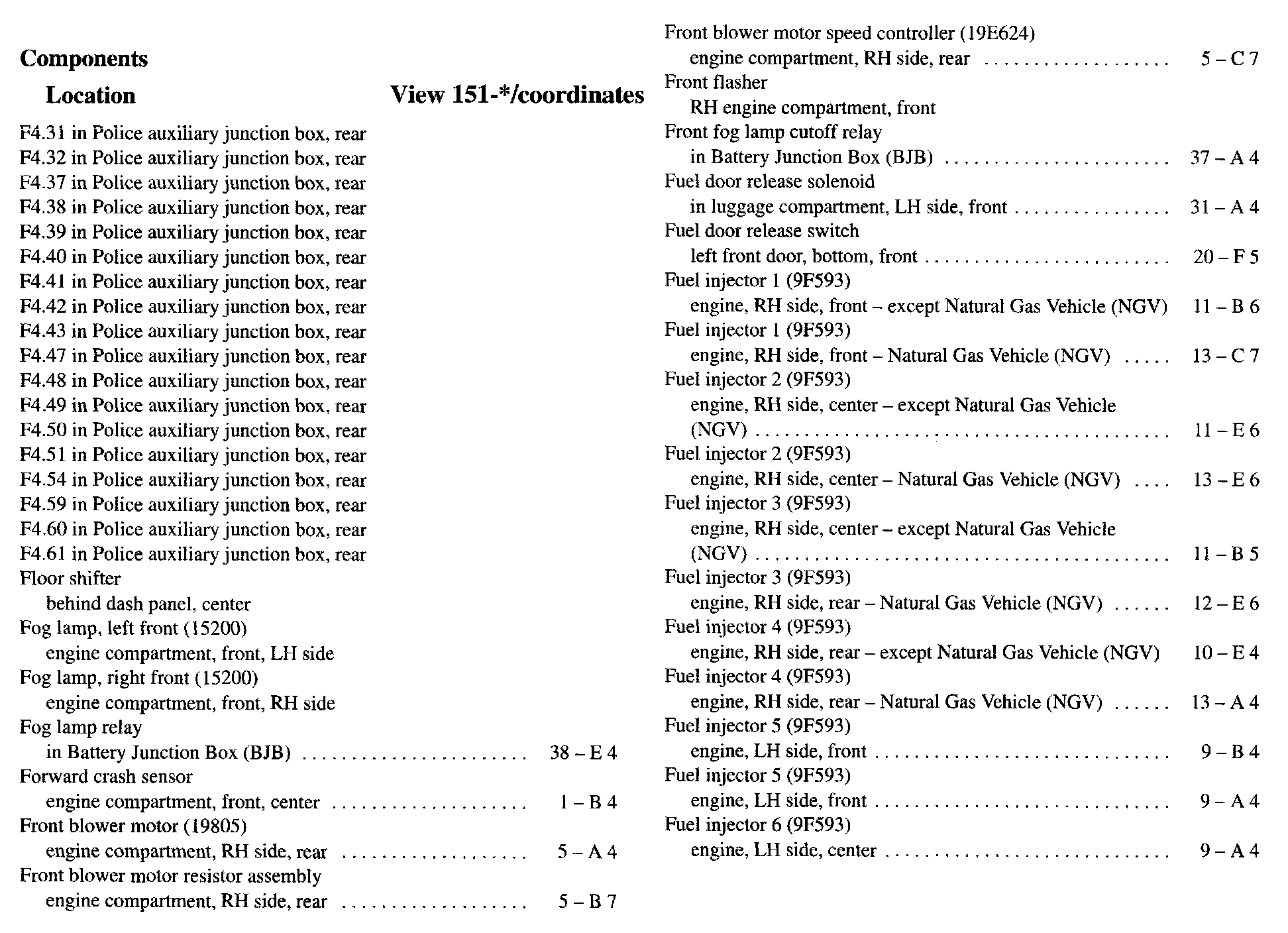

F4.31 - Fu:
Fu - Ig:

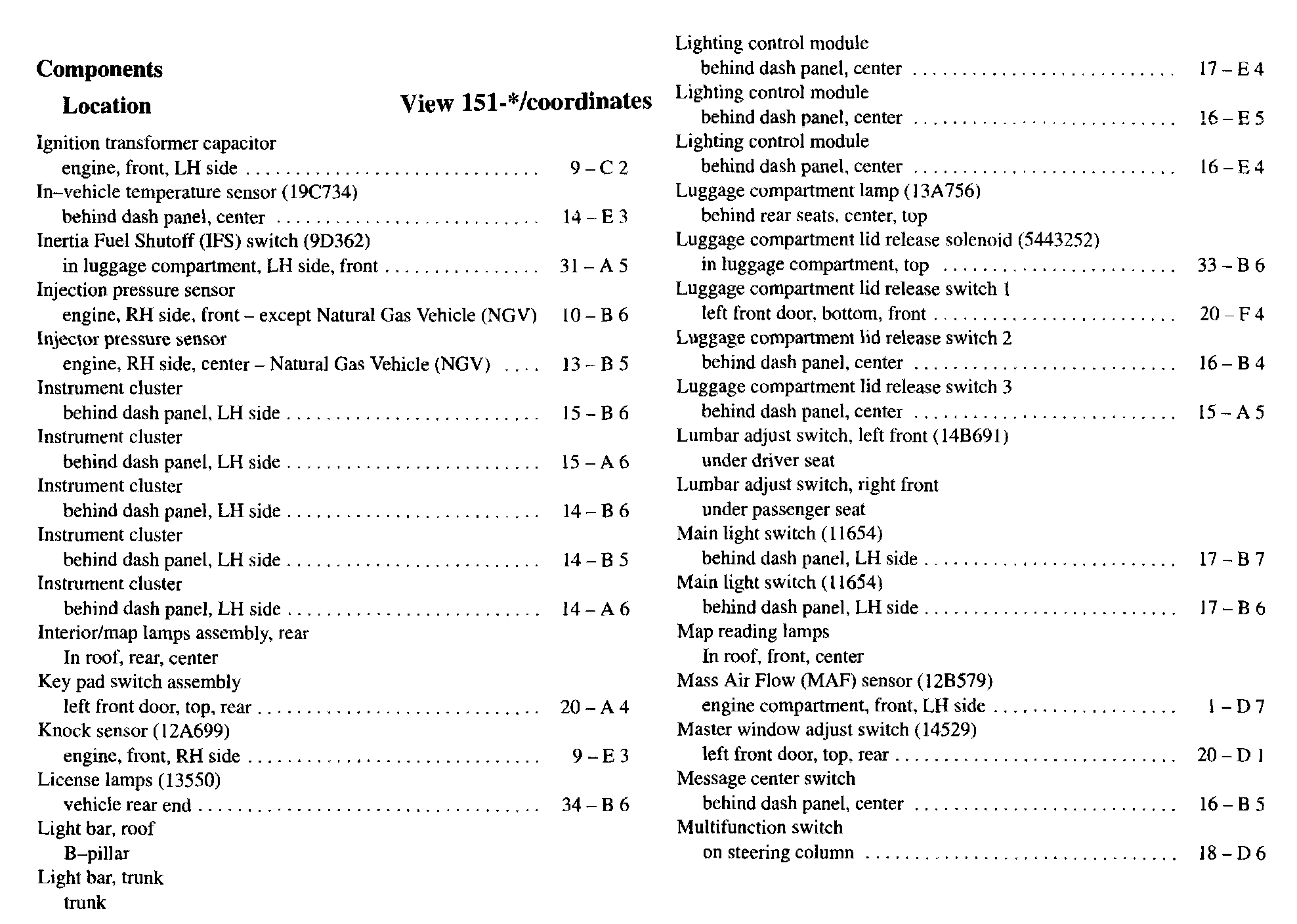

Ig - Mu:

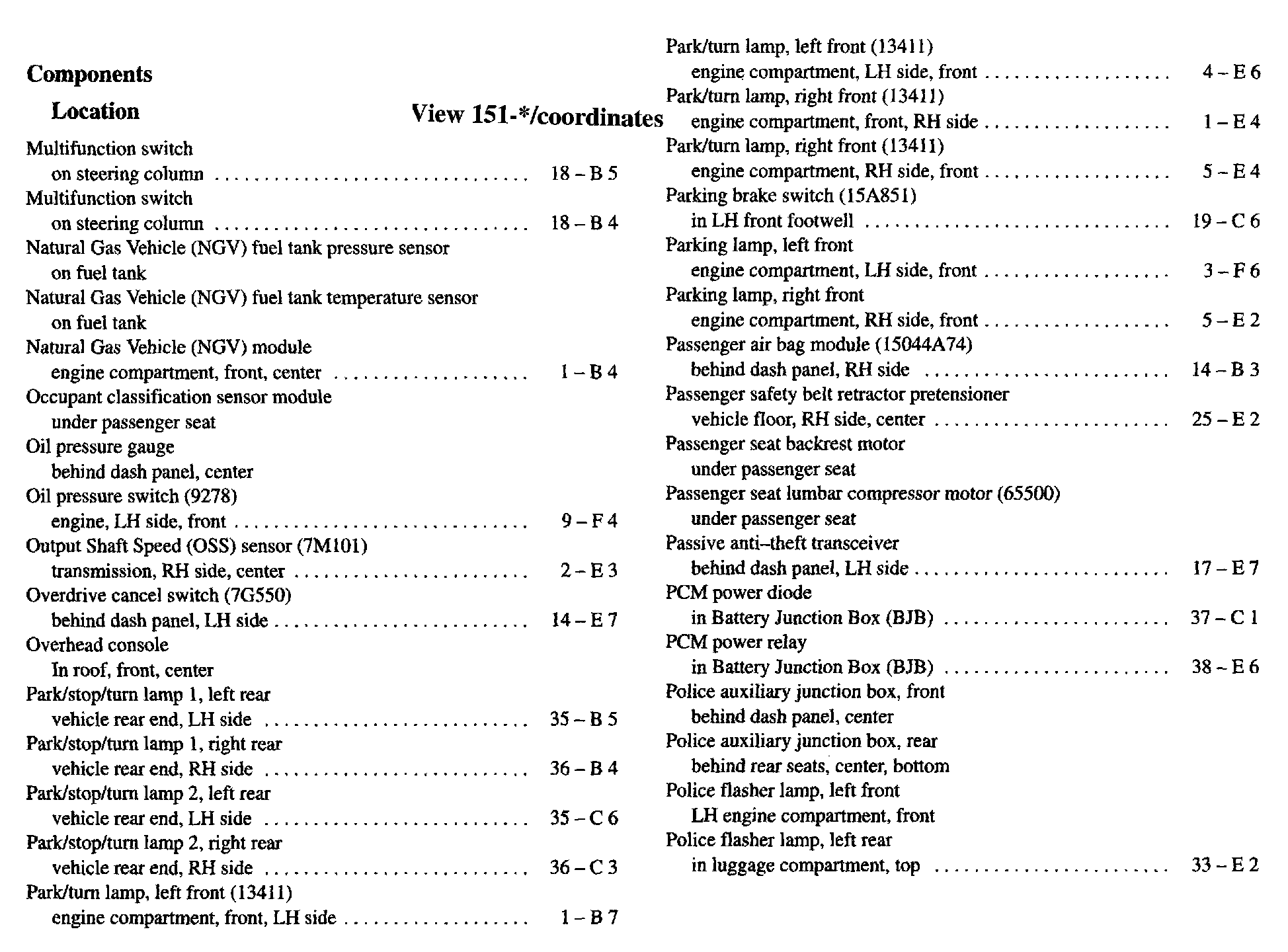

Mu - Po:

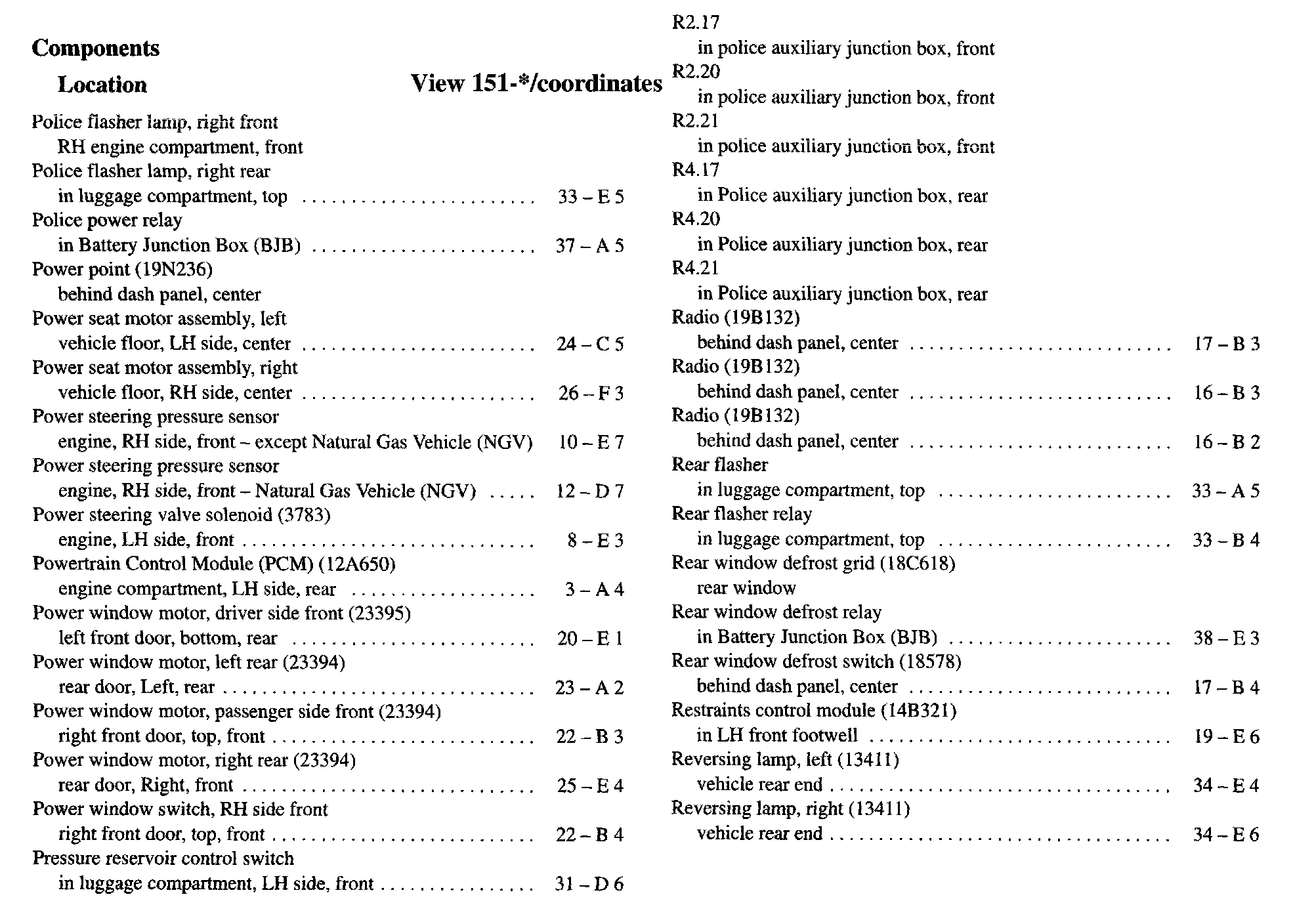

Po - Re:

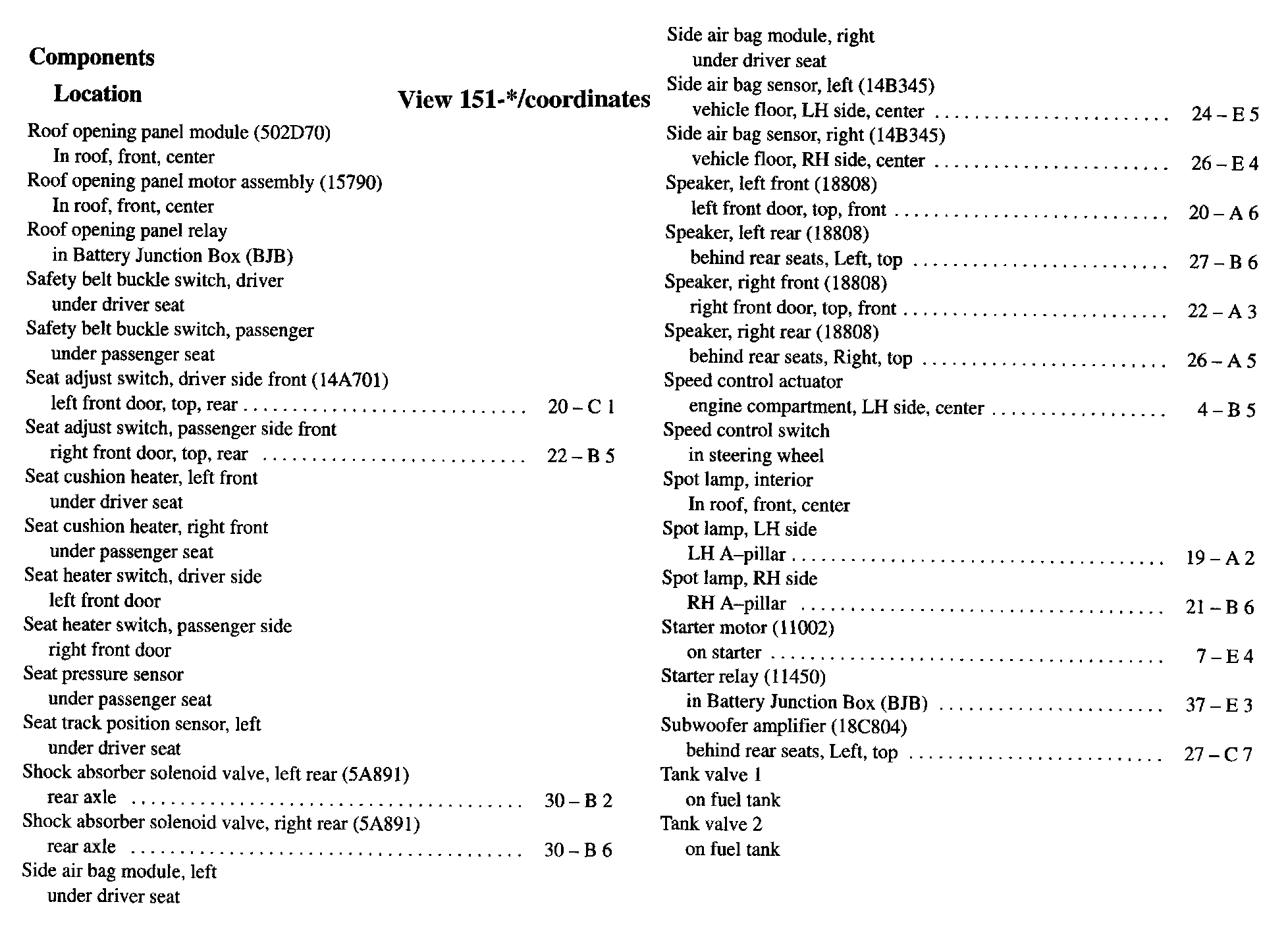

Ro - Ta:

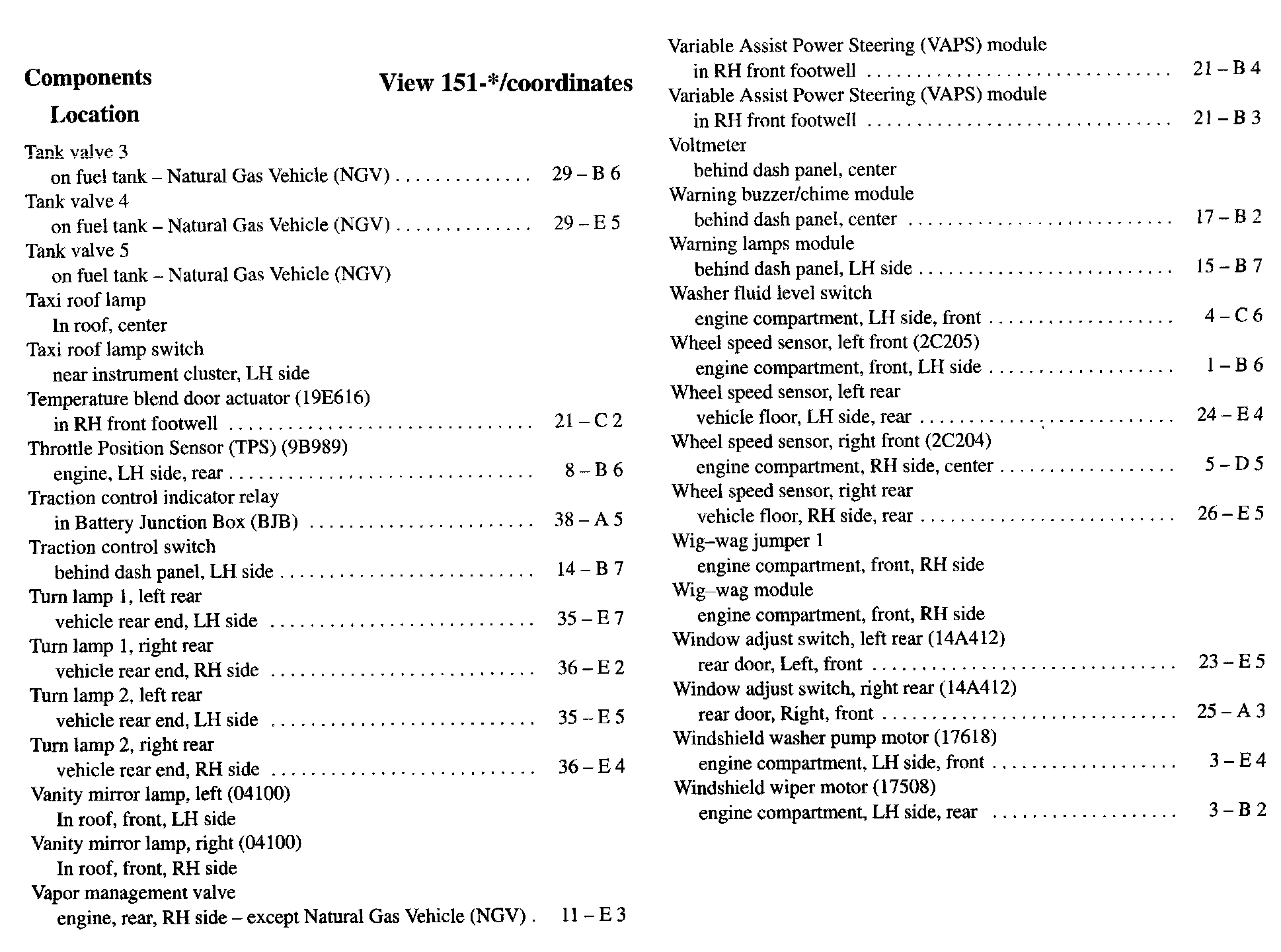

Ta - Wi:
