Function Selector Switch
REMOVAL 1.
Remove the climate control assembly.
2.
Pull and remove the function selector switch knob.
3.
Remove the function selector switch.

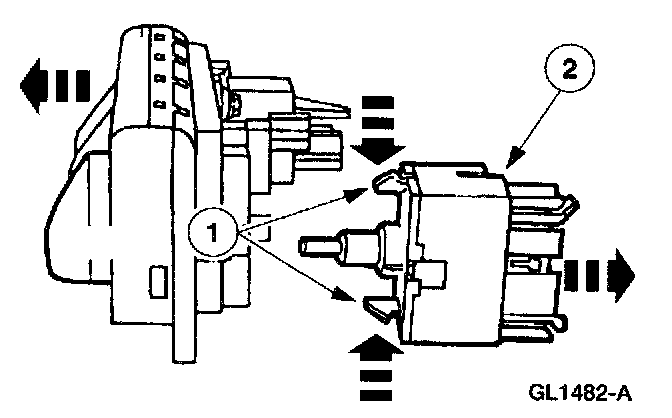

1
Release the tabs.
2
Remove the function selector switch.
INSTALLATION 1.
To install, reverse the removal procedure.
