Camber and Caster Adjustment

Camber





1. NOTE: Camber adjustment can effect caster and toe settings.

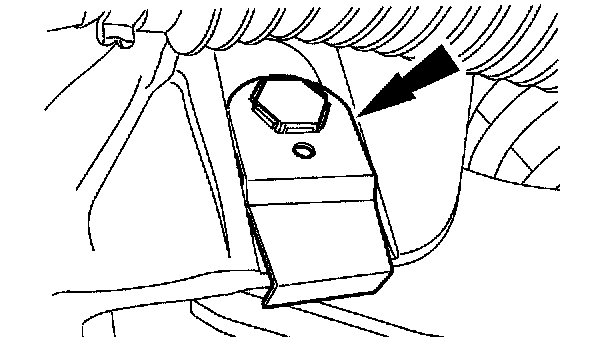

If necessary, remove and discard the cam bolt retainer flag.





2. Loosen the cam bolt nut.

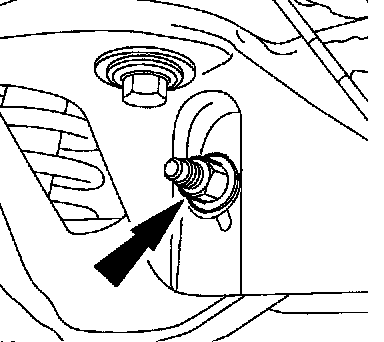

3. Rotate the cam bolt to adjust camber.

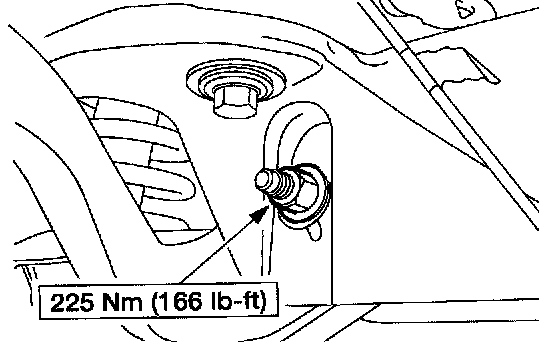

4. While holding the cam bolt, tighten the nut.
5. Recheck the camber, caster and toe, and adjust as needed.

Caster





6. NOTE: Caster adjustment can effect camber and toe settings.

NOTE: The LH caster bushing may have a centering washer that needs to be removed and discarded prior to adjustment.

Loosen the nut and move the arm inward to decrease the caster and outward to increase the caster.

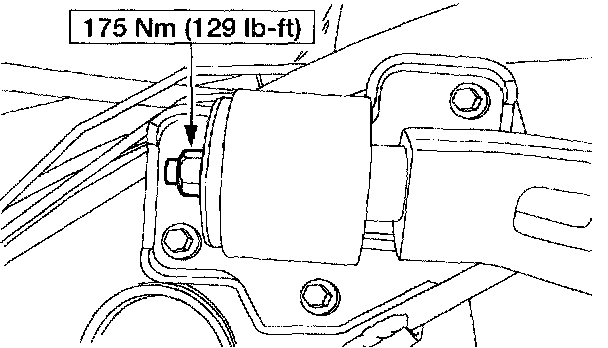

7. While holding the arm, tighten the nut.
8. Recheck the camber, caster and toe and adjust as needed.
