Toe Adjustment

Toe Adjustment
1. Start the engine and center the steering wheel.
2. Turn the engine off, and hold the steering wheel in the "straight-ahead" position using a suitable holding device.

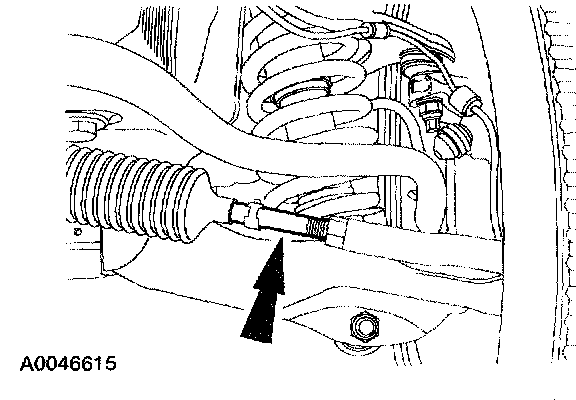

3. Remove the clamps.

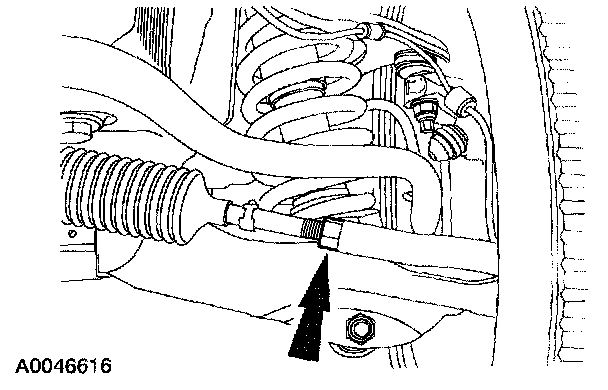

4. Loosen the nuts.
^ Clean and lubricate the nuts and the tie-rod end threads.





5. NOTE: Do not allow the bellows boot to twist when the tie-rod is rotated.

Rotate the tie-rods to obtain the correct toe setting.
6. Start the engine and recenter the steering wheel.
^ Recheck the toe settings and adjust if necessary.

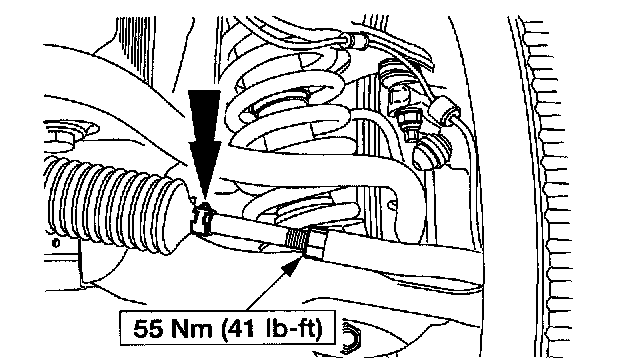

7. Tighten the nuts and install the clamps.
