Test L

PINPOINT TEST L: NO MODULE/NETWORK COMMUNICATION - SCP NETWORK

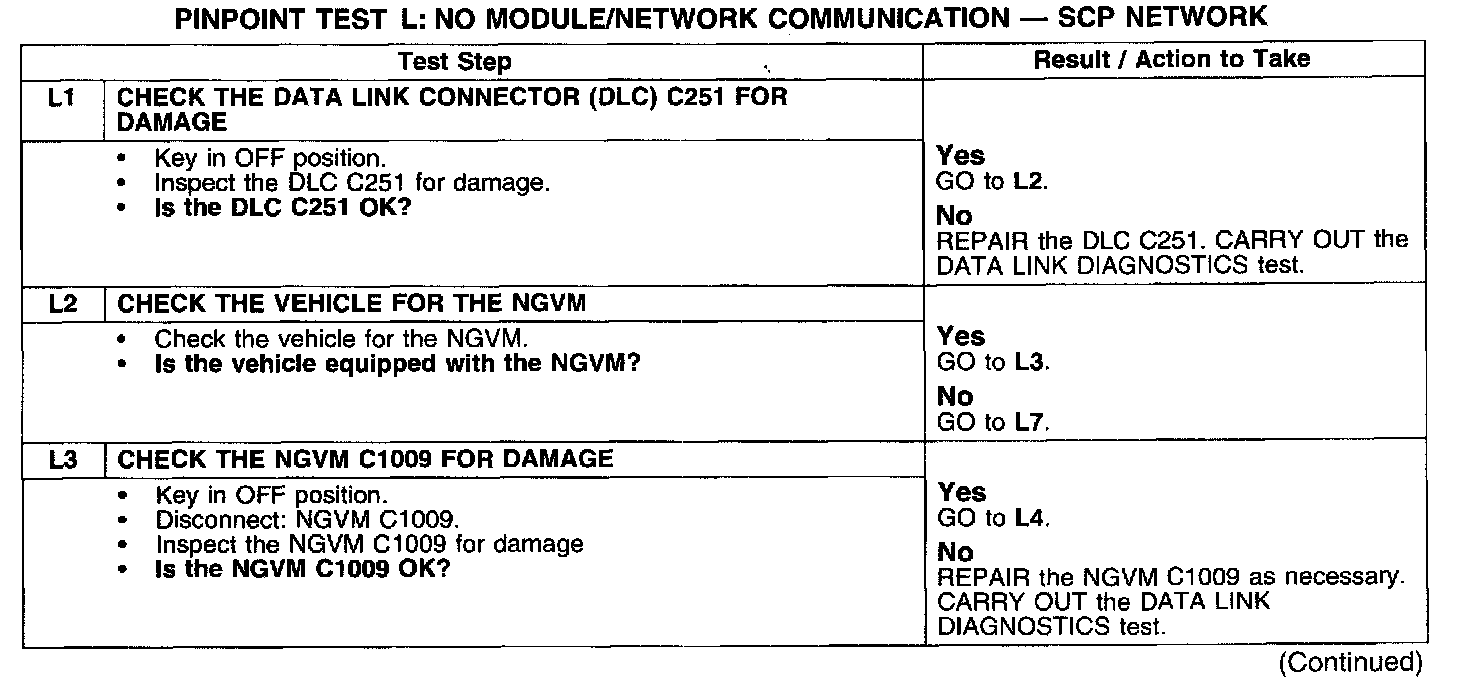

Test L1-L3:

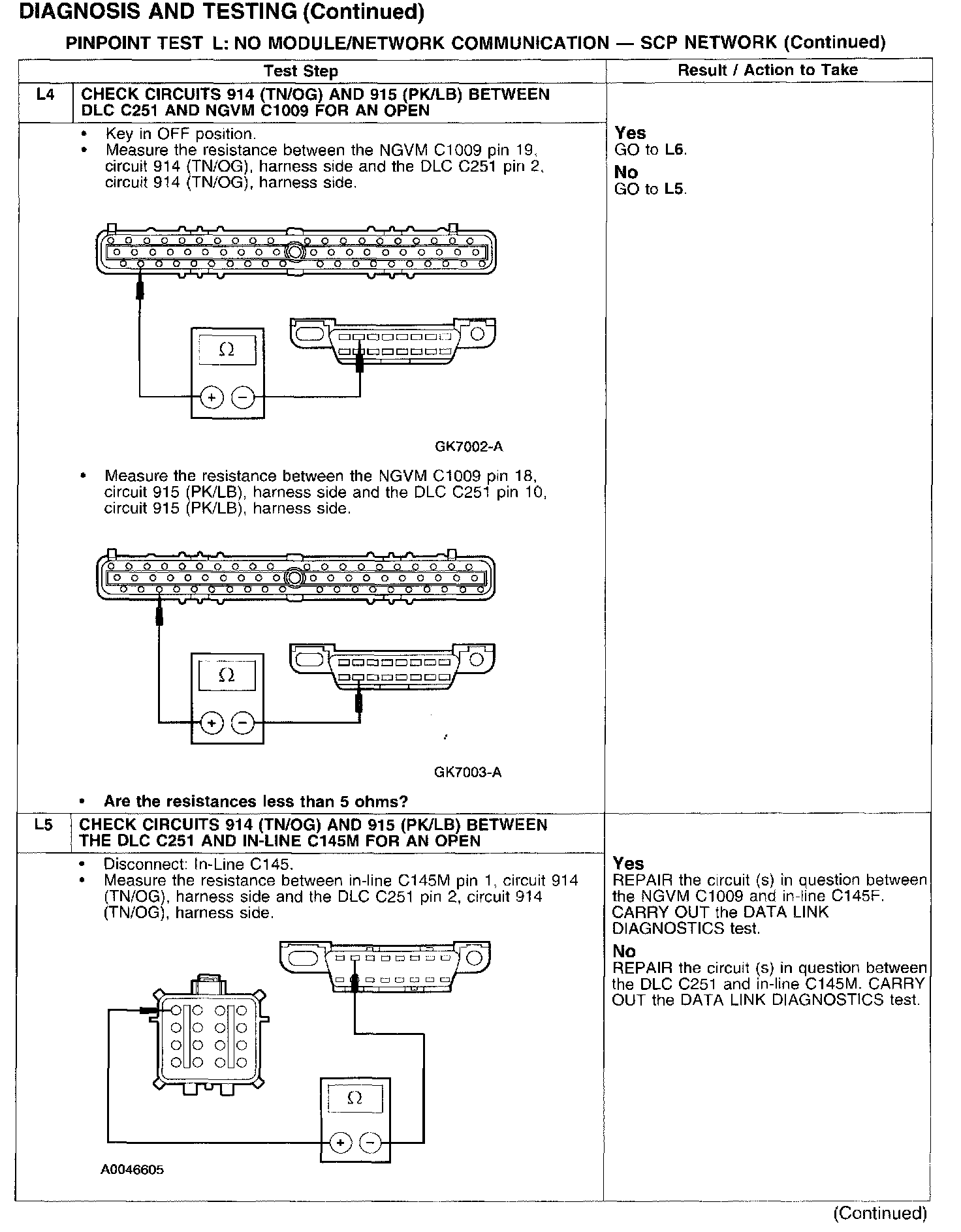

Test L4-L5:

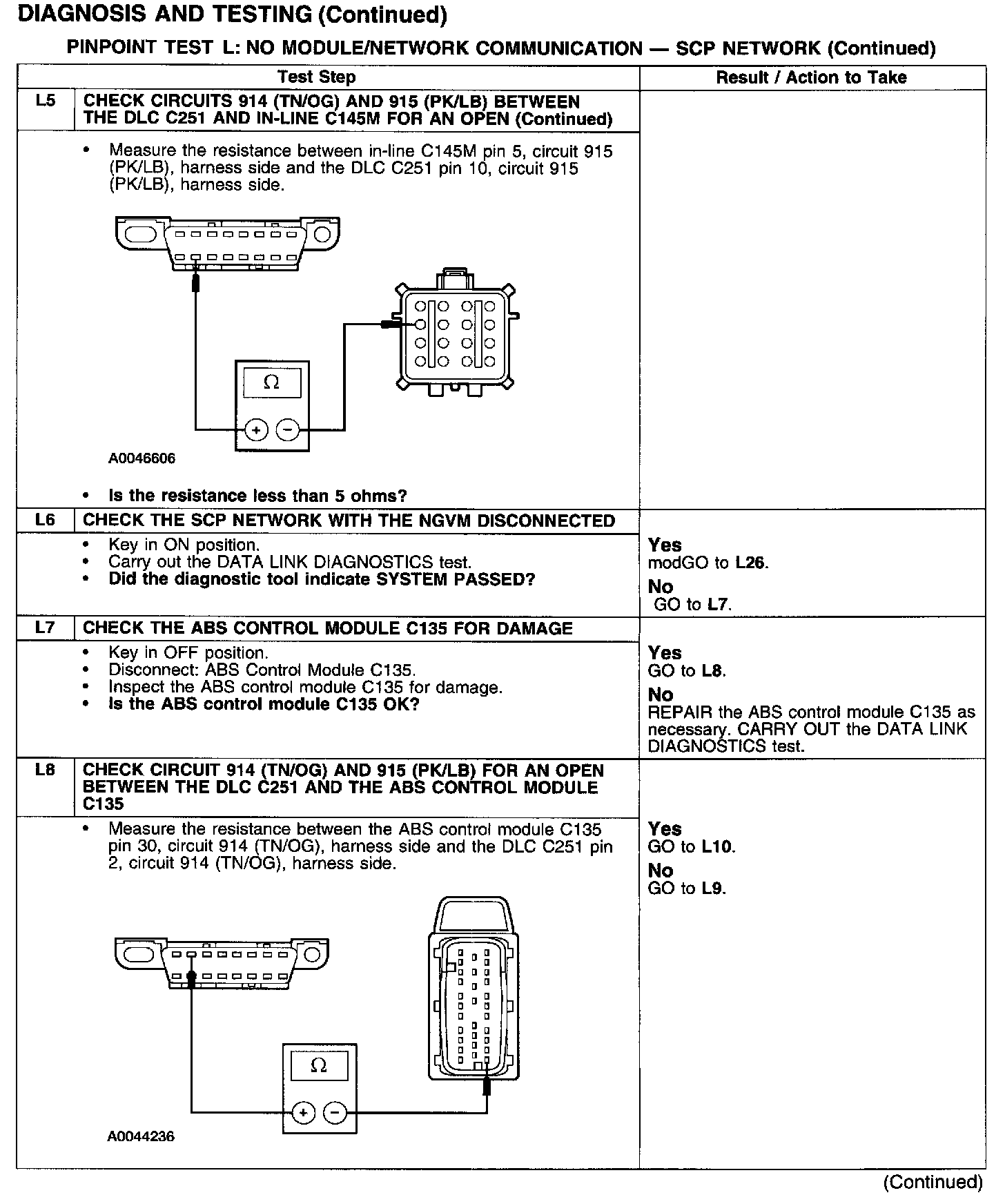

Test L5-L8:

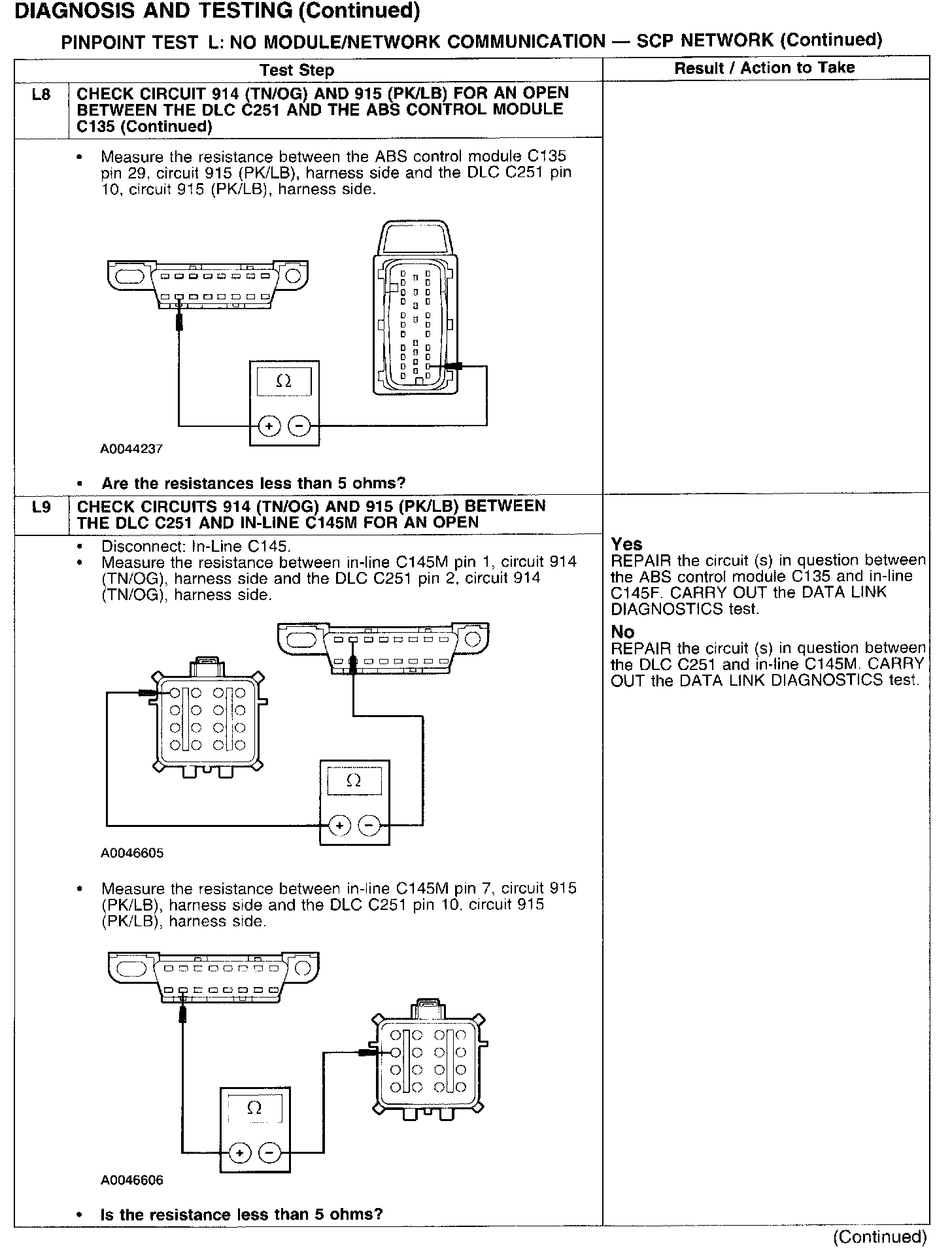

Test L8-L9:

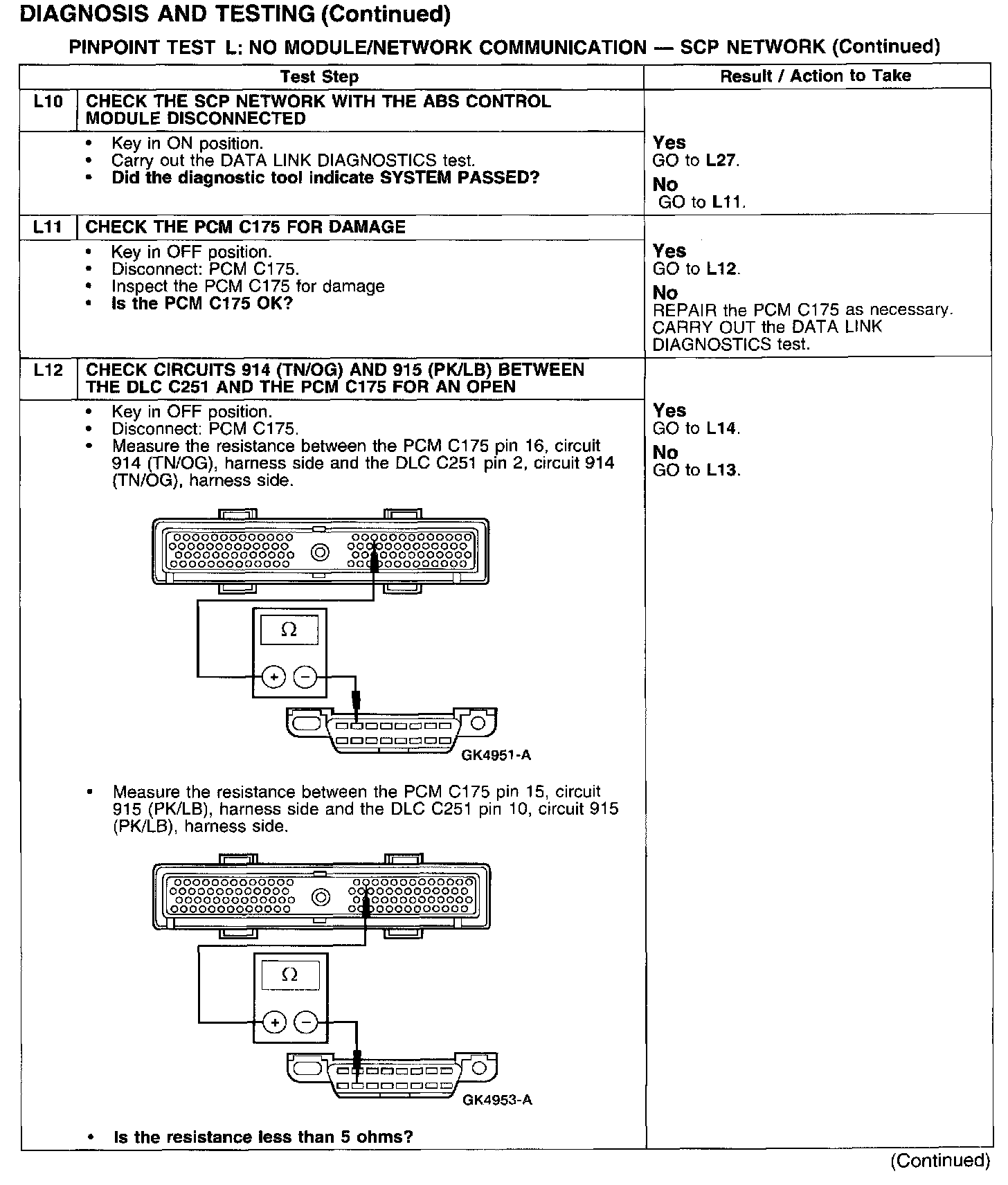

Test L10-L12:

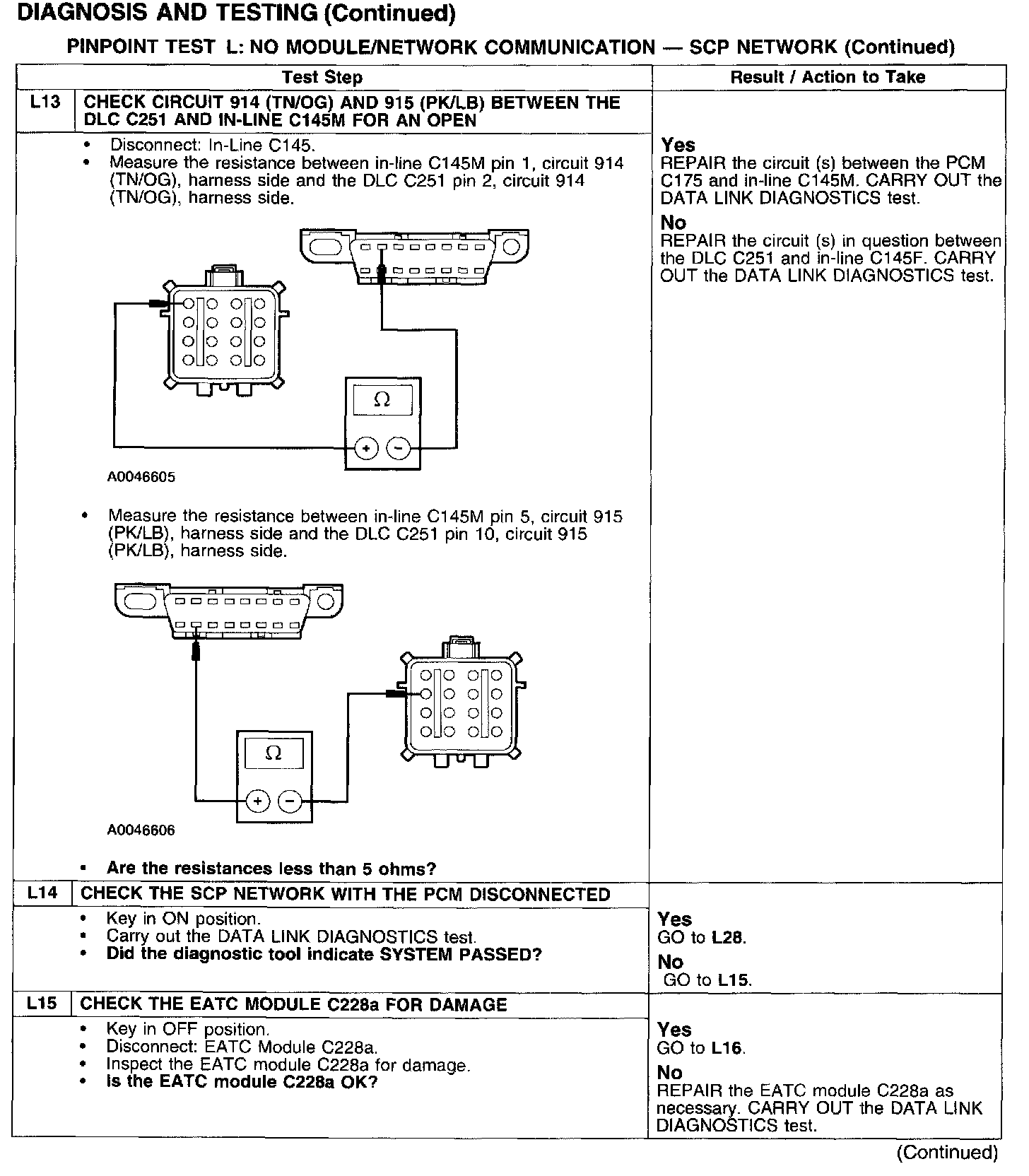

Test L13-L15:

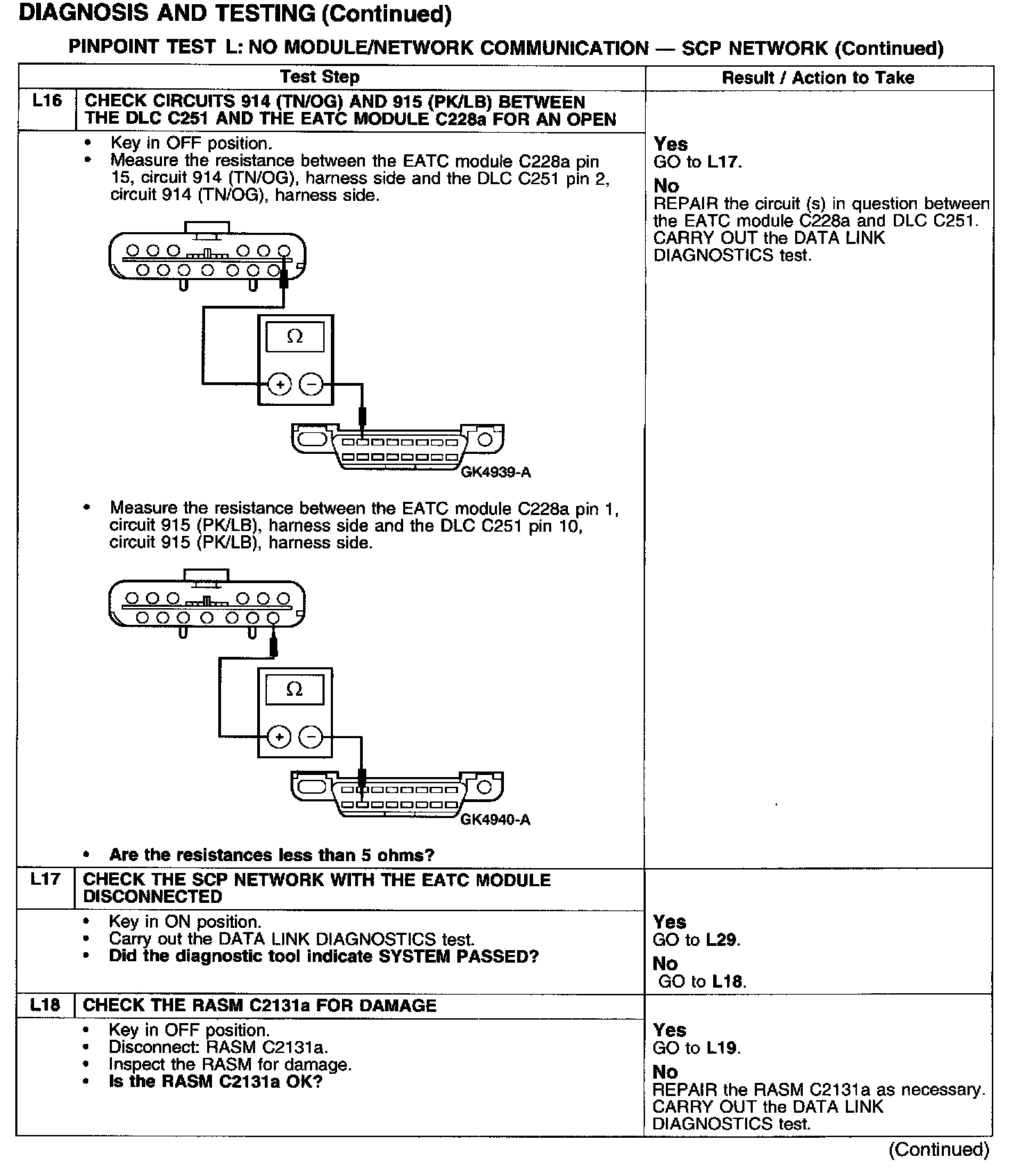

Test L16-L18:

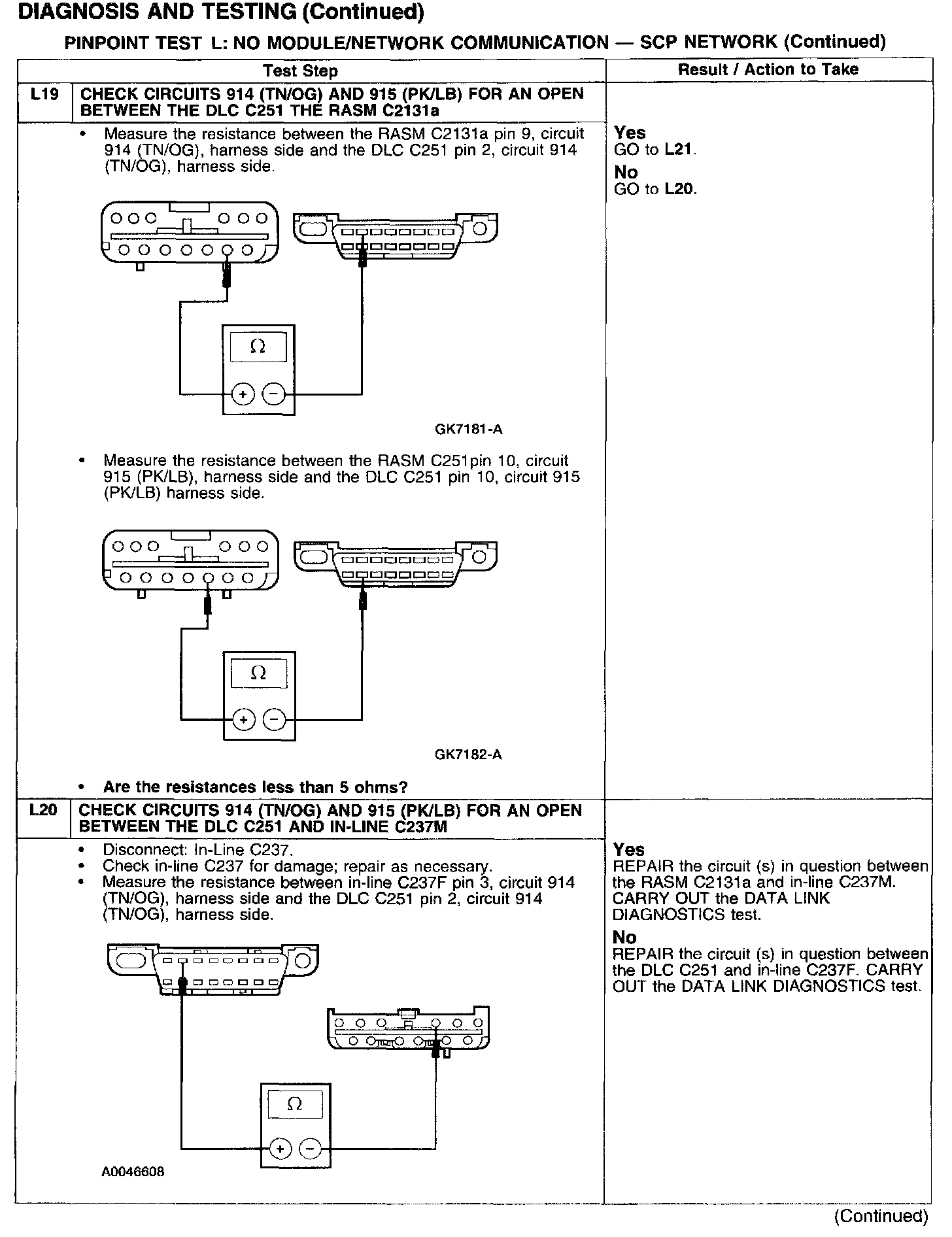

Test L19-L20:

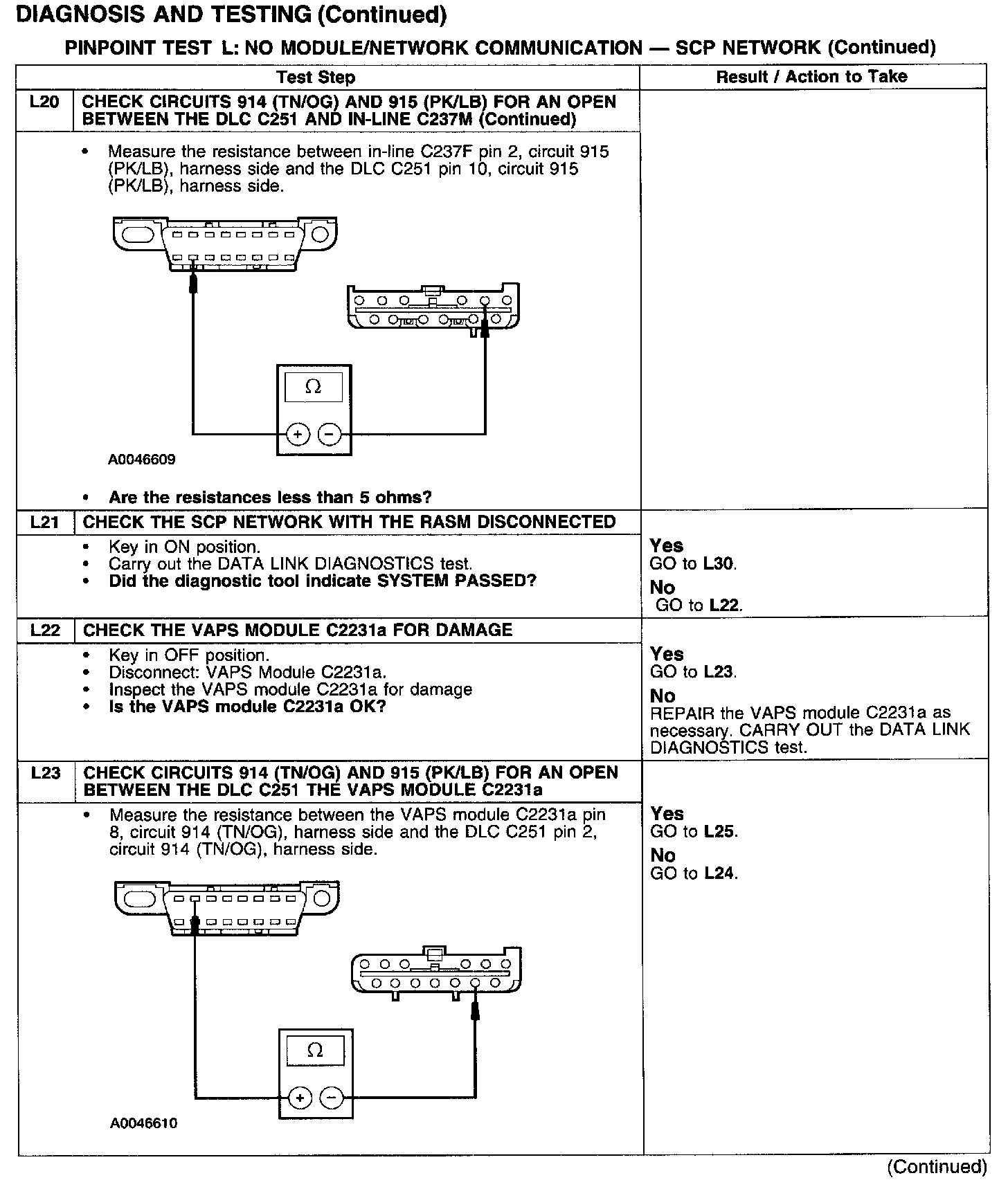

Test L20-L23:

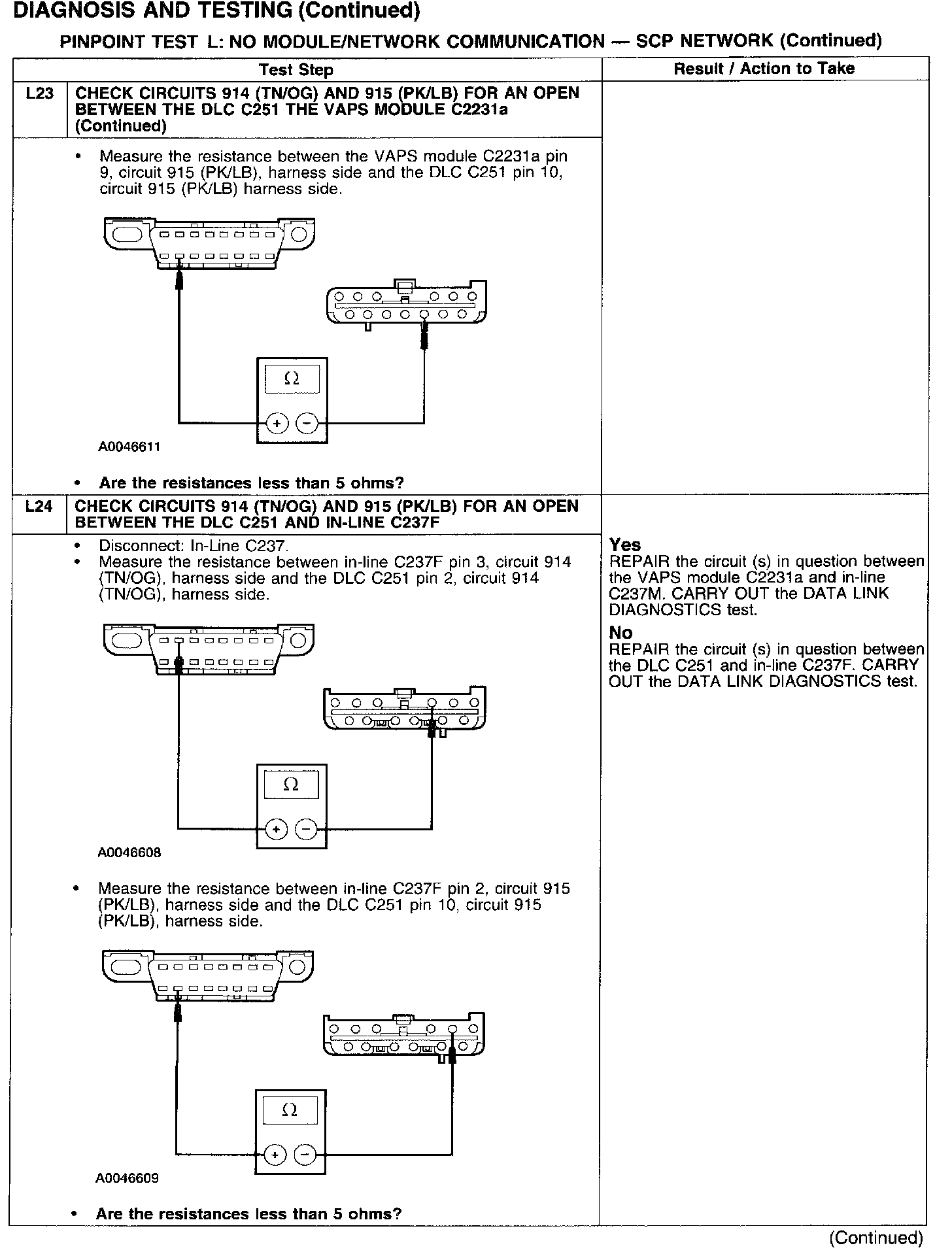

Test L23-L24:

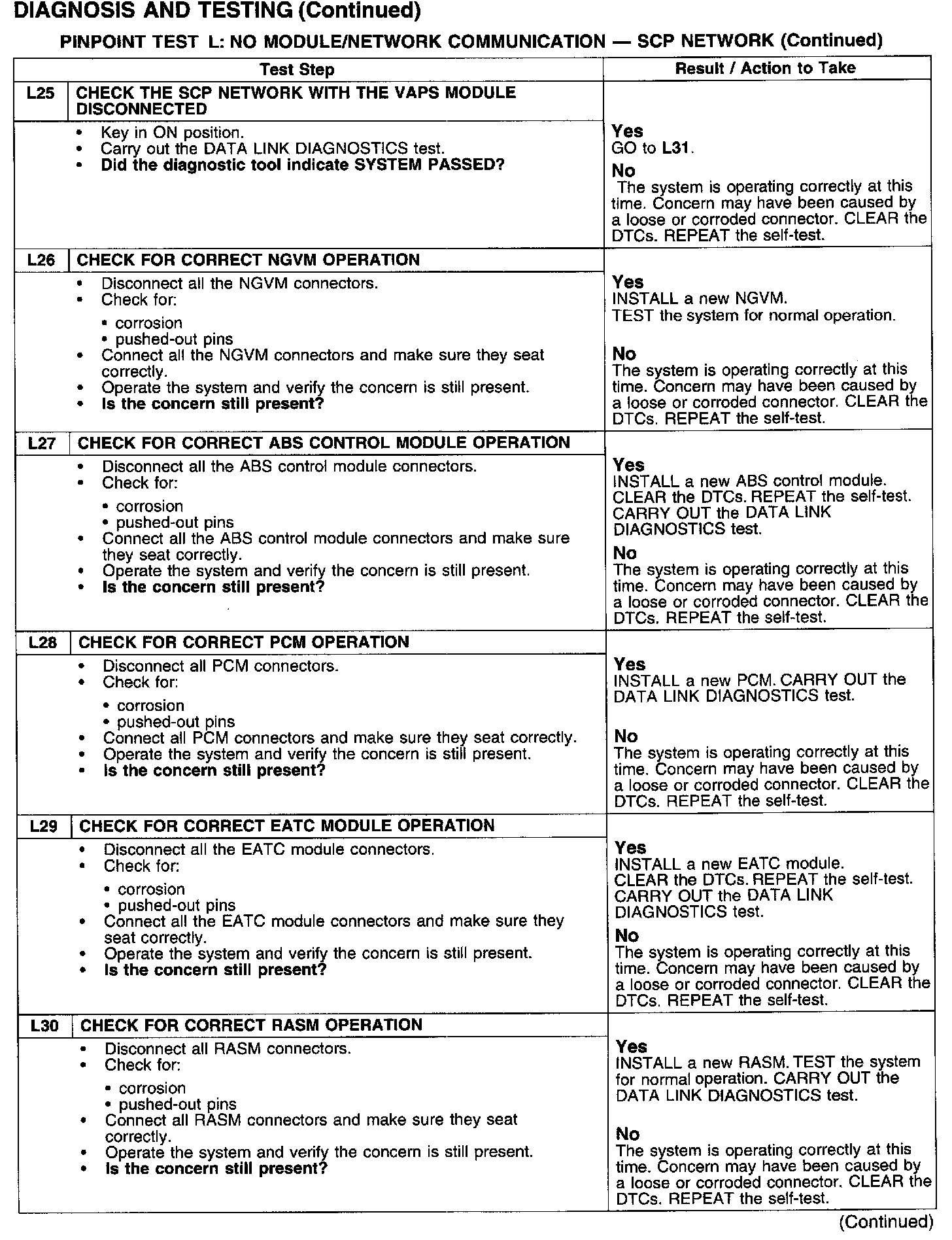

Test L25-L30:

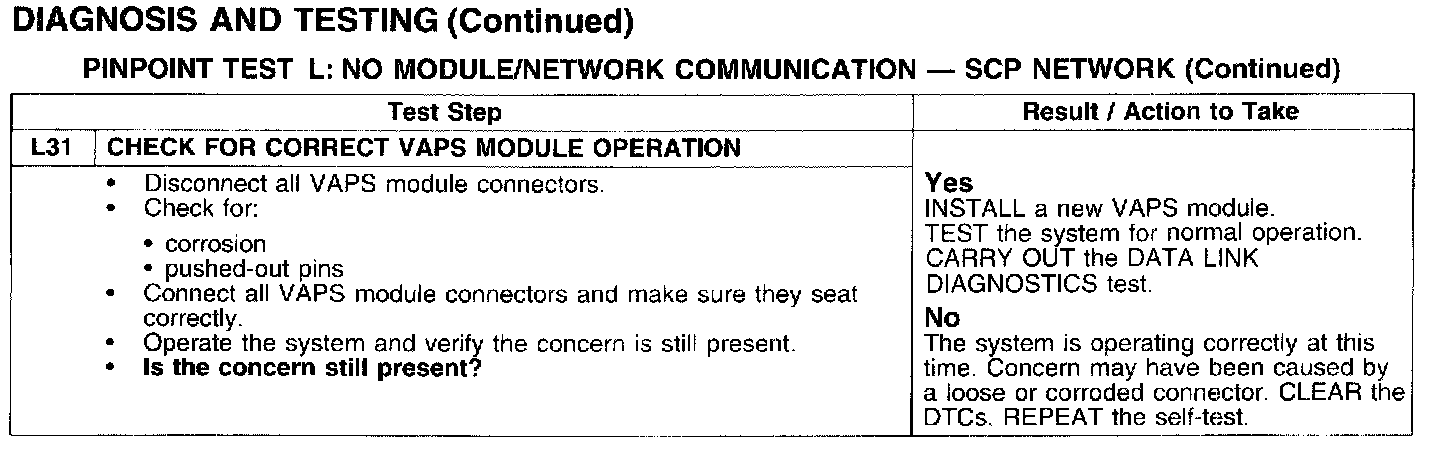

Test L31:
