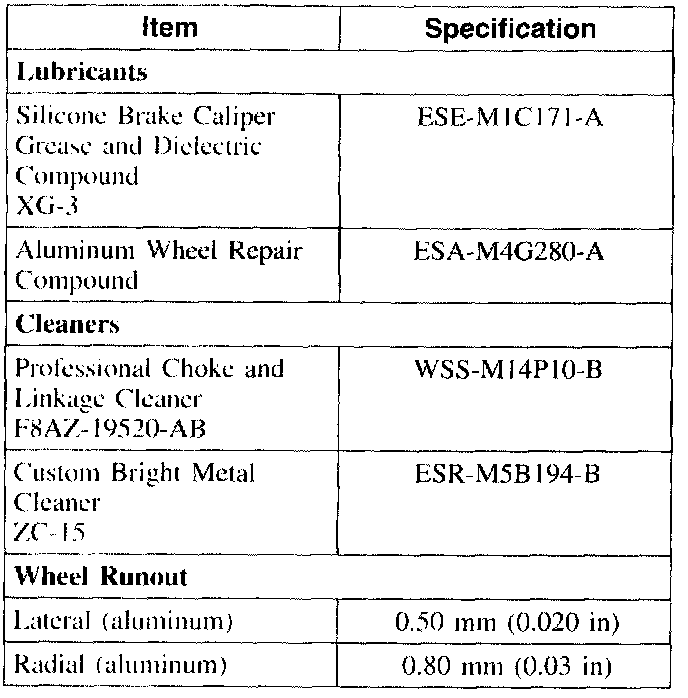

General Specifications

Specifications

General Specifications

CAUTION: Failure to tighten the wheel nuts in a star pattern can result in high brake disc runout, which will speed up the development of brake roughness, shudder and vibration.

Tighten the wheel nuts to specification in a star-pattern sequence.

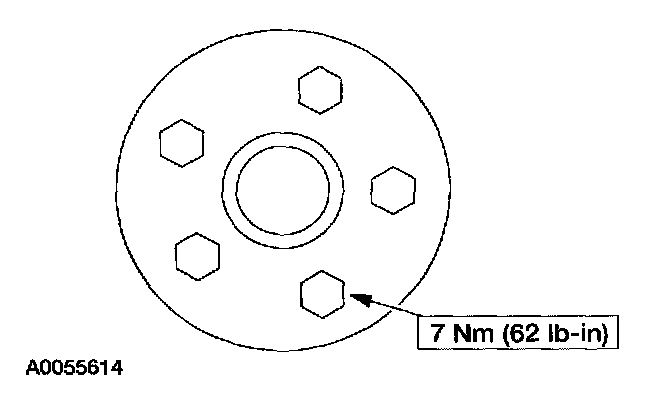

NOTE: If the wheel cover is attached by plastic retainer nuts, make sure to tighten them to specification.

Install the wheel cover or ornament.
