Power Window Switch: Service and Repair
REMOVAL 1.

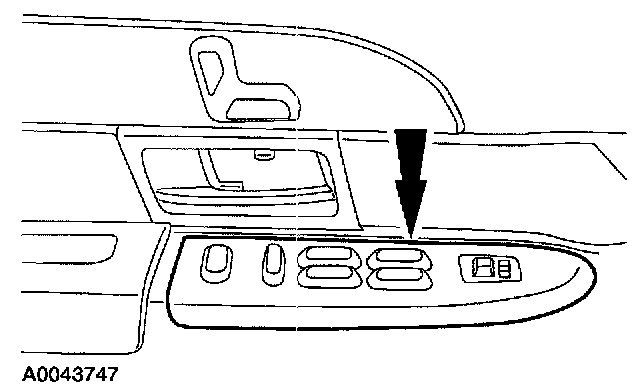

Lift the front of the switch plate from the front door trim panel and position it aside.
NOTE: Left front door shown, all others similar.
2.

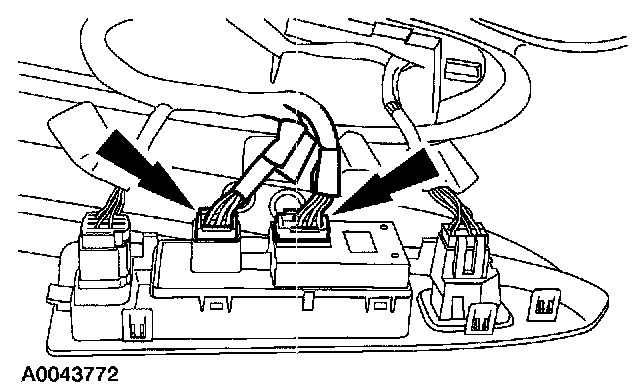

Disconnect the electrical connectors.
3.

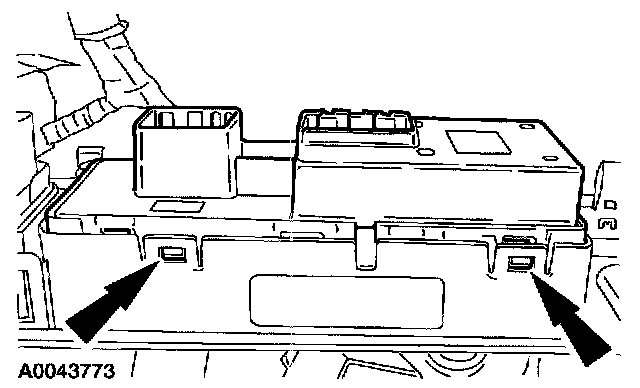

Remove the window control switch.
^
Release the four locking tabs.
INSTALLATION 1.
To install, reverse the removal procedure.
