Fuel Tank Protection Bracket
FUEL TANK PROTECTION BRACKETRemoval and Installation 1.
Raise and support the vehicle.
2.

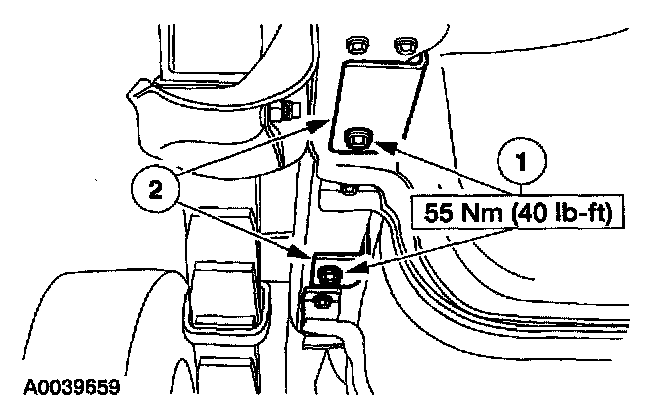

Remove the
fuel tank protection bracket (9K027).
1.
Remove the bolt.
2.
Remove the
fuel tank protection bracket.
3.
To install, reverse the removal procedure.
