Test D: A/C Is Inoperative/Does Not Operate Correctly

PINPOINT TEST D: THE AIR CONDITIONING (A/C) IS INOPERATIVE/DOES NOT OPERATE CORRECTLY


Test D1:

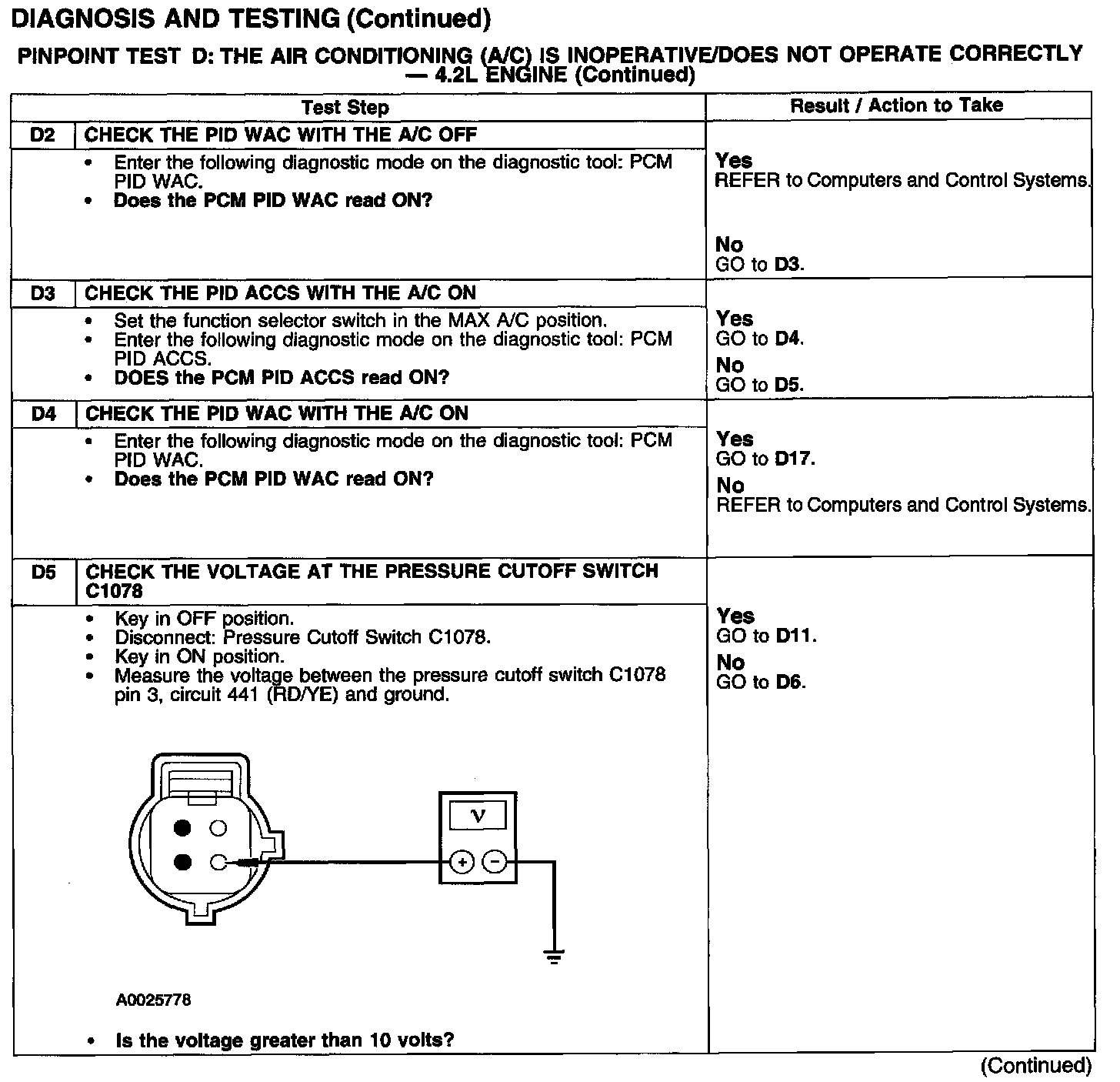

Test D2-D5:

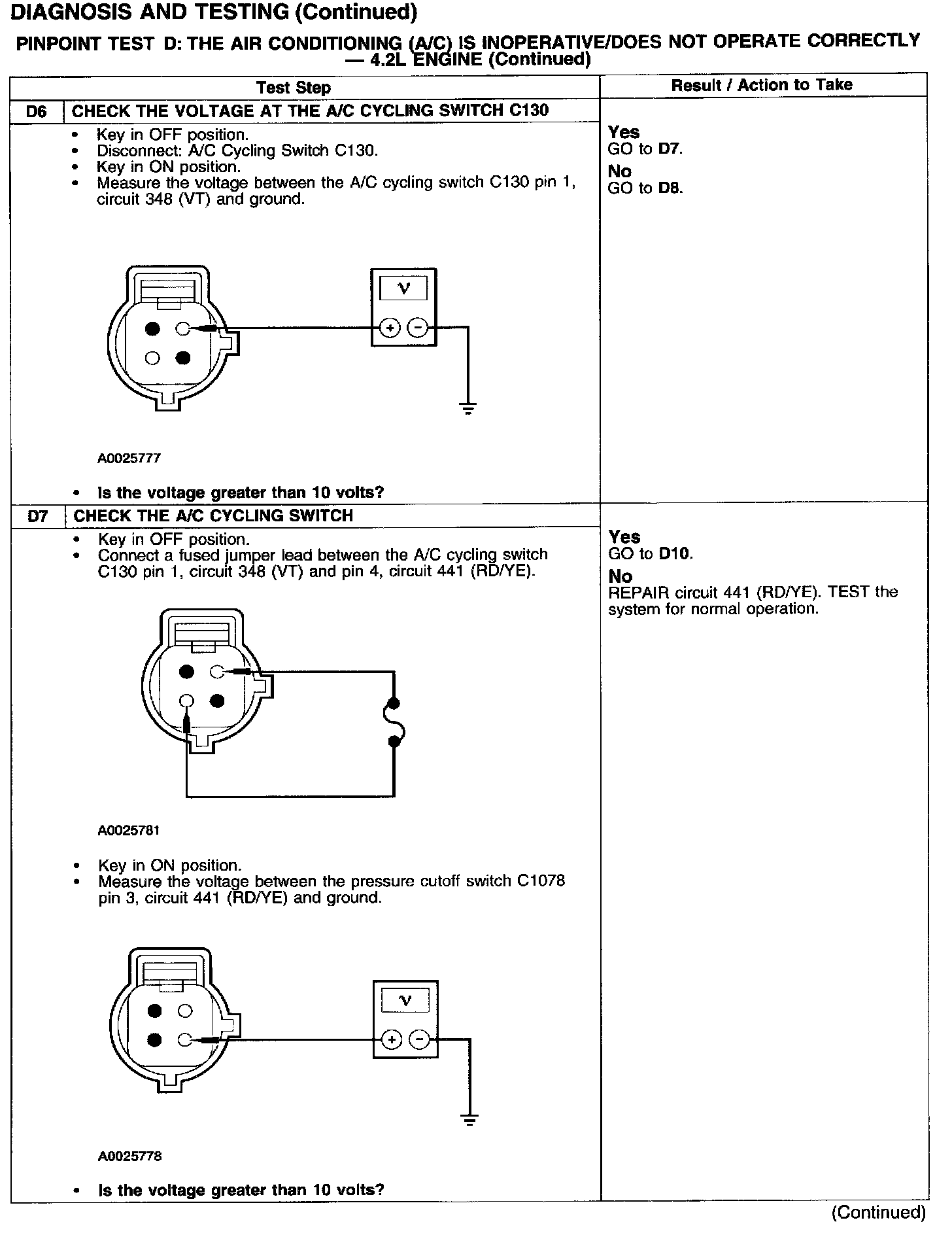

Test D6-D7:

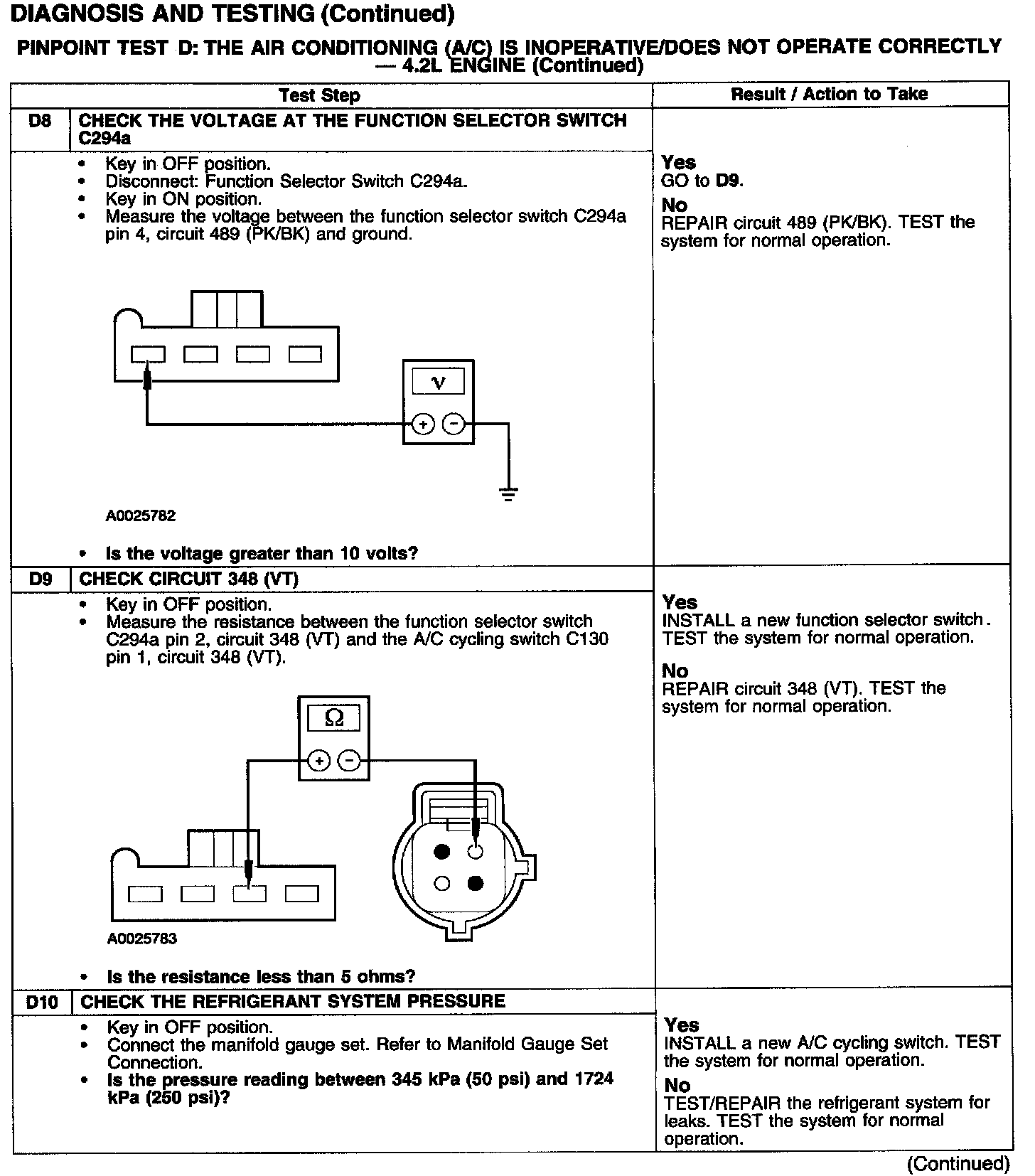

Test D8-D10:

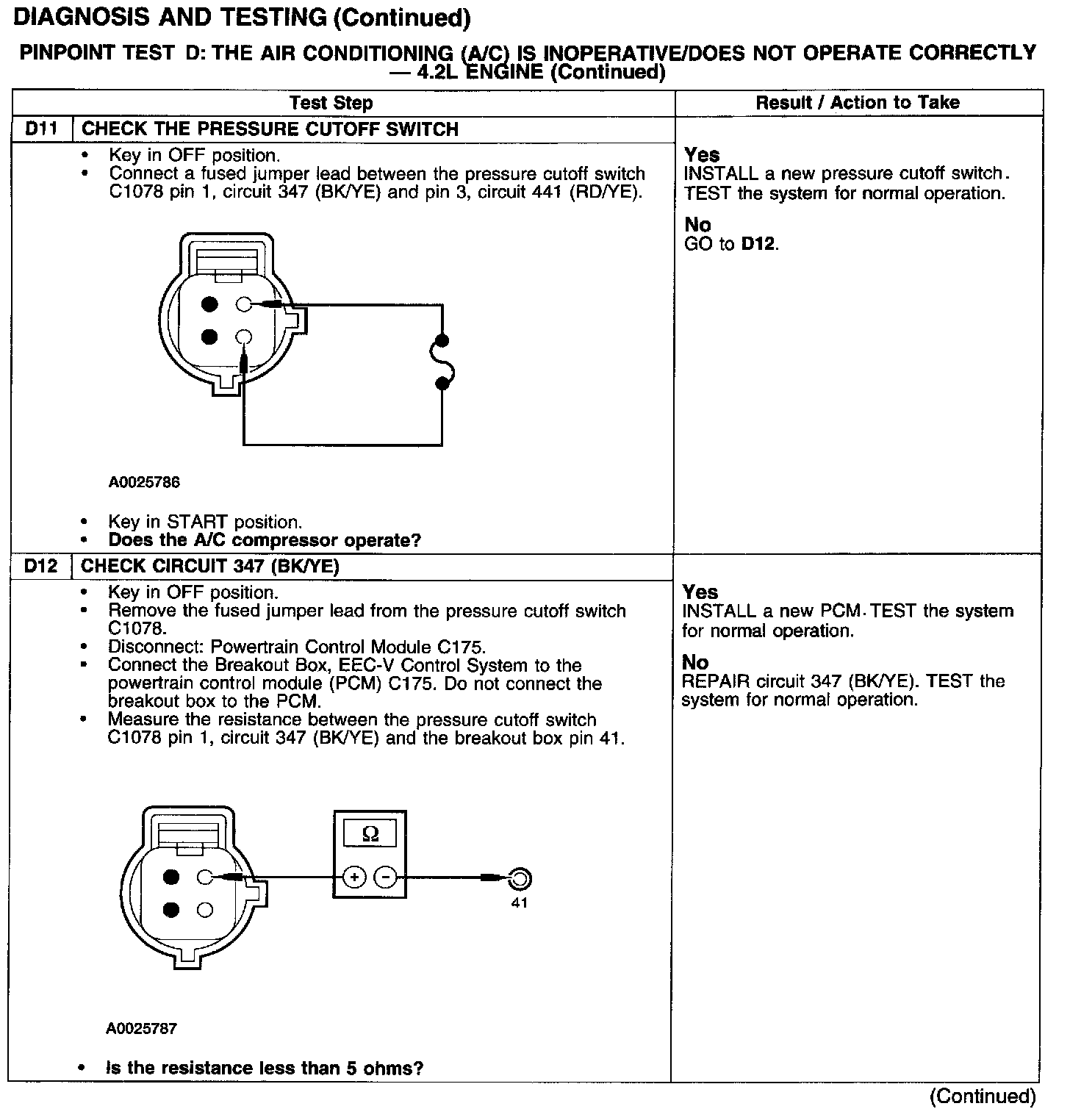

Test D11-D12:

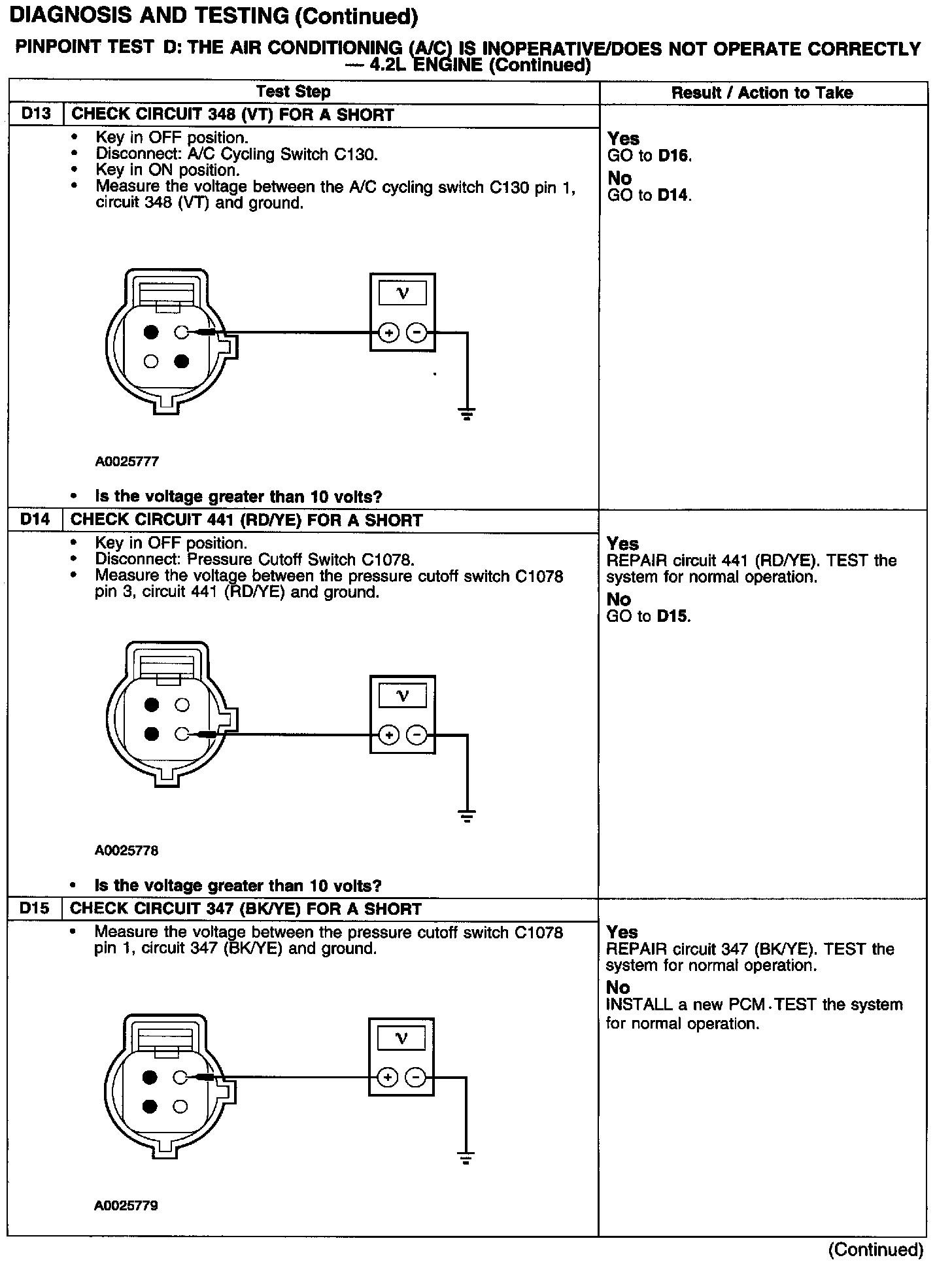

Test D13-D15:

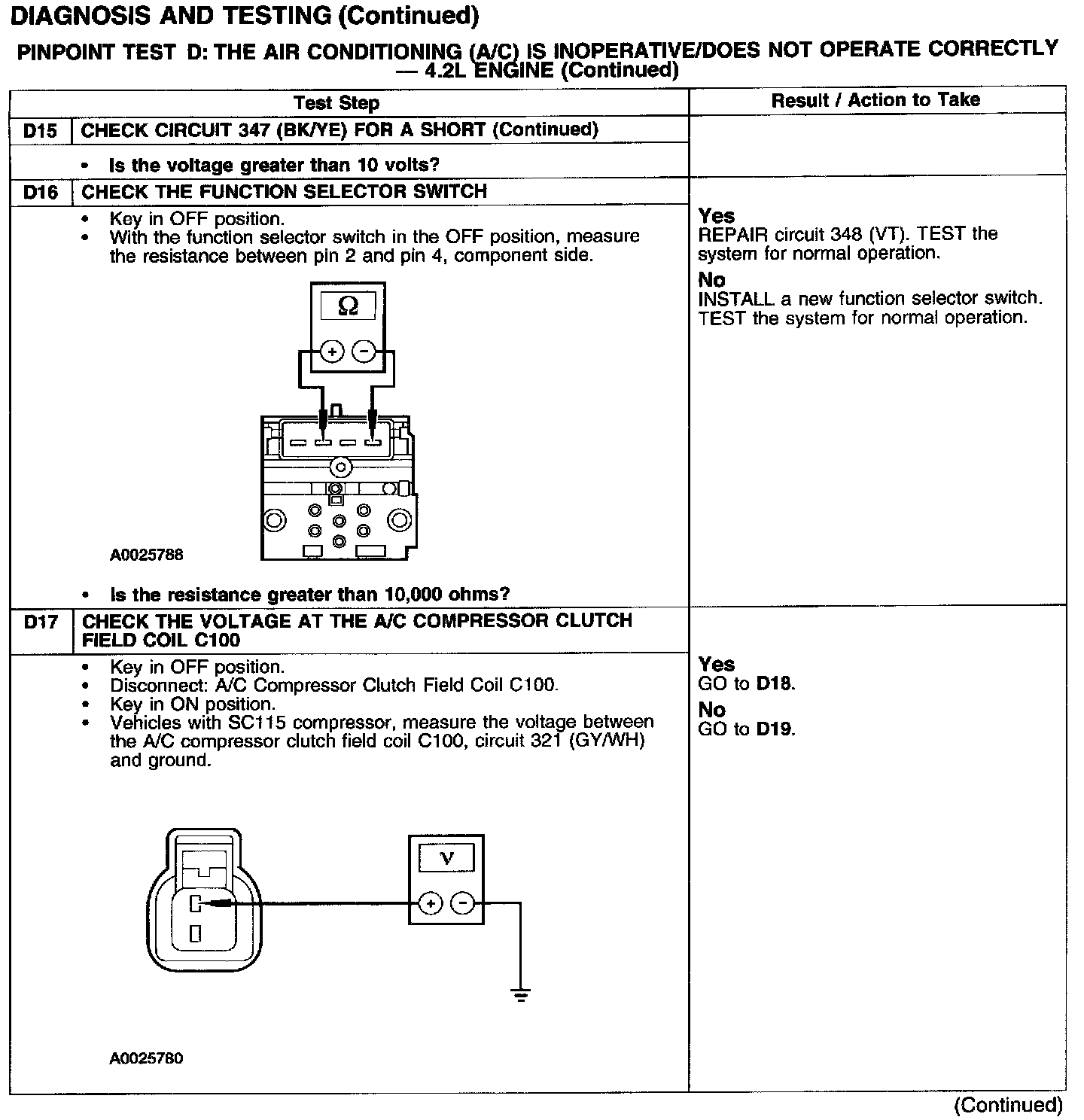

Test D15-D17:

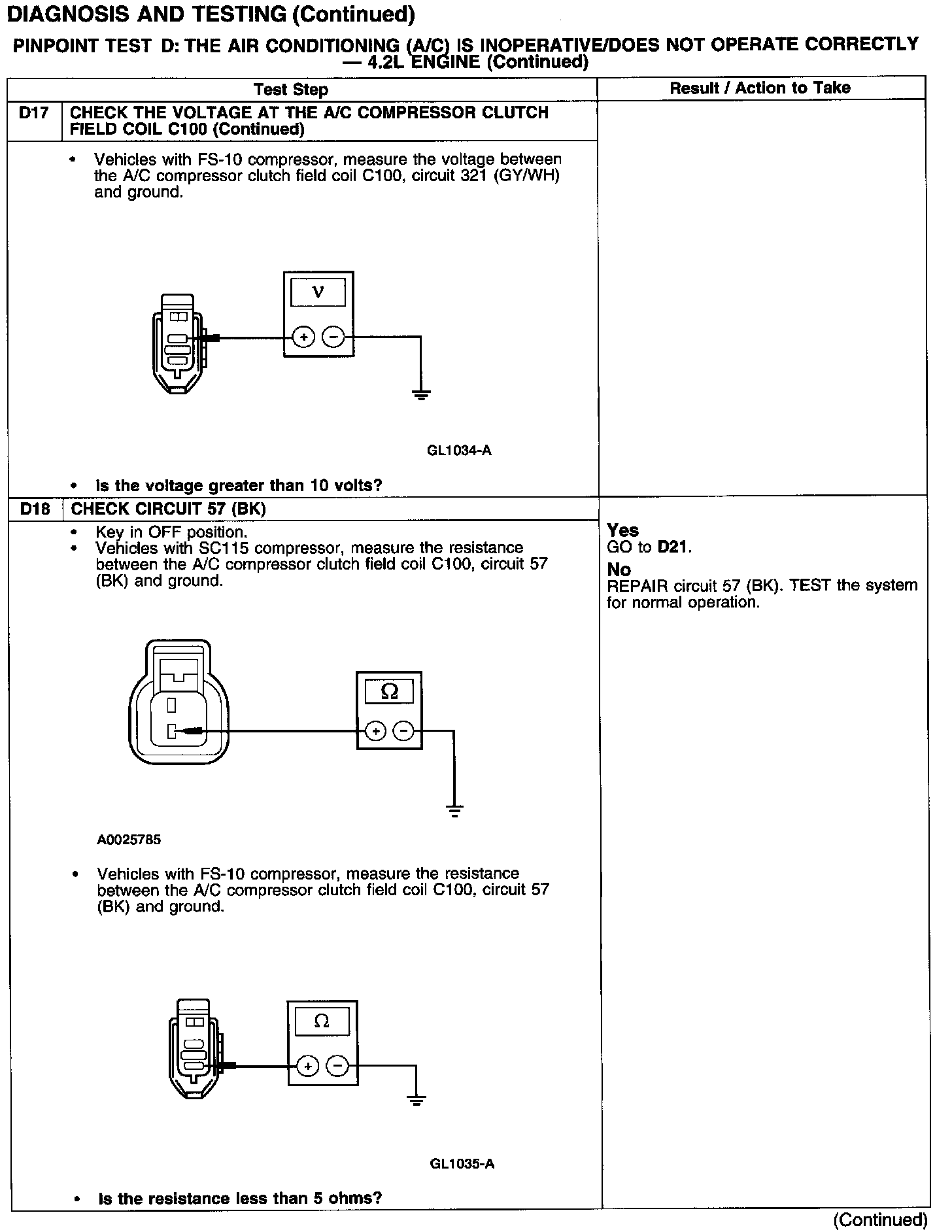

Test D17-D18:

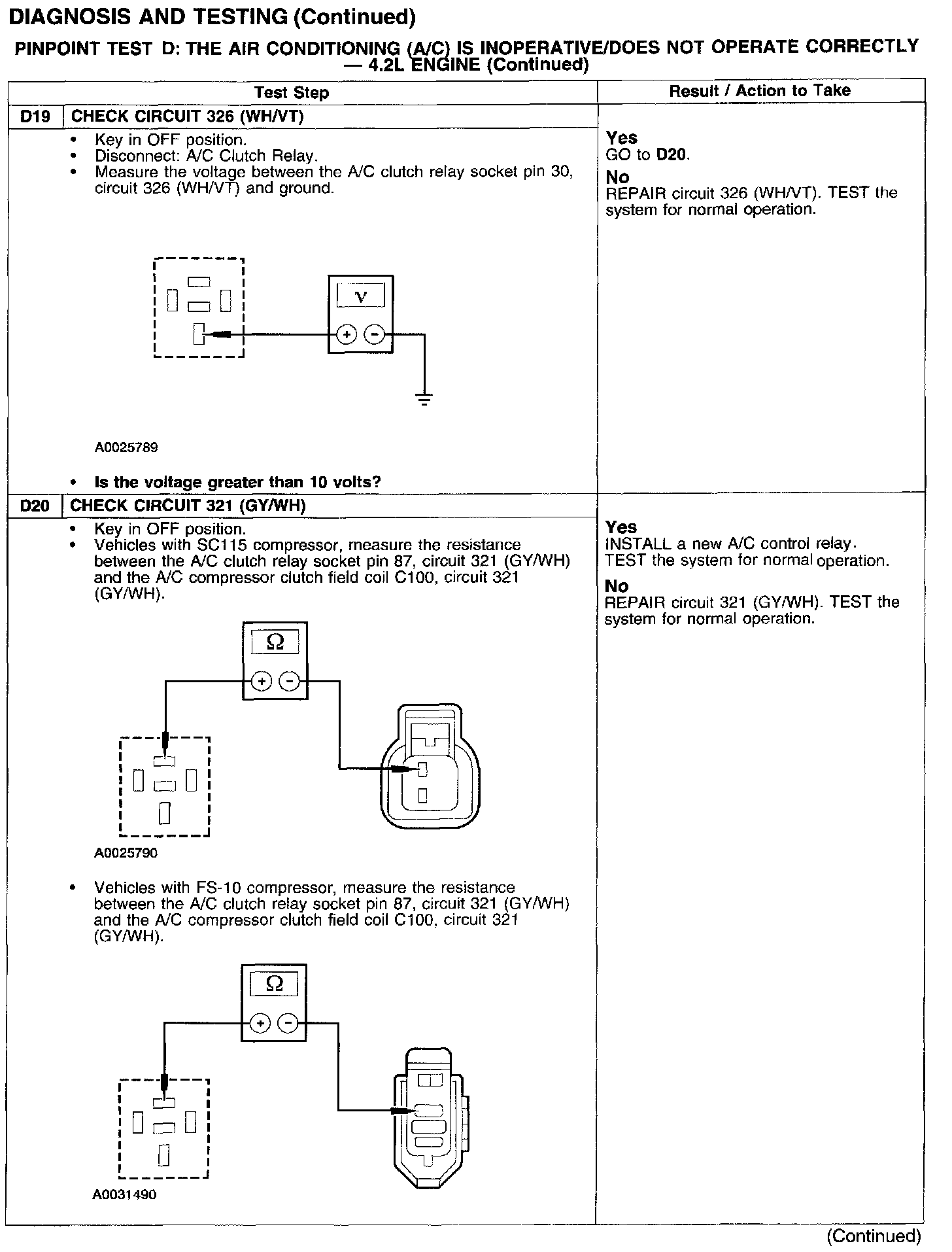

Test D19-D20:

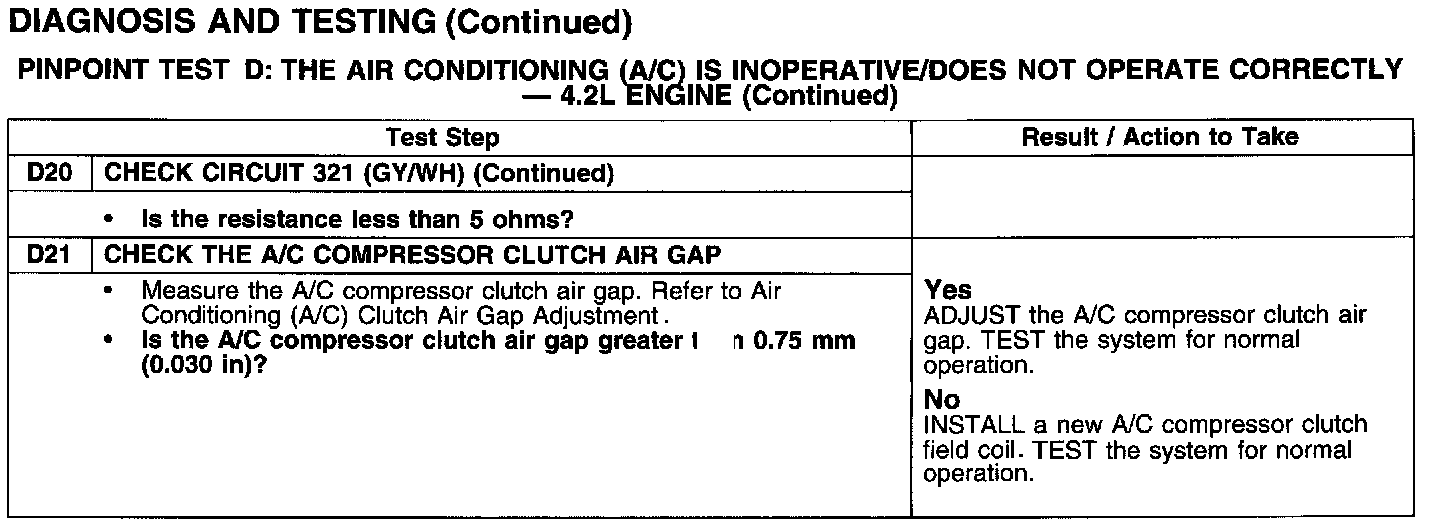

Test D20-D21:
