Intake Manifold
Upper Intake Manifold Tighten the bolts in the sequence shown in two stages:
-
Stage 1: Tighten to
6 Nm (53 inch lbs.).
-
Stage 2: Tighten to
10 Nm (89 inch lbs.).

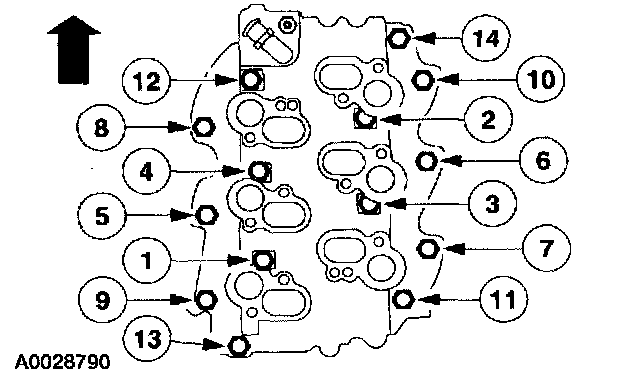

Lower Intake Manifold Tighten the bolts in two stages in the sequence shown:
-
Stage 1: Tighten the bolts to
5 Nm (44 inch lbs.).
-
Stage 2: Tighten the bolts to
10 Nm (89 inch lbs.).
Connect the fuel lines.
