Suspension

Front Suspension

Part 1 Of 2:

Part 2 Of 2:

Front Suspension Components

NOTE: New fasteners for suspension components must be used when old fasteners are loosened and/or removed or when suspension components are replaced.

All suspension mounting points are rubber insulated to minimize transfer of road noise and vibration to the vehicle body and interior. All front suspension components can be replaced individually.

Front Suspension Component -- 1 Of 2:

Part 2 Of 2:

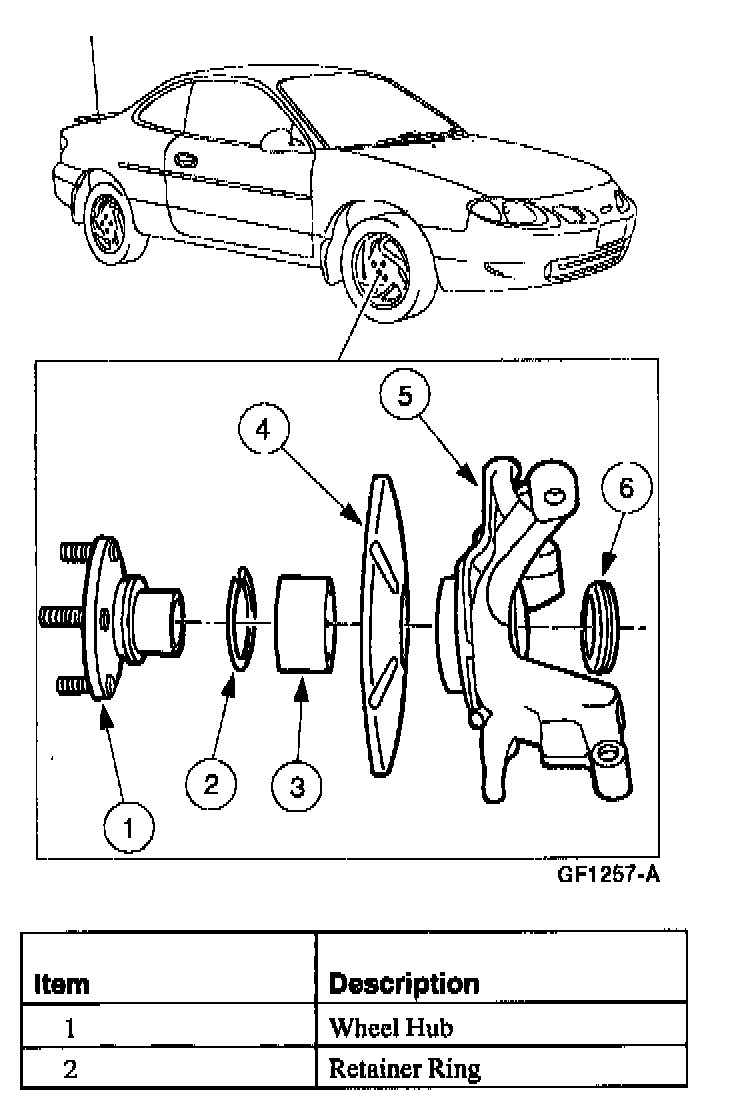

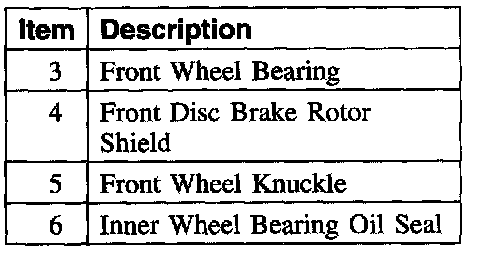

Front Wheel Bearing and Hub

The front wheel bearing supports the wheel, front disc brake rotor and wheel hub. The front wheel bearing is pressed onto the wheel hub and pressed into the front wheel knuckle.

Front Suspension Component:

Front Suspension Component

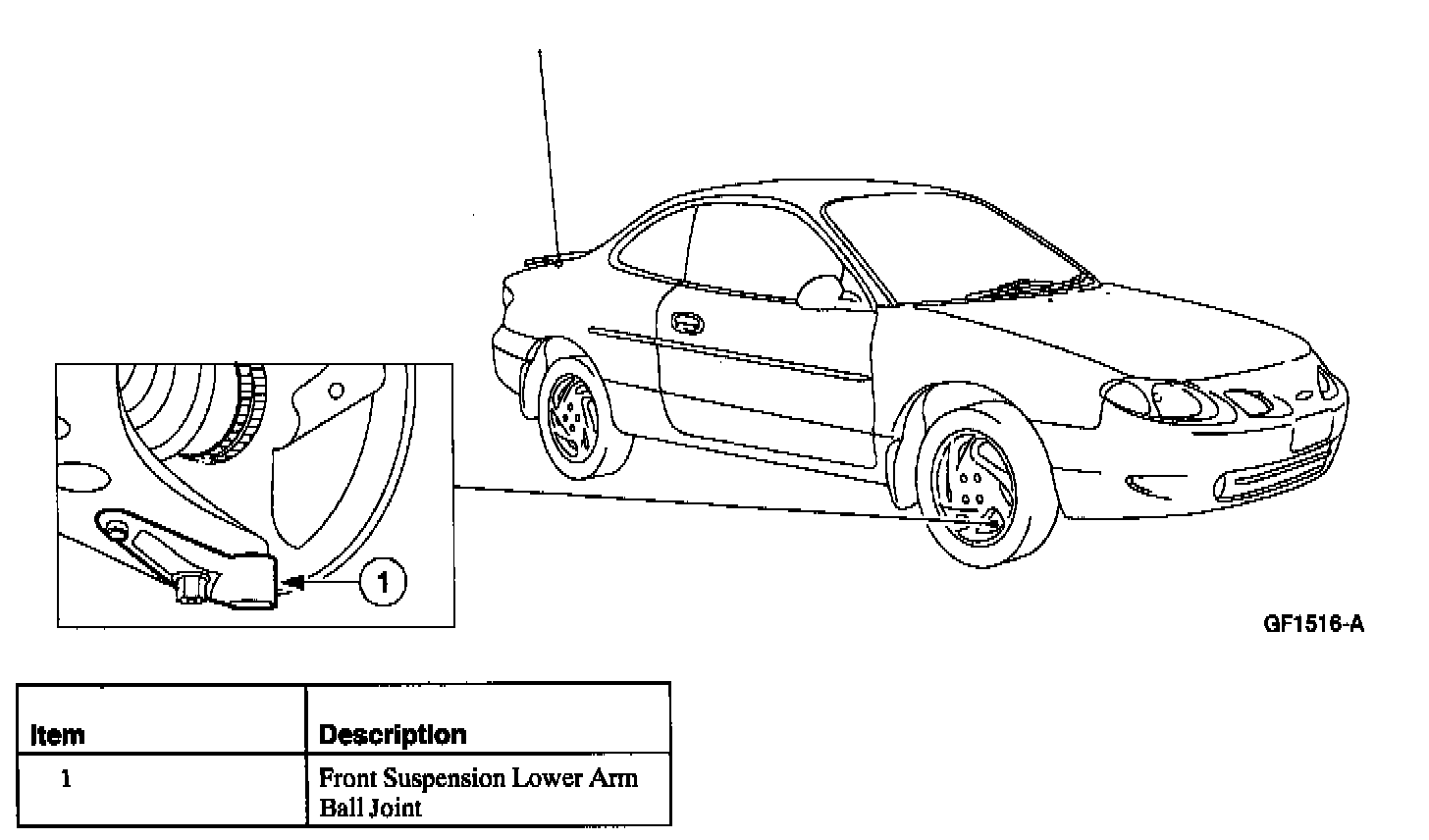

The front suspension lower arm ball joint is the lower pivot point for front suspension and is corrected at the front wheel knuckle.
