Connector Location Index
PLEASE NOTE: If a link on the Connector Location Index to a view is not provided, that means that the Connector and/or View in question does NOT apply to the vehicle model selected.

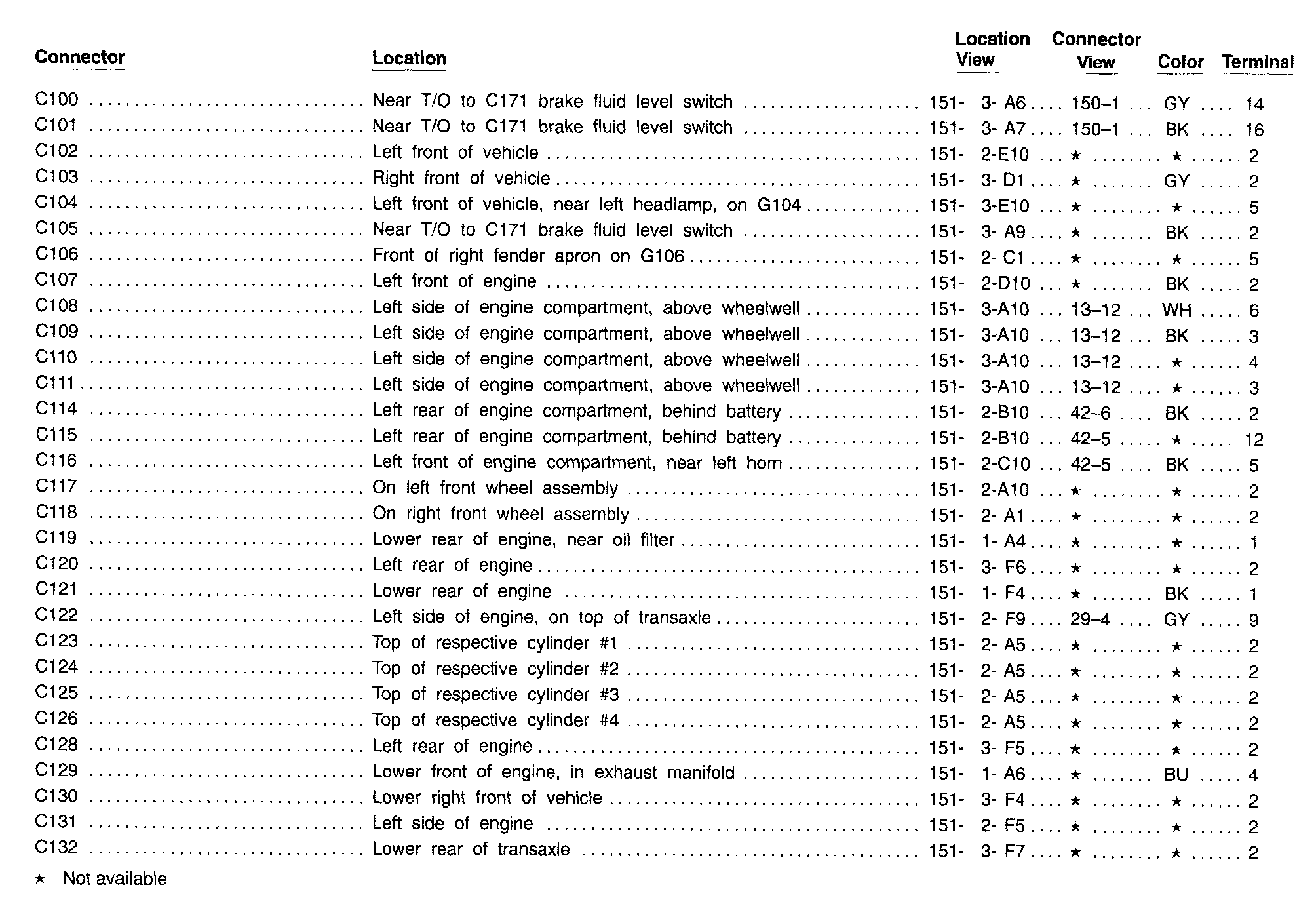

C100 - C132:

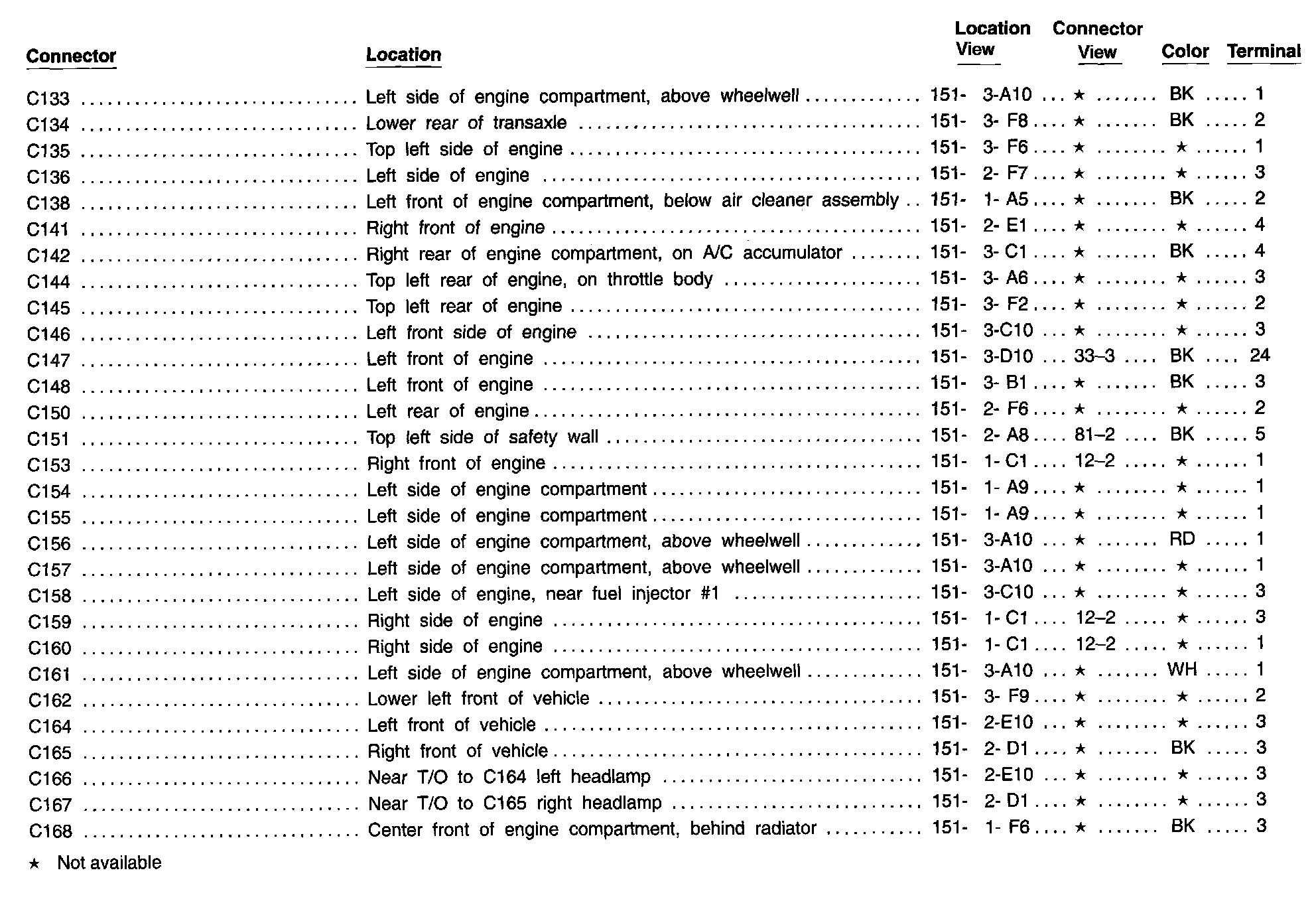

C133 - C168:

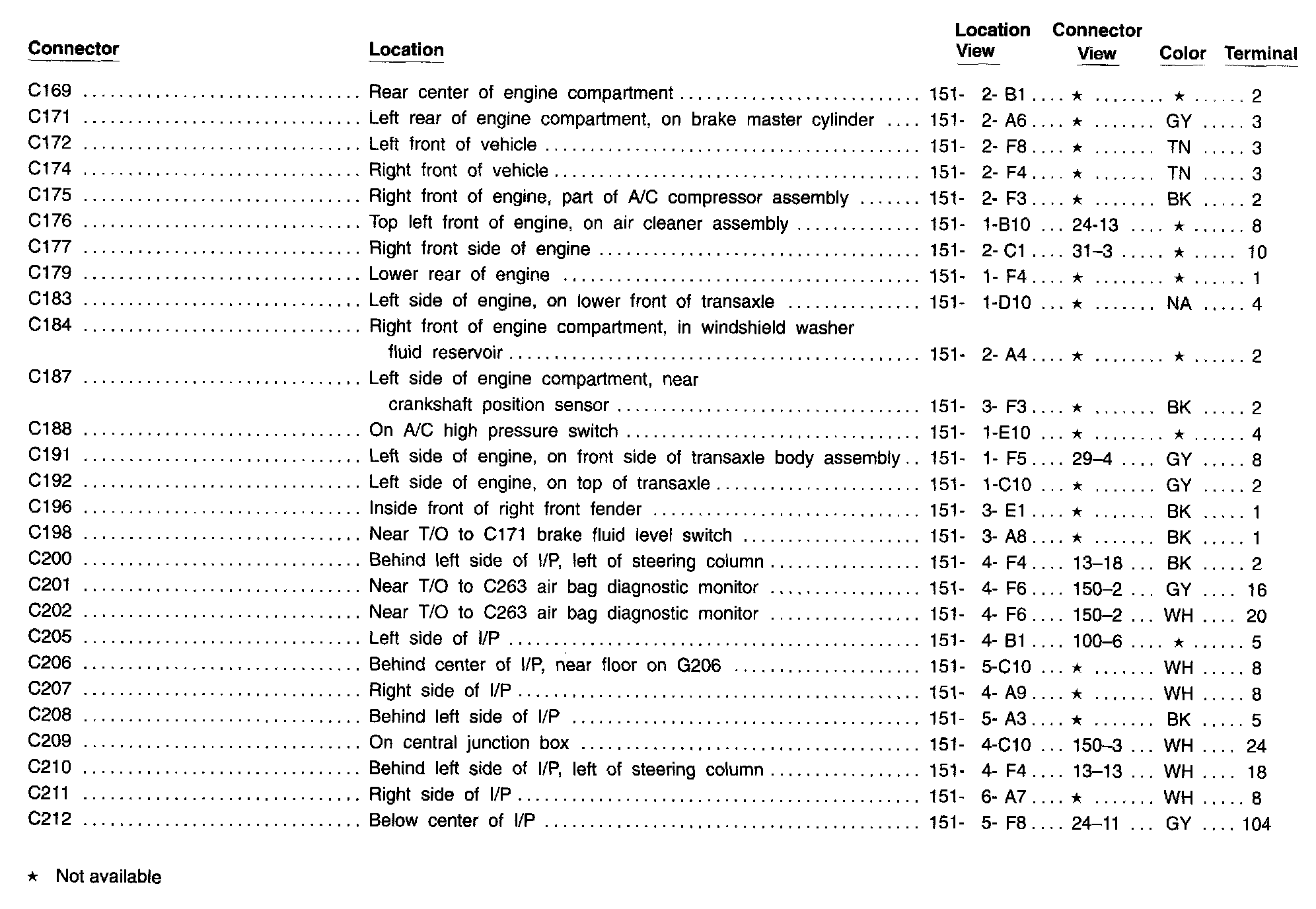

C169 - C212:

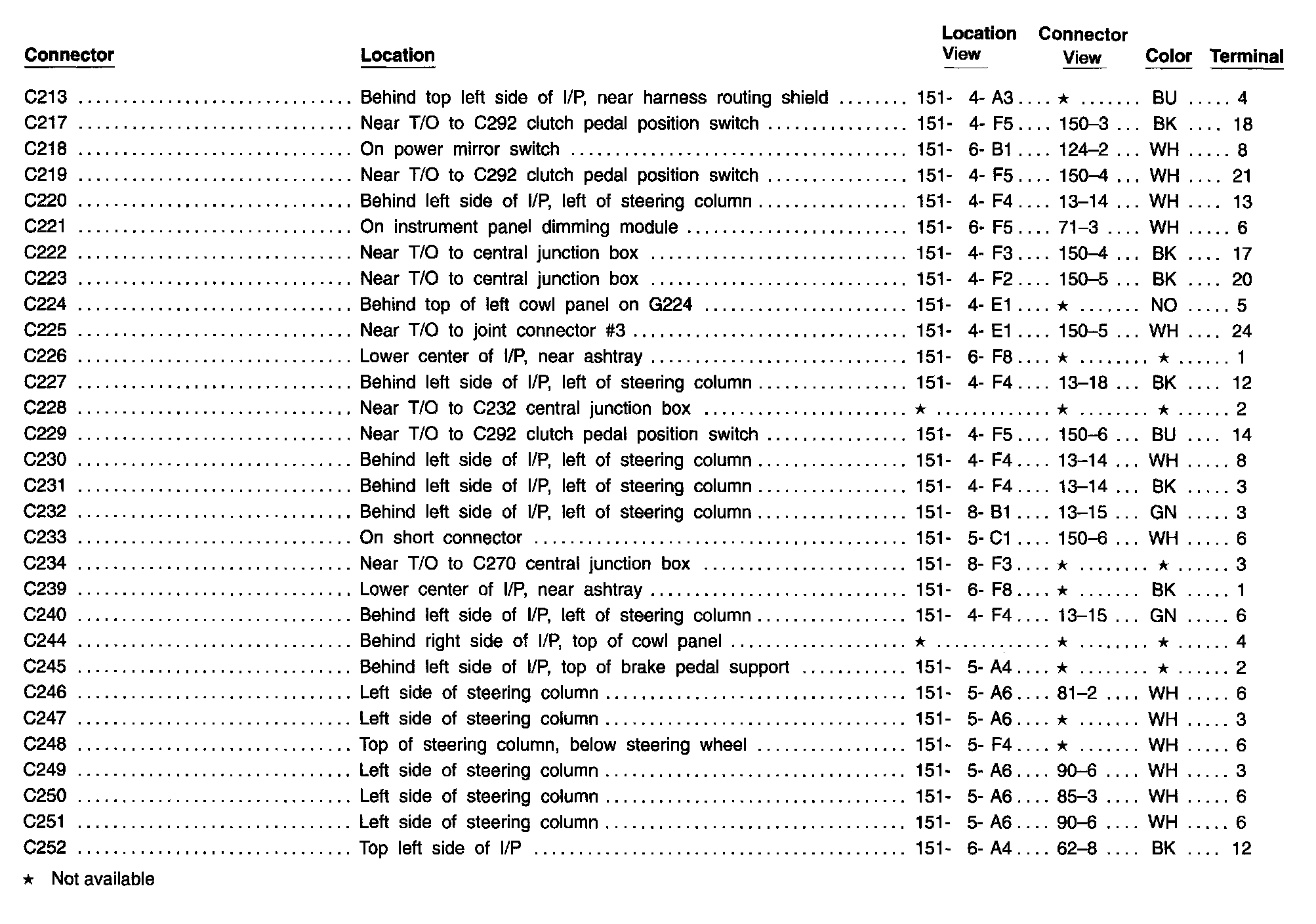

C213 - C252:

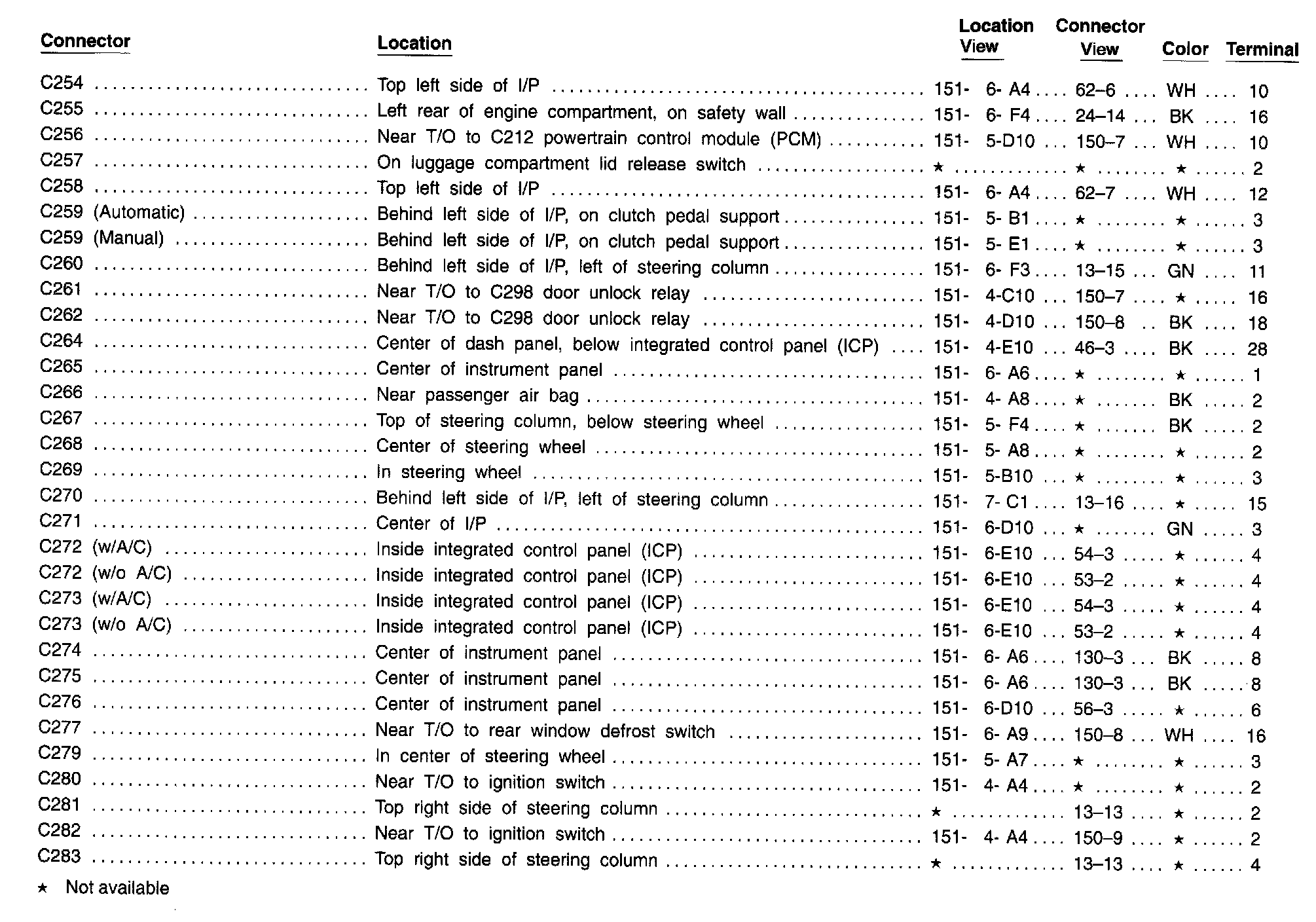

C254 - C283:

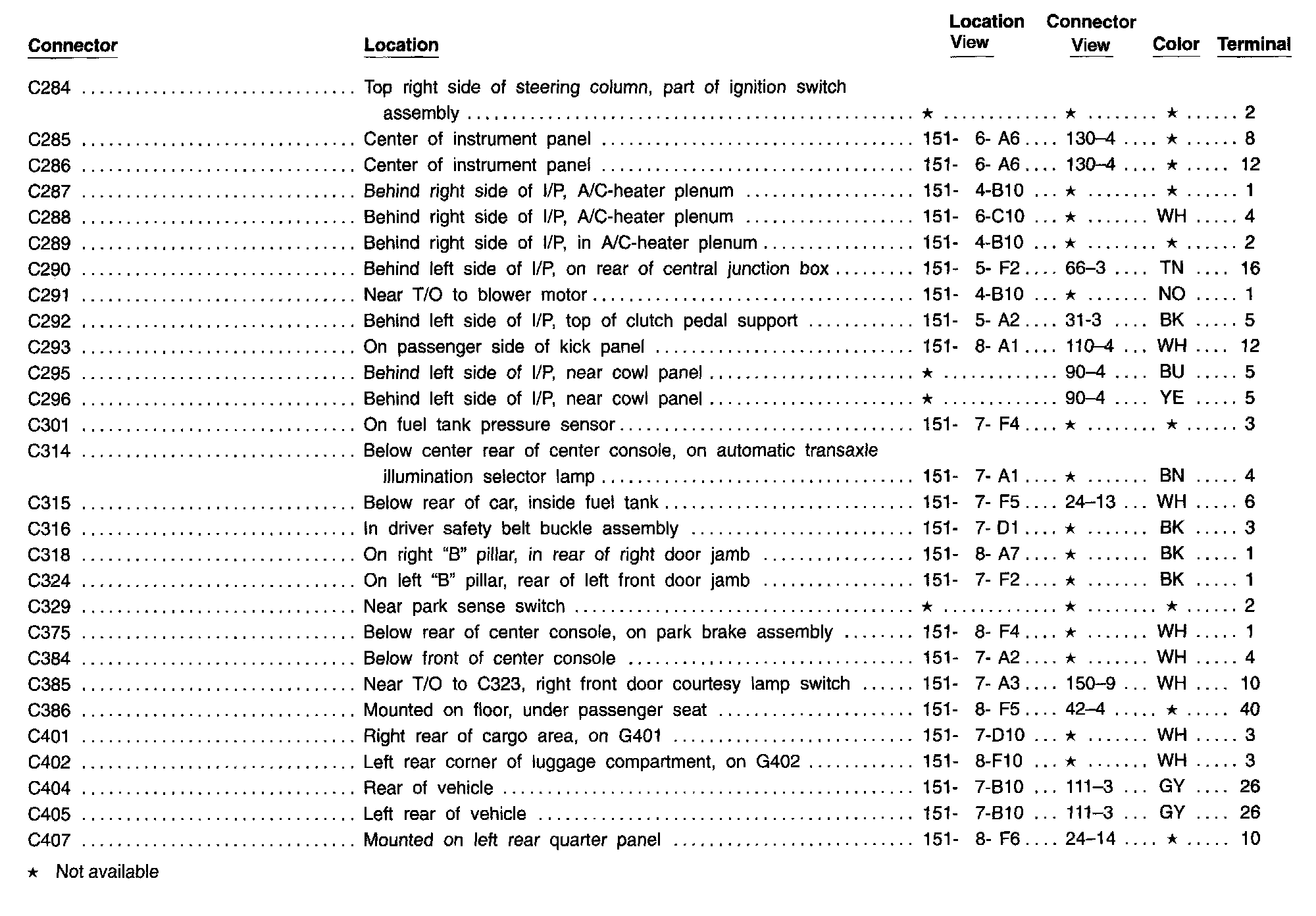

C284 - C407:

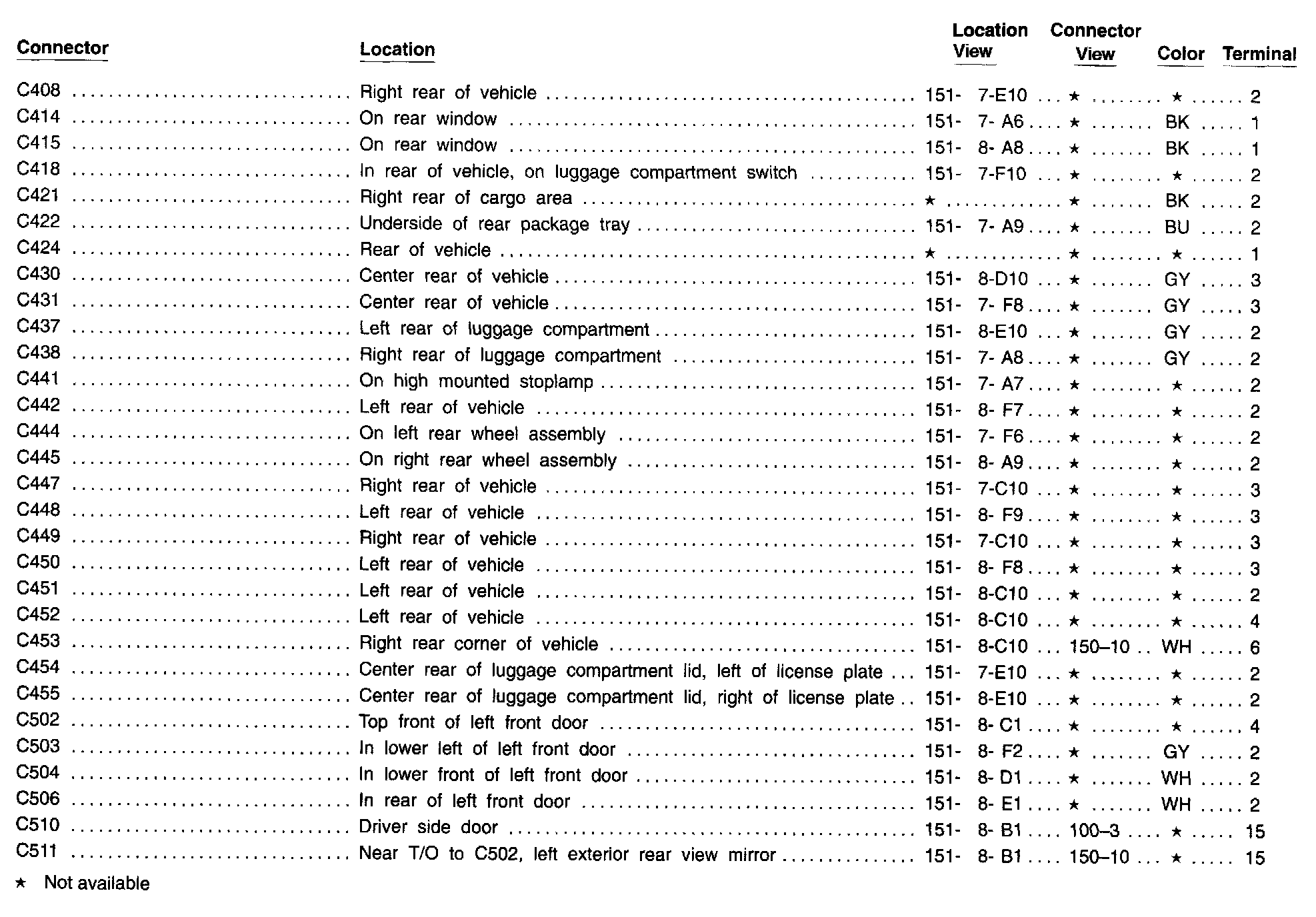

C408 - C511:

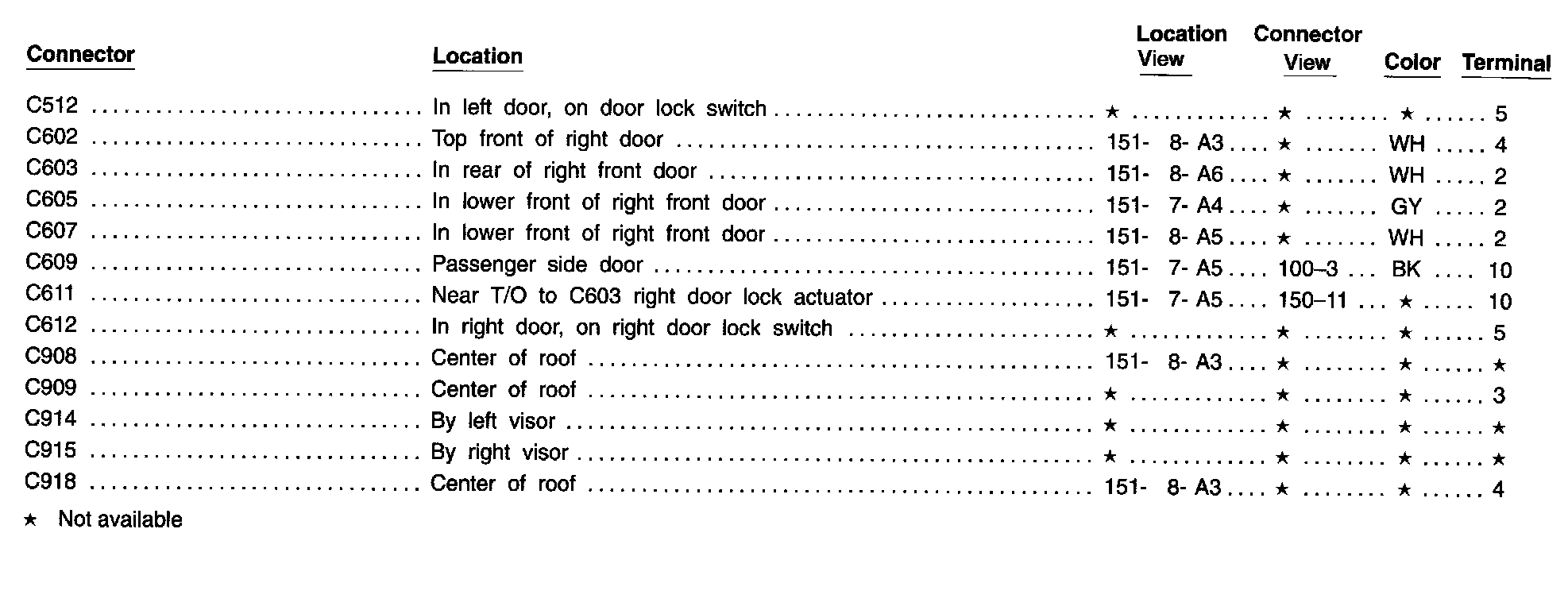

C512 - C918:
