Ignition Coil: Service and Repair
IGNITION COILREMOVAL 1.

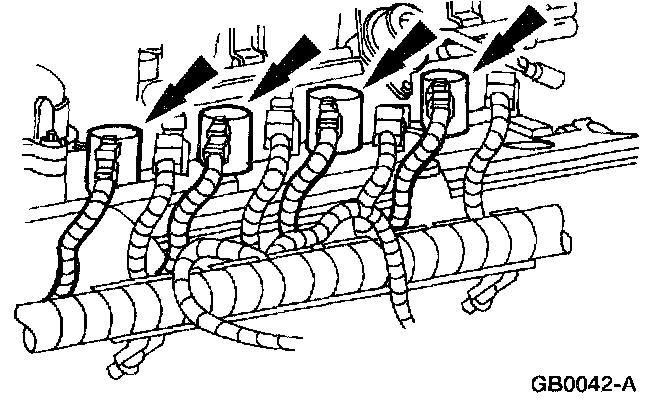

Disconnect the coil on plug (COP) electrical connectors.
2.

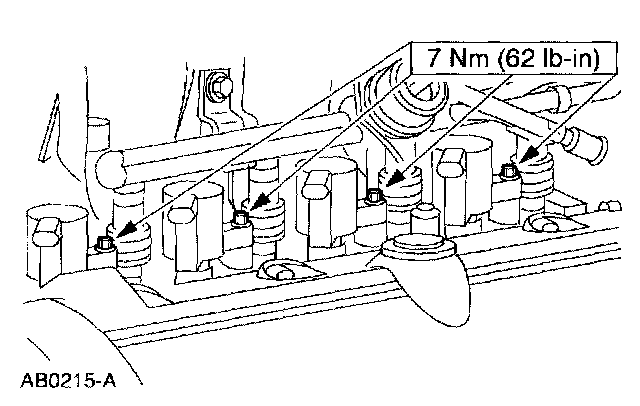

Remove the bolts.
3.
Remove the coil on plugs.
INSTALLATION 1.
NOTE: Apply silicone brake caliper grease and dielectric compound to the inside of the coil boots.
To install, reverse the removal procedure.
