DVD Player: Service and Repair
DIGITAL VERSATILE DISC (DVD) PLAYERREMOVAL 1.
Disconnect the battery.
2.

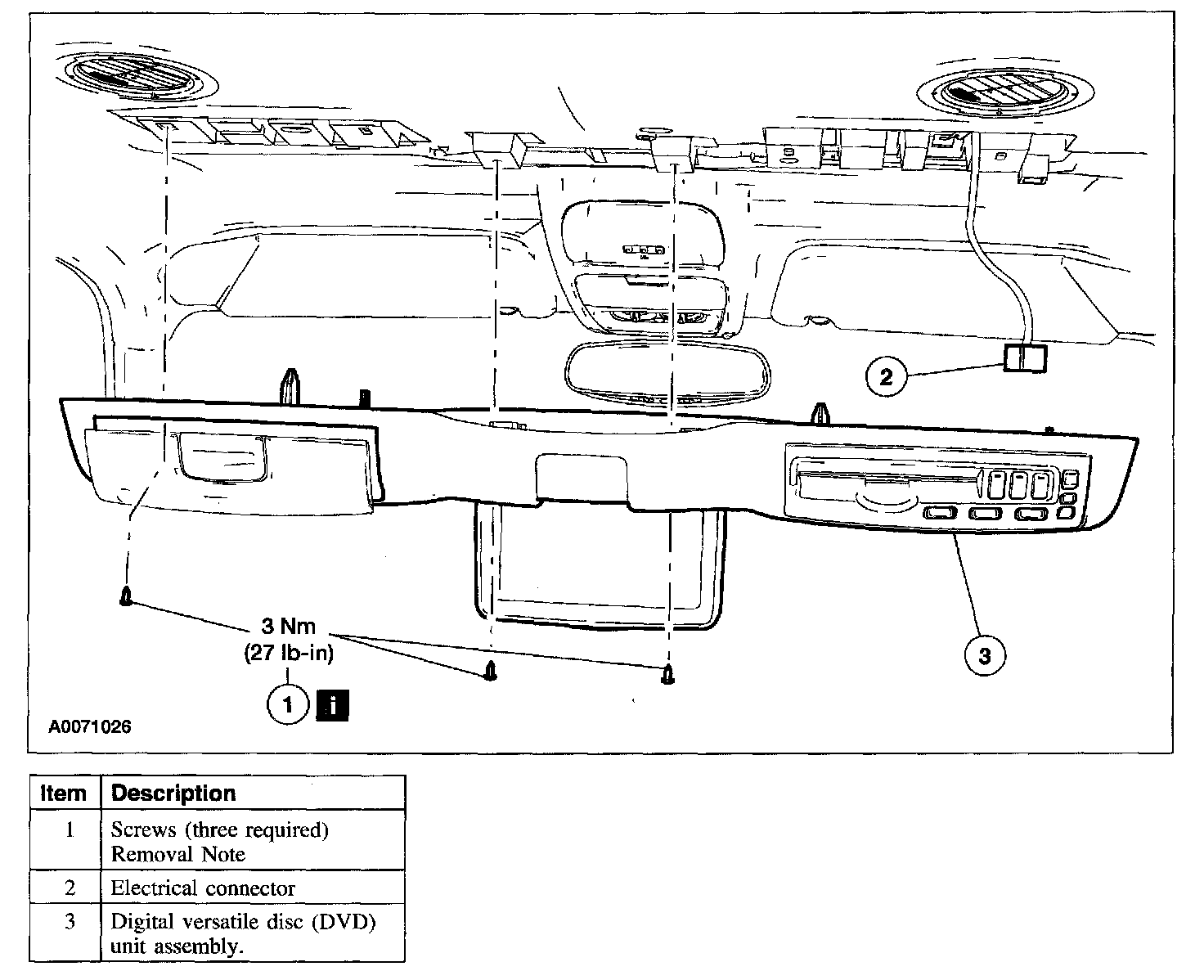

Remove the components in the order indicated in the illustration and table.
Item 1: DVD Screws Removal Note 1.
Open the DVD display and the storage compartment.
INSTALLATION 1.
To install, reverse the removal procedure.
