Air Register: Service and Repair
INSTRUMENT PANEL REGISTERSREMOVAL 1.

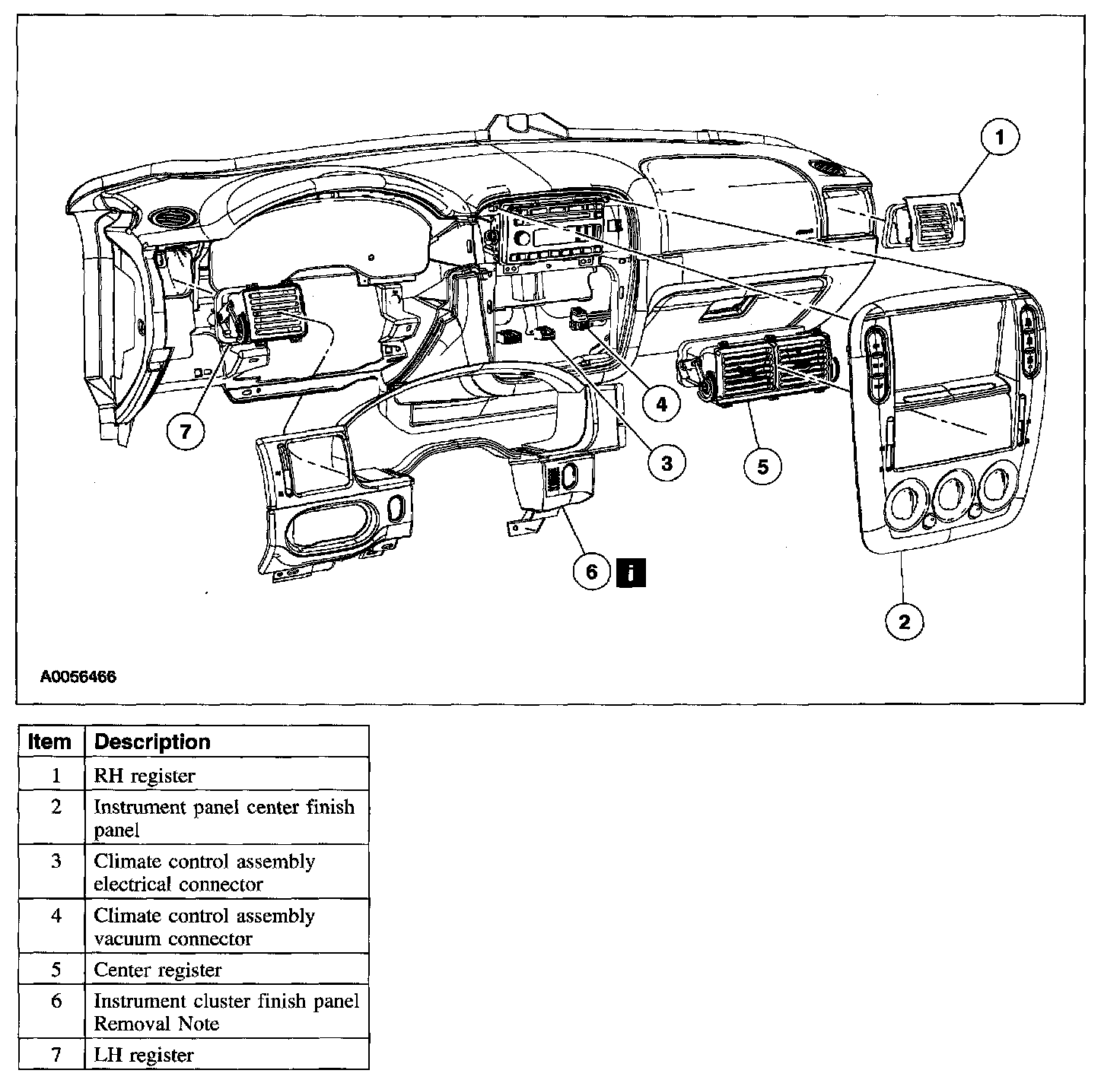

Remove the components in the order indicated in the illustration and table. To remove individual components, carry out only the given steps.
Item 6: Instrument Cluster Finish Panel Removal Note 1.
Remove the instrument cluster finish panel.
INSTALLATION 1.
To install, reverse the removal procedure.
