Test I

PINPOINT TEST I: THE REAR WINDOW WILL NOT DEFROST


Test I1-I4:






Test I5-I7:






Test I8-I9:






Test I10-I13:






Test I14-I15:






Test I16-I18:

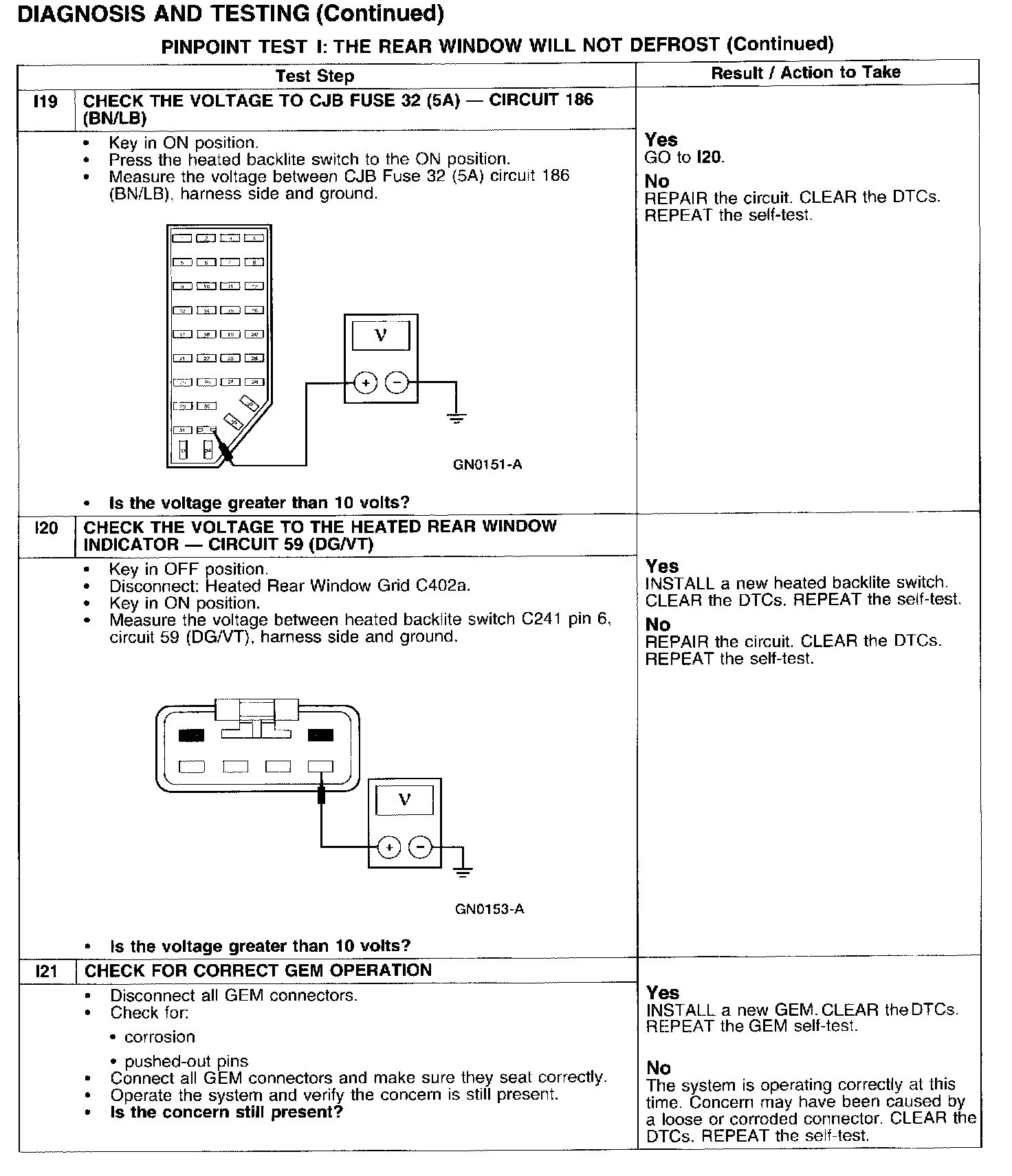

Test I19-I21:
