Connector Location Index
PLEASE NOTE: If a link on the Connector Location Index to a View is not provided, that means that the Connector and/or View in question does NOT apply to the vehicle model selected.

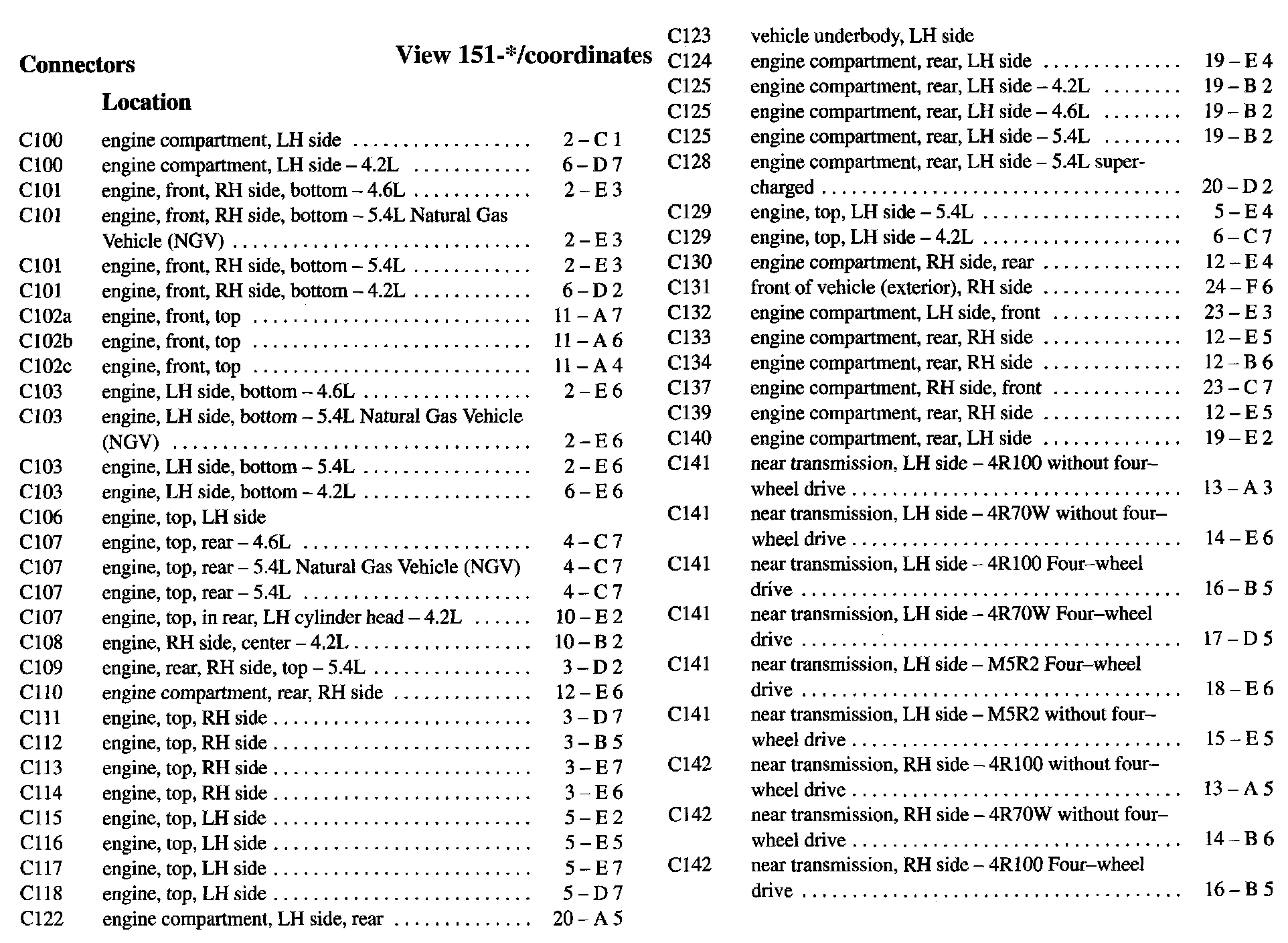

C100 - C142:

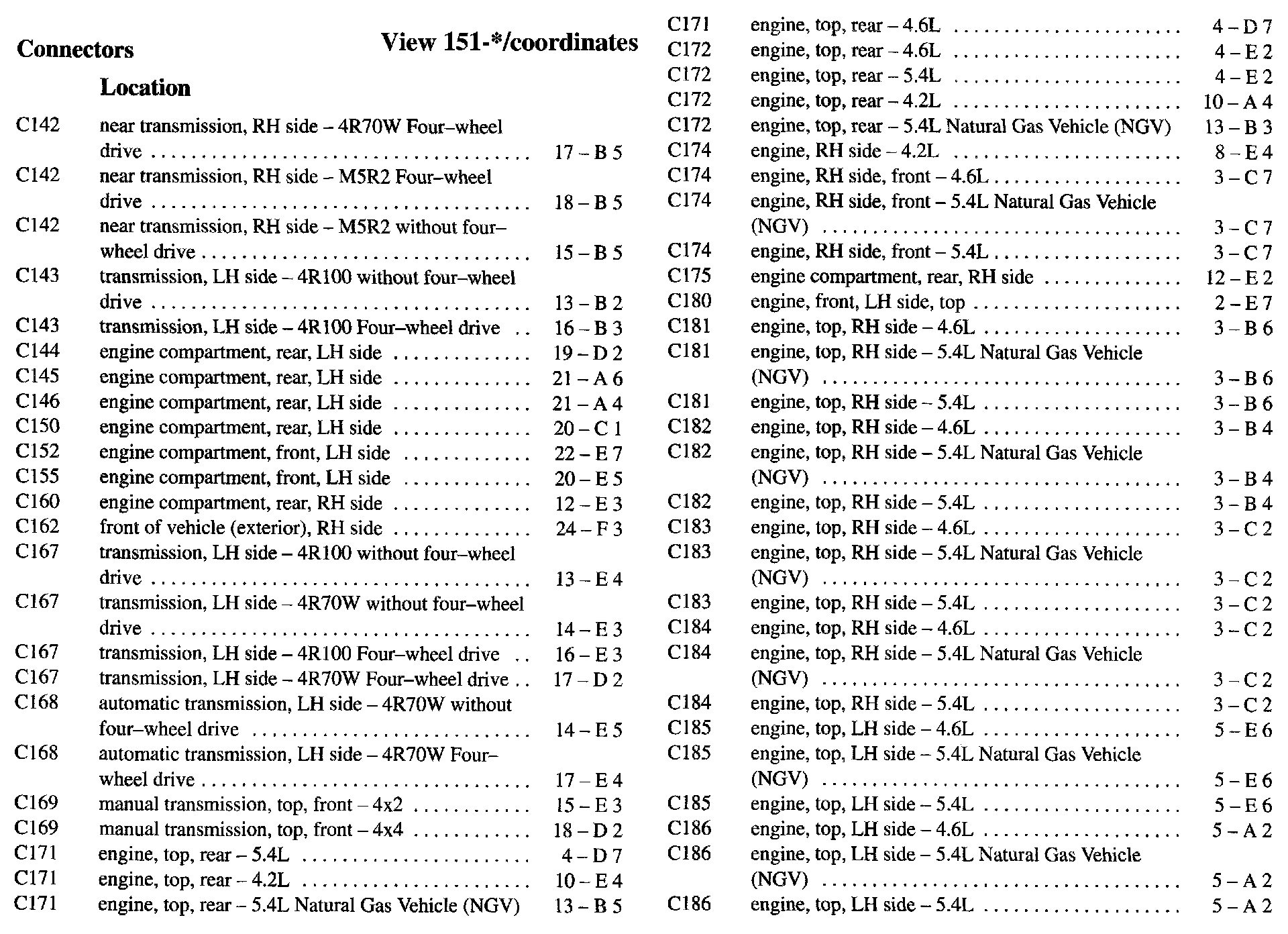

C142 - C186:

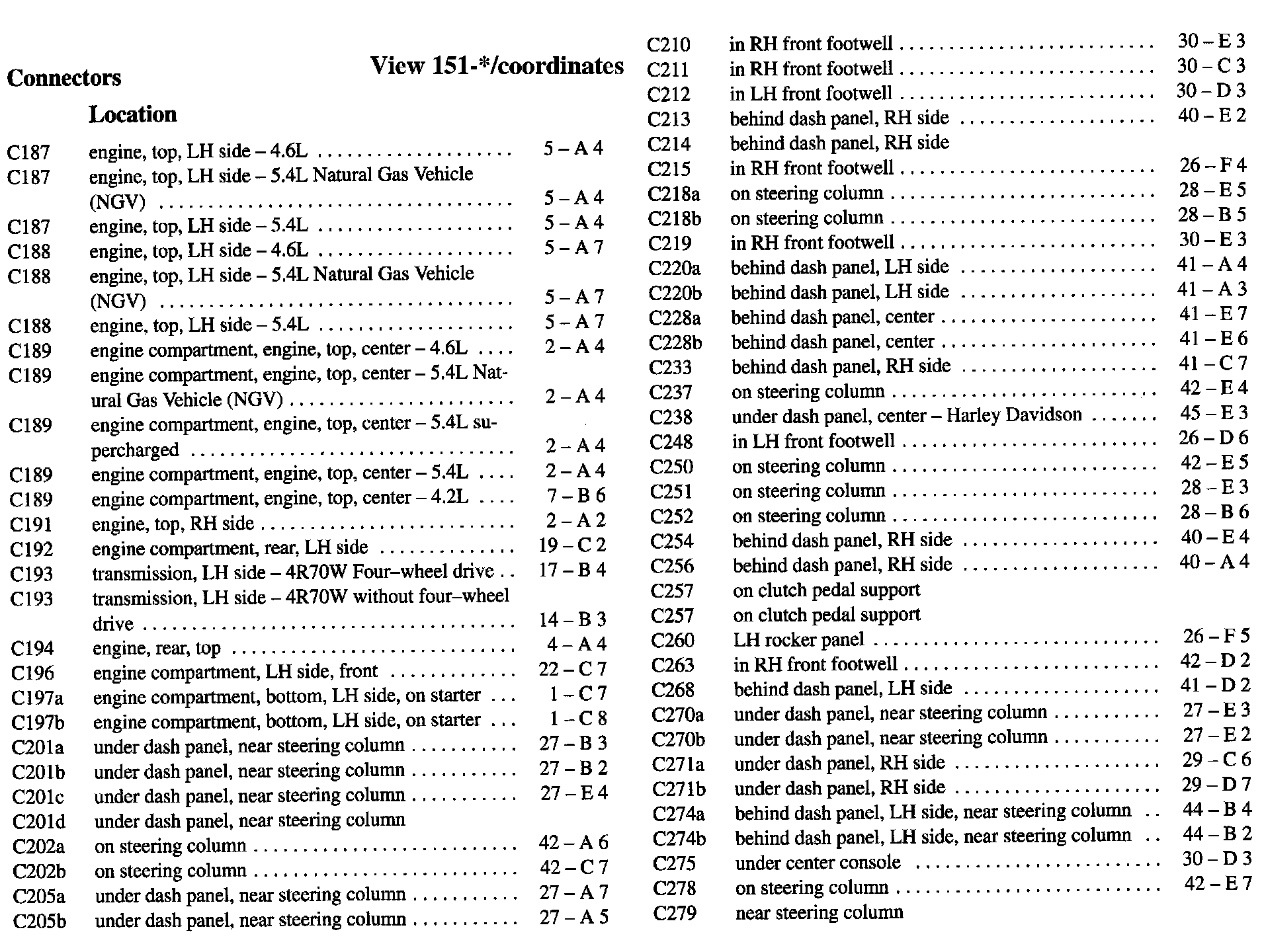

C187 - C279:

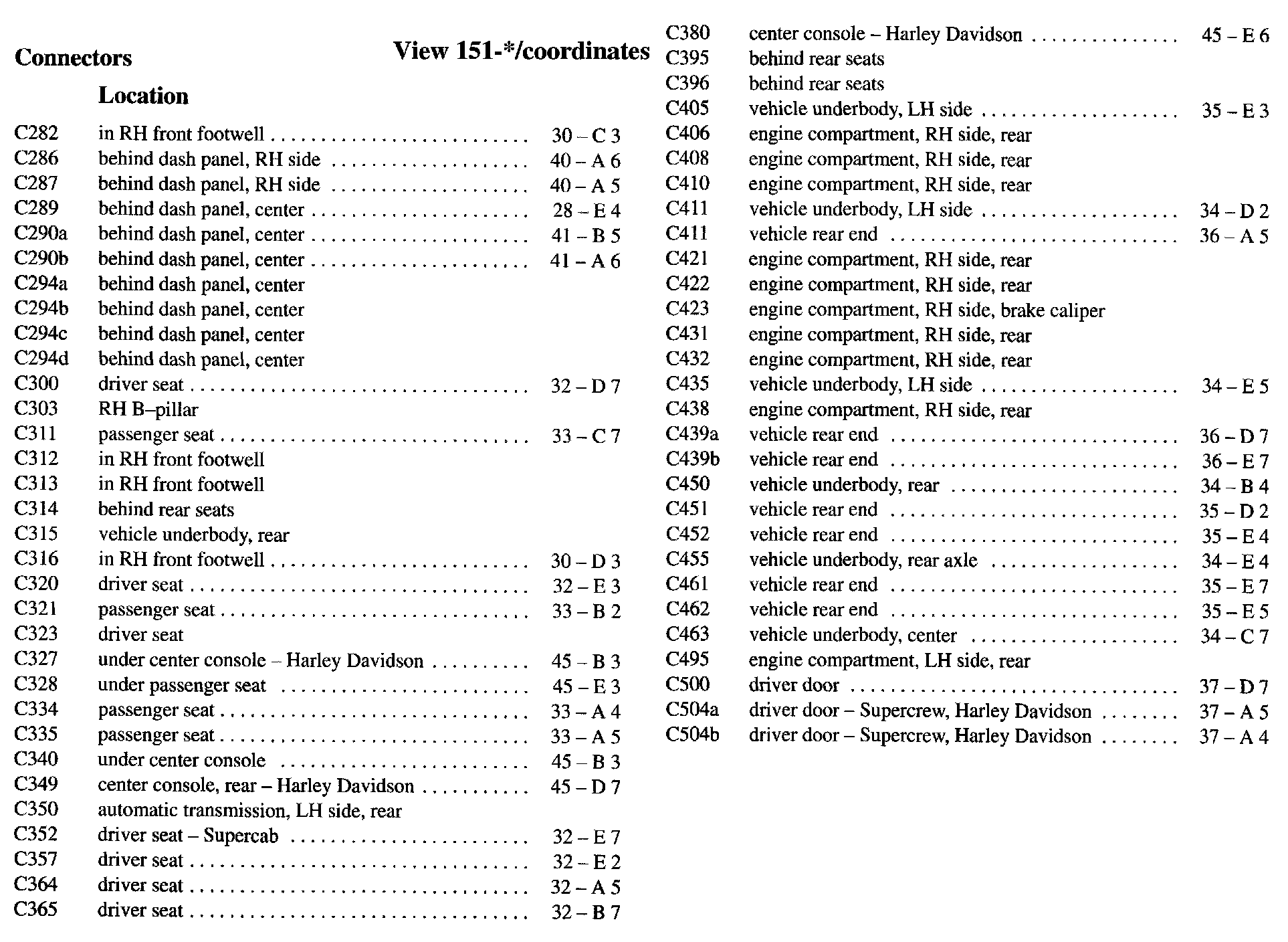

C282 - C504b:

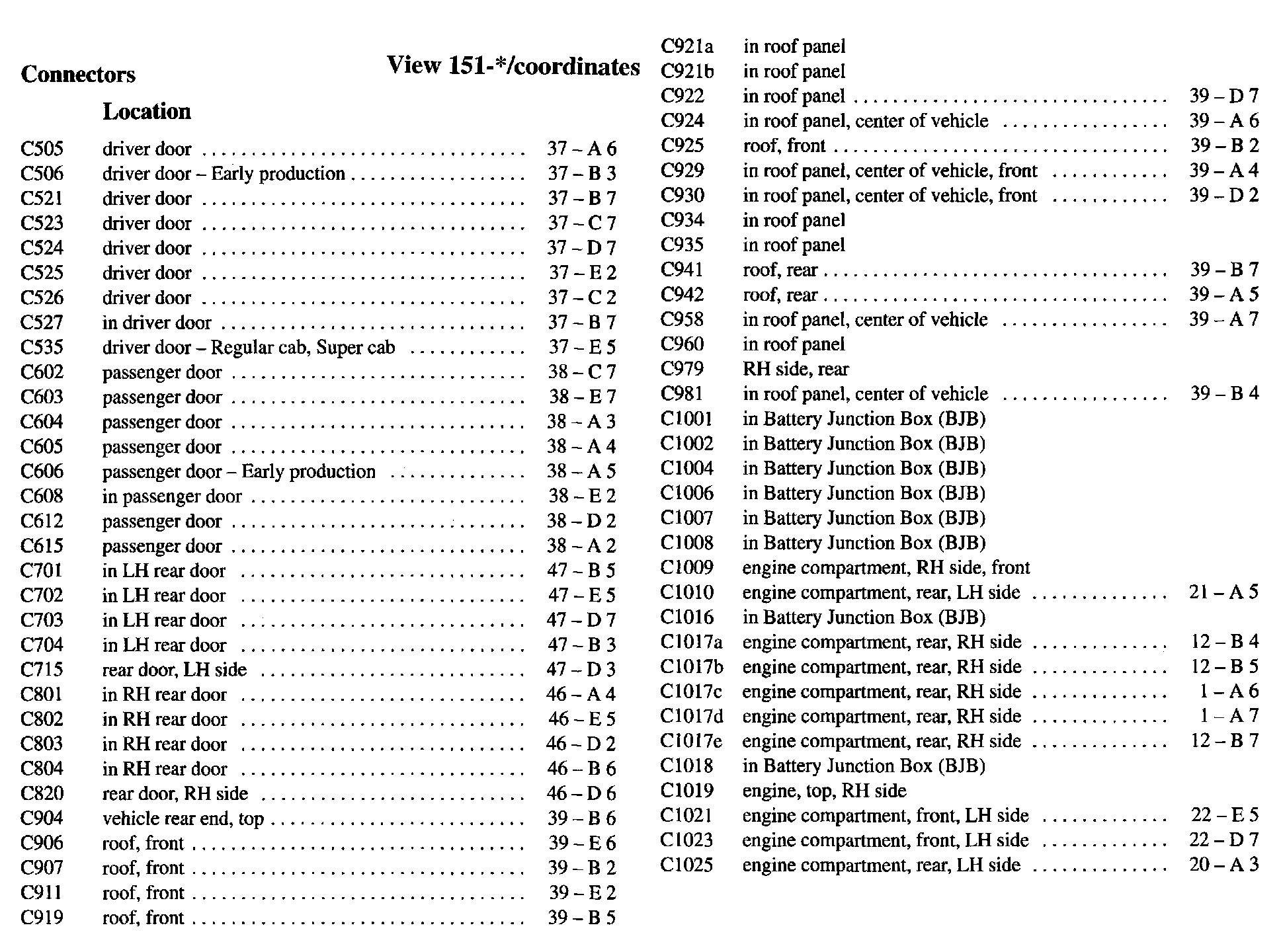

C505 - C1025:

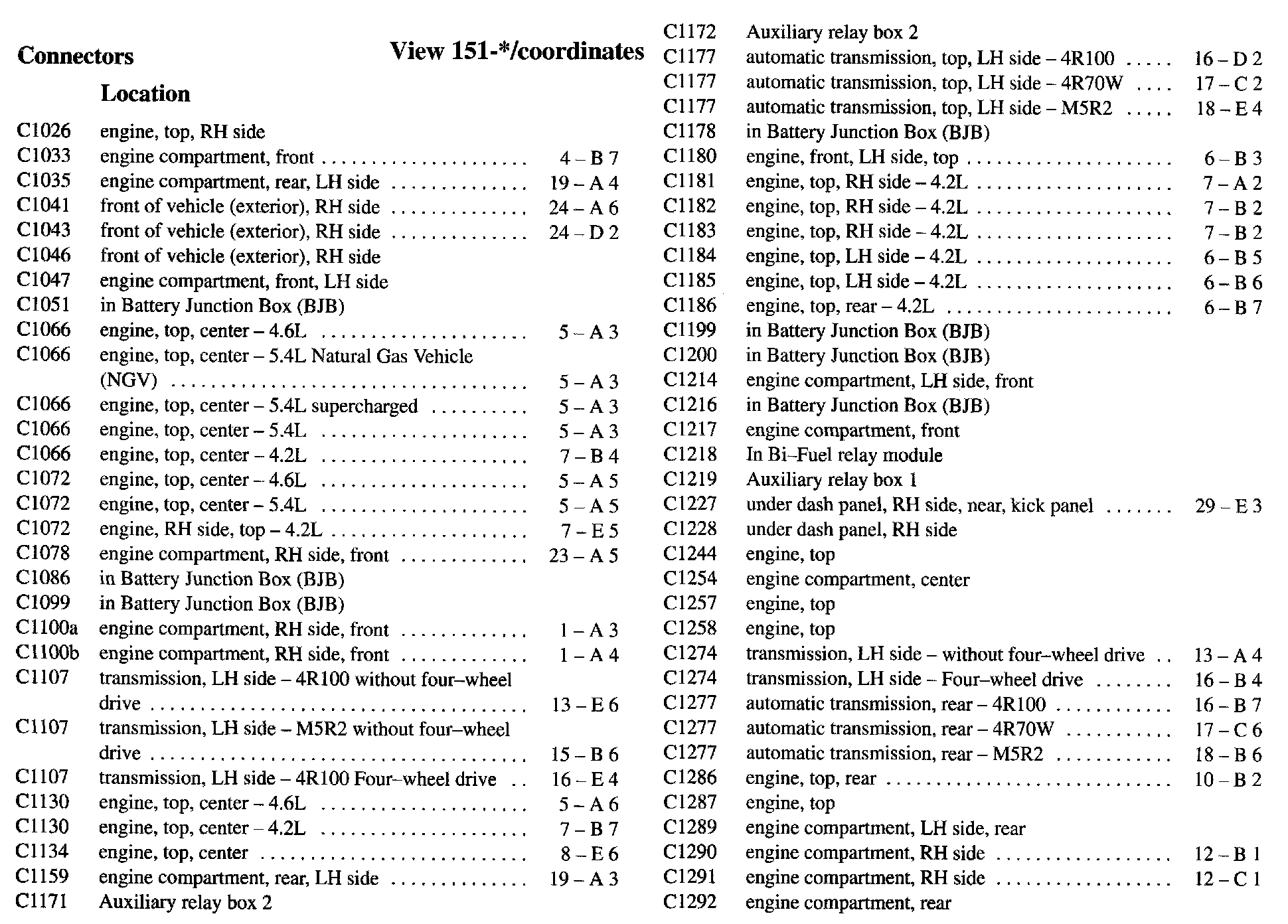

C1026 - C1292:

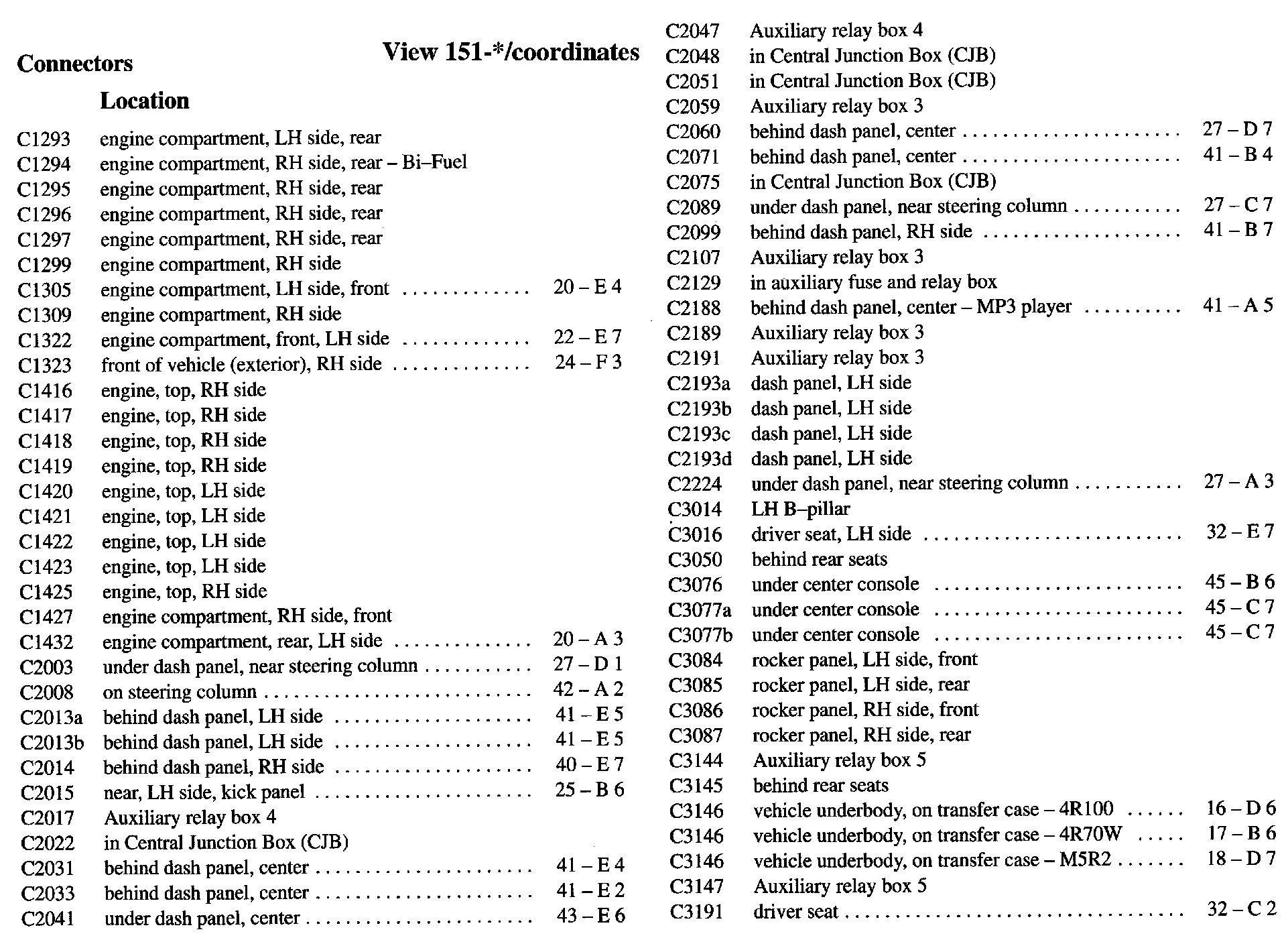

C1293 - C3191:

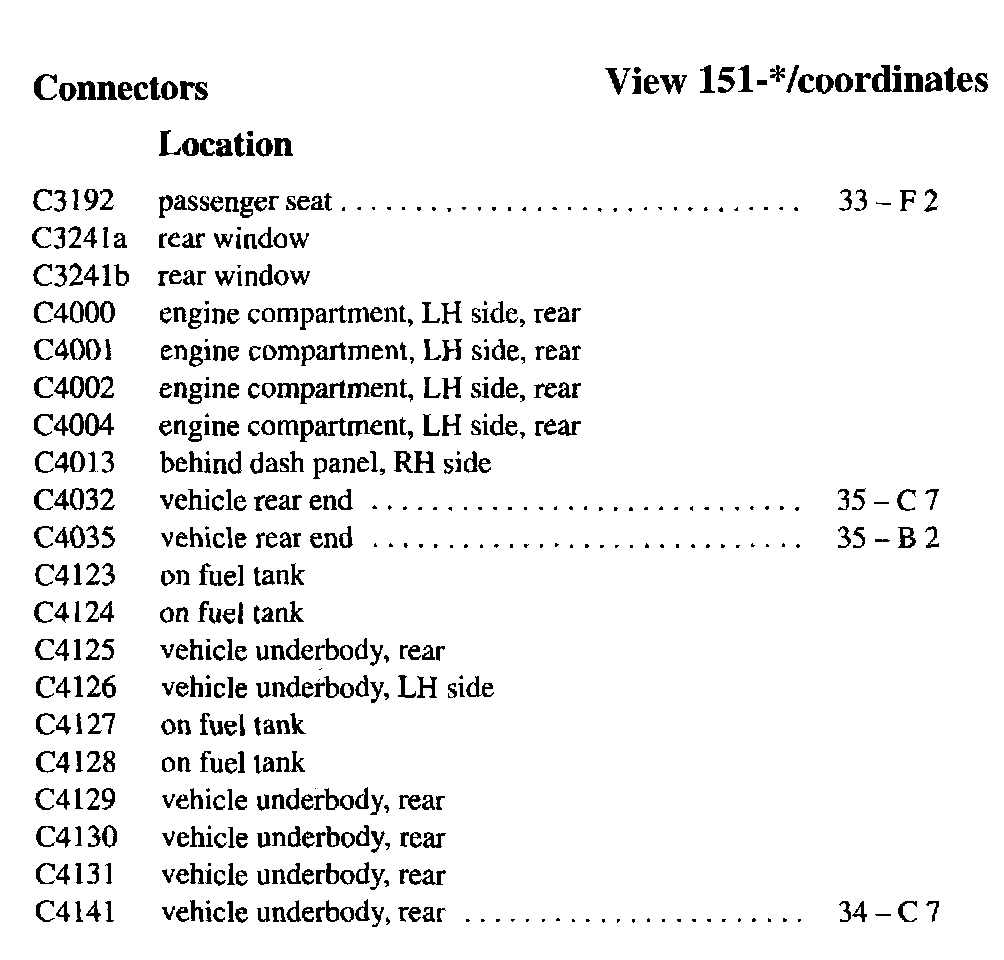

C3192 - C4141:
