Sunroof / Moonroof Module: Service and Repair

ROOF OPENING PANEL MODULE

Removal and Installation
1. Close the roof opening panel.
2. Disconnect the battery ground cable (14301).
3. Lower the rear of the headliner.

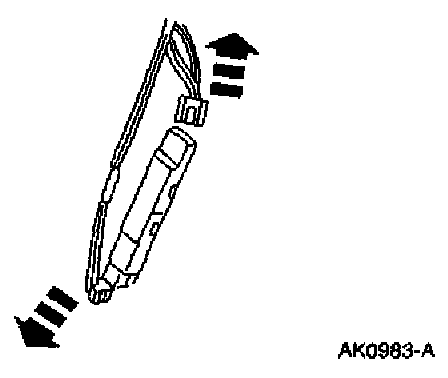

4. Slide the roof opening panel module from the retaining bracket.







5. Disconnect the electrical connectors and remove the roof opening panel module.
6. To install, reverse the removal procedure.
