Test C

PINPOINT TEST C: SINGLE POWER WINDOWS ARE INOPERATIVE

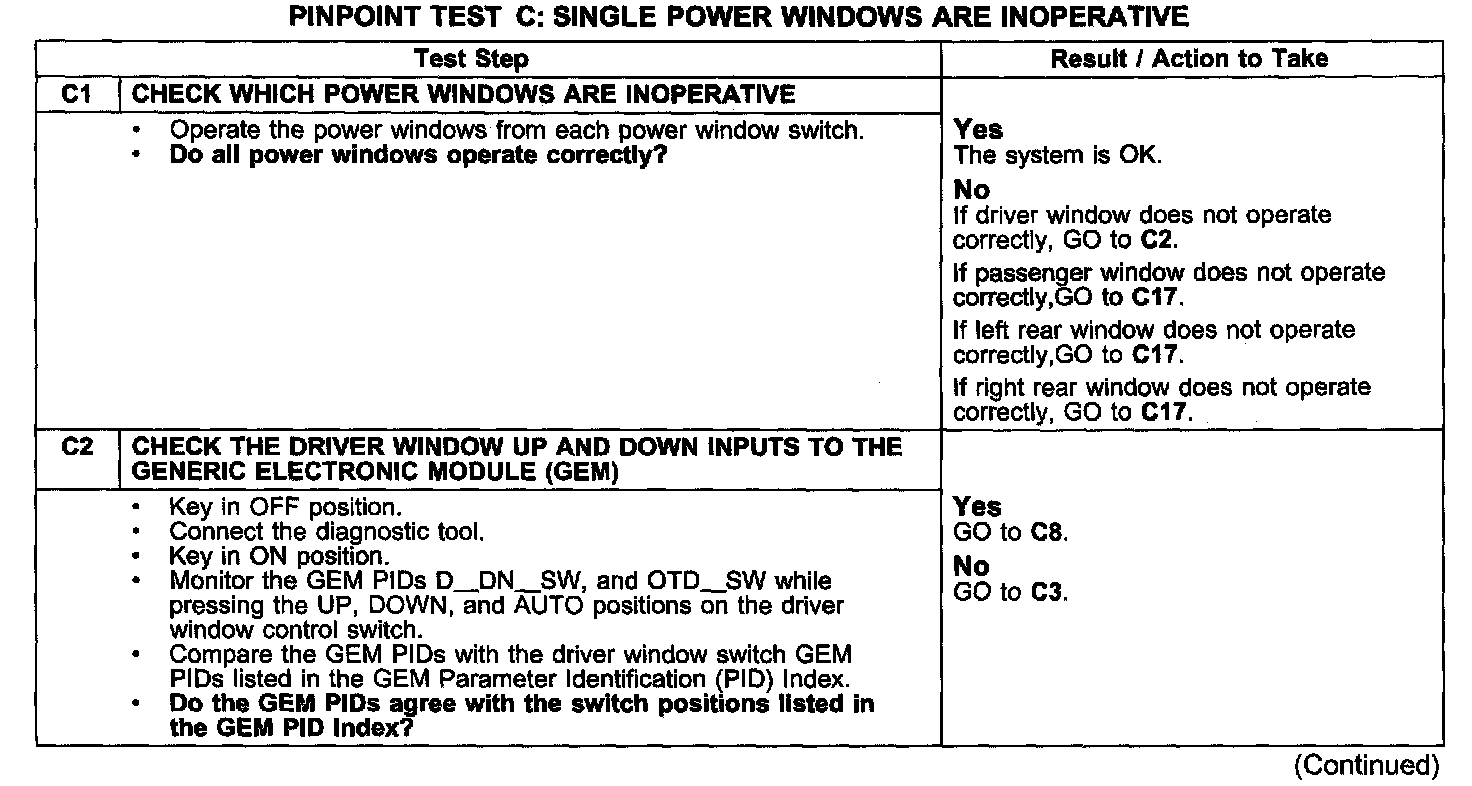

Test C1-C2:

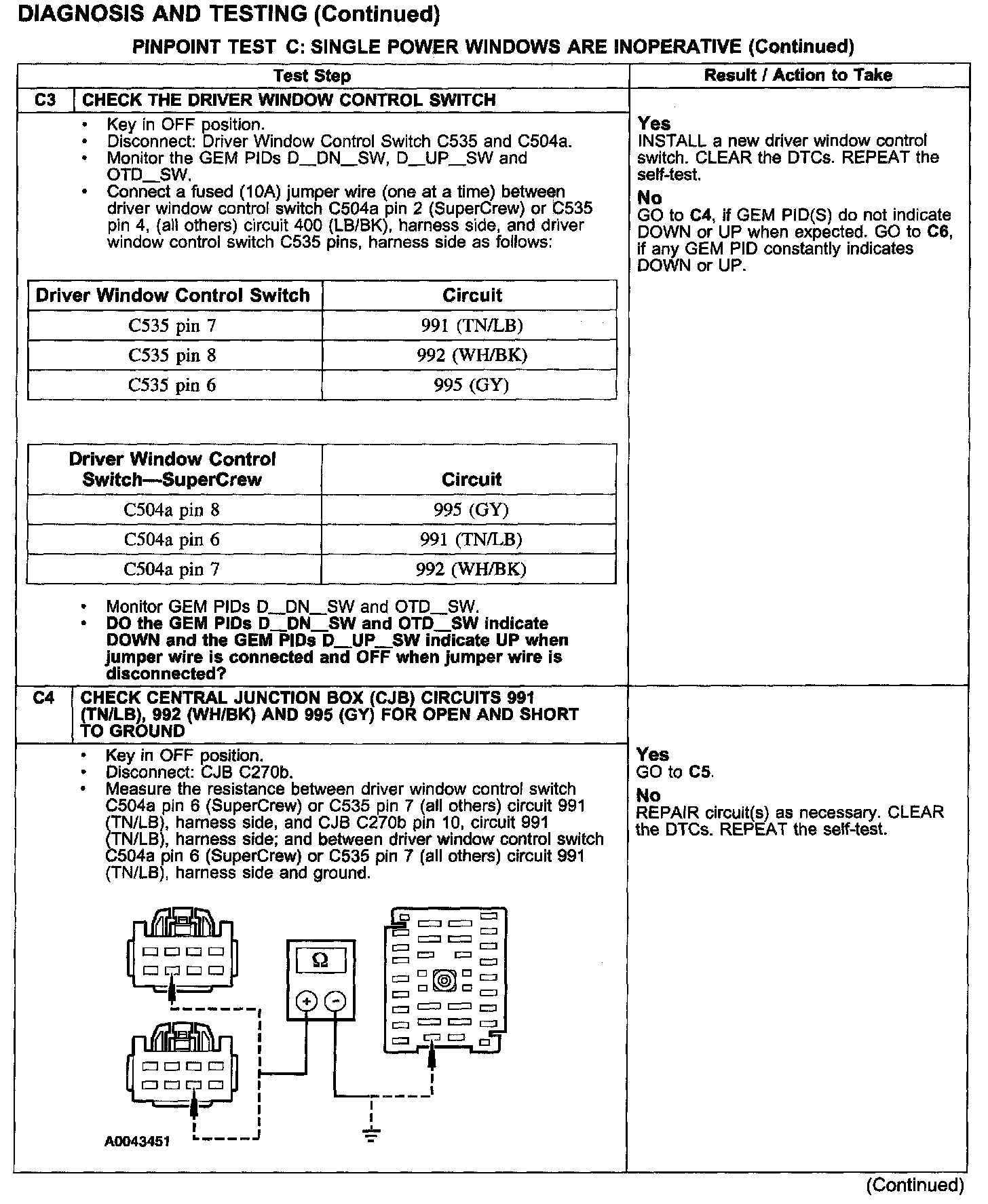

Test C3-C4:

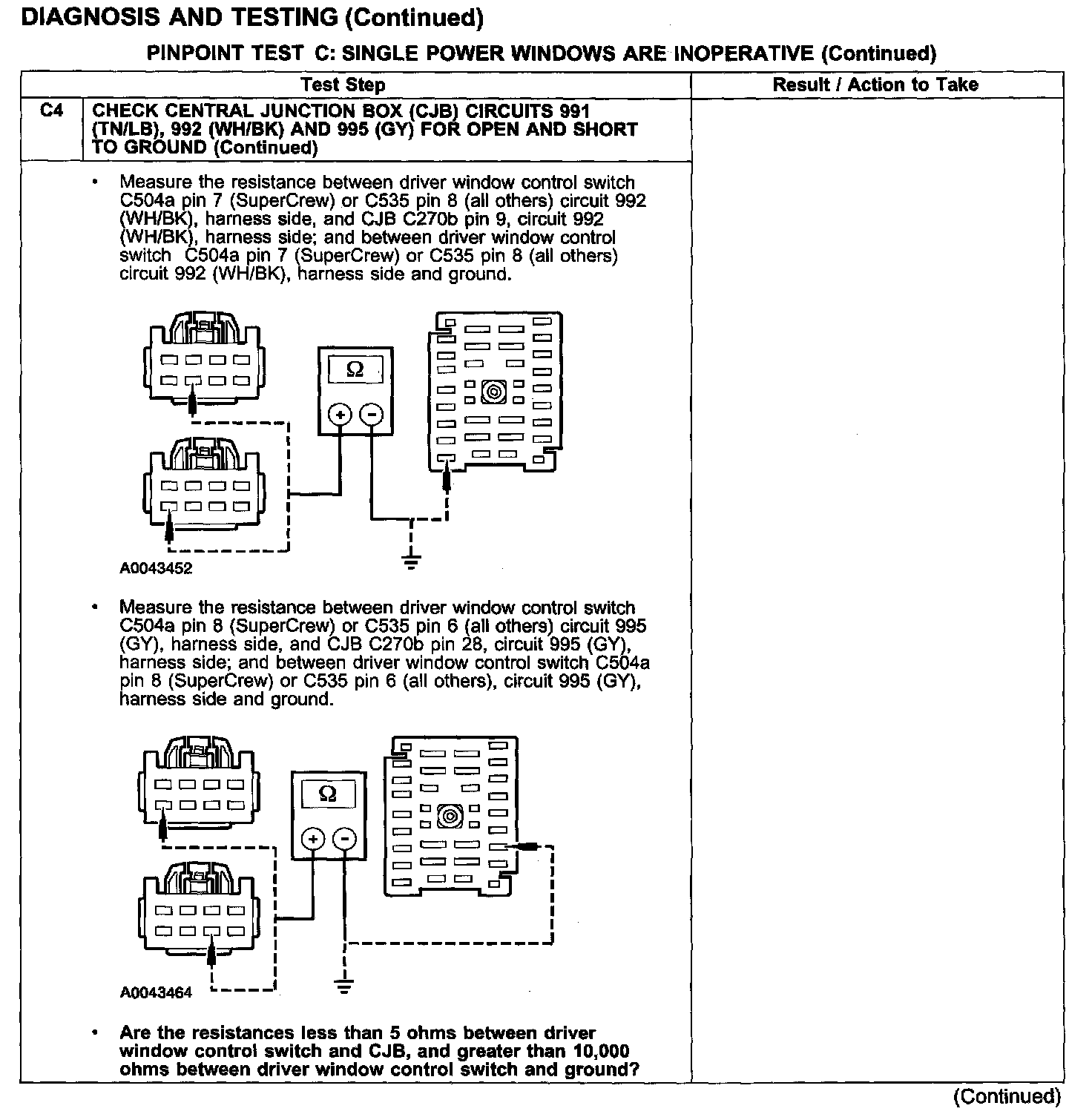

Test C4 Continued:






Test C5:

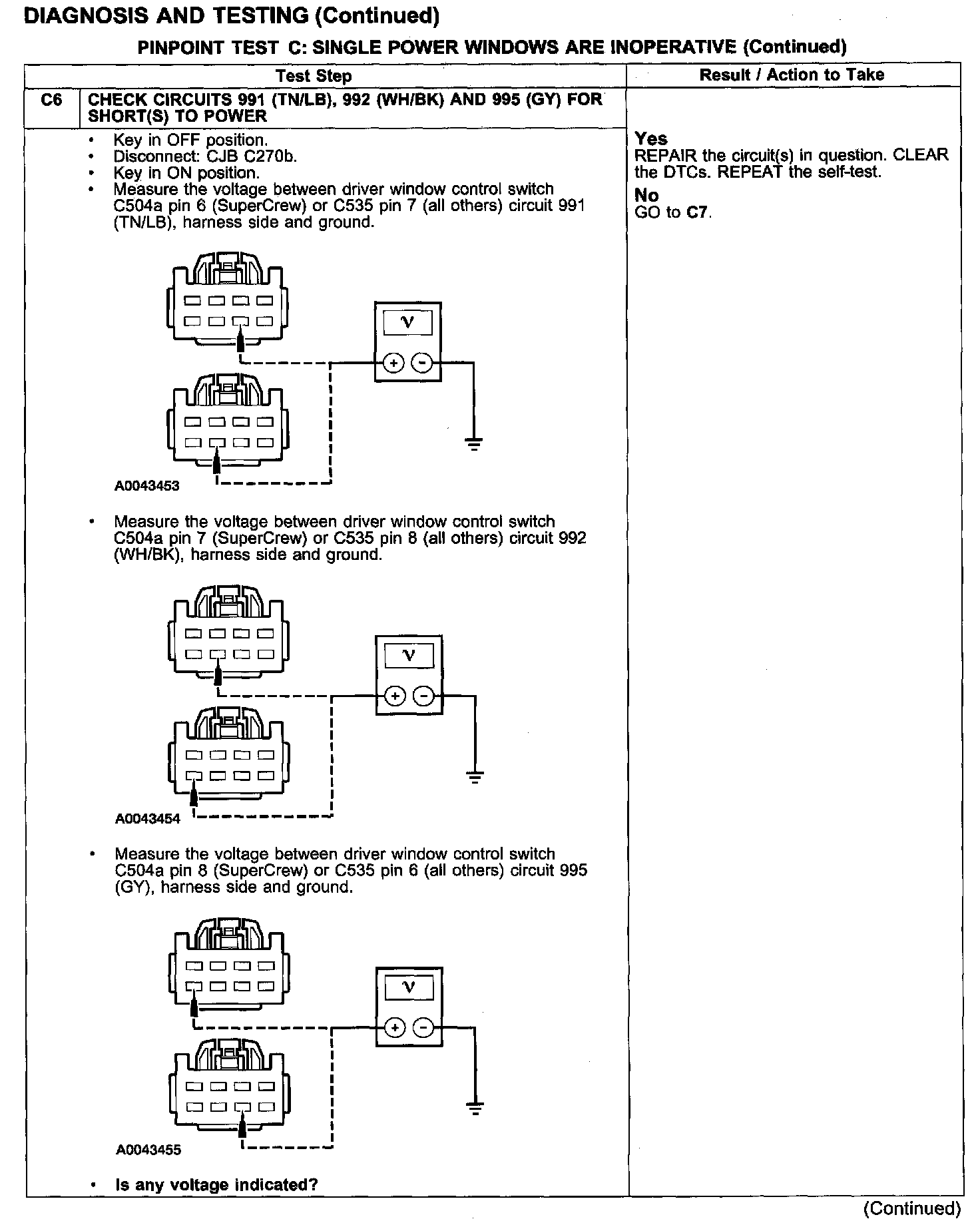

Test C6:

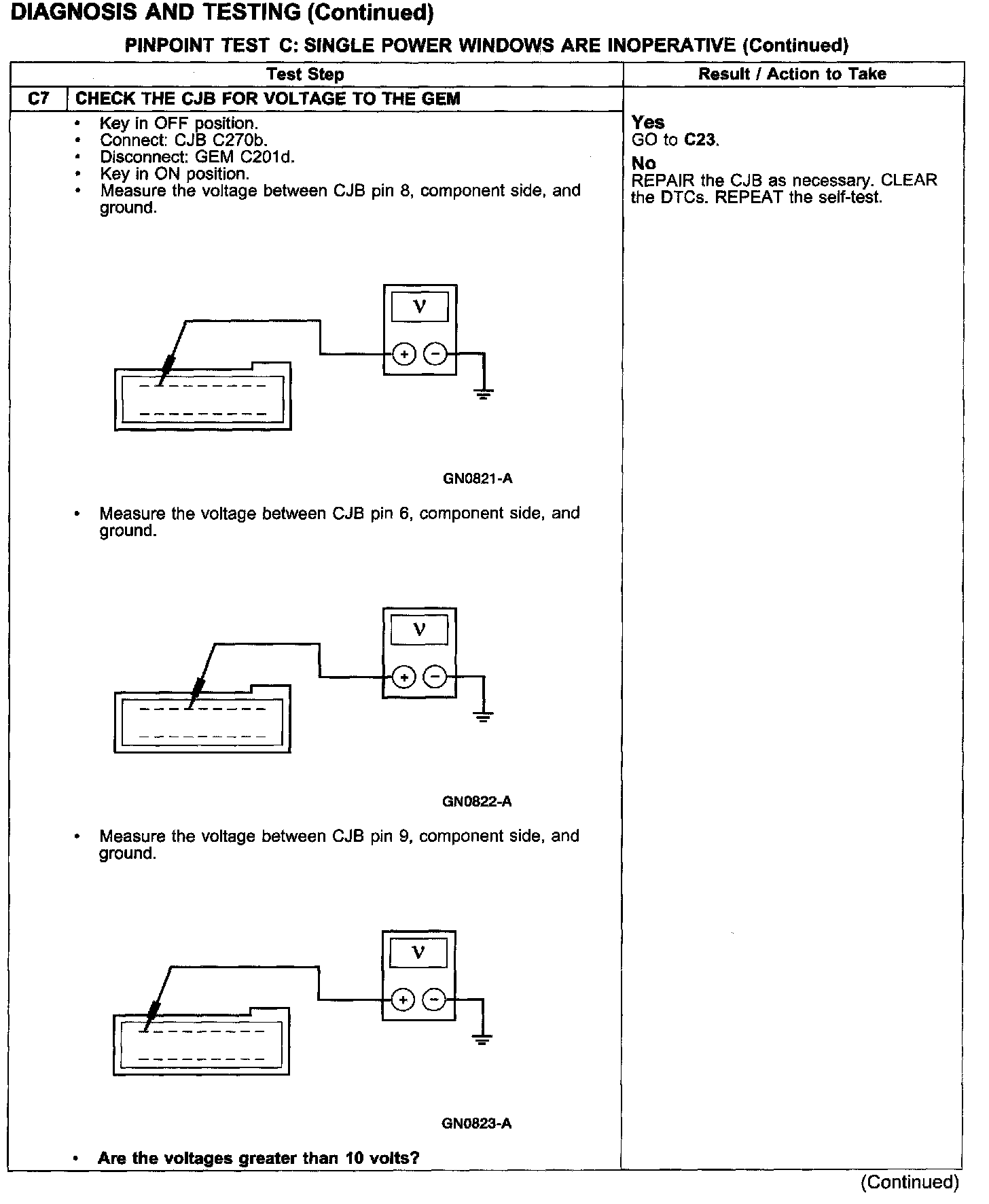

Test C7:

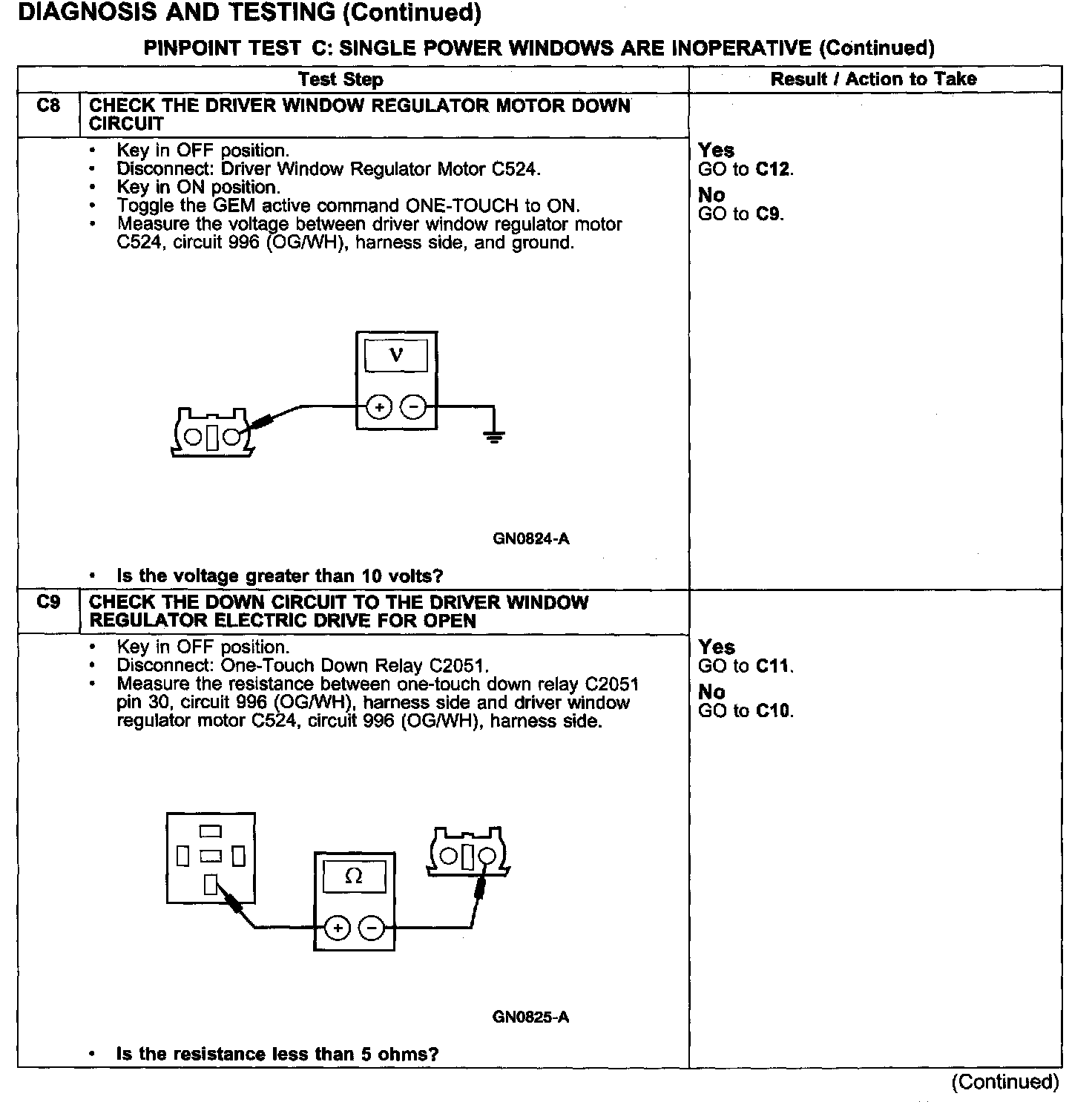

Test C8-C9:

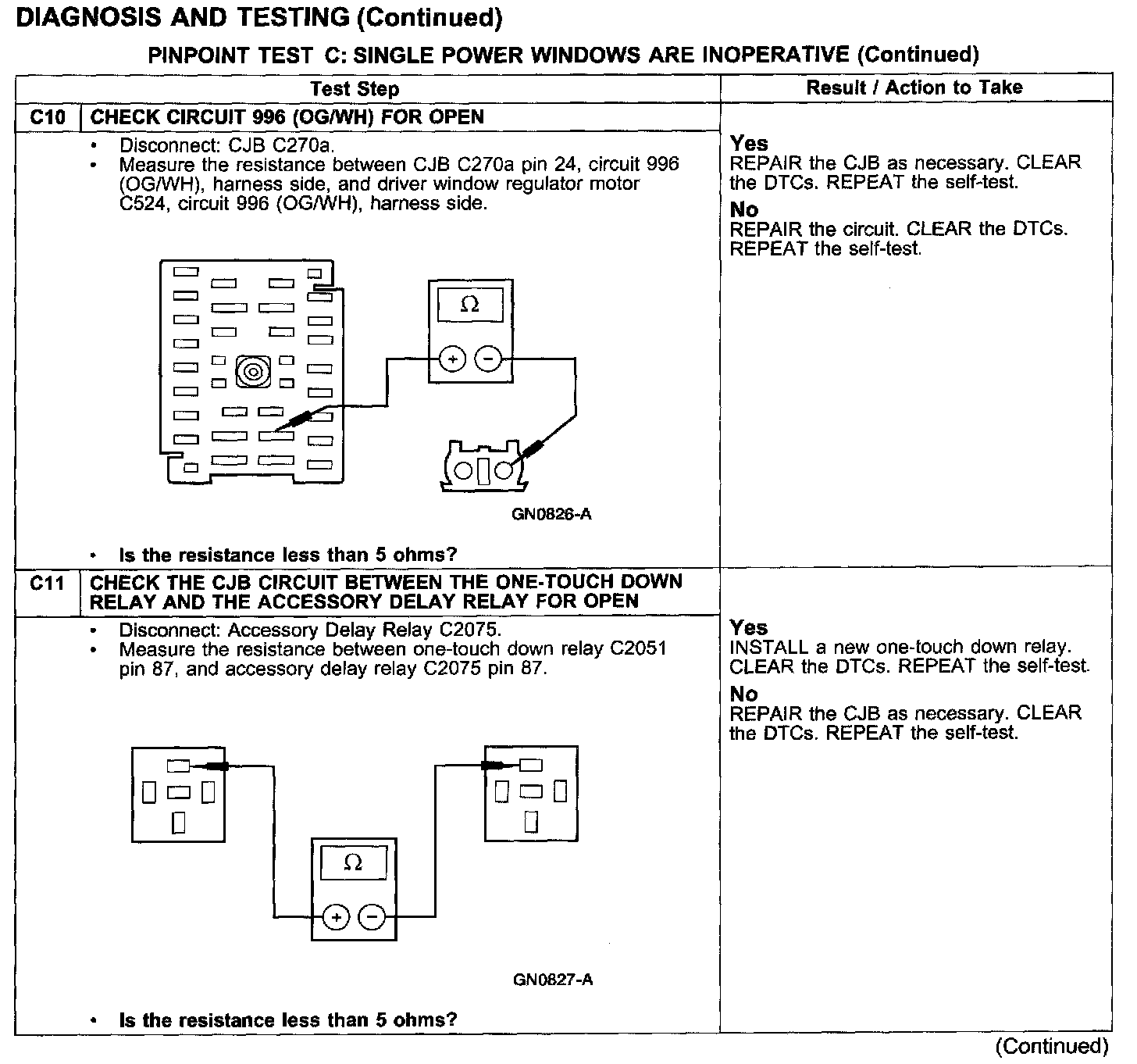

Test C10-C11:

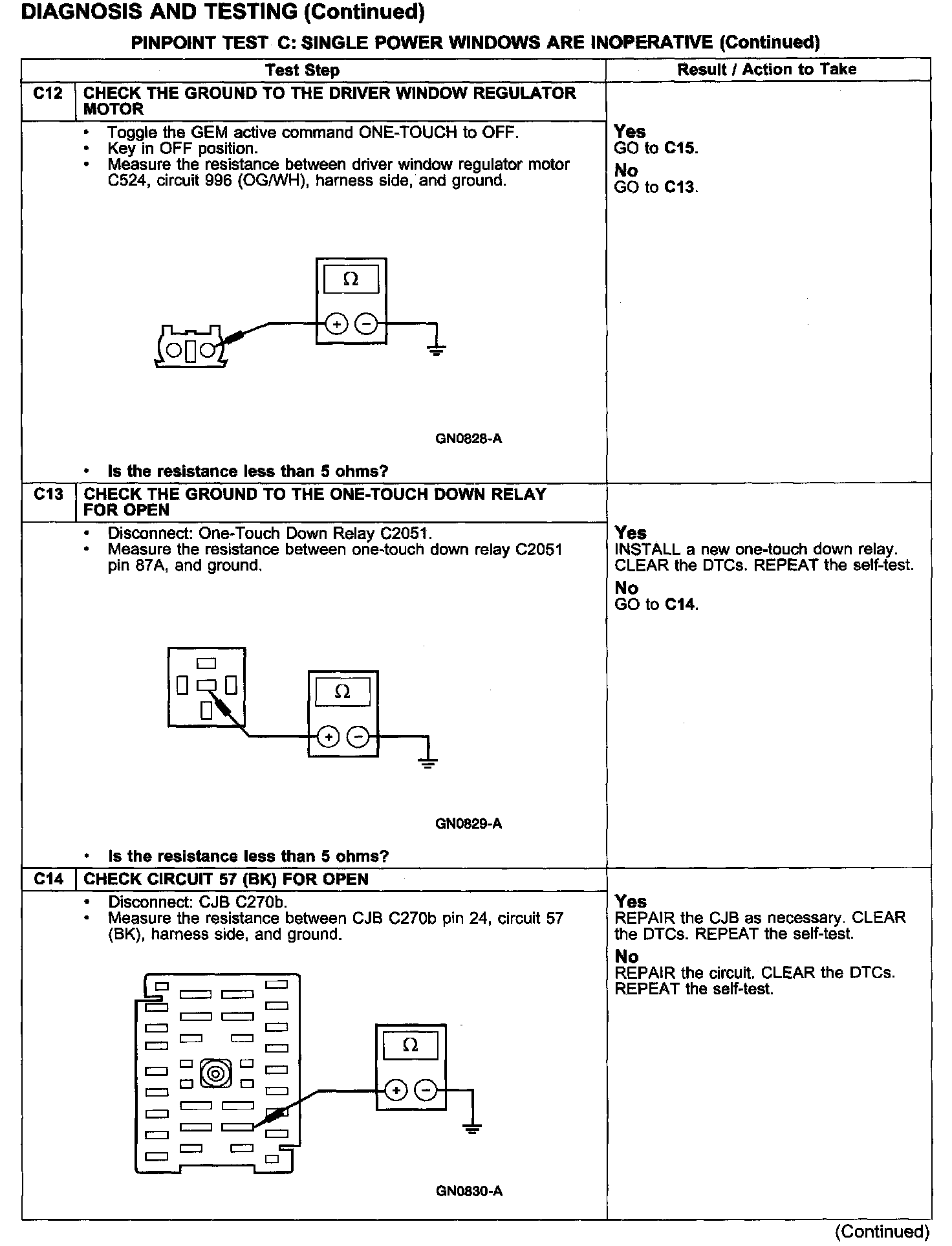

Test C12-C14:

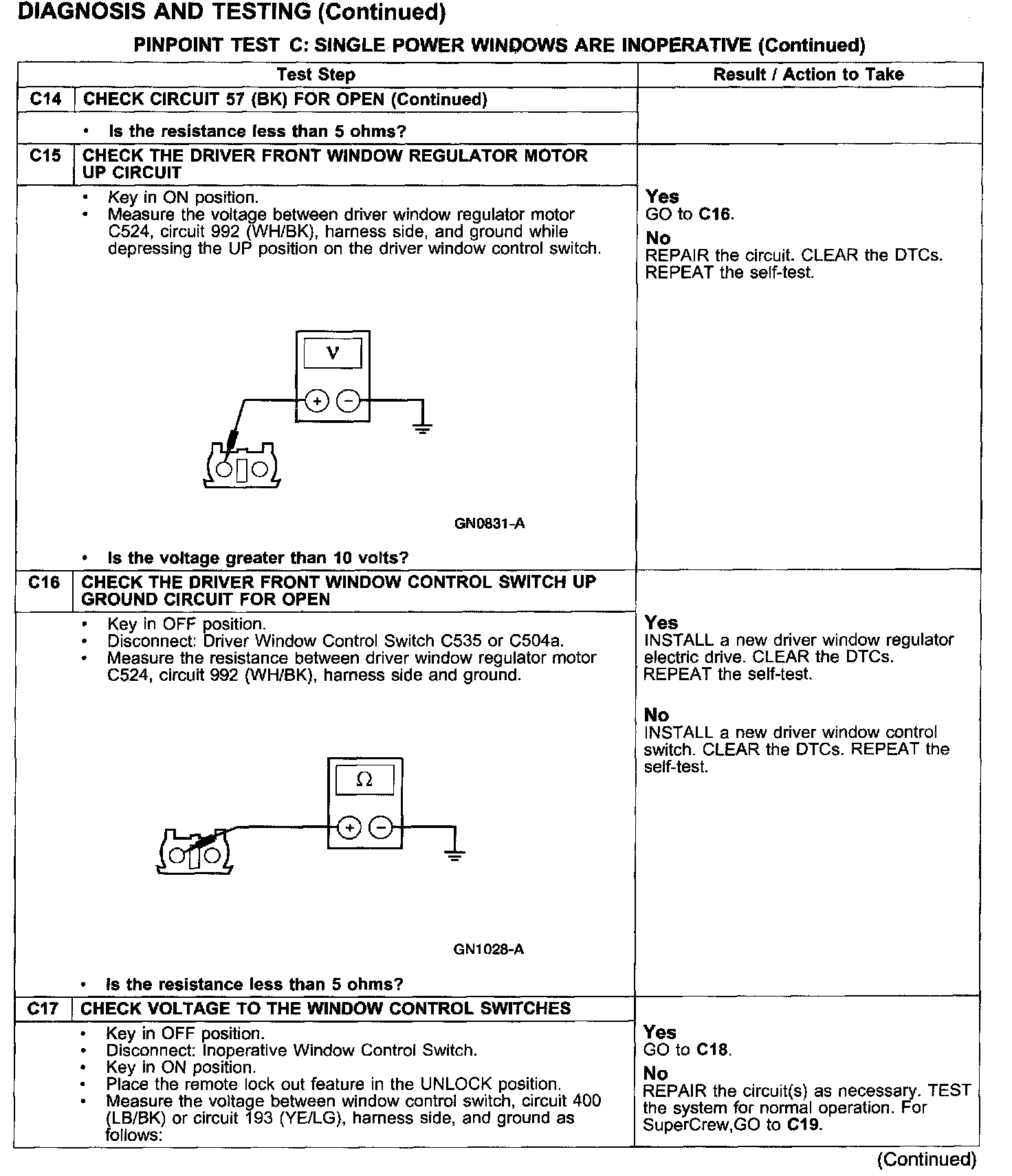

Test C14-C17:

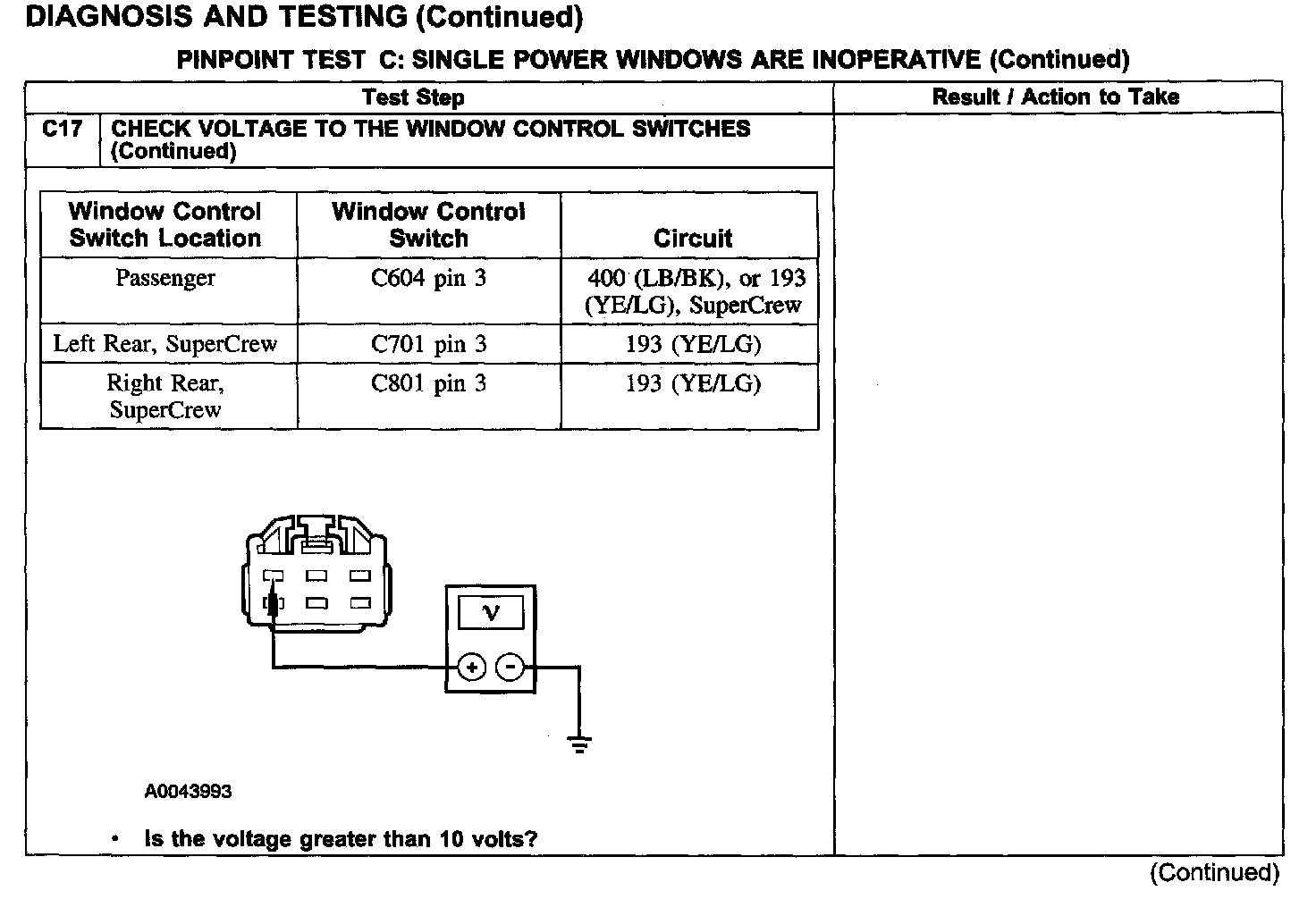

Test C17 Continued:

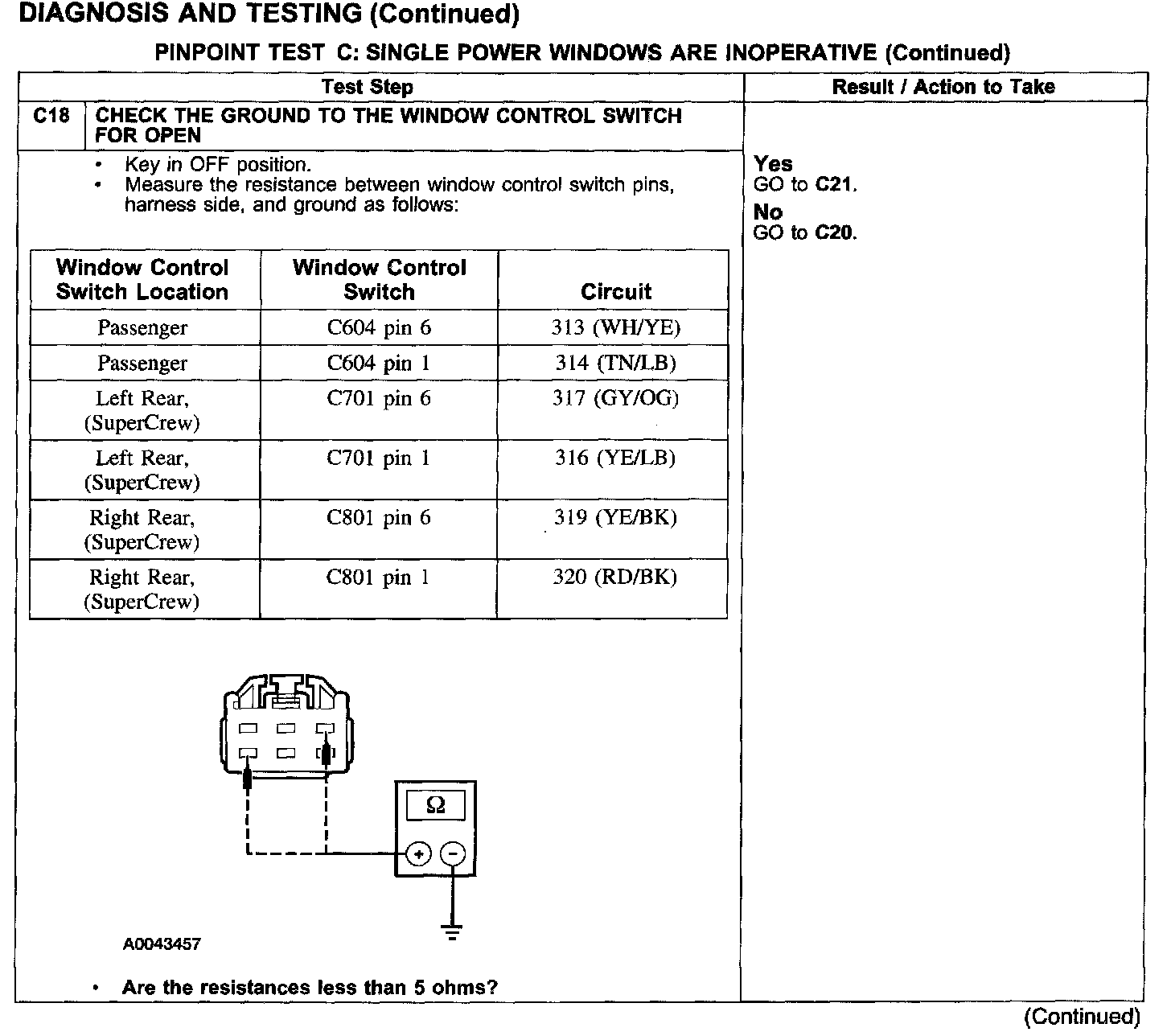

Test C18:

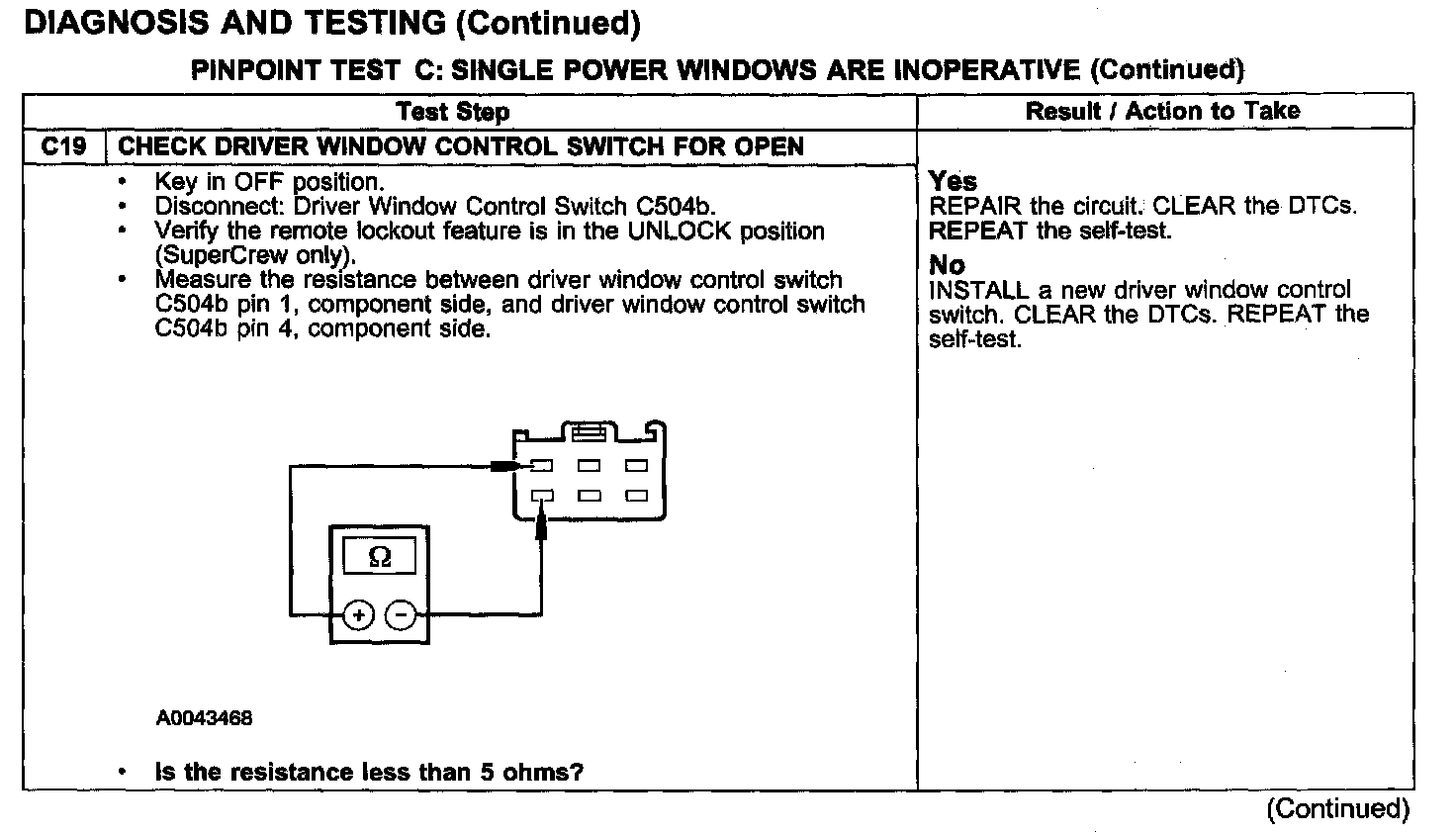

Test C19:

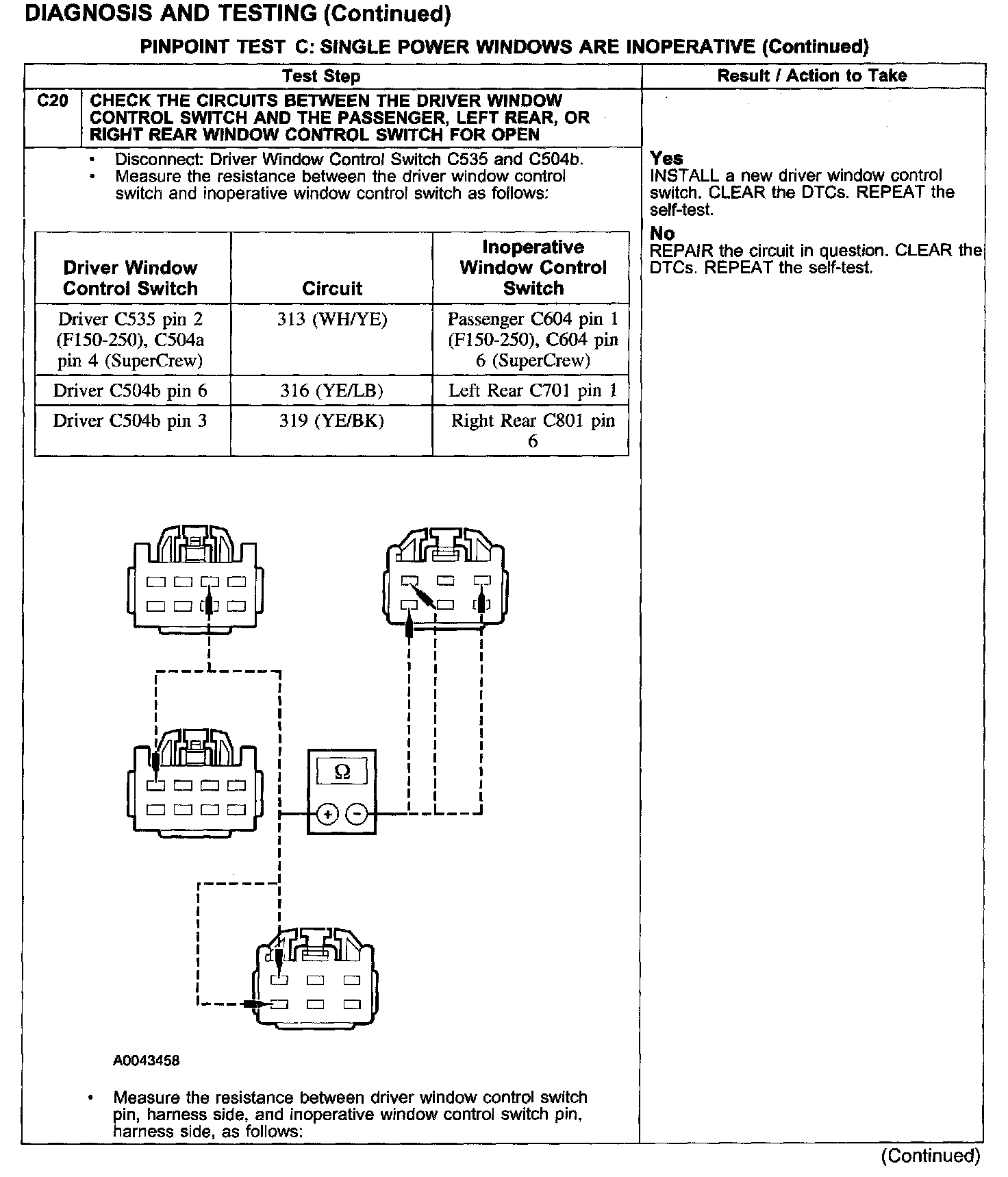

Test C20:

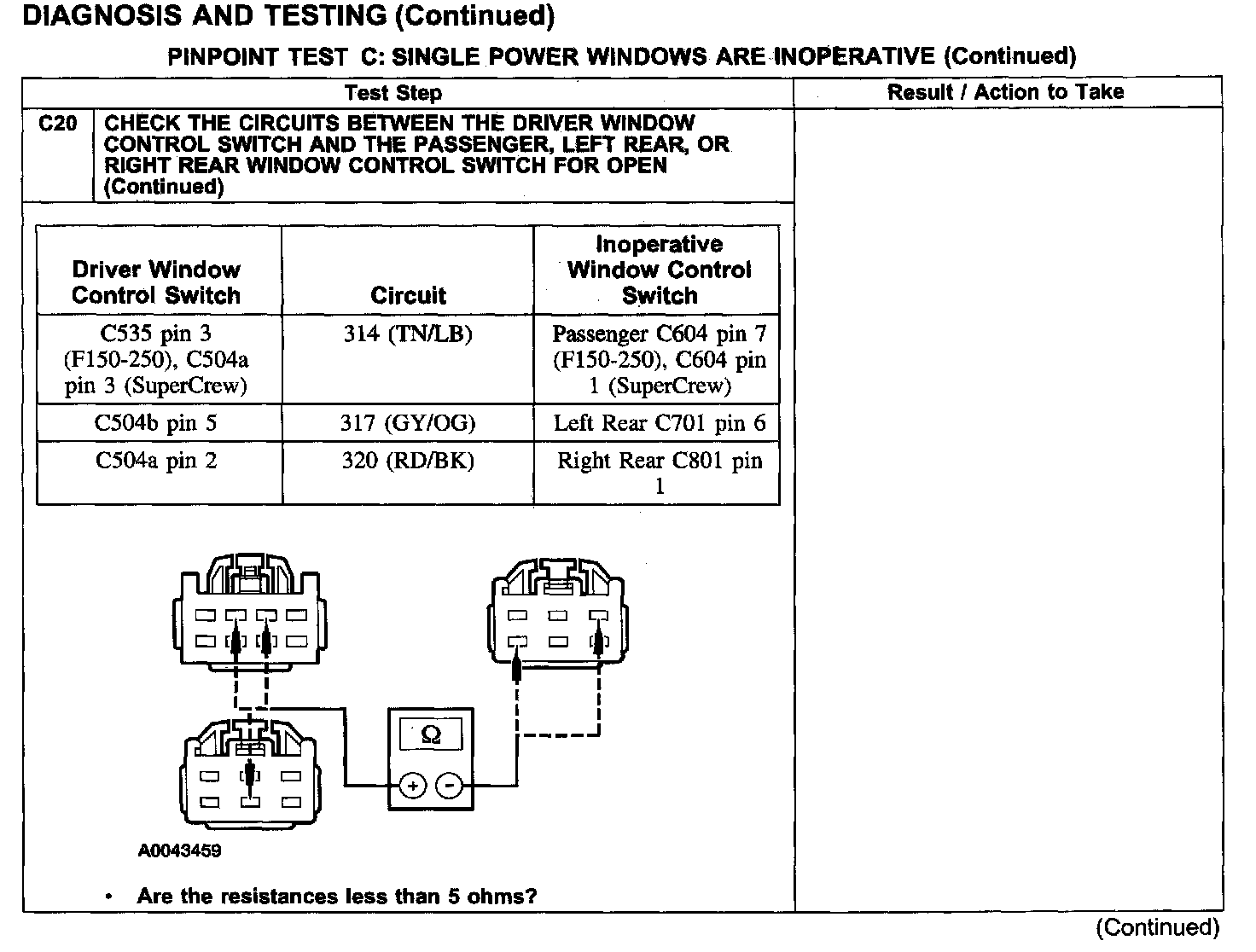

Test C20 Continued:

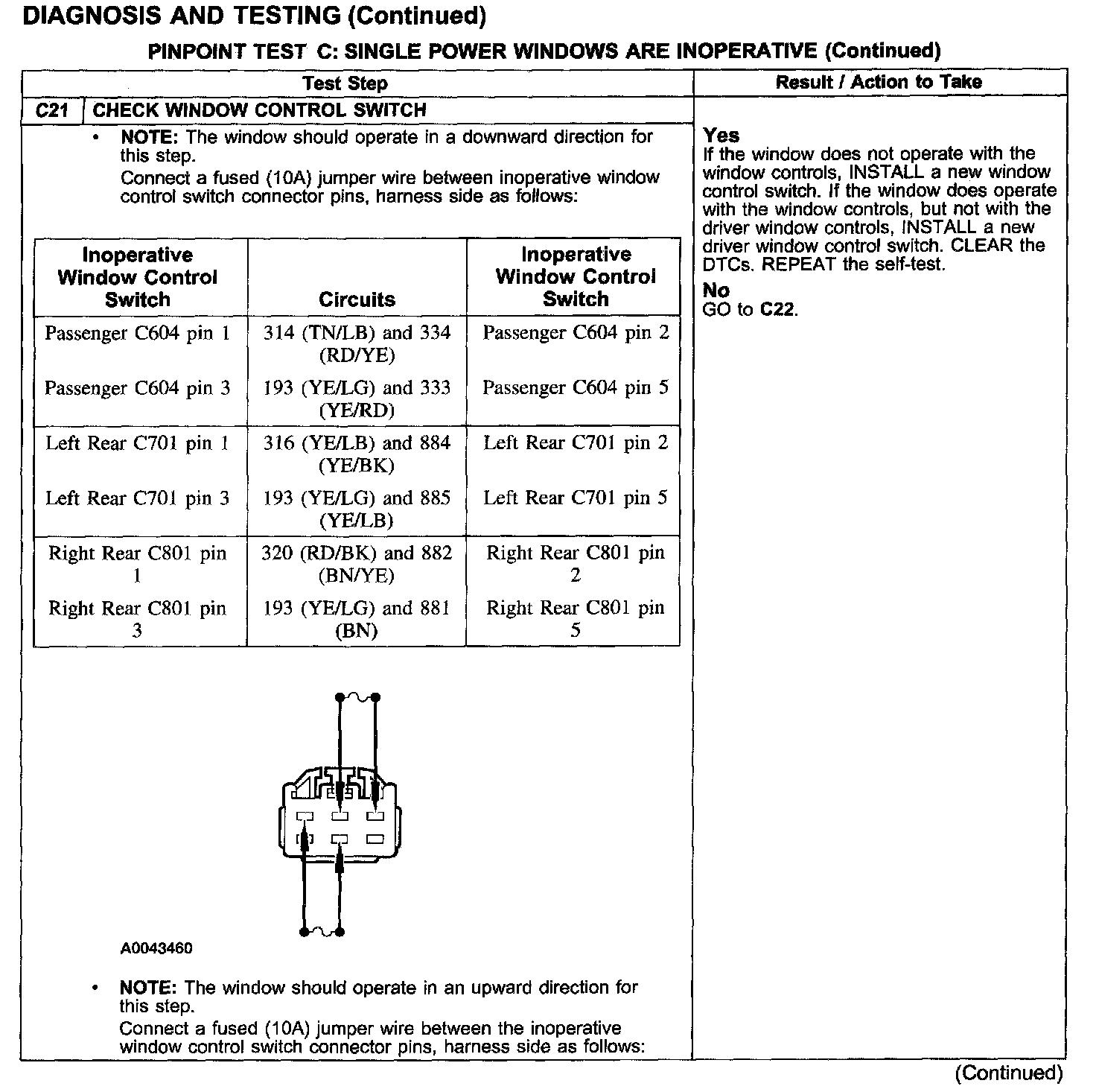

Test C21:






Test C21 Continued:

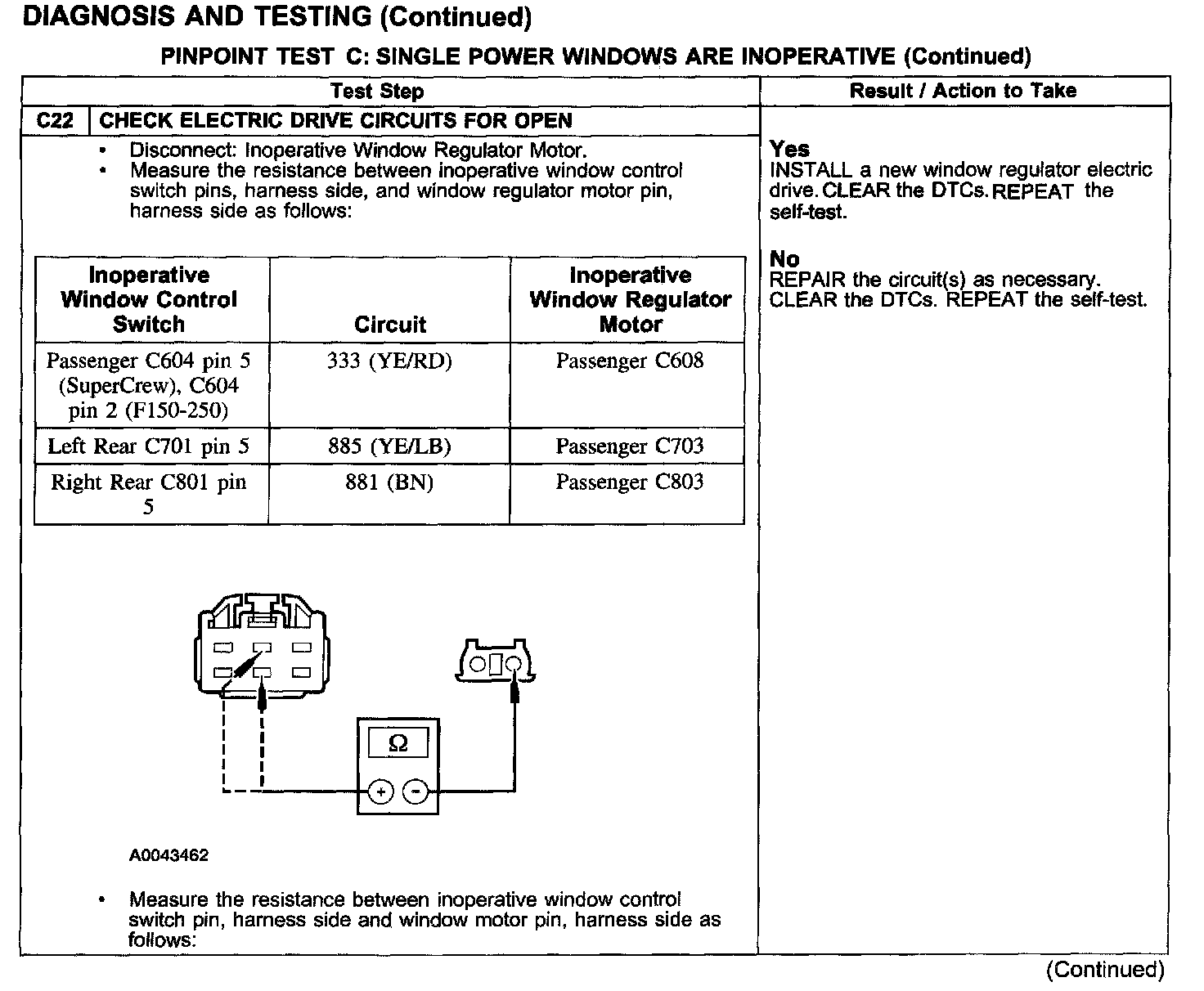

Test C22:

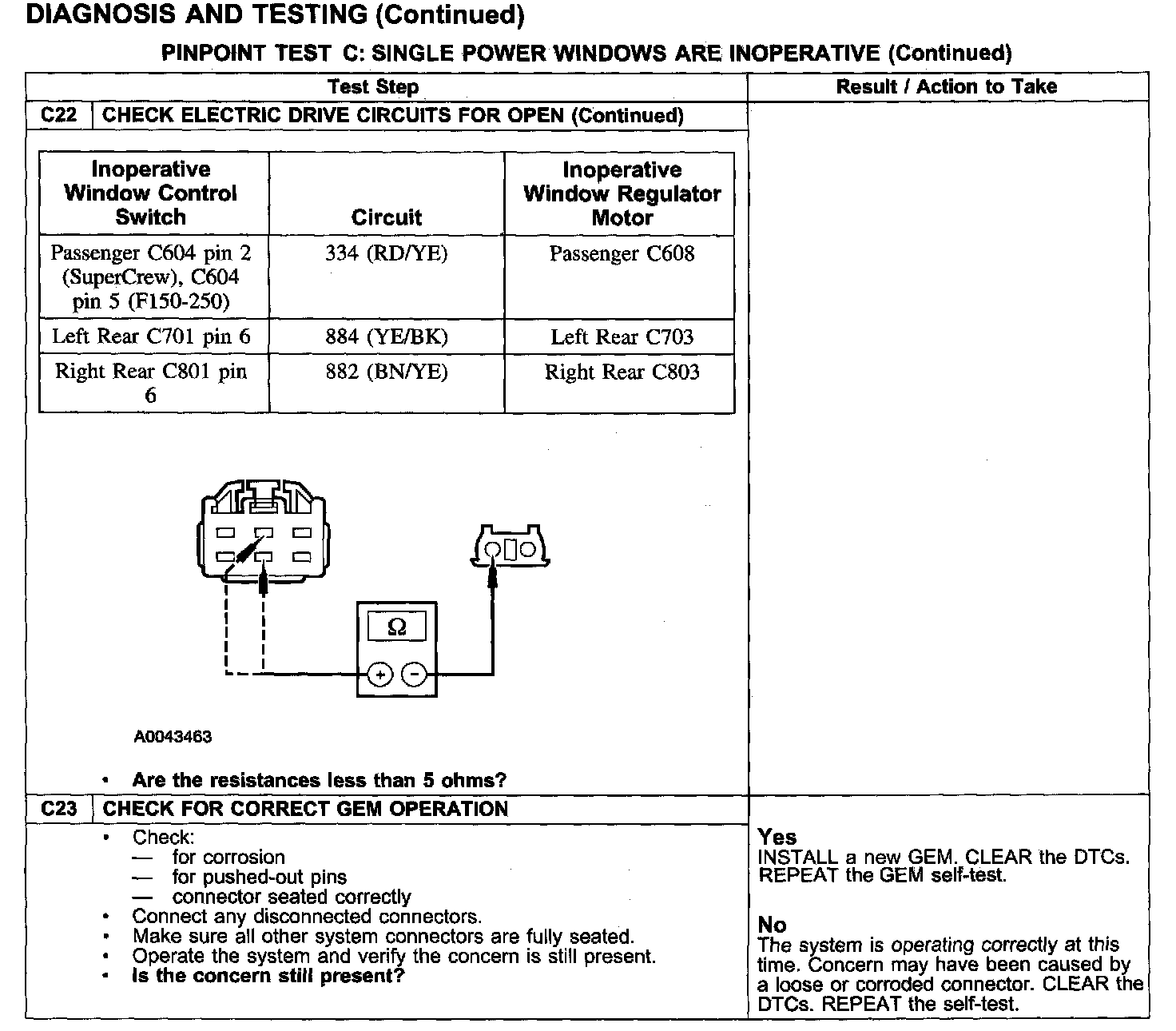

Test C22-C23:
