Quarter Window Glass: Service and Repair

WINDOW GLASS - REAR SIDE

REMOVAL

NOTE: Hinged glass shown, fixed glass similar.







1. If equipped, remove the rear door window latch screws.







2. Remove the rear door window garnish.







3. Remove the rear door window glass.

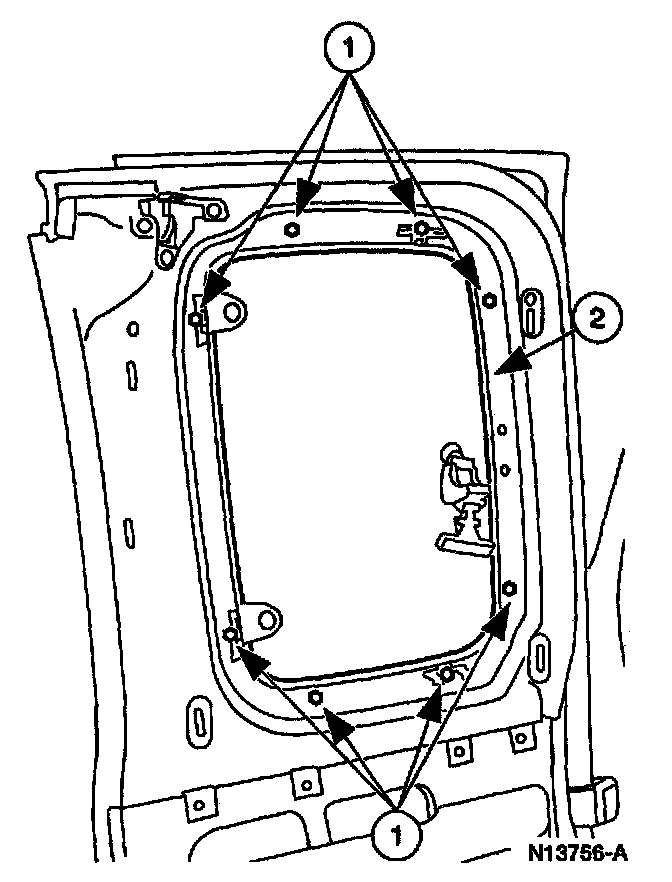

1 Remove the nuts.
2 Remove the rear door window glass.

4. Pry the window frame from the door.
5. Remove the excess foam butyl from the window frame.
6. Remove the excess foam butyl from the window opening.

INSTALLATION

1. NOTE: When applying foam butyl, leave a slight overlap at the bottom to allow for drainage.

Apply 8 mm foam butyl, or equivalent meeting Ford specification WSB-M3G143-B to the rear window frame.
- Start at the bottom middle and work around the frame.







2. Install the rear window frame and glass.

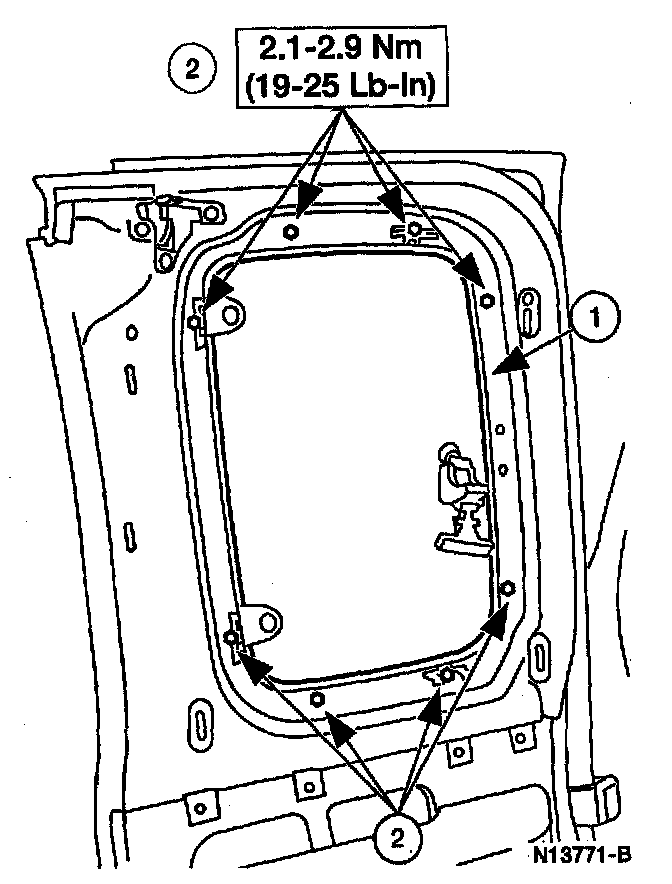

1 Position the rear window frame and glass.

2 NOTE: Loosely install all nuts before tightening.

Tighten the nuts to specification.

3. Install the rear door window garnish.







4. If equipped, install the rear door window latch screws.
