Diagnostic Trouble Code Tests and Associated Procedures

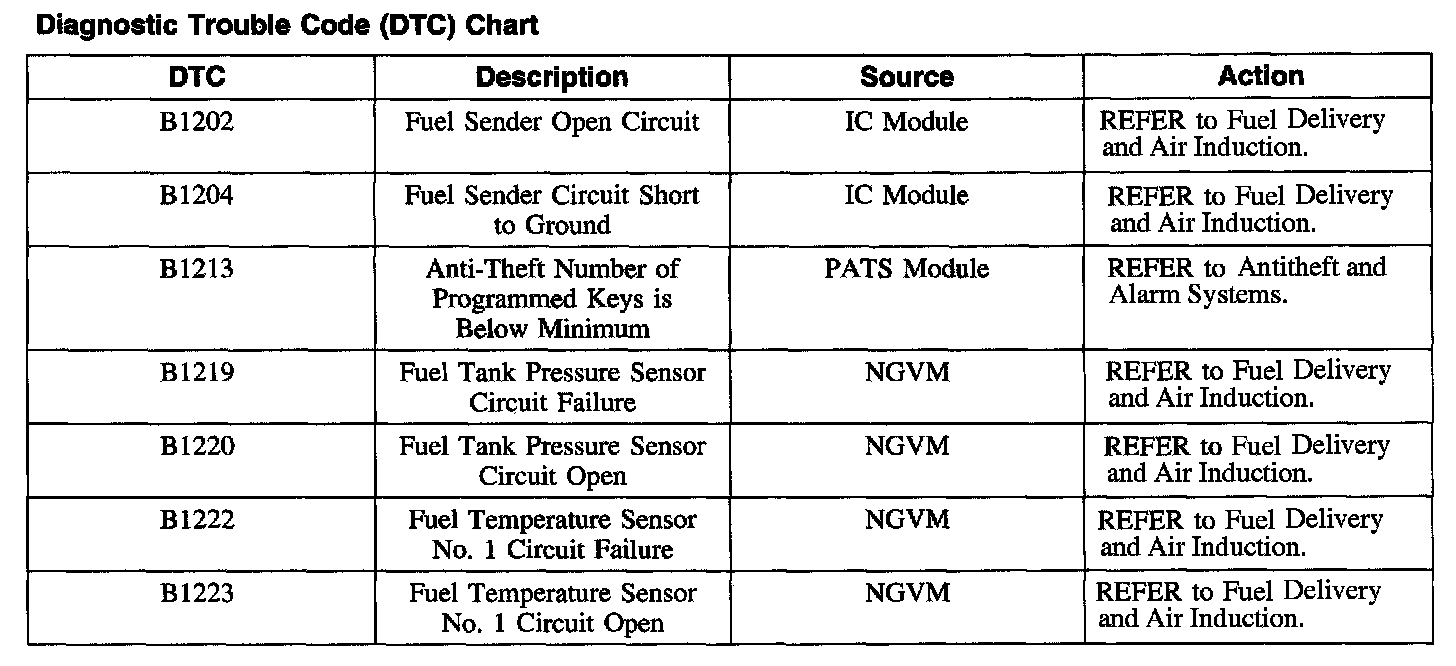

DTC Chart B1202 - B1223:

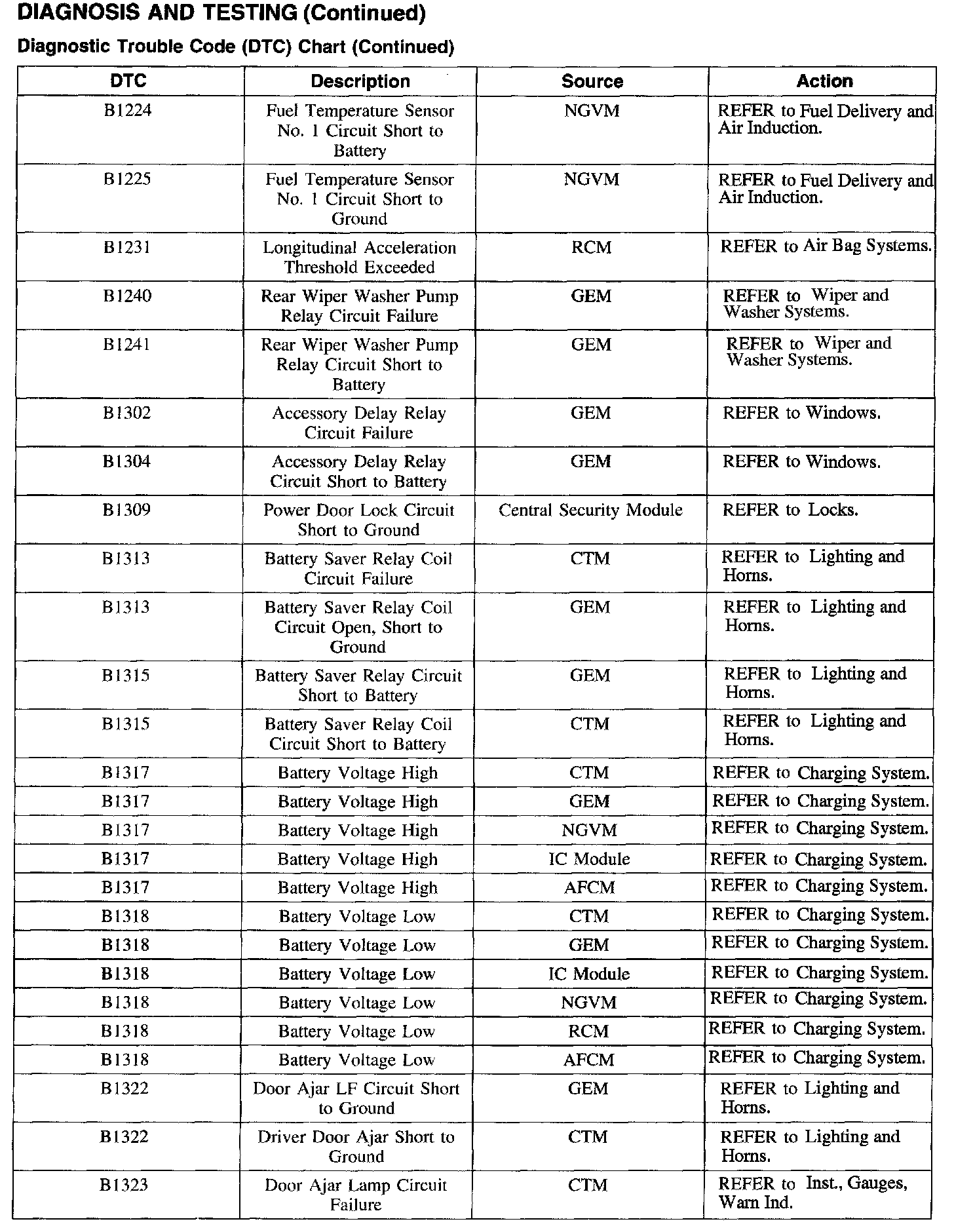

DTC Chart B1224 - B1323:

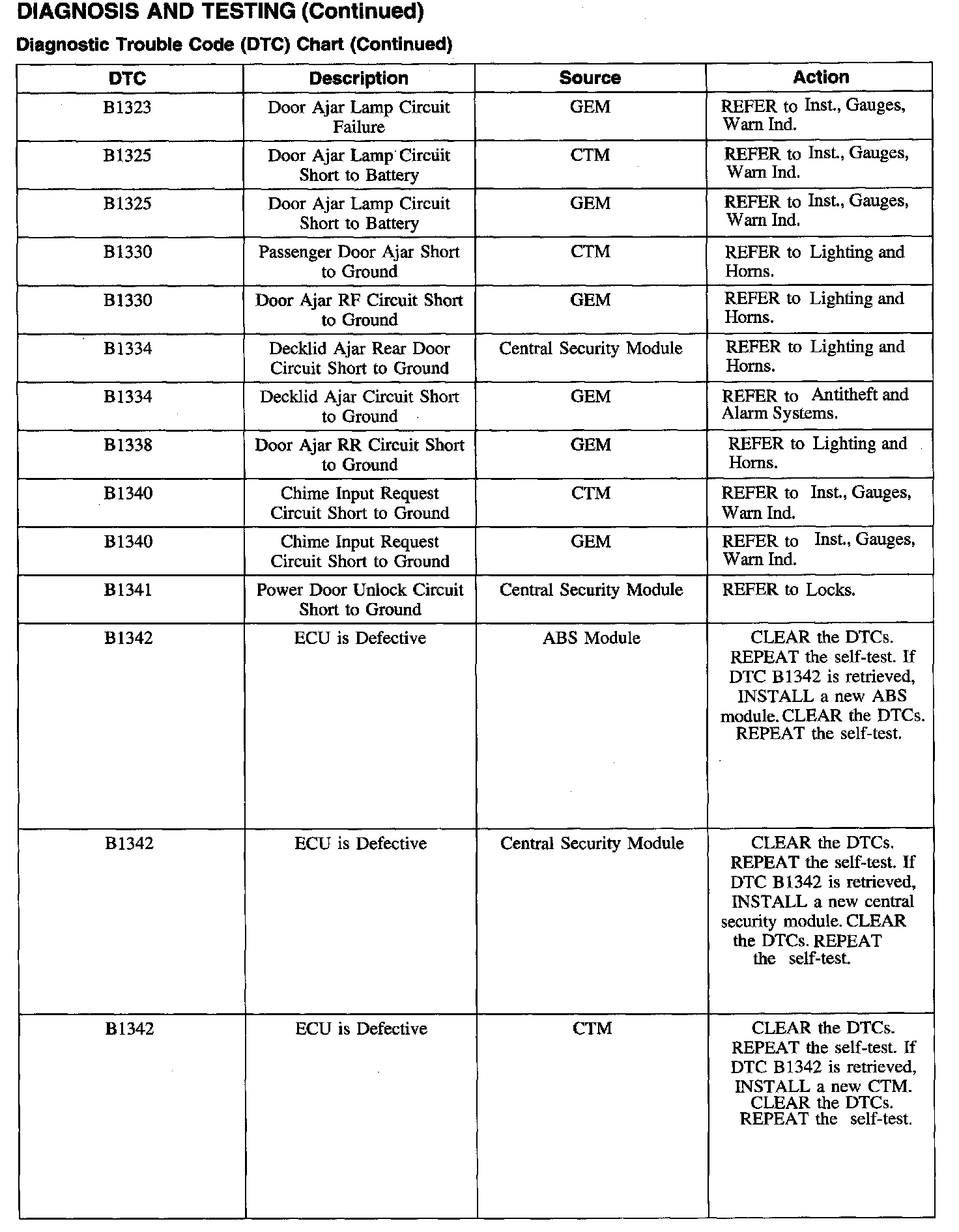

DTC Chart B1323 - B1342:

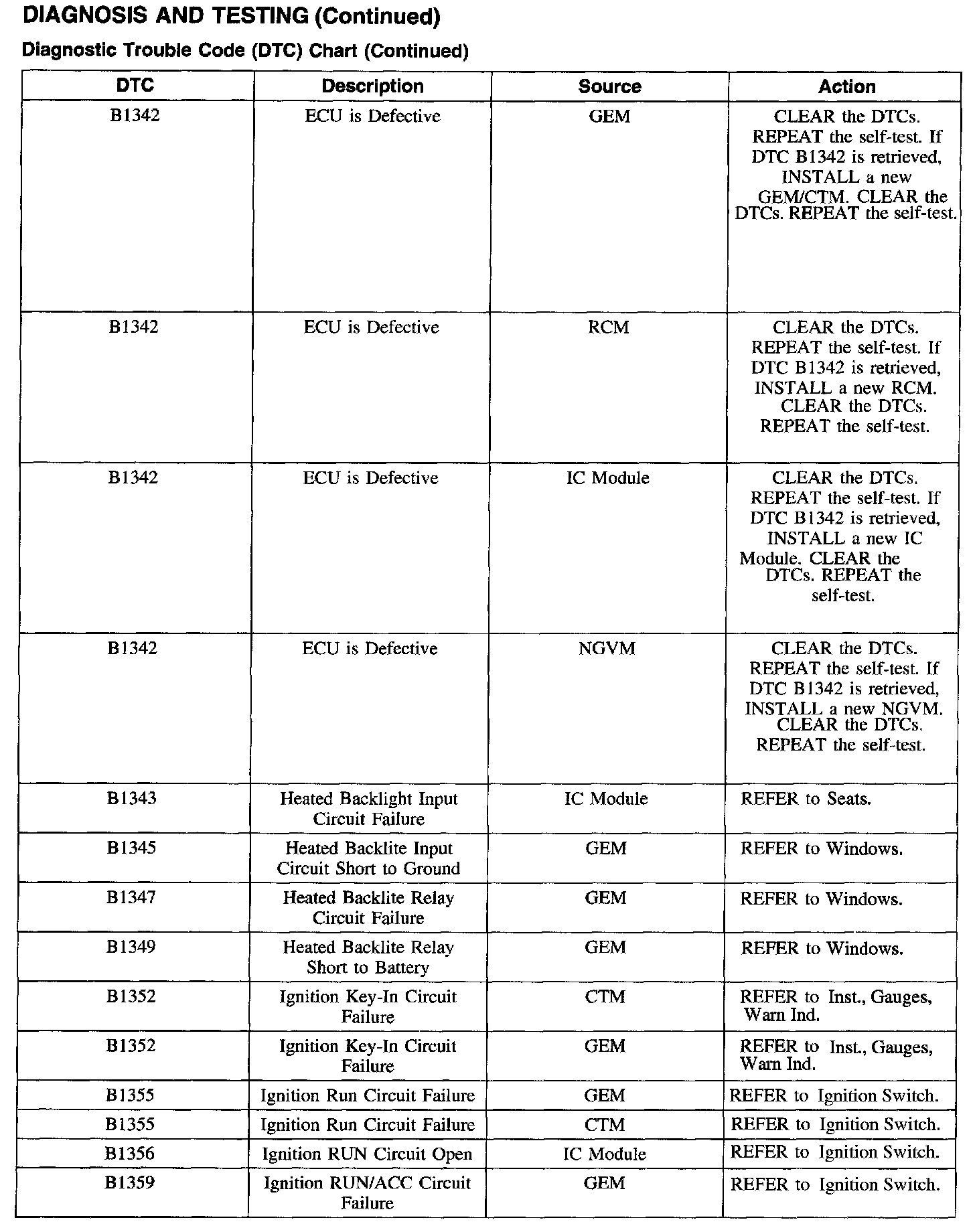

DTC Chart B1342 - B1359:

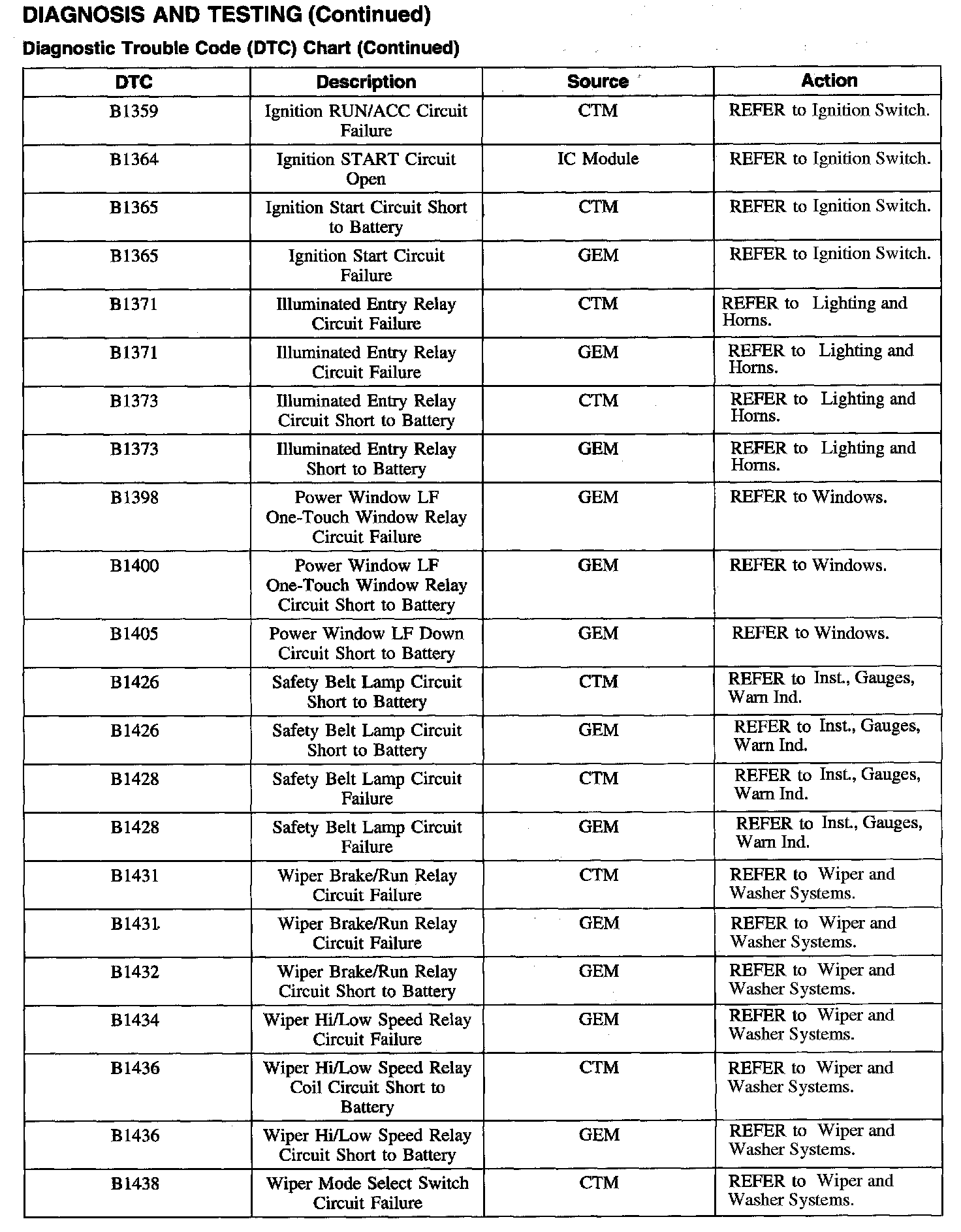

DTC Chart B1359 - B1438:

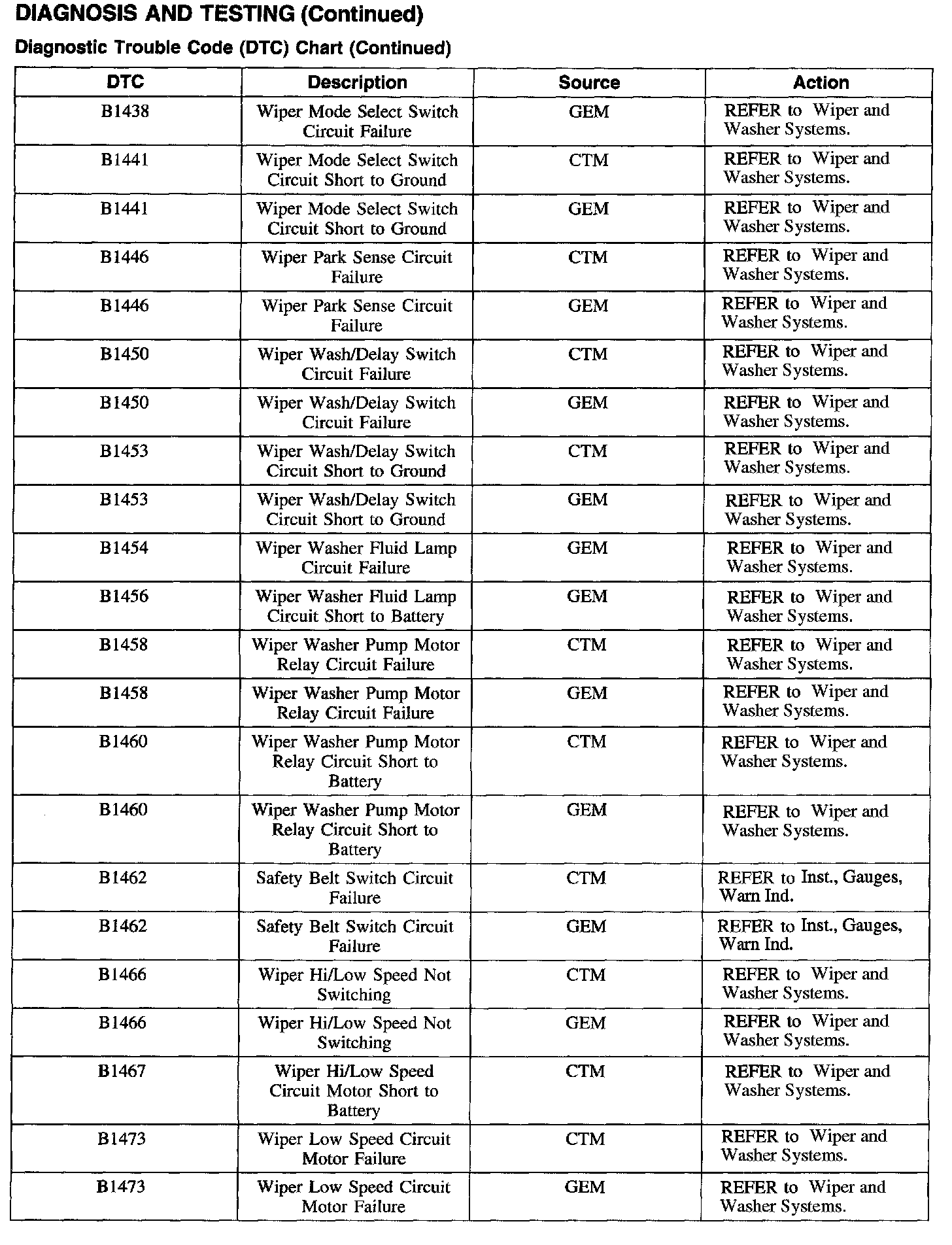

DTC Chart B1438 - B1473:

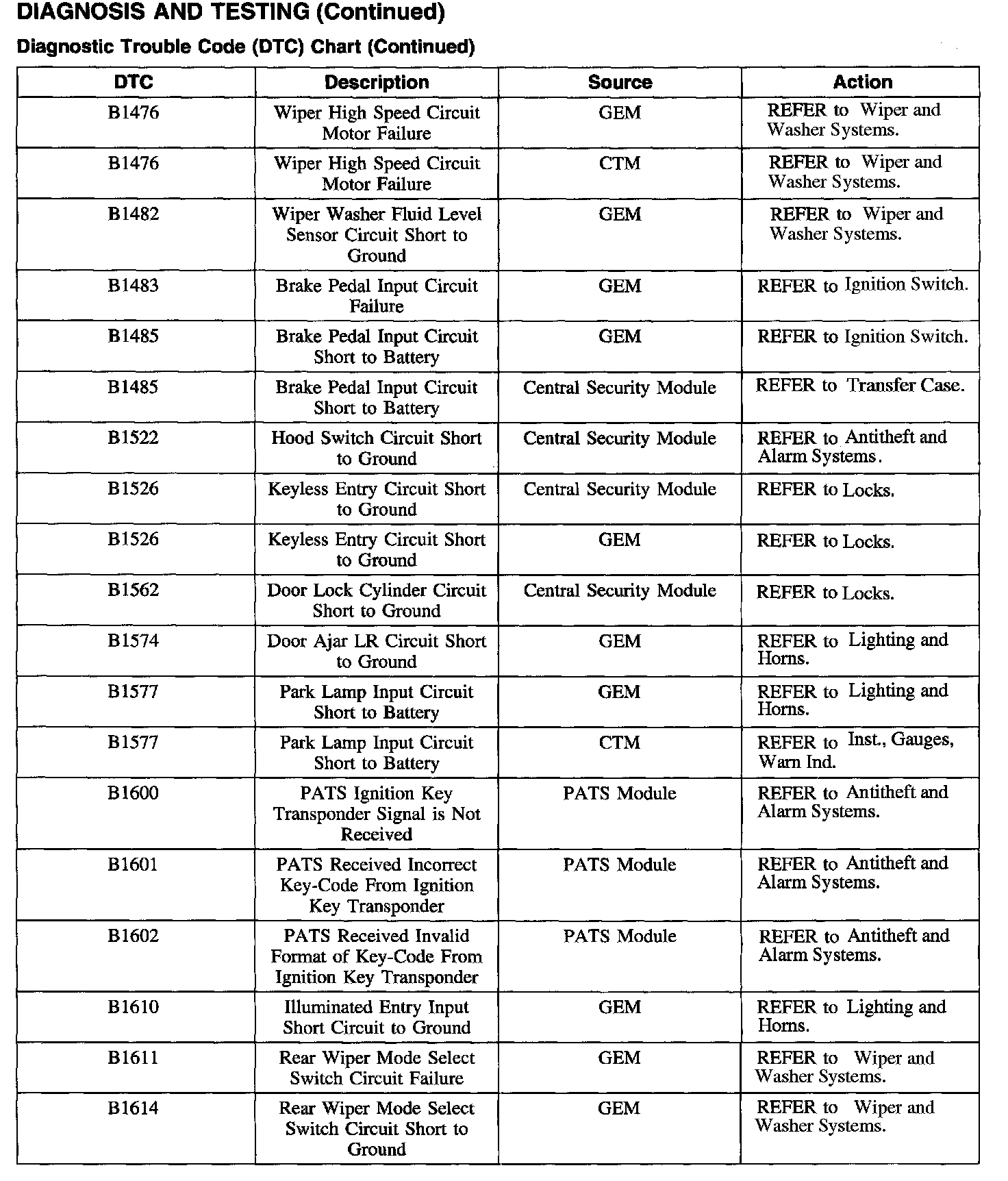

DTC Chart B1476 - B1614:

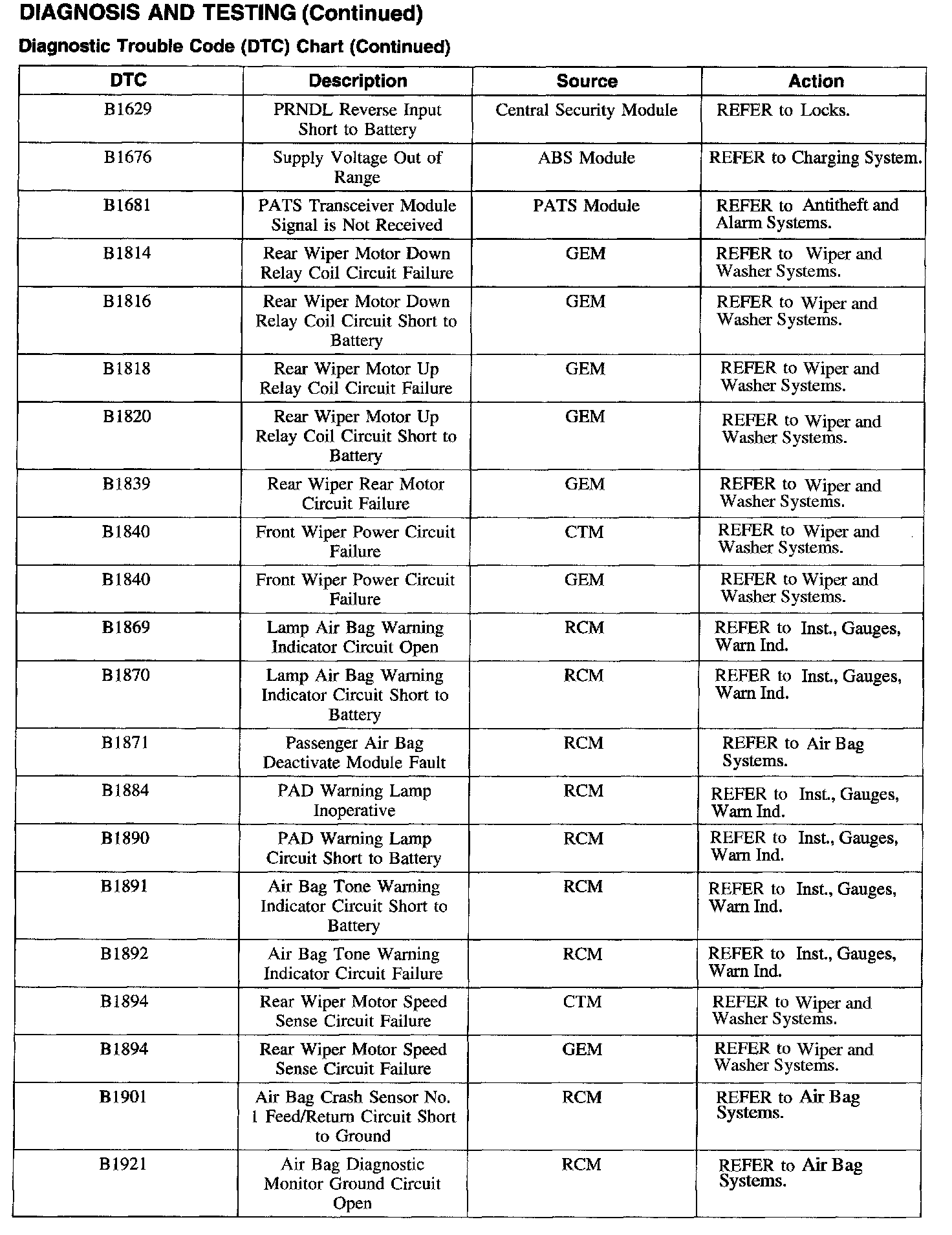

DTC Chart B1629 - B1921:

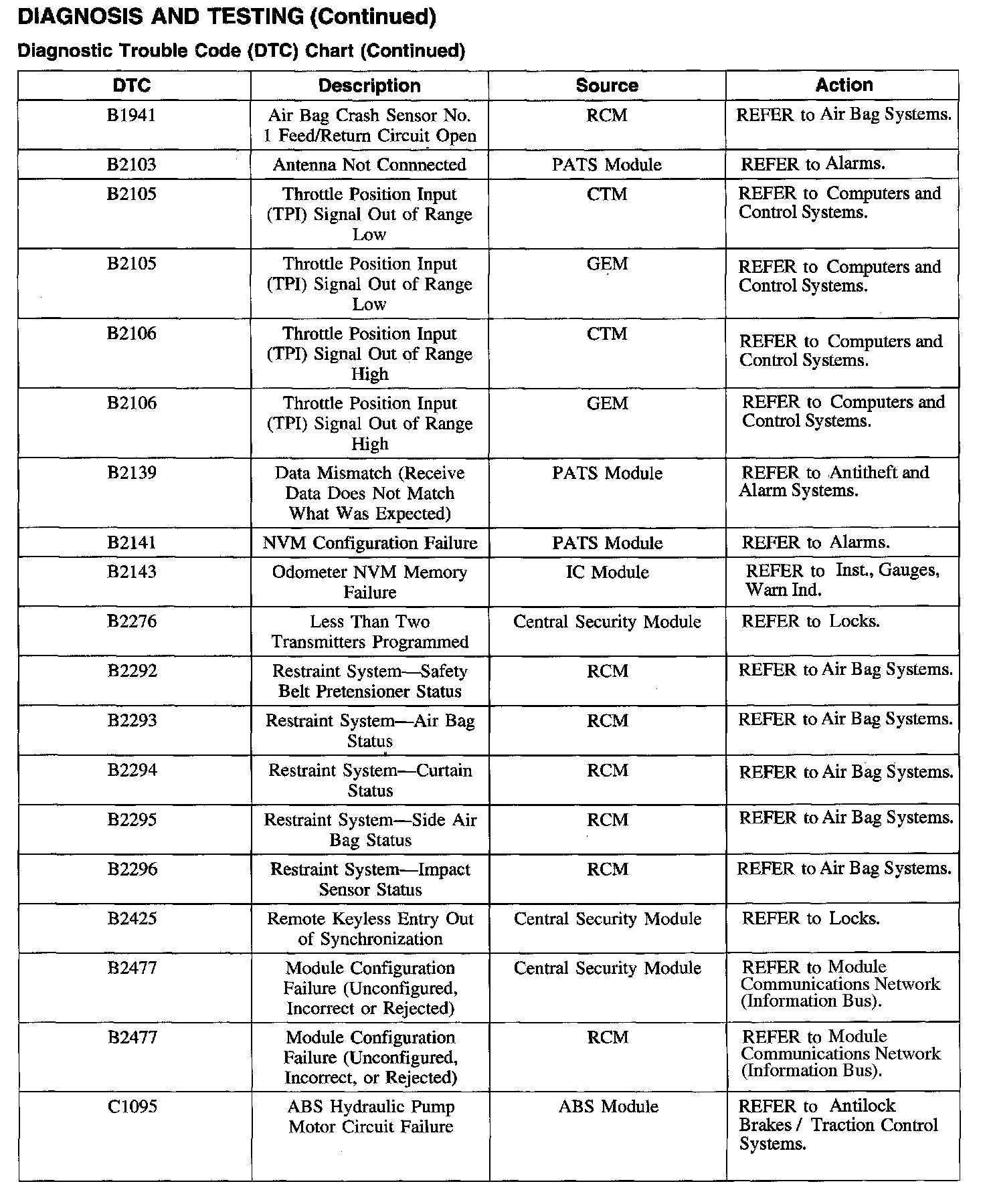

DTC Chart B1941 - C1095:

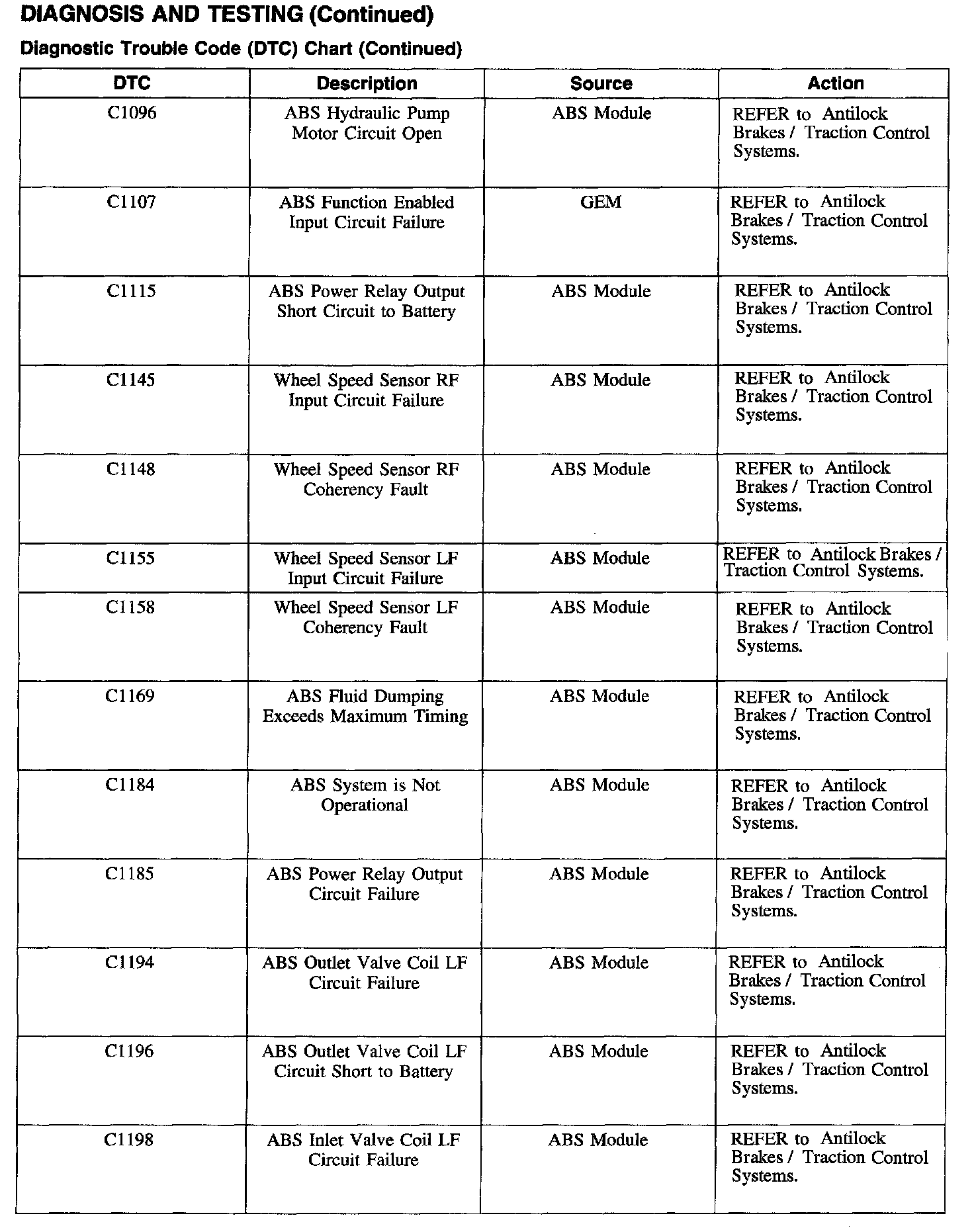

DTC Chart C1096 - C1198:

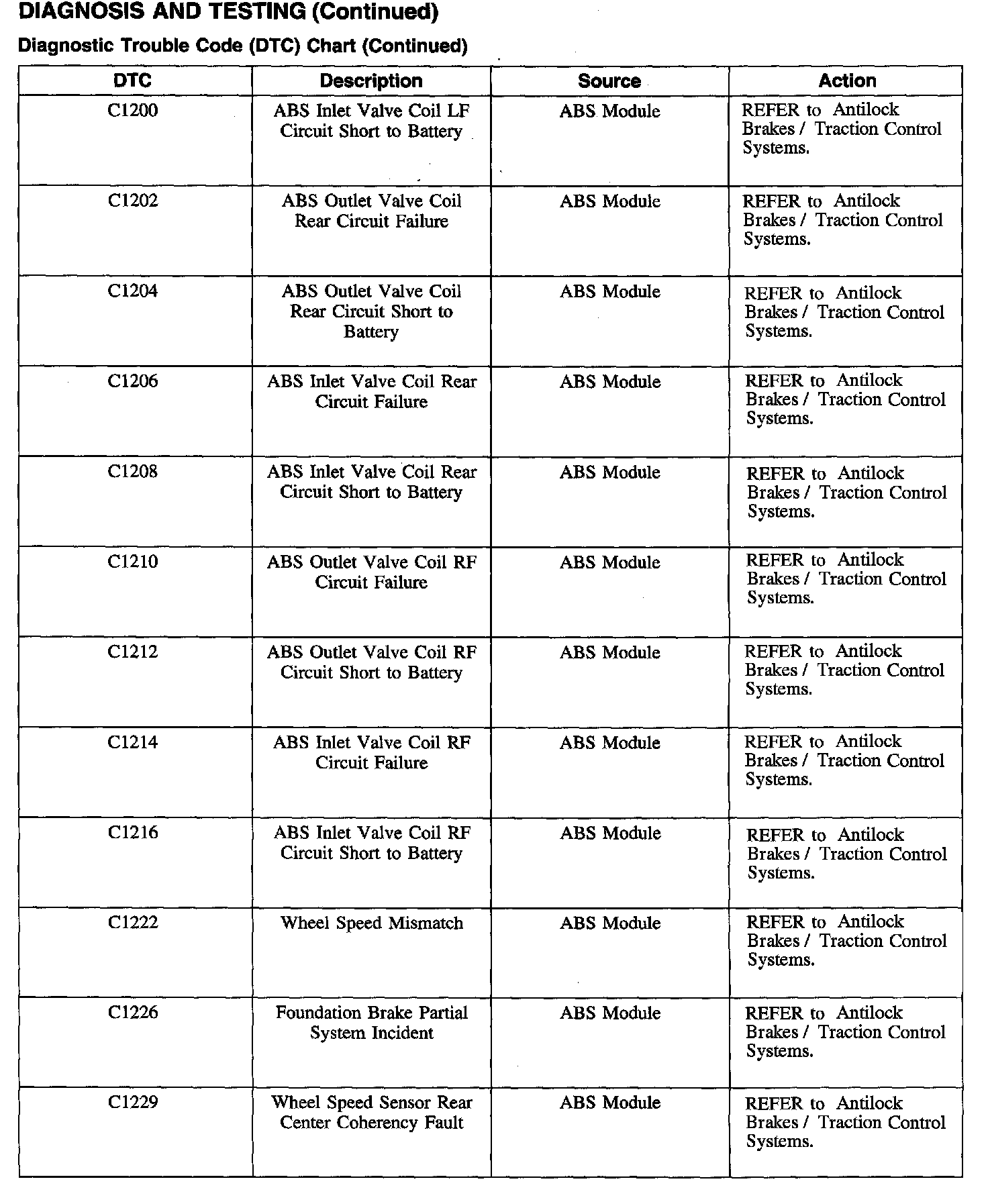

DTC Chart C1200 - C1229:

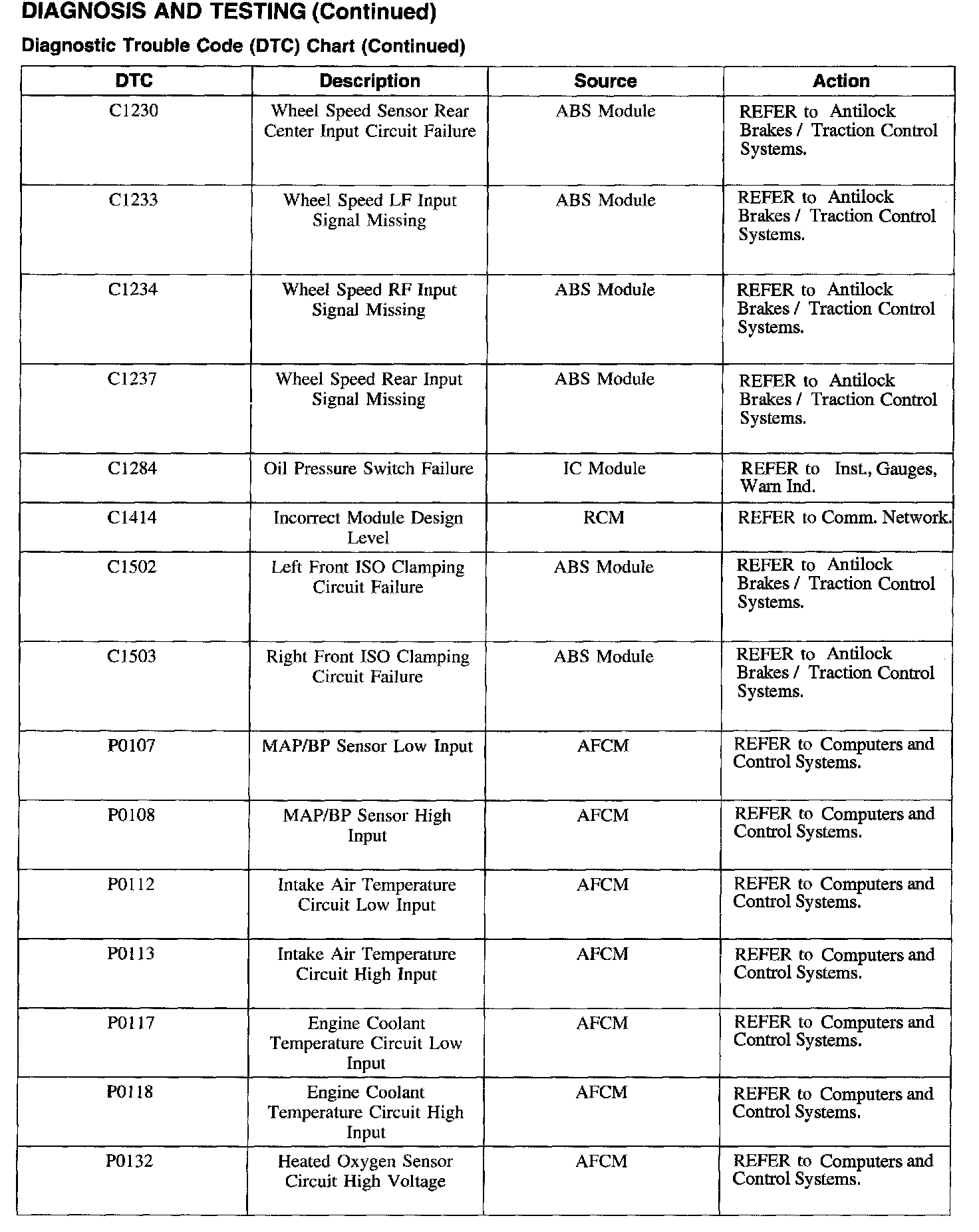

DTC Chart C1230 - P0132:

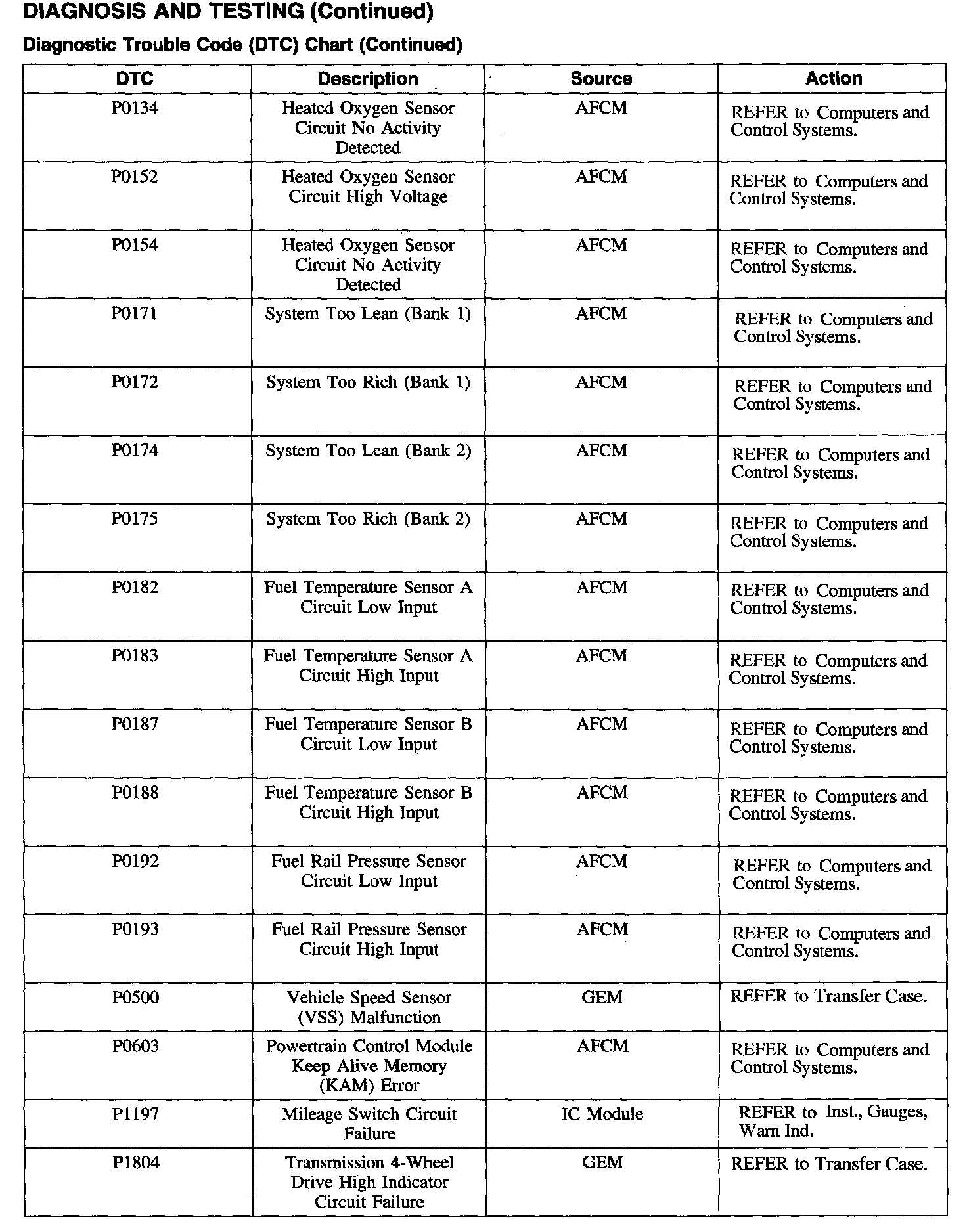

DTC Chart P0134 - P1804:

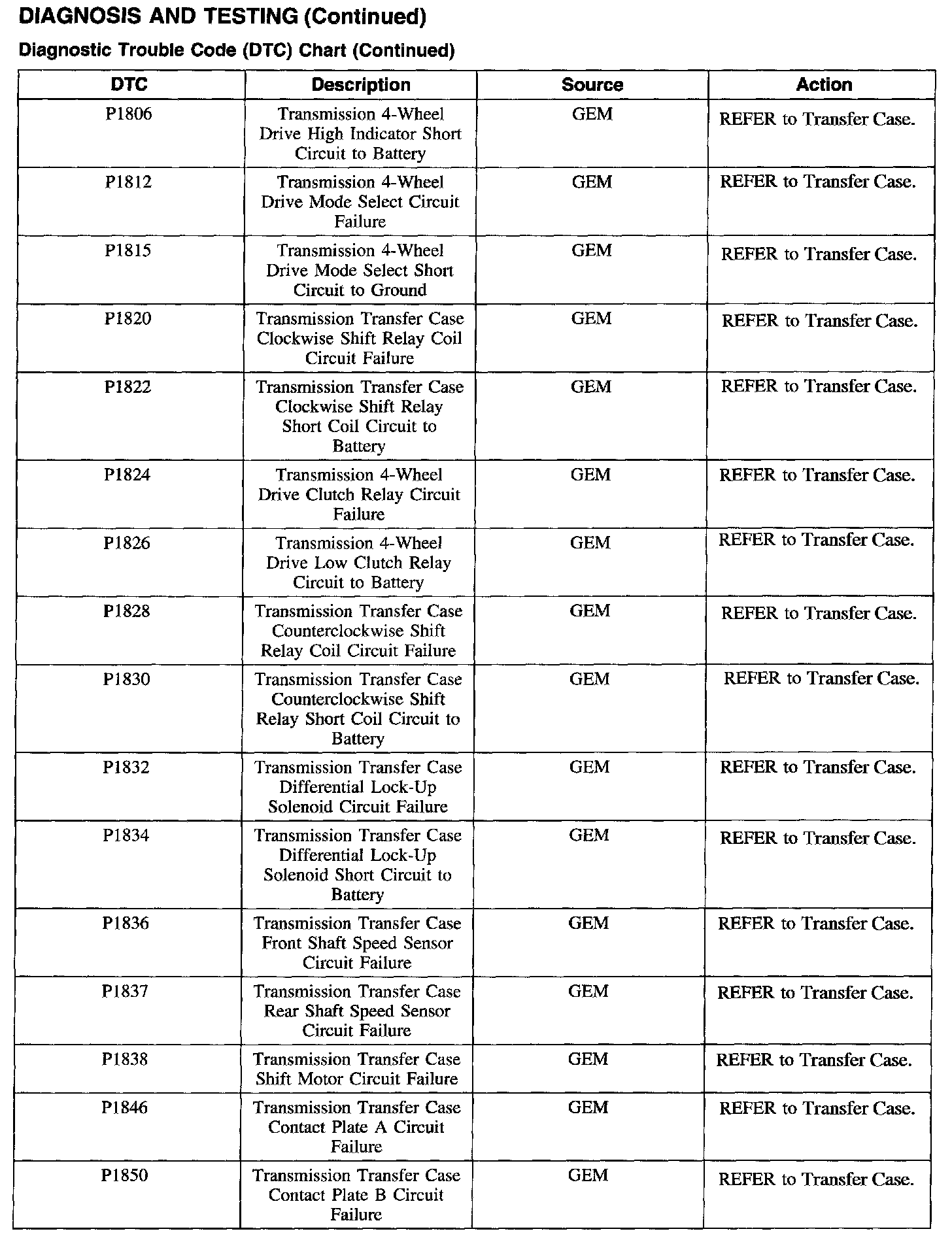

DTC Chart P1806 - P1850:

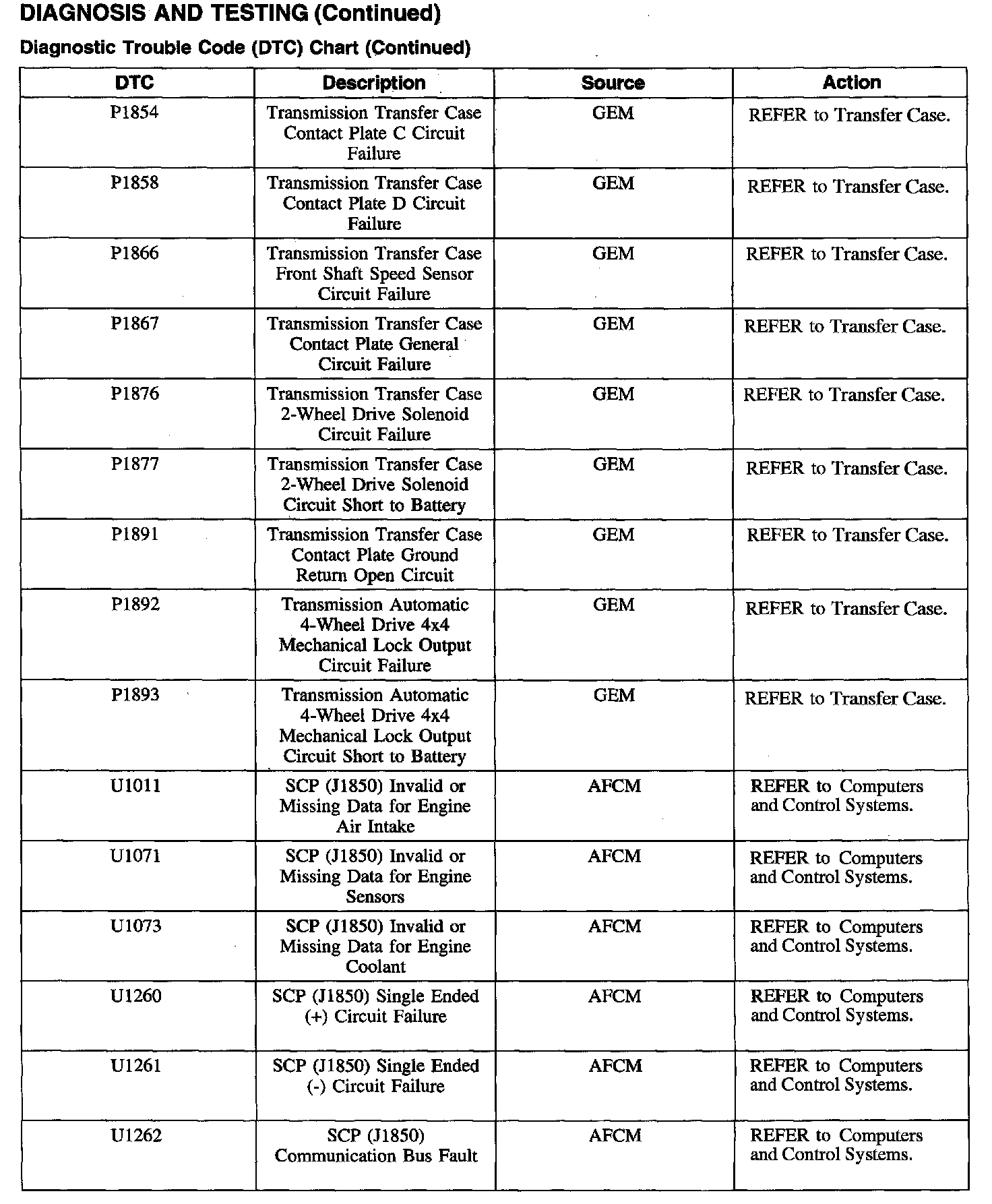

DTC Chart P1854 - U1262:






DTC Chart U1341 - U2015:
